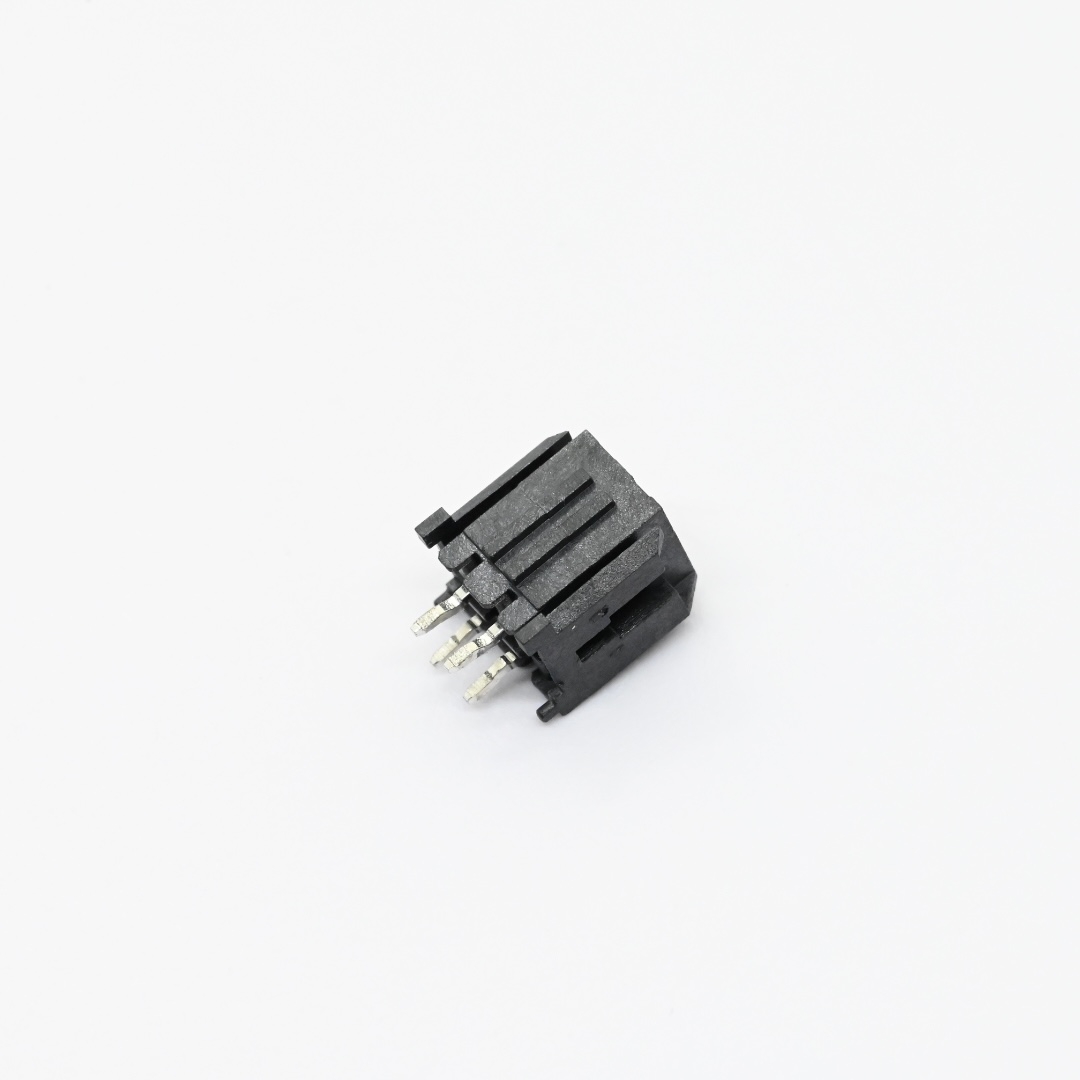

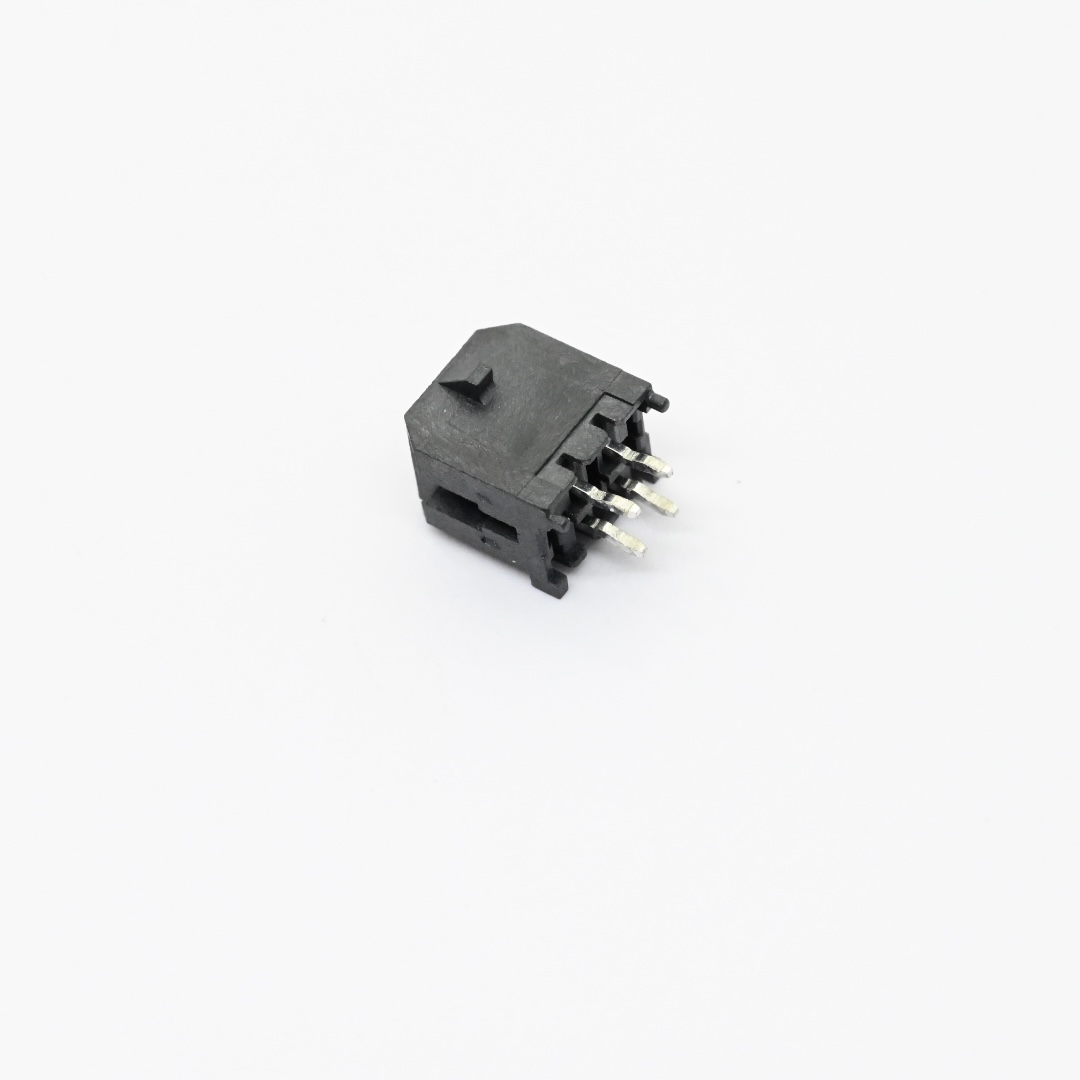

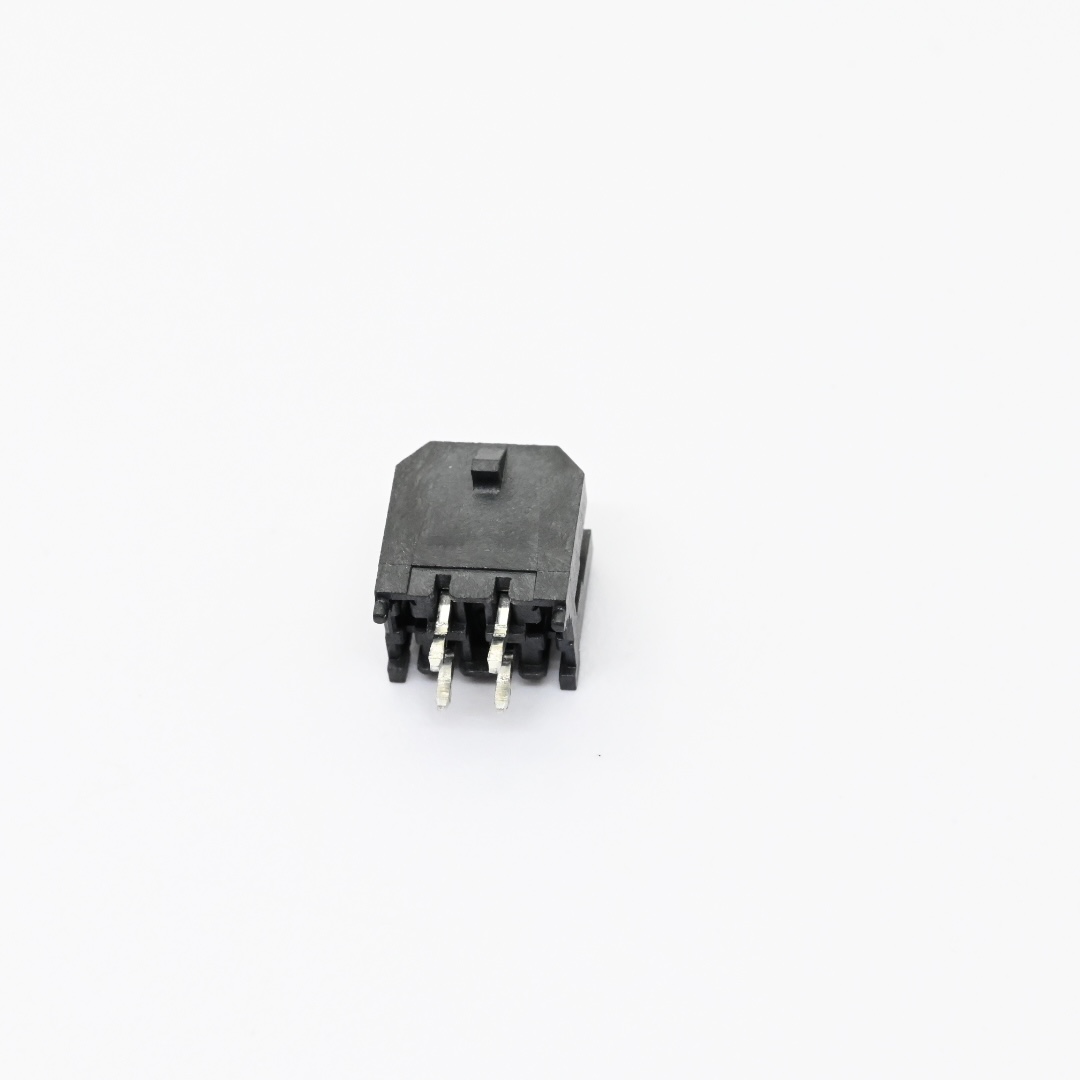

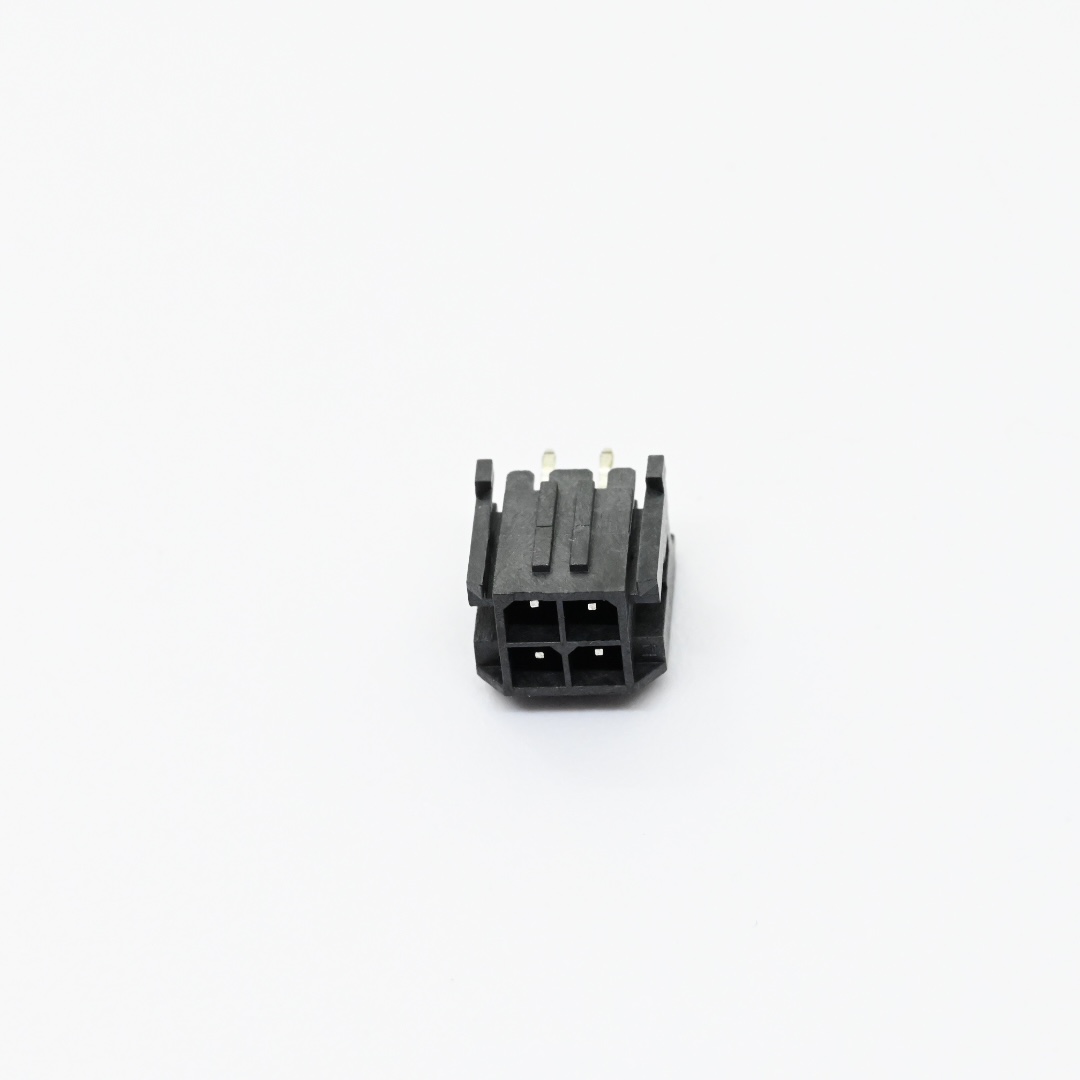

1.Product Description:
Huizhou Antenk Electronics Co Ltd manufactures dual row one hundred eighty degree wafer header with three point zero millimeter pitch to deliver stable power and signal wire to board interconnection for printed circuit board assemblies. This through hole wafer connector uses black LCP housing with UL94 V zero flame retardant rating and provides two pin style options including kink pin Type A and straight pin Type B, total pole selections cover two to twenty four positions, full dimension specifications are listed on engineering drawing for PCB footprint reference, it supports five amp AC DC rated current, two hundred fifty volt AC DC rated voltage, one thousand five hundred volt AC withstanding voltage for one minute, insulation resistance above one thousand megaohm and contact resistance below twenty milliohm and performs reliably from minus twenty five degree Celsius to eighty five degree Celsius. Users finish through hole soldering following official PCB drawing and mate with matching cable housing to establish dependable circuit links for target electronic devices. Operators must comply with drawing dimensional tolerances for PCB design avoid excessive mating force to prevent pin deformation and store goods under dry environment to keep plated surfaces away from corrosion. Unlike competitors sourcing external components Antenk implements full in house workflow covering plastic molding terminal stamping assembly and comprehensive laboratory performance testing. Our factory holds ISO9001 ISO14001 IATF16949 and UL certifications and more than seventy percent finished goods export worldwide. This header fits household appliances industrial control modules and consumer electronic assemblies. Please share your pole count pin style and project specifications for free sample evaluation and complete technical document support.

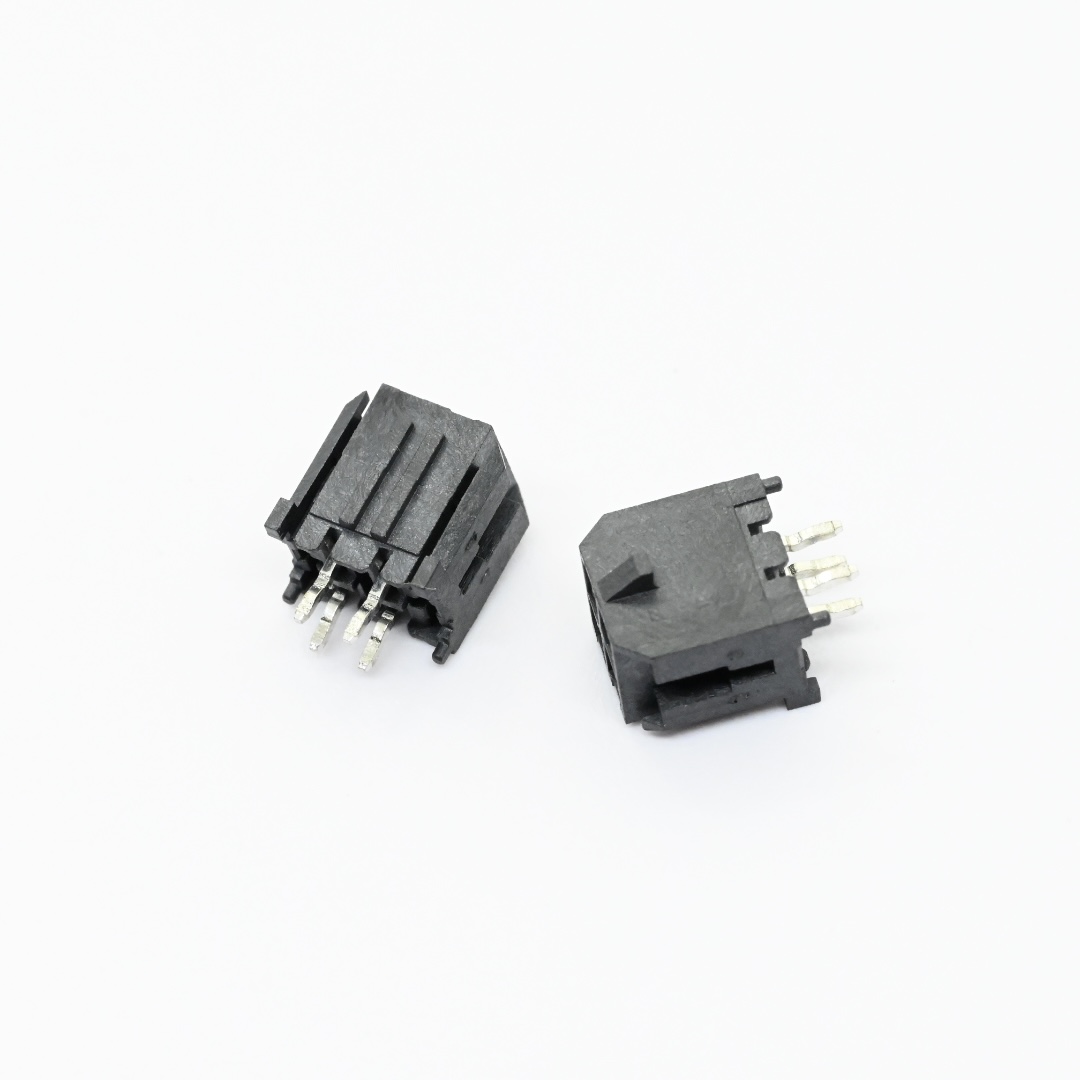

Dual Pin Style Wafer Connector offers kink pin and straight pin alternatives to satisfy diverse PCB mounting requirements for wire to board applications.
High Voltage Wire To Board connector sustains stable operation under 250 volt rated voltage and 1500 volt AC withstanding voltage for electronic assemblies.
Variable Position Wafer Receptacle supports pole selections ranging from two to twenty four positions to match different hardware layout demands.
2.Detailed Specifications of AW3045V‑2xNP‑X 3.0mm 180 Degree Dual Row Wafer Connector
1. Mechanical Specifications
1.1 Product type: Dual row one hundred eighty degree wafer connector, two pin styles available including kink pin Type A and straight pin Type B
1.2 Measurement unit: millimeter
1.3 Key dimension: Pitch is 3.0 millimeter, total pole range from 2 poles to 24 poles. Refer to engineering drawing for outline sizes and dedicated PCB layout dimensions. Apply drawing standard dimensional tolerances for unspecified dimensions during printed circuit board design.
1.4 Assembly method: Complete through hole soldering onto printed circuit board, mate with matching cable connector housing to realize wire to board power and signal interconnection.
1.5 Ordering feature: Selectable pin type and different pole counts for customized project requirements.
1.6 CTA: Contact our engineering team to obtain complete dimension drawings and ordering specifications for your hardware design validation.
2. Material Construction
2.1 Housing: Black LCP plastic with UL94 V zero flame retardant grade
3. Electrical & Environmental Performance Parameters
3.1 Voltage rating: 250V AC DC
3.2 Current rating: 5A AC DC
3.3 Dielectric withstanding voltage: 1500V AC for one minute
3.4 Insulation resistance: Minimum 1000 Megaohm
3.5 Contact resistance: Maximum 20 milliohm
3.6 Operating temperature range: Minus 25 degree Celsius to plus 85 degree Celsius
3.7 Compliance: Meets RoHS and HSF environmental requirements
4. Usage Method
4.1 Assembly mode: Follow official PCB layout drawing to finish through hole soldering on printed circuit board, connect with matched cable connector to achieve stable power and signal transmission.
4.2 Operation tip: Adopt PCB layout dimension data shown on engineering drawing for circuit board layout development.
5. Application Scenarios
5.1 Wire to board connection for household electronic appliances
5.2 Internal signal link for industrial control modules
5.3 Power connection for consumer electronic assemblies
5.4 Circuit interconnection for general electronic equipment
6. Operation & Storage Precautions
6.1 Strictly follow drawing dimensional tolerances for PCB footprint design
6.2 Avoid excessive mating force to prevent permanent deformation of connector pins
6.3 Prevent scratches dirt and mechanical impact on plastic housing and pins before assembly
6.4 Store products in dry environment to avoid oxidation of plating surfaces
6.5 Confirm pole quantity and pin style before placing purchase order
6.6 CTA: Submit your hardware requirement pin style pole count and project information, we provide free sample evaluation and professional technical consultation services.
3.FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

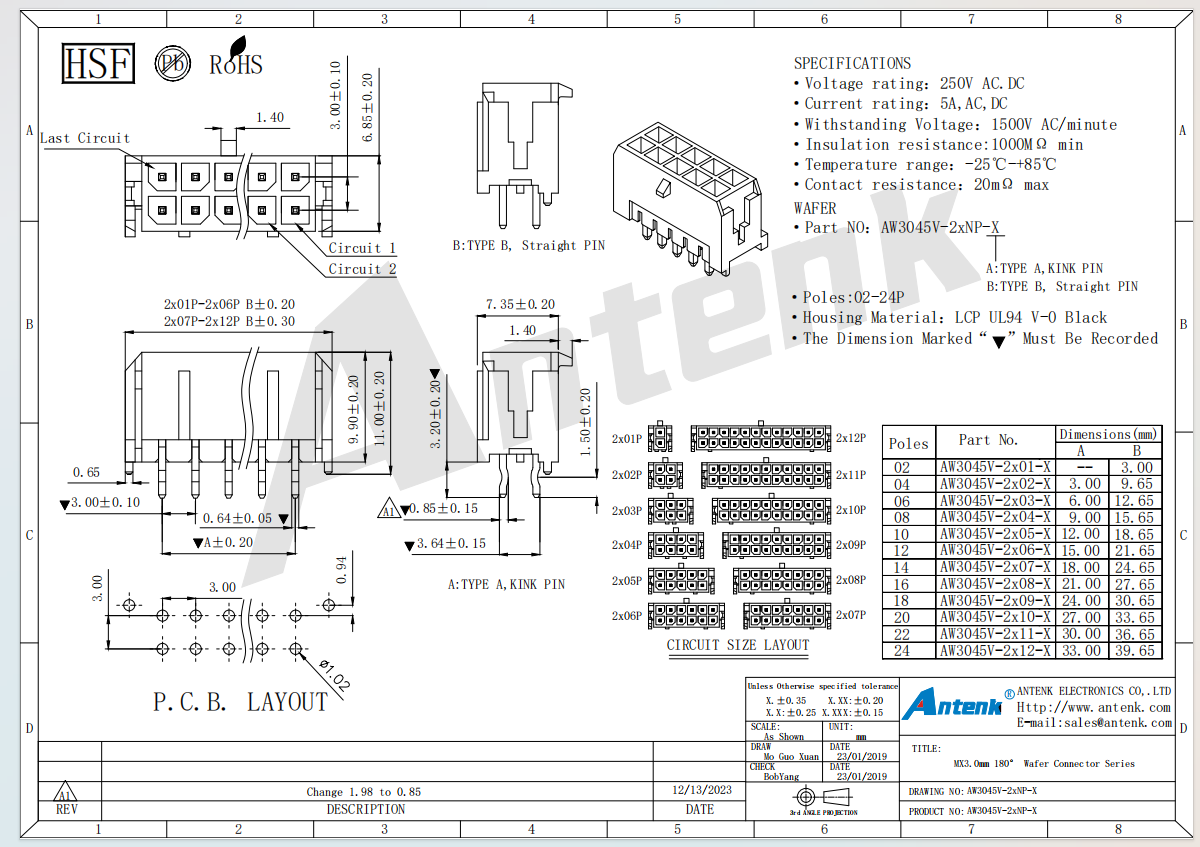

4.Product Drawing:
