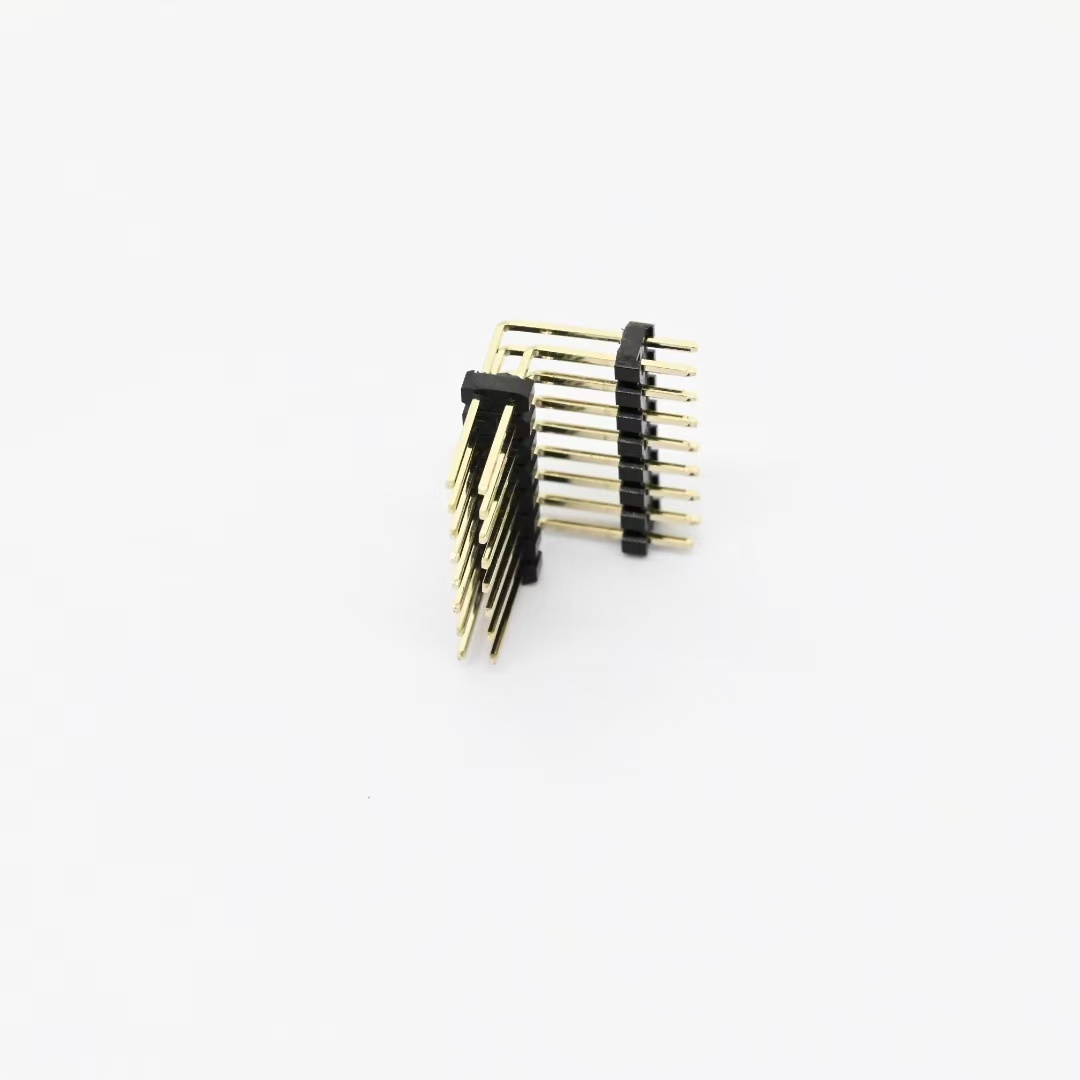

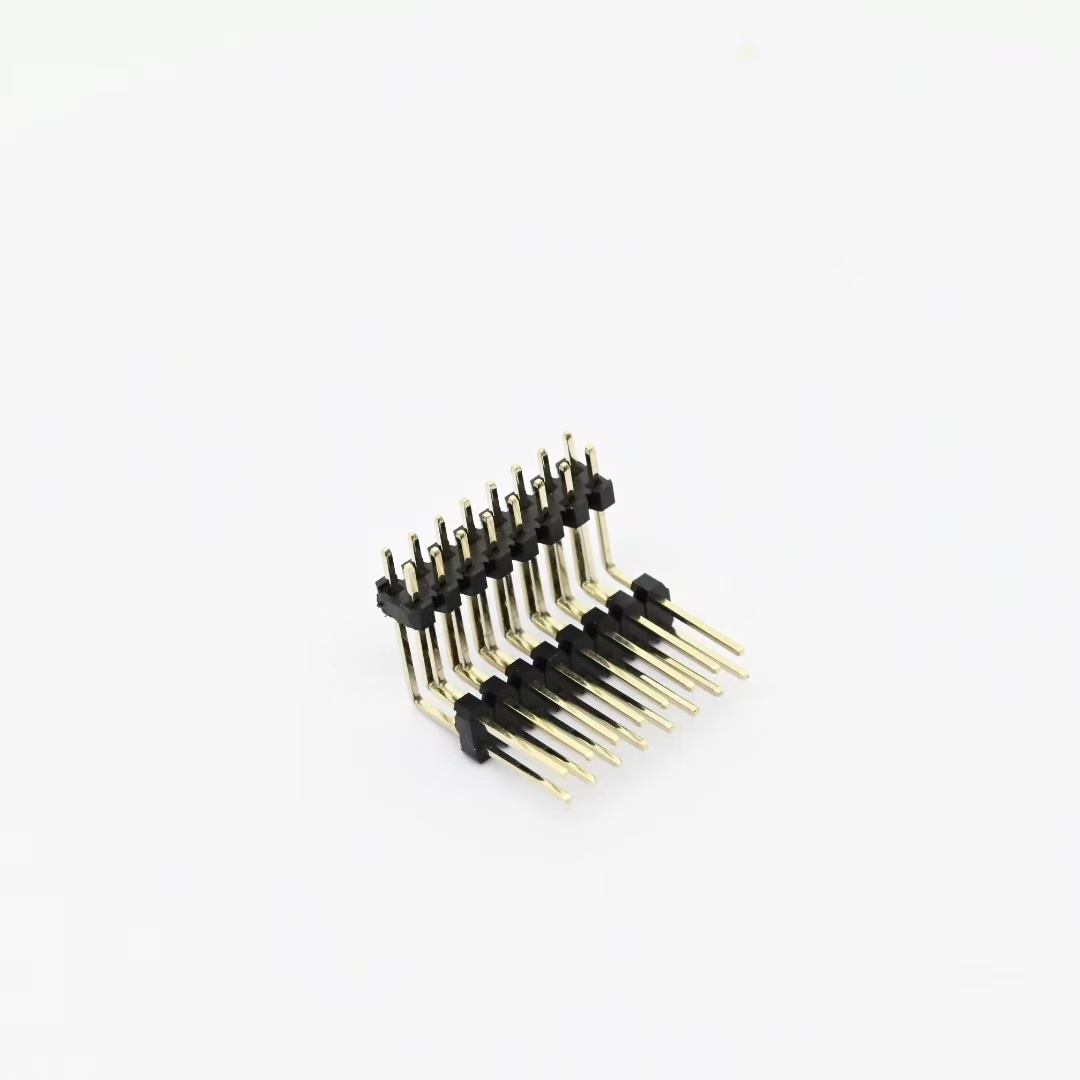

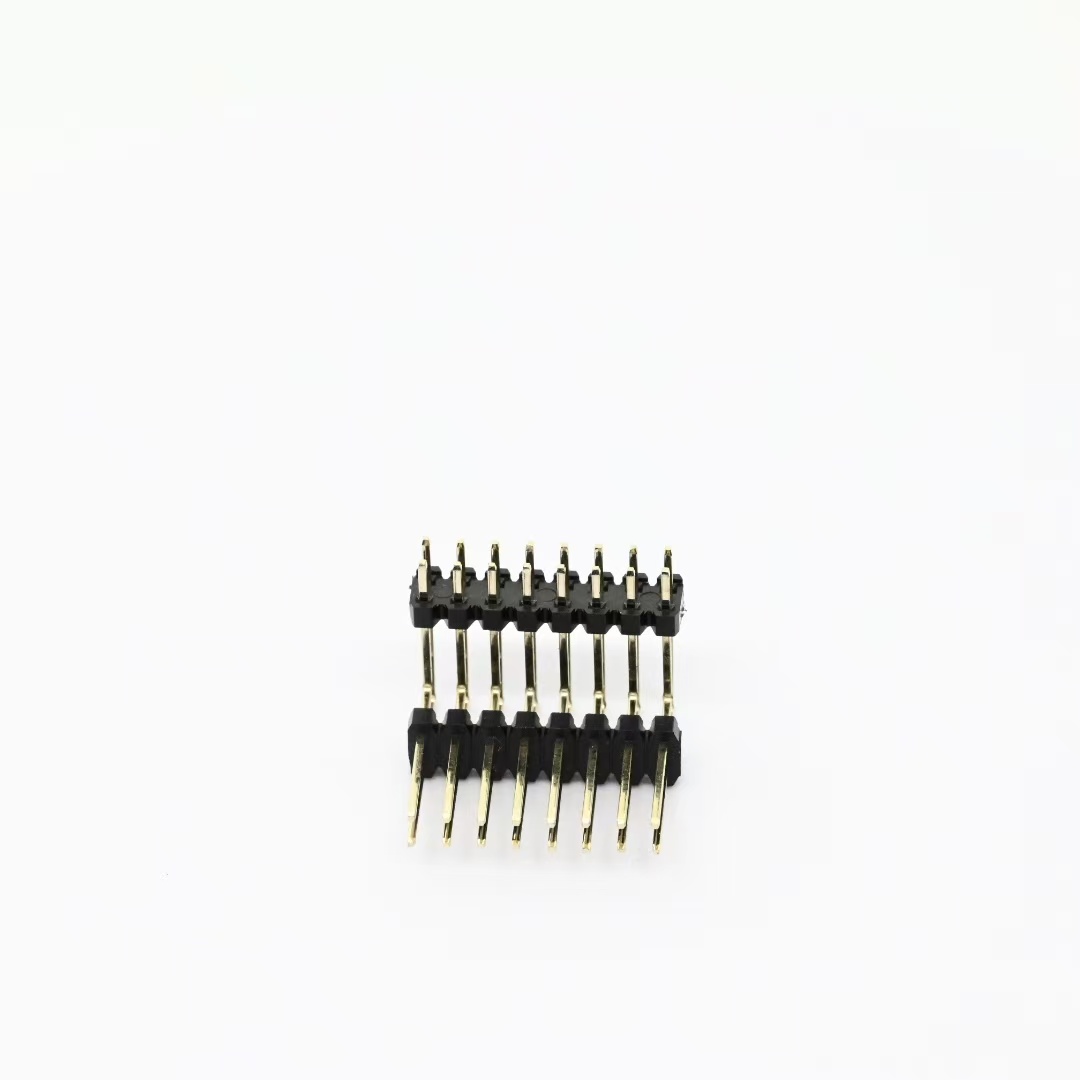

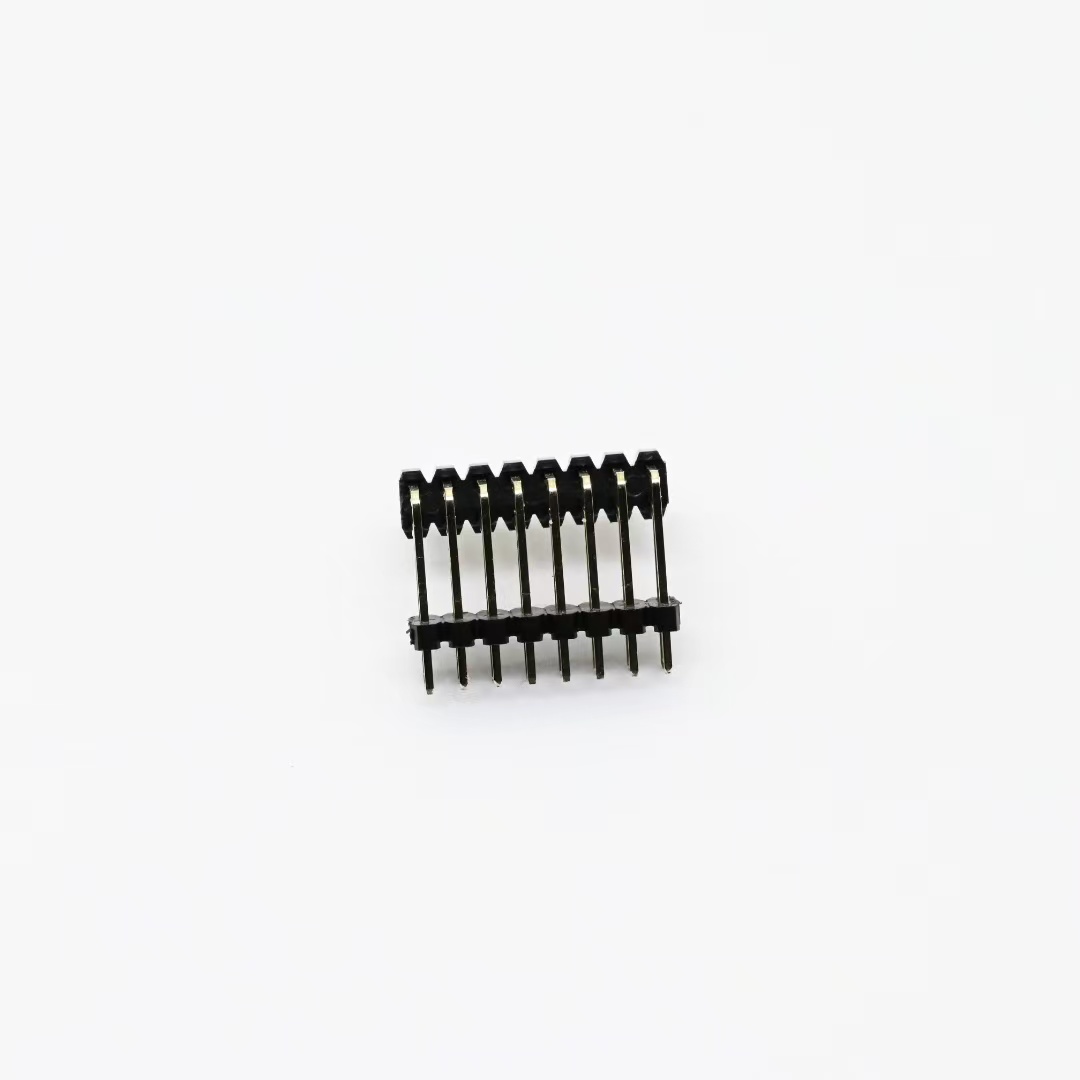

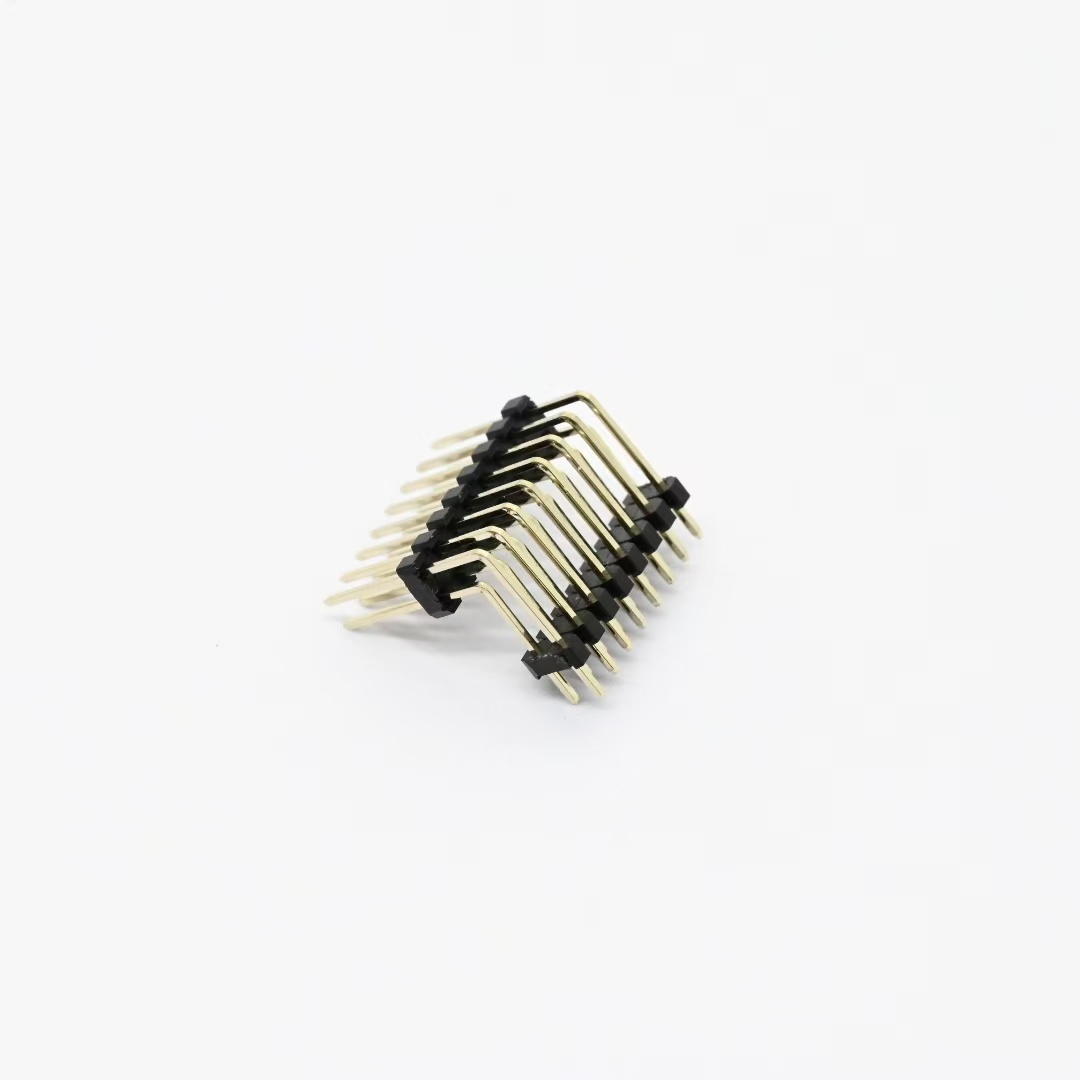

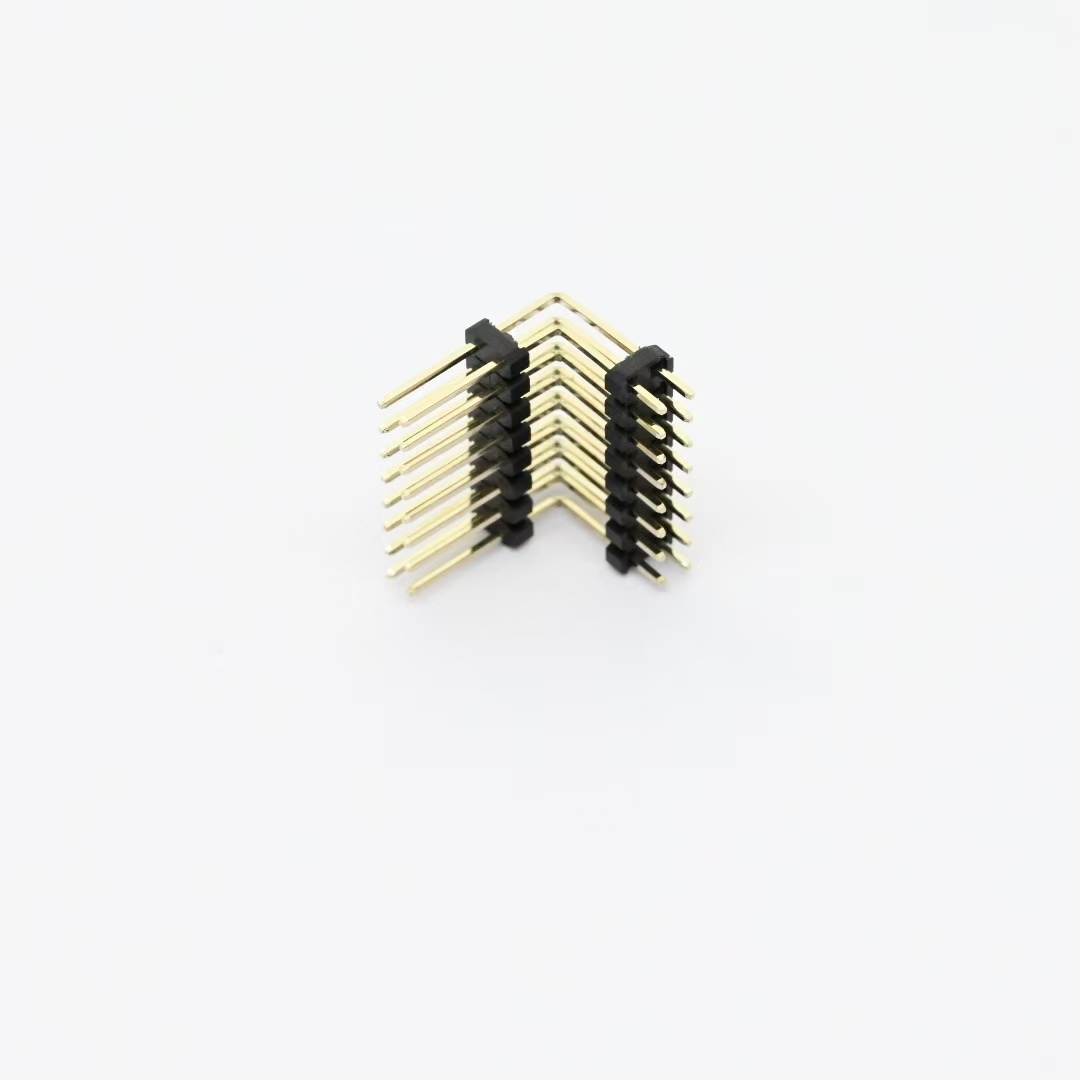

1.Product Description：
Huizhou Antenk Electronics Co Ltd manufactures dual row double plastic angled pin header with two point zero millimeter pitch to deliver stable board to board signal and low power interconnection for printed circuit board assemblies. This through hole angled pin header uses UL94 V zero grade insulator with multiple material alternatives, brass contact pins, it supports two to eighty contact positions, various selective gold plating and tin plating options as well as diverse pin length and plastic height selections, full dimension parameters can be checked on engineering drawing for PCB footprint reference, it supports one point five amp rated current, five hundred volt AC dielectric withstanding voltage, insulation resistance no less than one thousand megaohm, contact resistance below twenty milliohm and operates reliably from minus forty degree Celsius to one hundred twenty five degree Celsius. Users complete through hole soldering following official PCB drawing and mate with matching female header to build dependable circuit links for target electronic hardware. Operators must observe drawing dimensional tolerances for PCB layout avoid excessive mating force to prevent brass pin deformation and store products in dry surroundings to protect plating layers against oxidation. Unlike competitors purchasing outsourced parts Antenk performs full in house workflow covering plastic molding terminal stamping assembly and comprehensive laboratory performance validation. Our factory holds ISO9001 ISO14001 IATF16949 and UL certifications and more than seventy percent finished goods export globally. This pin header suits industrial control units consumer electronic devices and precision instrument modules. Please provide your contact count insulator material plating choice and project specifications for free sample evaluation and complete technical document support.
Brass Terminal Pin Header delivers excellent electrical conductivity for various printed circuit board connection projects.
Multi Material Angled Header supports diverse material combinations to satisfy different mechanical and electronic application demands.
Wide Temp PCB Pin Header maintains steady connection performance under broad environmental temperature fluctuation conditions.
2.Detailed Specifications of PHDR07‑XXD 2.0 mm Dual Row Double Plastic Angled Pin Header
1. Mechanical Specifications
1.1 Product type: Dual row double plastic right angle pin header
1.2 Measurement unit: millimeter
1.3 Key dimension: Pitch is 2.0 millimeter, contact quantity ranges from 2 positions to 80 positions. Refer to engineering drawing for outline dimension and dedicated PCB layout dimensions. Follow standard drawing tolerances for unspecified dimensions during printed circuit board design. Multiple pin length and plastic height options are available.
1.4 Assembly method: Perform through hole soldering onto printed circuit board, mate with matching female header to realize board to board signal and low power interconnection.
1.5 Ordering feature: Multiple insulator material options, various selective gold plating and tin plating grades, diverse pin length plastic height and packing styles for custom project demands.
1.6 CTA: Contact our engineering team to obtain complete dimension drawings and ordering specifications for your hardware design validation.
2. Material Construction
2.1 Contact Material: Brass
2.2 Insulator Material: PA6T UL94 V zero black, alternative insulator materials are selectable
3. Electrical & Environmental Performance Parameters
3.1 Current rating: 1.5 Amp
3.2 Dielectric withstanding voltage: AC 500V
3.3 Insulation resistance: Minimum 1000 Megaohm
3.4 Contact resistance: Maximum 20 milliohm
3.5 Operating temperature range: Minus 40 degree Celsius to plus 125 degree Celsius
3.6 Compliance: Meets RoHS and HSF environmental requirements
4. Usage Method
4.1 Assembly mode: Complete through hole soldering according to official PCB layout drawing, connect with matched female header to achieve stable signal and low power transmission.
4.2 Operation tip: Adopt PCB layout dimension data provided on engineering drawing for circuit board layout development.
5. Application Scenarios
5.1 Board to board signal connection for industrial control equipment
5.2 Internal circuit interconnection for consumer electronic assemblies
5.3 Signal interface for precision measuring instrument modules
5.4 Low power connection for general electronic hardware
6. Operation & Storage Precautions
6.1 Strictly follow drawing dimensional tolerances for PCB footprint design
6.2 Avoid excessive mating force to prevent permanent deformation of brass contact pins
6.3 Prevent scratches dirt and mechanical impact on insulator and brass pins before assembly
6.4 Store products in dry environment to avoid oxidation of plated surfaces
6.5 Confirm contact count insulator material plating grade pin dimension and packing type before placing purchase order
6.6 CTA: Submit your hardware requirement material plating options and project information, we provide free sample evaluation and professional technical consultation services.
3.FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

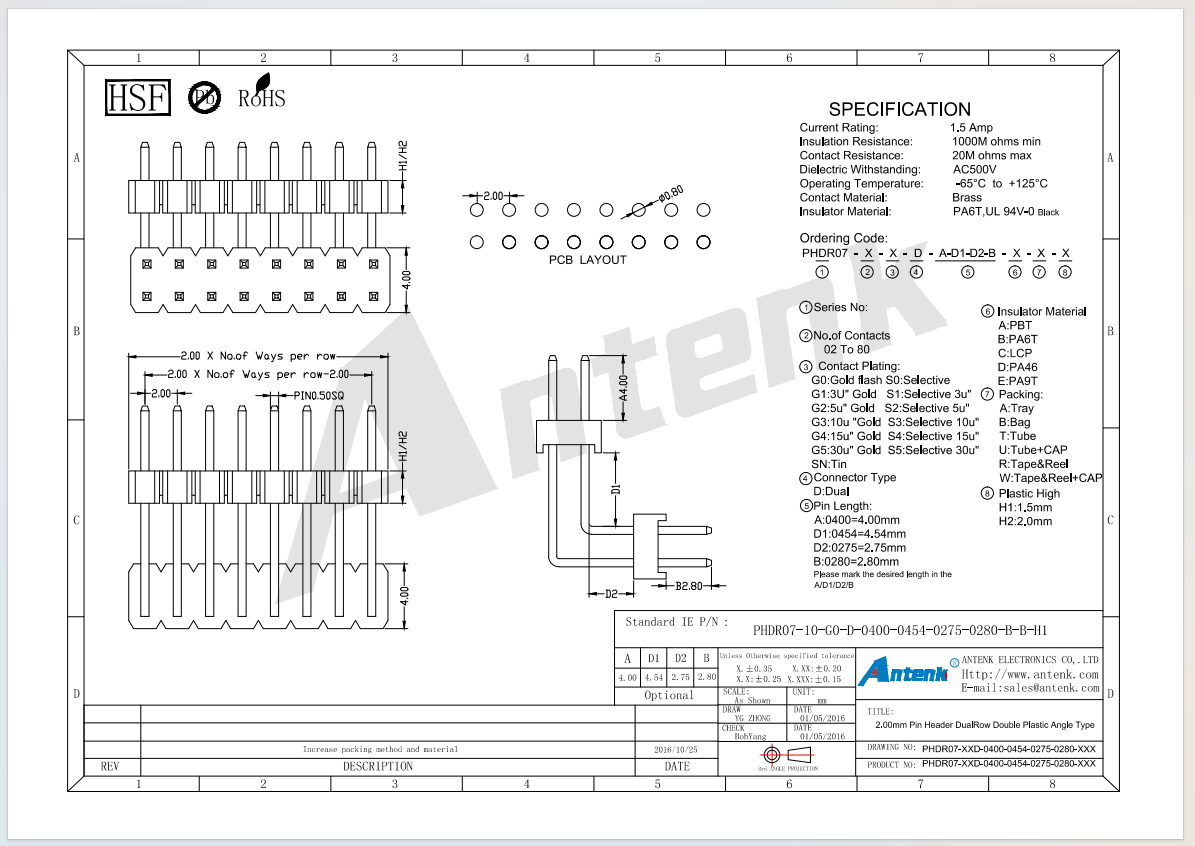

4.Product Drawing：
