1.Product Description：
Huizhou Antenk Electronics Co Ltd manufactures DIN four one six one two type C right angle plug connector with two point five four millimeter pitch to deliver stable backplane and board to board signal interconnection for industrial printed circuit assemblies. This right angle plug connector adopts PBT plus thirty percent glass filled UL94 V zero insulator material and brass contact terminals, it supports 32 48 64 and 96 contact positions, multiple row loading modes, diverse gold flash selective gold and tin plating grades as well as variable tail length selections, full dimension parameters can be obtained from engineering drawing for PCB footprint reference, it provides two amp rated current, one thousand volt AC dielectric withstanding voltage, insulation resistance no less than one thousand megaohm under one hundred volt direct current and contact resistance below twenty milliohm and runs reliably from minus fifty five degree Celsius to plus one hundred five degree Celsius. Users complete through hole soldering following official PCB drawing and mate with matching counterpart connector to establish dependable circuit links for target electronic hardware. Operators must observe drawing dimensional tolerances for PCB layout avoid excessive mating force to prevent brass terminal deformation and store goods in dry surroundings to protect plating layers against oxidation. Unlike competitors purchasing outsourced parts Antenk performs full in house workflow covering plastic molding terminal stamping assembly and comprehensive laboratory performance validation. Our factory holds ISO9001 ISO14001 IATF16949 and UL certifications and more than seventy percent finished goods export globally. This plug connector suits telecommunication equipment industrial control racks and test measurement instruments. Please share your contact count row configuration plating choice and project specifications for free sample evaluation and complete technical document support.
Backplane Plug Connector achieves robust backplane signal transmission for telecommunication rack and industrial cabinet electronic assemblies.
Glass Filled Connector applies high strength glass filled PBT housing to maintain stable performance under harsh industrial operating conditions.
Eurocard Board Connector supports multiple contact position options to satisfy diverse eurocard module interconnection demands of test measurement devices.
2. Detailed Specifications of DMR‑96‑BFS0‑301 DIN 41612 Type C Right Angle Plug Connector
1. Mechanical Specifications

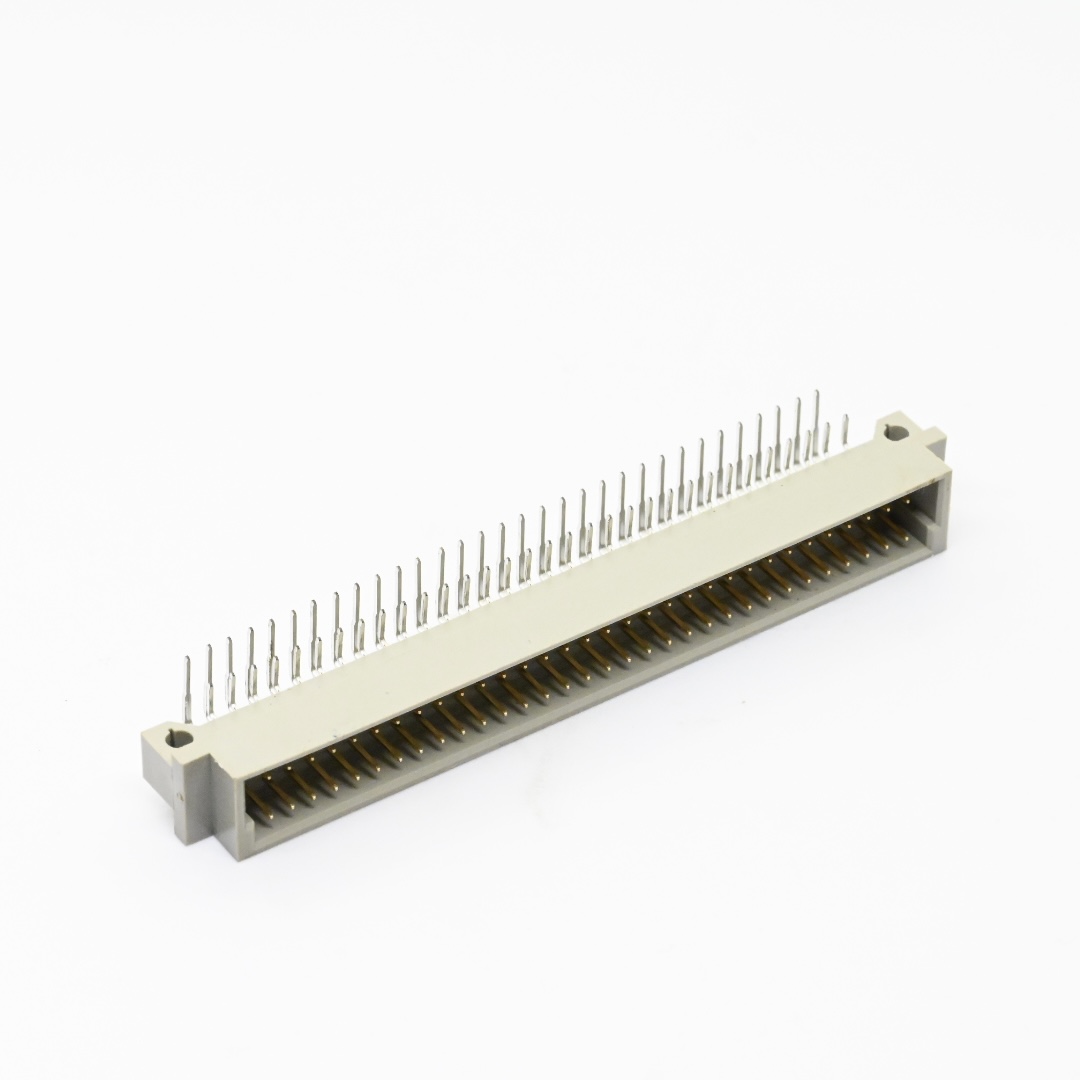

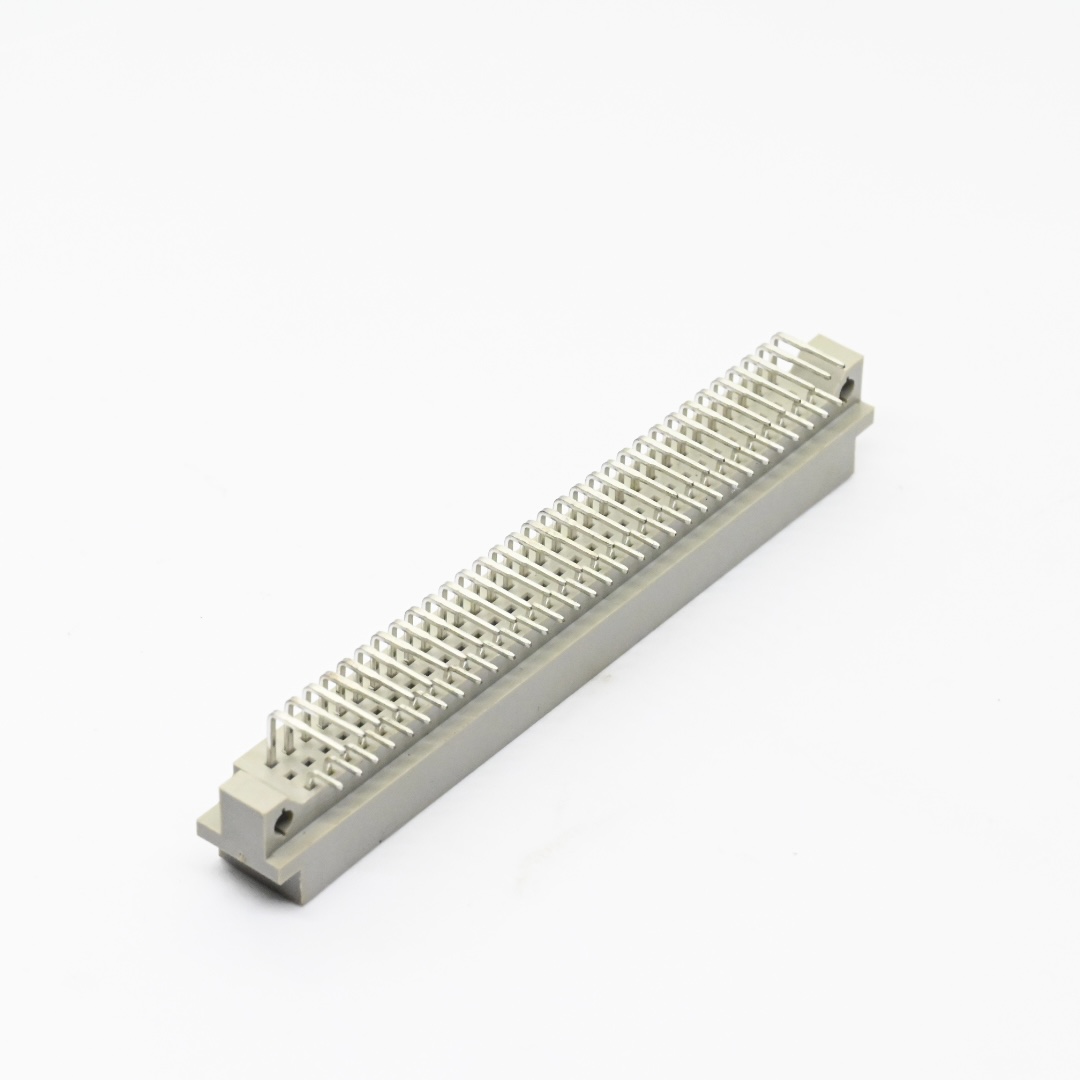

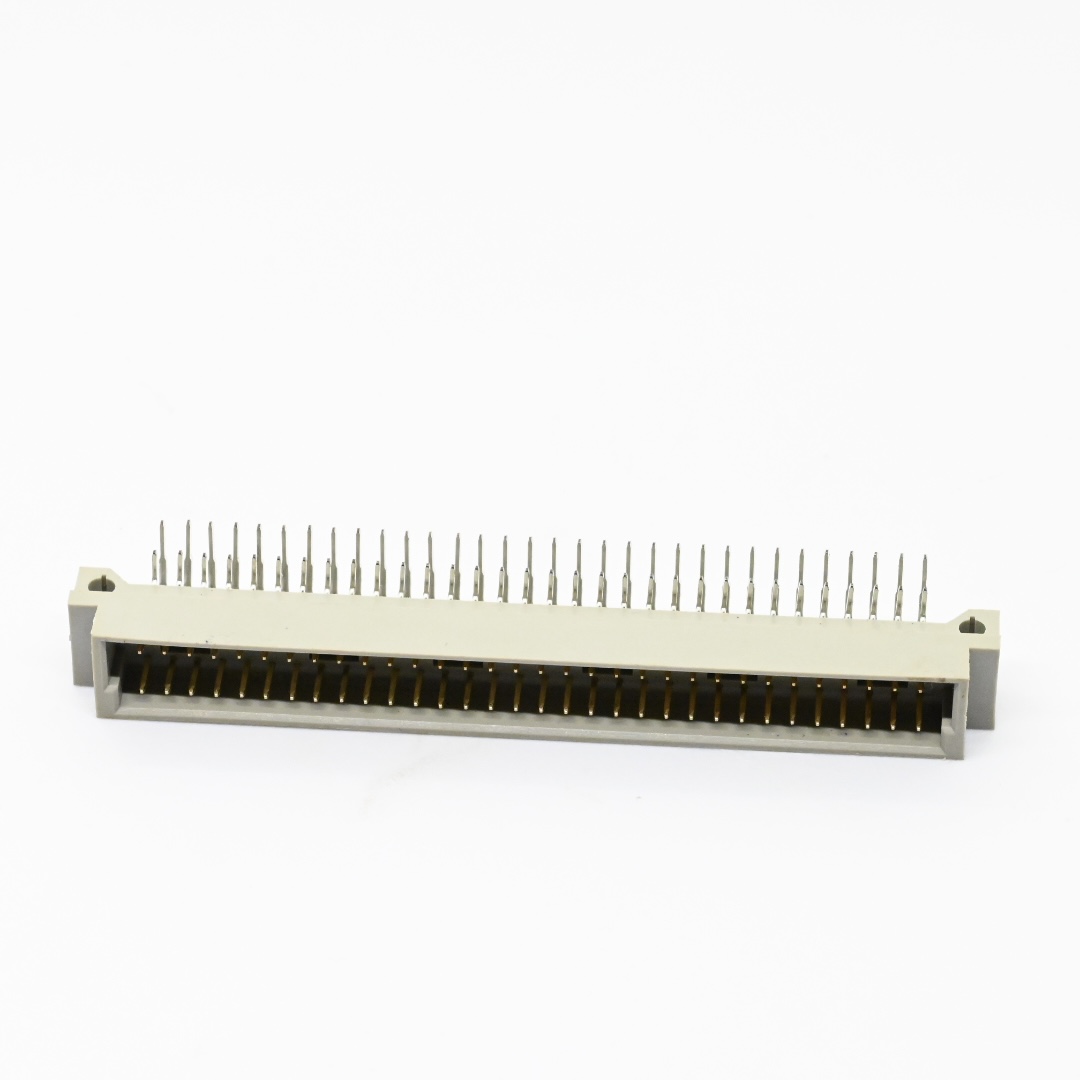

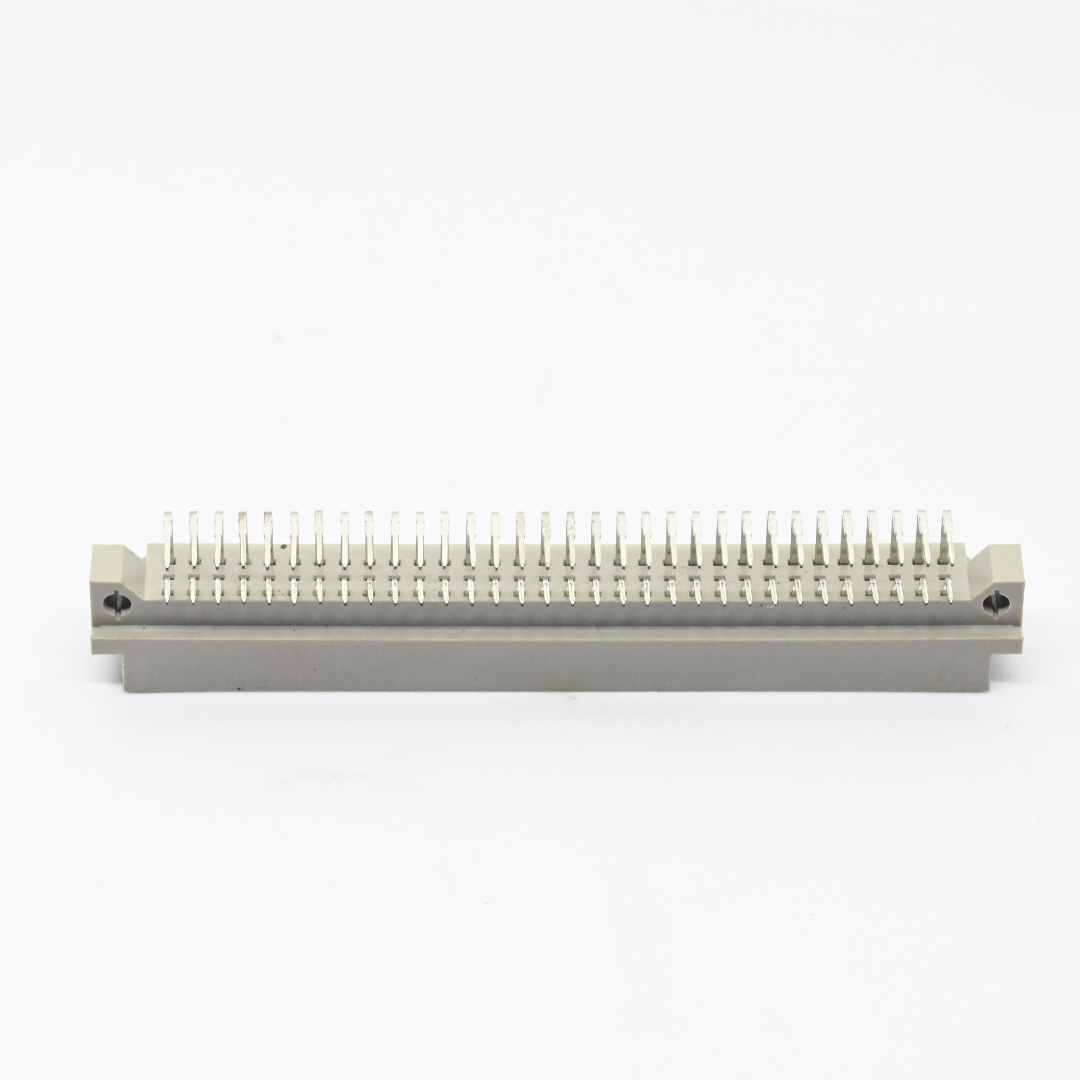

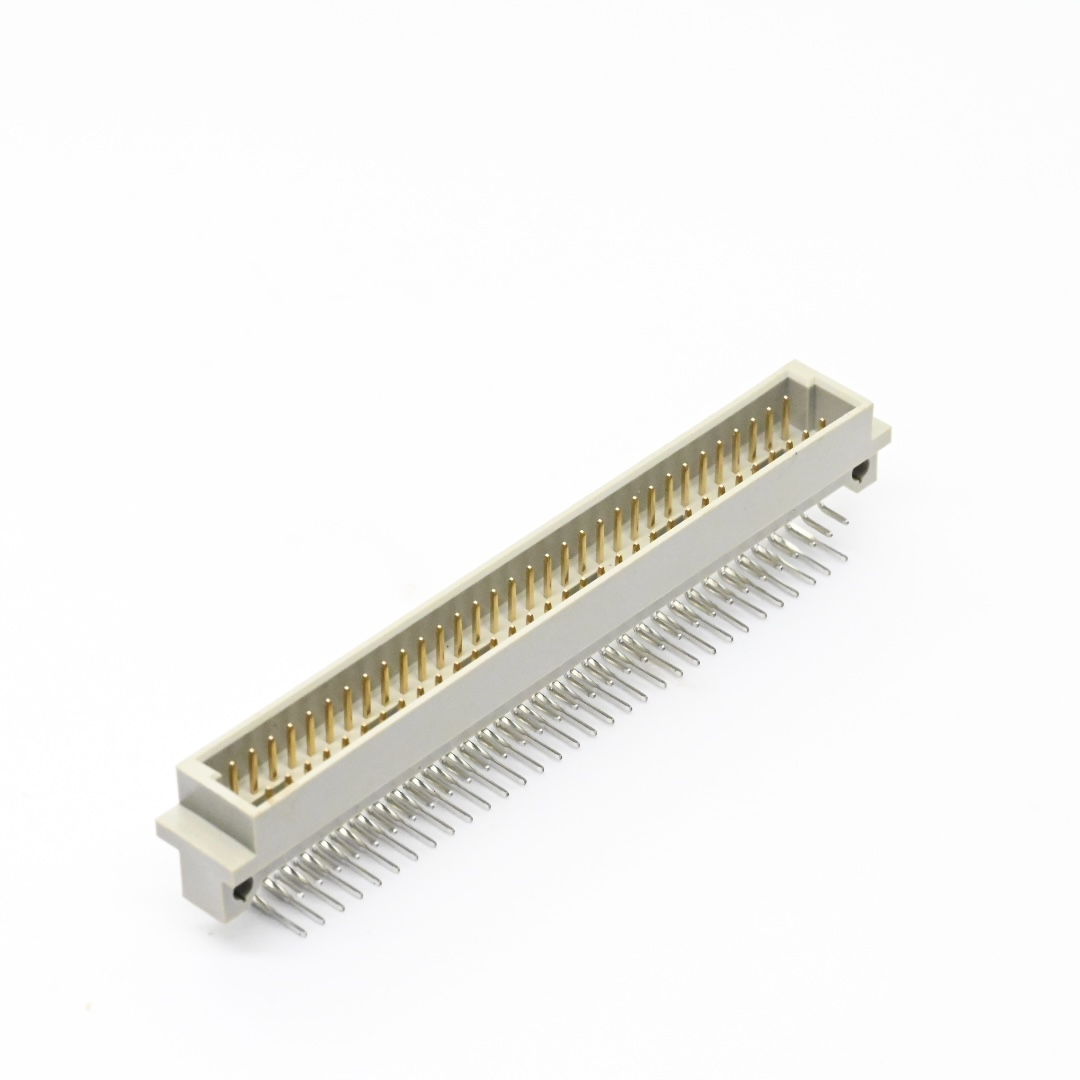

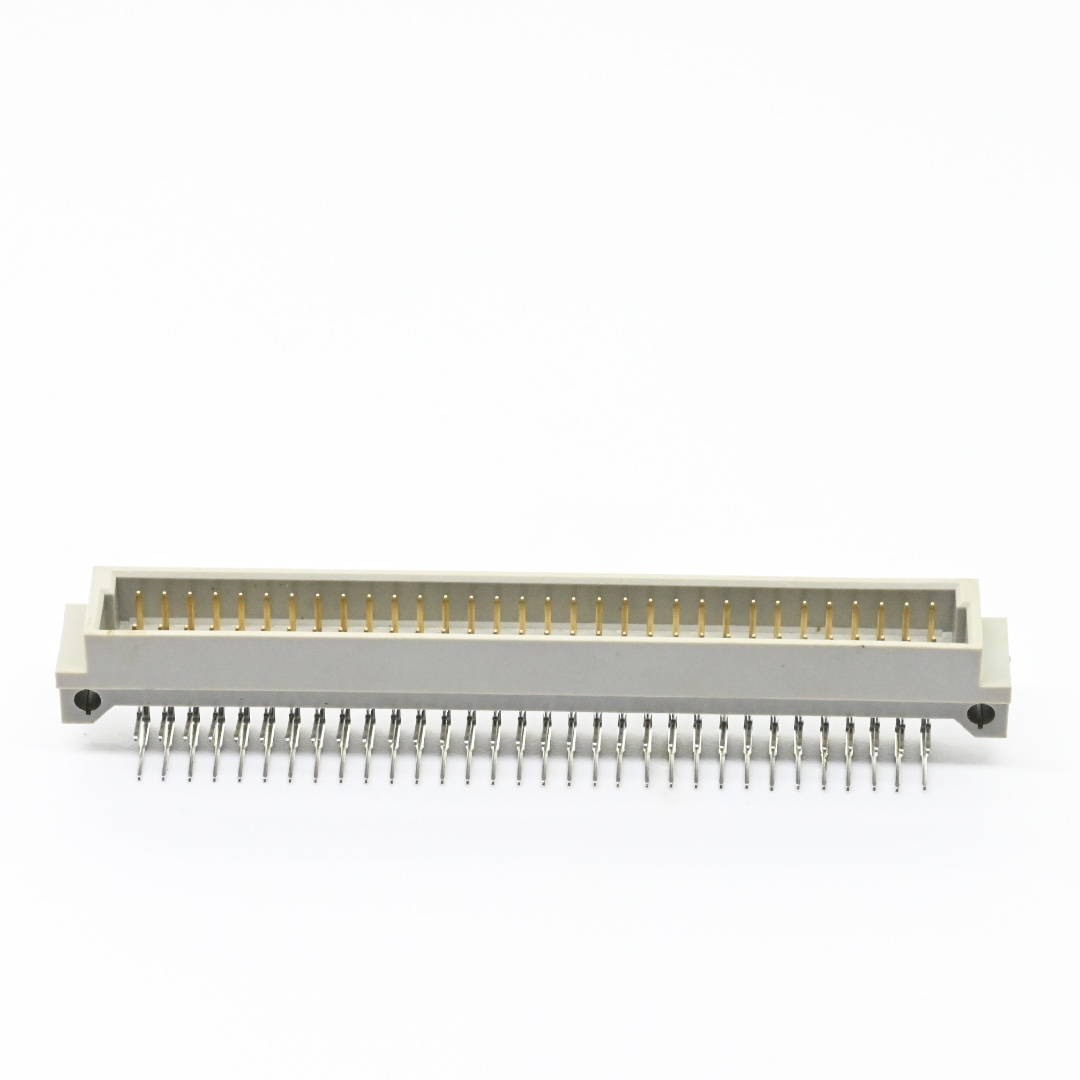

1.1 Product type: DIN 41612 type C right angle through hole plug connector
1.2 Measurement unit: millimeter

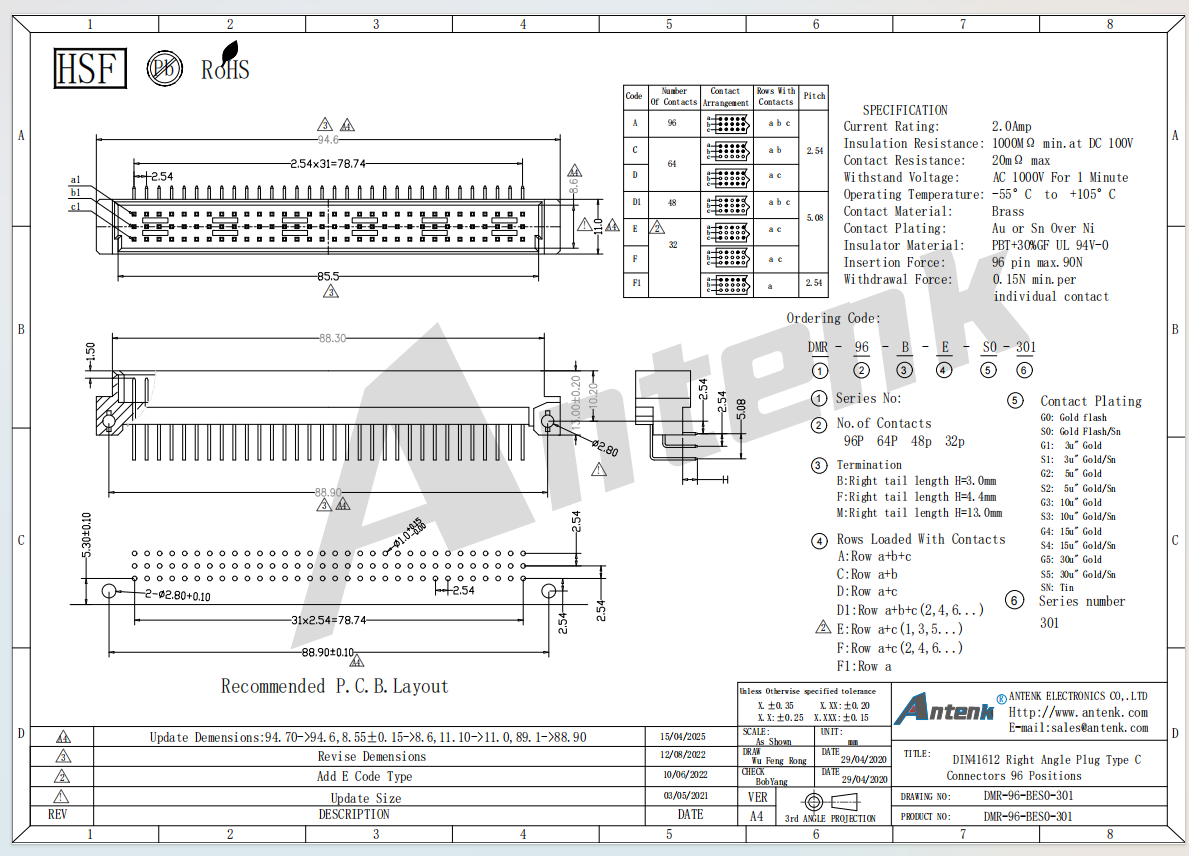

1.3 Key dimension: Pitch is 2.54 millimeter, available contact positions include 32 48 64 and 96 positions. Multiple contact row configurations and three optional right tail lengths of 3.0 millimeter 4.4 millimeter and 13.0 millimeter are supported. Refer to engineering drawing for outline dimension and dedicated PCB layout dimensions. Apply drawing standard dimensional tolerances for unspecified dimensions during printed circuit board design. Maximum insertion force for 96 pin version is 90 Newton, minimum withdrawal force reaches 0.15 Newton per single contact.
1.4 Assembly method: Perform through hole soldering onto printed circuit board, mate with matching counterpart connector to realize backplane and board to board signal interconnection.
1.5 Ordering feature: Multiple contact row layouts, diverse gold flash selective gold and tin plating grades, variable tail length selections to satisfy customized industrial project requirements.
1.6 CTA: Contact our engineering team to obtain complete dimension drawings and ordering specifications for your hardware design validation.
2. Material Construction
2.1 Contact Material: Brass
2.2 Insulator Housing Material: PBT plus thirty percent glass fiber UL94 V zero
3. Electrical & Environmental Performance Parameters
3.1 Current rating: 2.0 Amp
3.2 Dielectric withstanding voltage: AC 1000 Volt for one minute
3.3 Insulation resistance: Minimum 1000 Megaohm under 100 Volt DC
3.4 Contact resistance: Maximum 20 milliohm
3.5 Operating temperature range: Minus 55 degree Celsius to plus 105 degree Celsius
3.6 Compliance: Meets RoHS and HSF environmental requirements
4. Usage Method
4.1 Assembly mode: Complete through hole soldering following official PCB layout drawing, connect with matched counterpart connector to achieve stable backplane signal transmission.
4.2 Operation tip: Adopt PCB layout dimension data shown on engineering drawing for circuit board layout development.
5. Application Scenarios
5.1 Backplane interconnection for telecommunication rack equipment
5.2 Board to board connection for industrial control cabinet assemblies
5.3 Signal interface for test and measurement instruments
5.4 Standard eurocard connection for general industrial electronic hardware
6. Operation & Storage Precautions
6.1 Strictly follow drawing dimensional tolerances for PCB footprint design
6.2 Avoid excessive mating force to prevent permanent deformation of brass contact terminals
6.3 Prevent scratches dirt and mechanical impact on insulator housing and brass terminals before assembly
6.4 Store products in dry environment to avoid oxidation of plated surfaces
6.5 Confirm contact quantity contact row layout plating grade and tail length before placing purchase order
6.6 CTA: Submit your hardware requirement contact layout plating options and project information, we provide free sample evaluation and professional technical consultation services.
