1.Product Description：

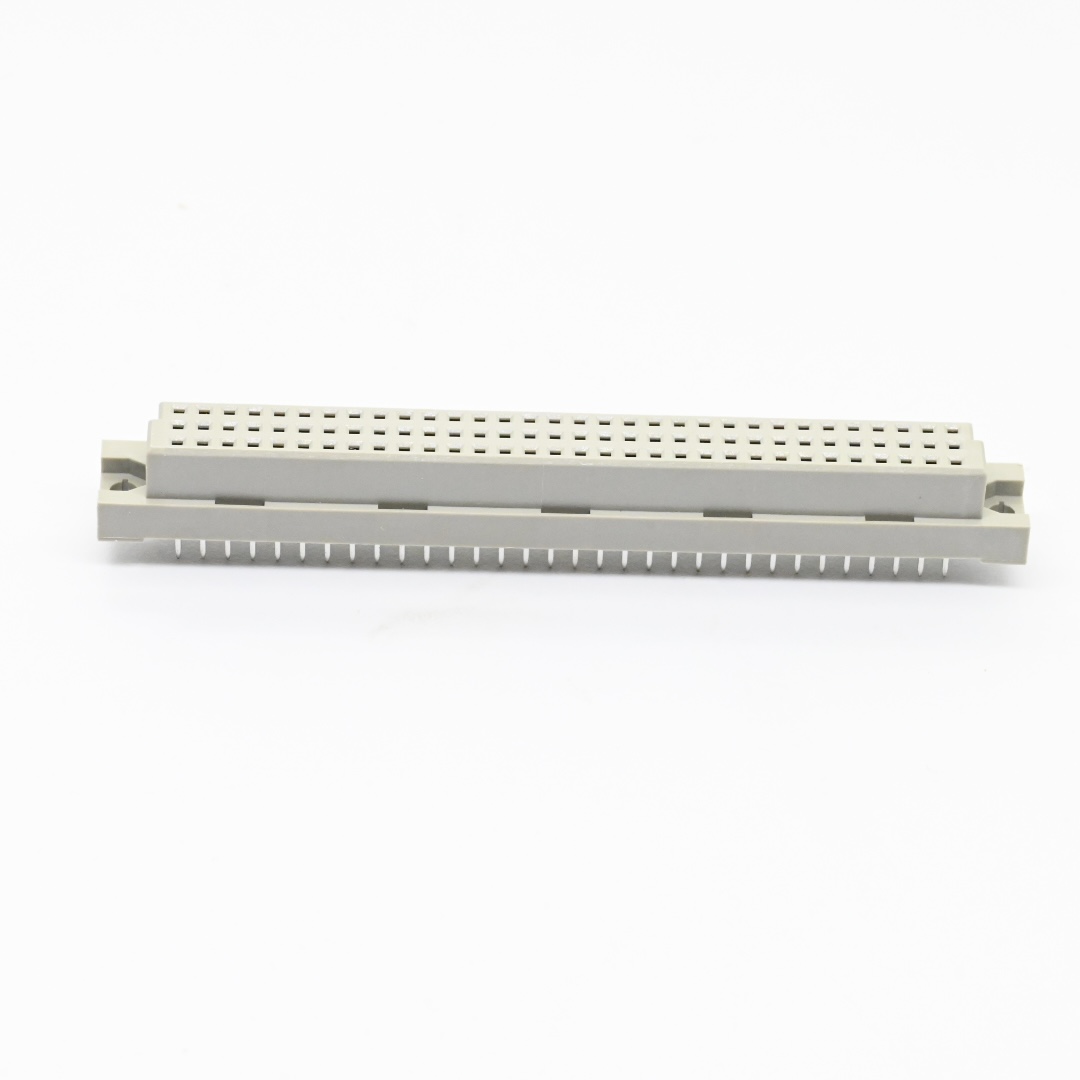

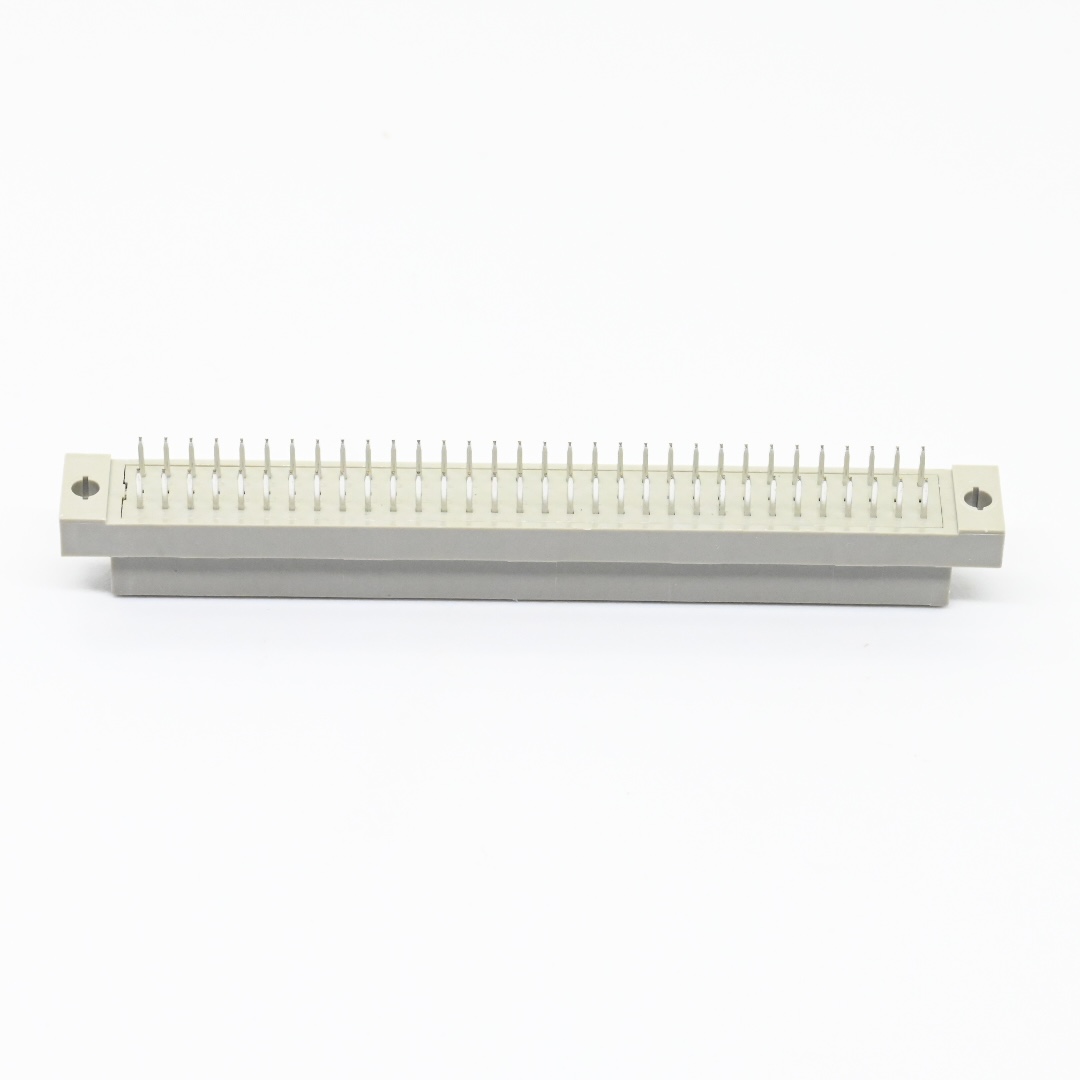

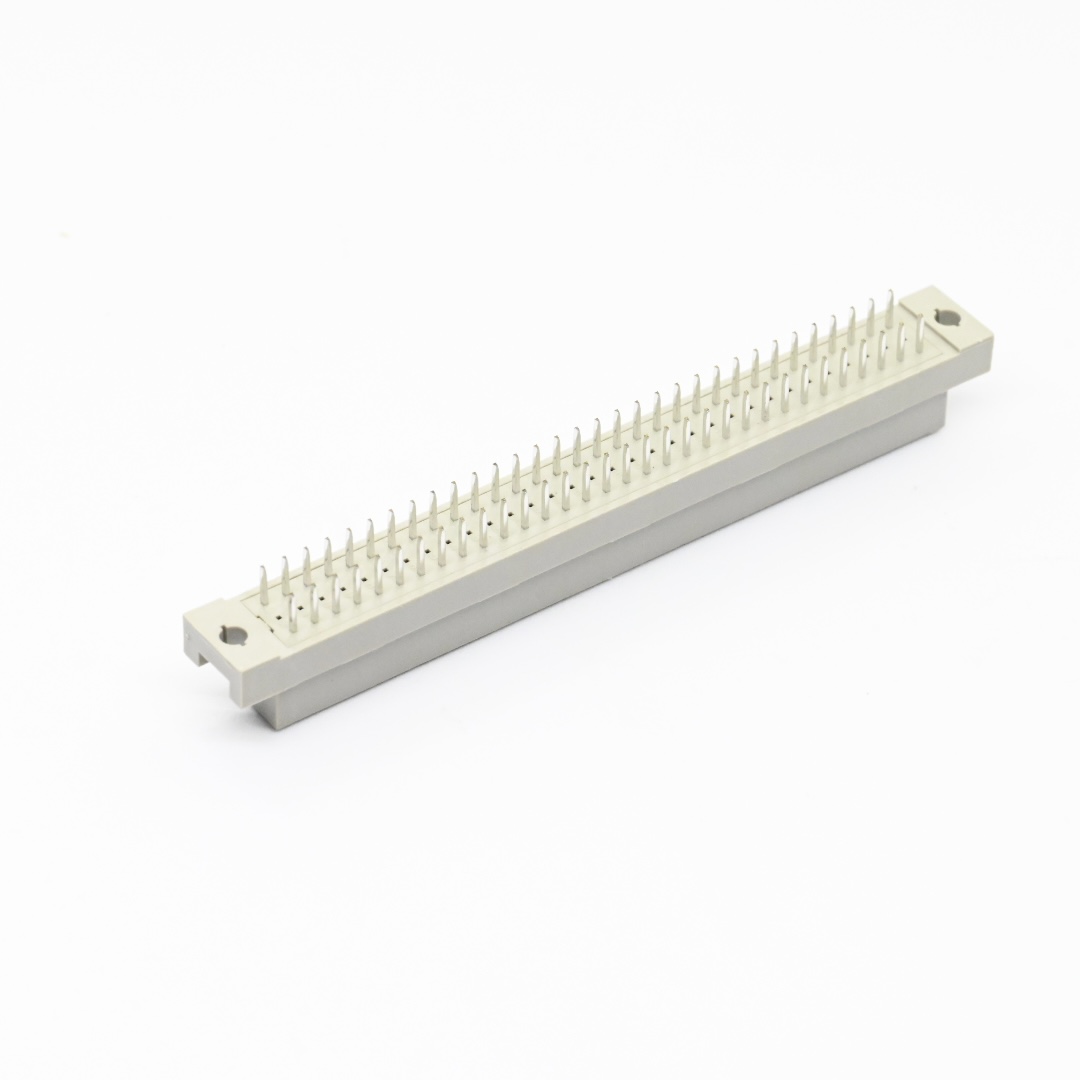

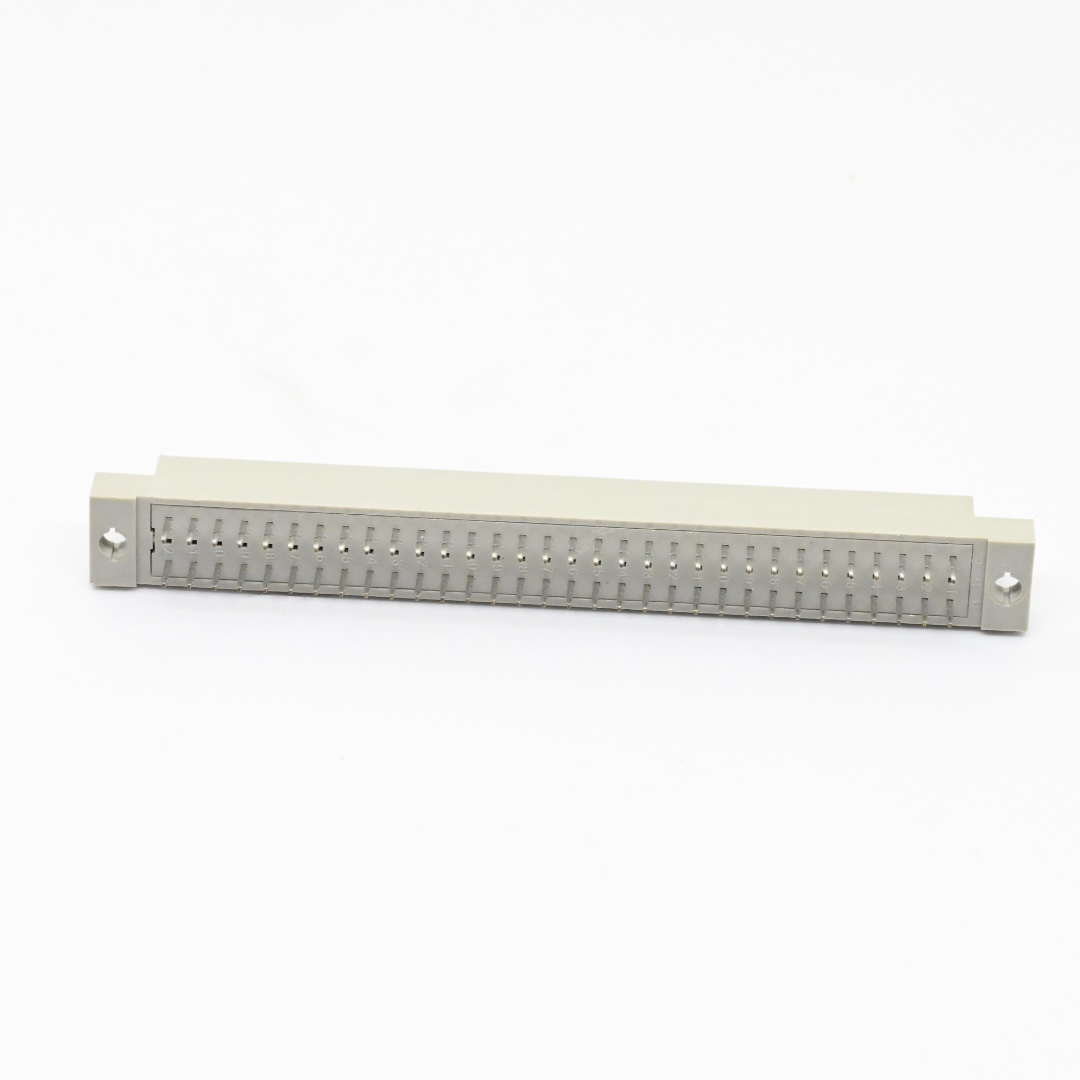

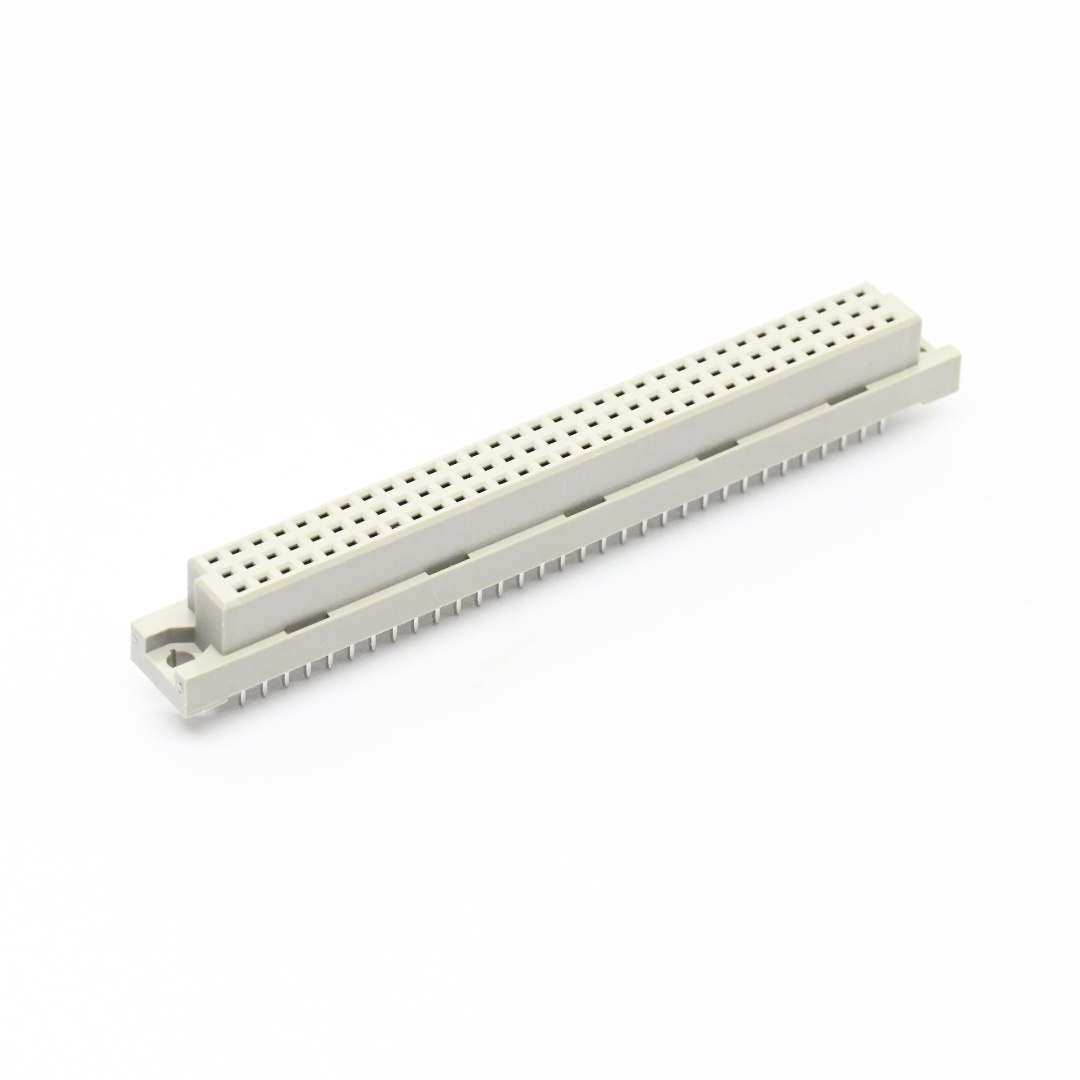

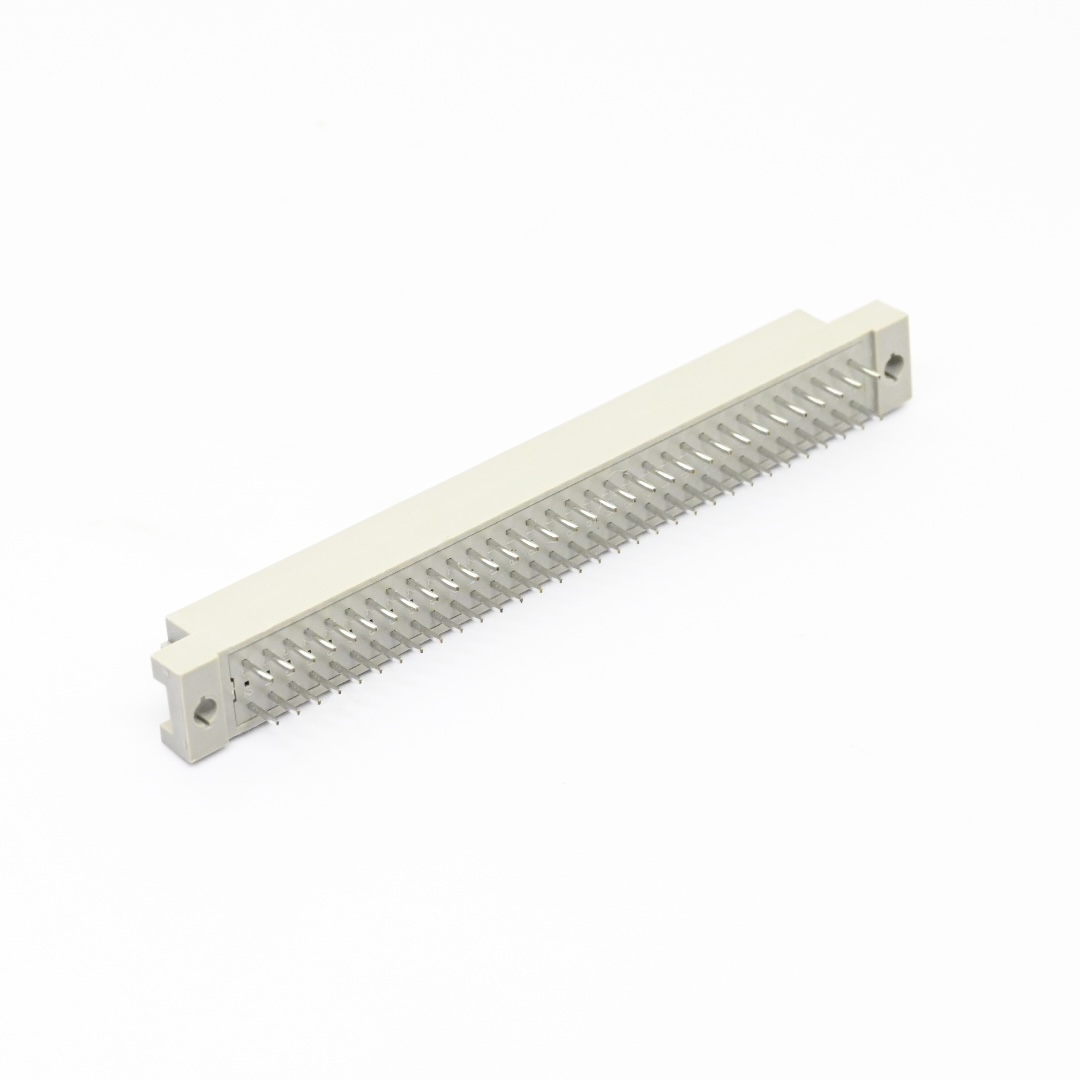

Huizhou Antenk Electronics Co Ltd manufactures DIN four one six one two type C vertical female socket with two point five four millimeter pitch to deliver reliable high density backplane and board to board signal interconnection for industrial printed circuit assemblies. This vertical female receptacle adopts PBT plus thirty percent glass filled UL94 V zero insulator housing and brass contact terminals, it supports thirty two forty eight sixty four and ninety six contact positions, multiple three row contact loading layouts, diverse gold flash selective gold and tin plating grades together with multiple straight solder tail and wrap post tail length options, full dimension parameters can be acquired from engineering drawing for PCB footprint reference, it delivers two amp rated current, one thousand volt AC dielectric withstanding voltage, insulation resistance no less than one thousand megaohm under one hundred volt direct current and contact resistance below twenty milliohm and operates steadily from minus fifty five degree Celsius to plus one hundred five degree Celsius. Users perform through hole soldering following official PCB drawing and mate with matching counterpart connector to build stable circuit links for target electronic hardware. Operators must comply with drawing dimensional tolerances for PCB layout avoid excessive mating force to prevent brass terminal deformation and keep products in dry storage space to stop plating layer oxidation. Different from competitors buying external components Antenk implements full in house workflow including plastic molding terminal stamping assembly and complete laboratory performance validation. Our factory holds ISO9001 ISO14001 IATF16949 and UL certifications and more than seventy percent finished goods export worldwide. This female socket fits telecommunication racks industrial control cabinets and precision test measurement instruments. Please provide your contact count row layout plating choice and project specifications for free sample evaluation and full technical document support.
Triple Row Receptacle Socket enables high density multi channel signal transmission for complex industrial backplane systems.
Industrial Eurocard Socket offers stable mechanical mating performance for standard eurocard module applications inside equipment cabinets.
Wrap Post Receptacle provides reliable termination solution to satisfy special through hole assembly requirements of printed circuit boards.
2.Detailed Specifications of DFS‑96‑XXX‑302 DIN 41612 Type C Vertical Female Connector
1. Mechanical Specifications
1.1 Product type: DIN 41612 Type C vertical through hole female connector
1.2 Measurement unit: millimeter
1.3 Key dimension: Pitch is 2.54 millimeter, available contact positions include 32, 48, 64 and 96 positions. Multiple triple row contact arrangement modes are supported. It supplies diverse termination options including straight solder tail and wrap post tail with multiple tail length variants. Maximum insertion force for 96 pin version is 90 Newton, minimum withdrawal force reaches 0.15 Newton per individual contact. Refer to engineering drawing for outline dimension and dedicated PCB layout dimensions. Apply standard drawing dimensional tolerances for unspecified dimensions during printed circuit board design.
1.4 Assembly method: Perform through hole soldering onto printed circuit board, mate with matching counterpart connector to realize high density backplane and board to board signal interconnection.
1.5 Ordering feature: Multiple triple row contact layouts, diverse gold flash selective gold and tin plating grades, various straight solder tail and wrap post tail length selections to satisfy customized industrial project demands.
1.6 CTA: Contact our engineering team to obtain complete dimension drawings and ordering specifications for your hardware design validation.
2. Material Construction
2.1 Contact Material: Brass
2.2 Insulator Housing Material: PBT plus thirty percent glass fiber UL94 V zero
3. Electrical & Environmental Performance Parameters
3.1 Current rating: 2.0 Amp
3.2 Dielectric withstanding voltage: AC 1000 Volt for one minute
3.3 Insulation resistance: Minimum 1000 Megaohm under 100 Volt DC
3.4 Contact resistance: Maximum 20 milliohm
3.5 Operating temperature range: Minus 55 degree Celsius to plus 105 degree Celsius
3.6 Compliance: Meets RoHS and HSF environmental requirements
4. Usage Method
4.1 Assembly mode: Complete through hole soldering following official PCB layout drawing, connect with matched counterpart connector to achieve stable high density backplane signal transmission.
4.2 Operation tip: Adopt PCB layout dimension data shown on engineering drawing for circuit board layout development.
5. Application Scenarios
5.1 High density backplane interconnection for telecommunication rack equipment
5.2 Board to board connection for industrial control cabinet assemblies
5.3 Signal interface for precision test and measurement instruments
5.4 Standard eurocard connection for general industrial electronic hardware
6. Operation & Storage Precautions
6.1 Strictly follow drawing dimensional tolerances for PCB footprint design
6.2 Avoid excessive mating force to prevent permanent deformation of brass contact terminals
6.3 Prevent scratches dirt and mechanical impact on insulator housing and brass terminals before assembly
6.4 Store products in dry environment to avoid oxidation of plated surfaces
6.5 Confirm contact quantity contact row layout plating grade termination style and tail length before placing purchase order
6.6 CTA: Submit your hardware requirement contact layout plating options and project information, we provide free sample evaluation and professional technical consultation services.
3.FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

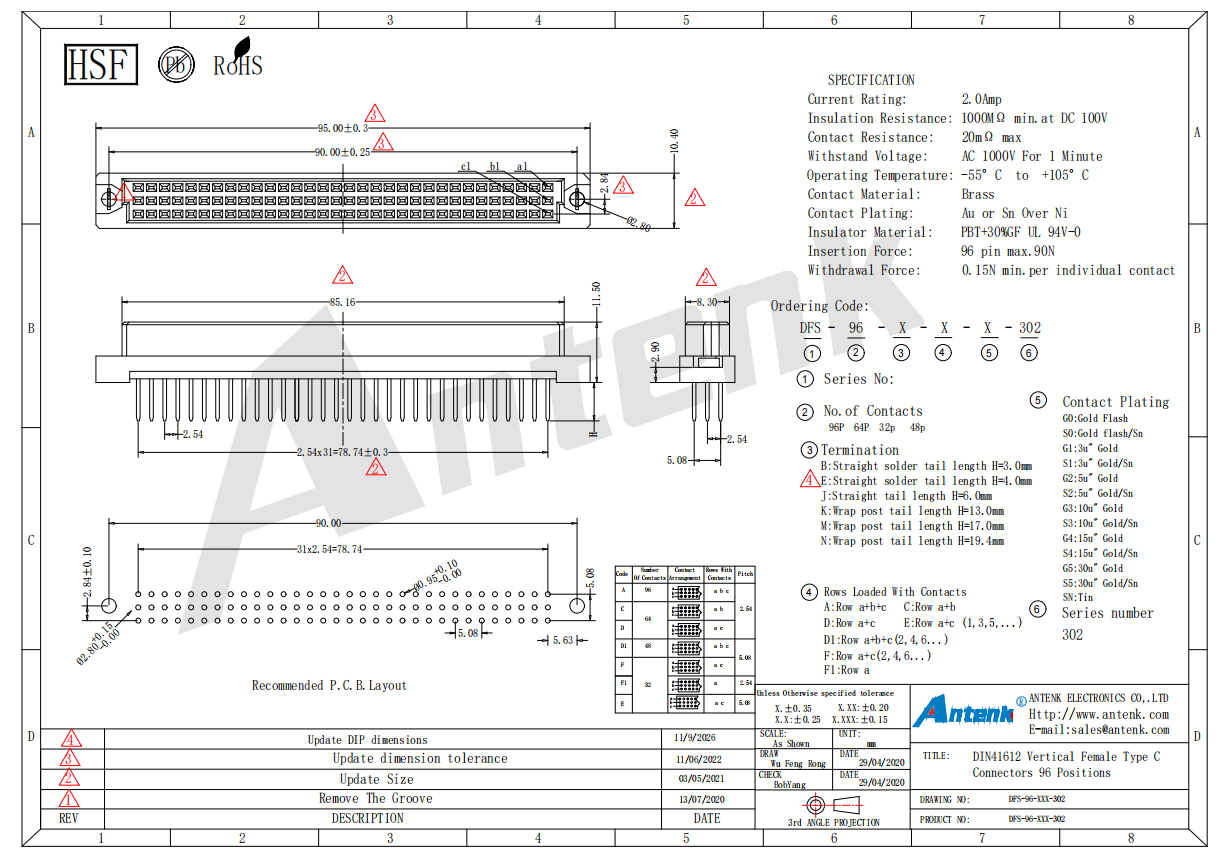

4.Product Drawing：
