1.Product Description

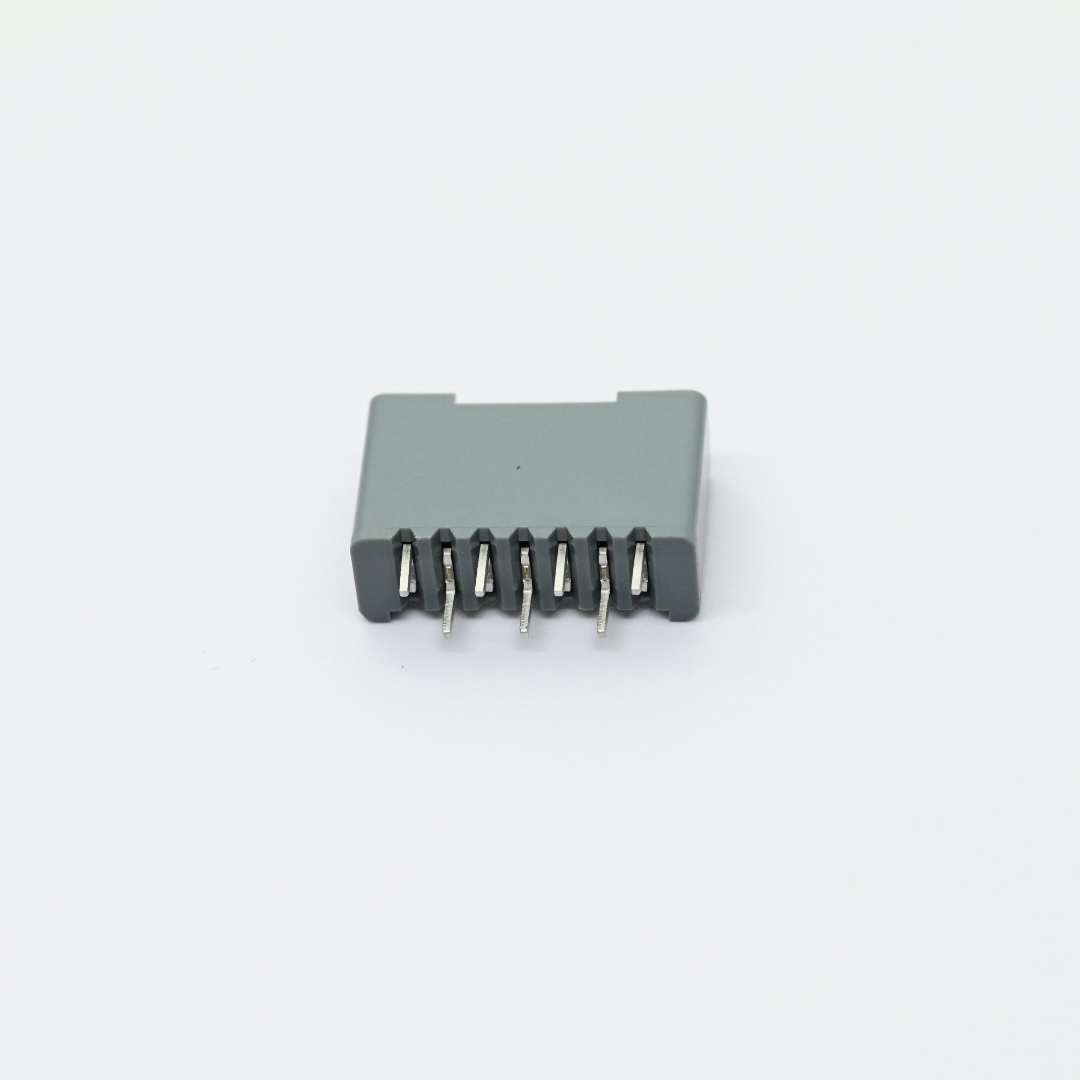

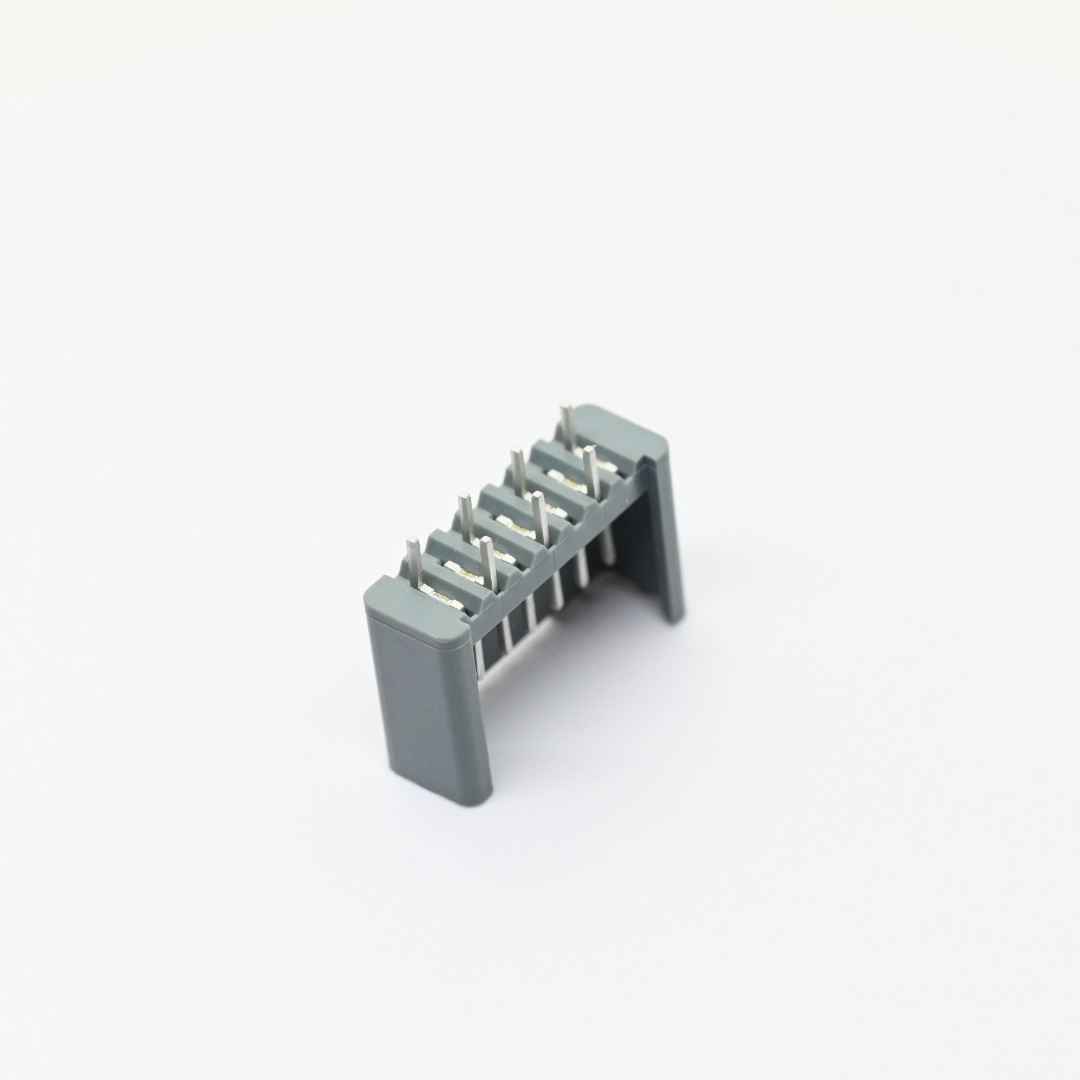

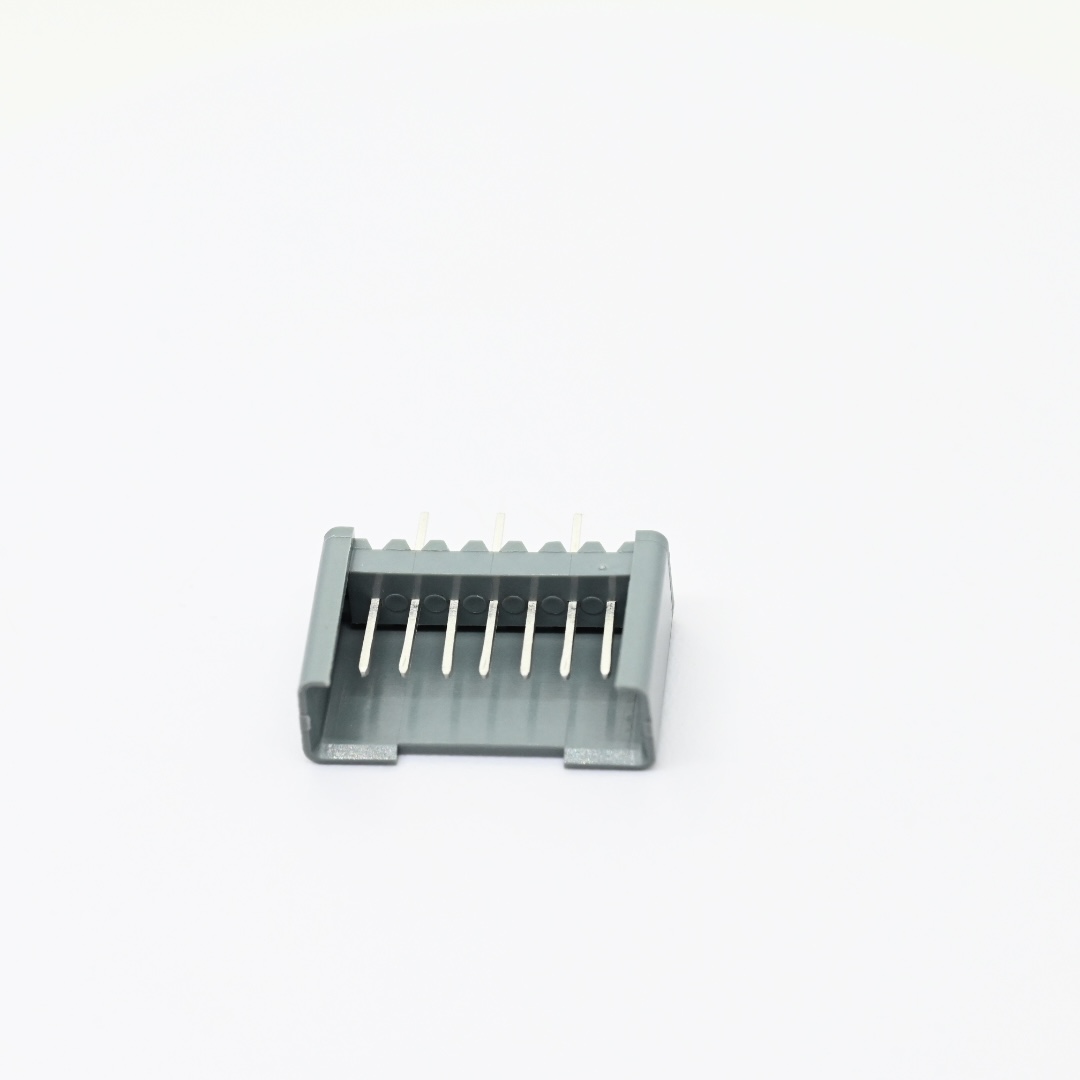

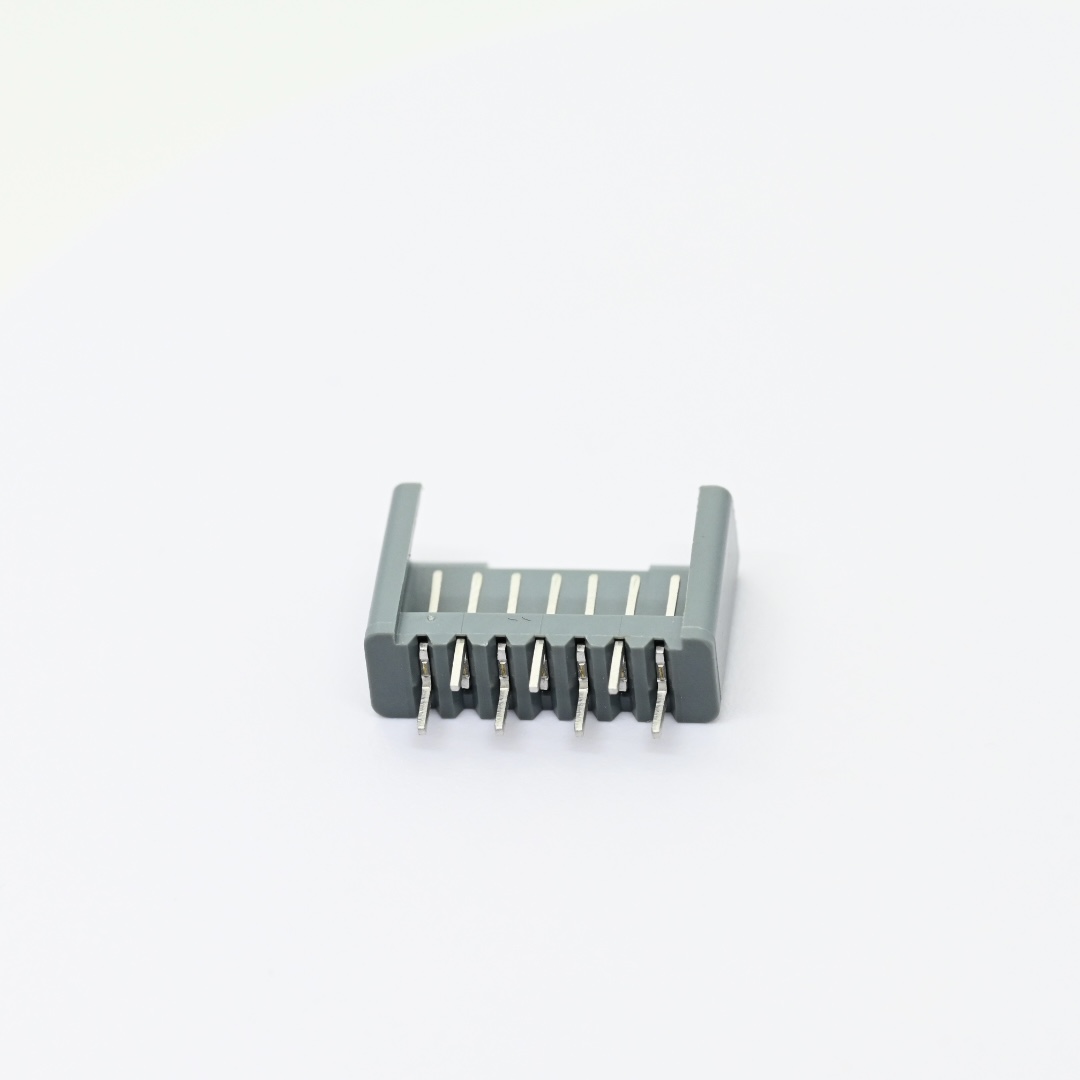

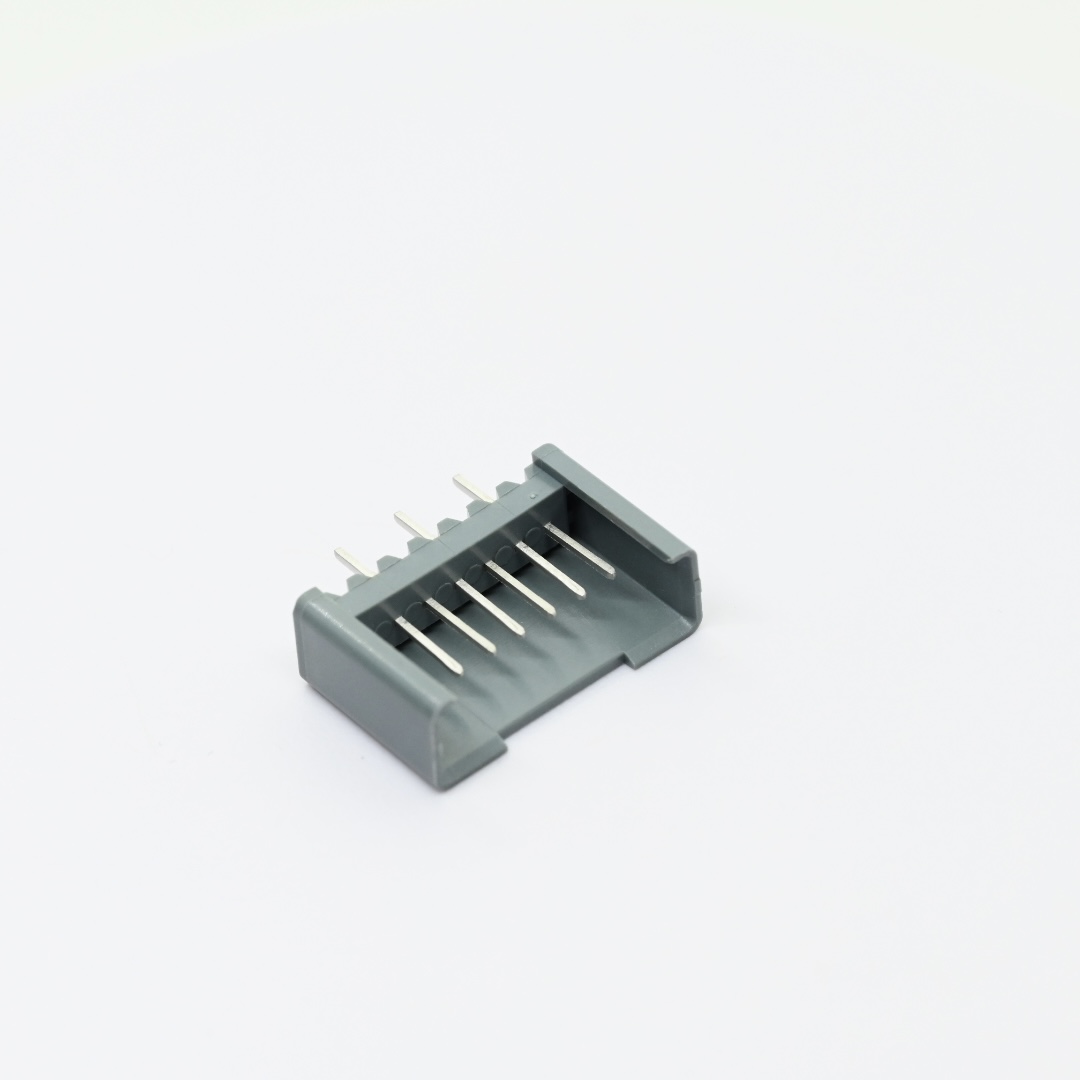

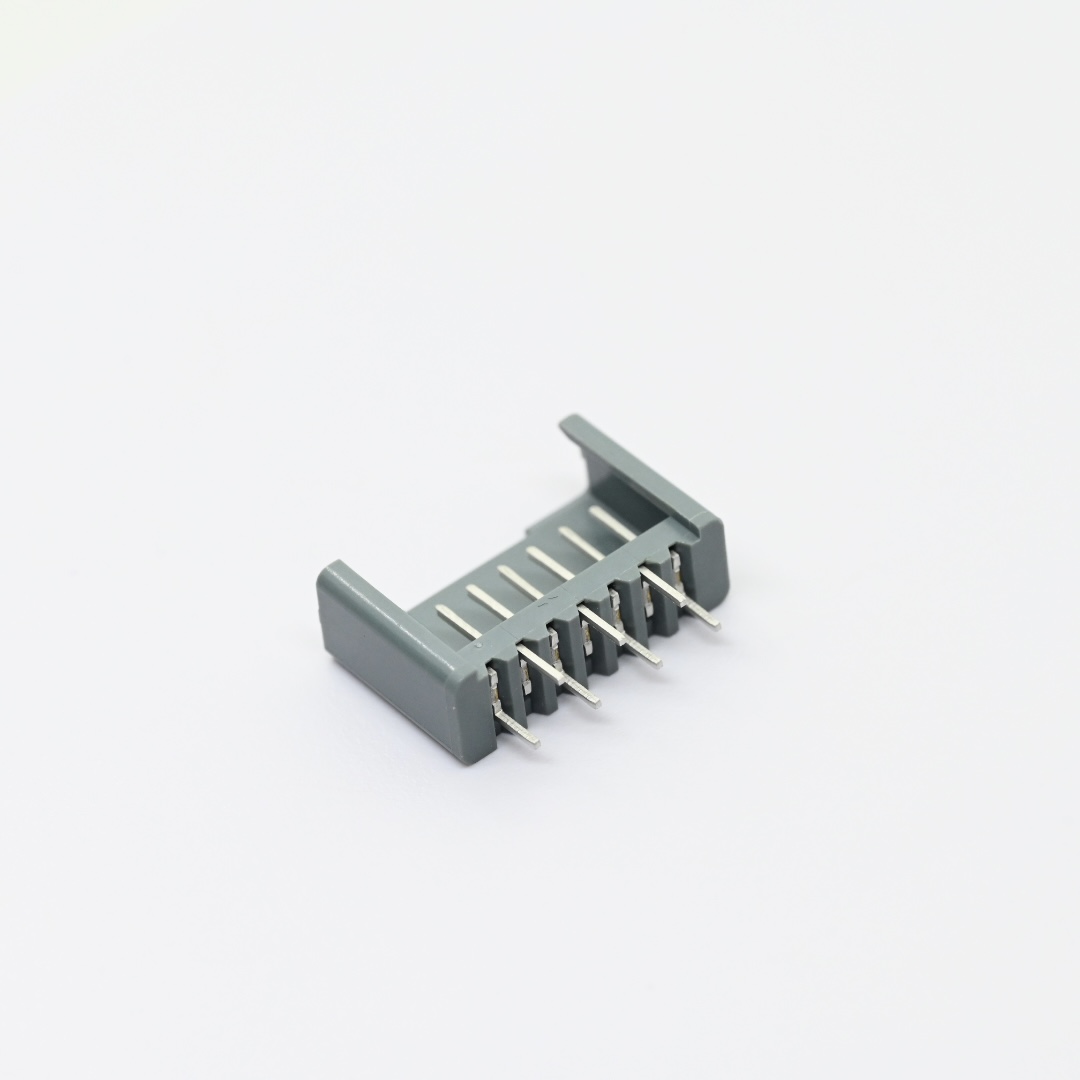

Huizhou Antenk Electronics Co Ltd manufactures two point five zero millimeter pitch one hundred eighty degree misalignment tolerant wafer header without backplate for stable wire to board power and signal interconnection on printed circuit boards. This wafer header adopts brass contact pins and PBT plus thirty percent glass fiber insulator housing with UL94 V zero flame retardant rating, two pin styles Type one and Type two are available, multiple pole counts range from two to twenty positions, full dimension tables and PCB layout reference data can be obtained from official engineering drawing for hardware design. It delivers five ampere rated current, ten milliohm maximum contact resistance, one thousand megaohm minimum insulation resistance and one thousand five hundred volt AC DC dielectric withstanding capacity, operating temperature covers minus forty five degree Celsius to one hundred and five degree Celsius. Users perform through hole soldering according to PCB layout drawing and pair with matched housing to establish steady circuit links. Operators shall comply with drawing dimensional tolerances for PCB footprint design avoid excessive insertion force to prevent brass pin deformation and store items in clean dry space to guard contact surfaces against oxidation. Different from competitors sourcing semi finished components Antenk implements complete in house workflow including plastic molding terminal stamping assembly and comprehensive laboratory performance verification. Our factory holds ISO9001 ISO14001 IATF16949 and UL certifications and more than seventy percent finished goods export worldwide. This header fits industrial control instruments digital household appliances display modules and consumer electronic equipment. Please share your pole quantity pin style and project specifications for free sample evaluation and complete technical drawing support.
Glass Filled Wafer Header offers outstanding mechanical strength and high temperature resistance for long term electronic device operation.
High Current Wafer Pin supports five ampere power transmission to satisfy heavy load circuit connection demands.
Backplate Free Wafer saves internal PCB space and simplifies assembly procedures for compact electronic projects.
2.Detailed Specifications of AW2519WV‑XXP‑G‑X 2.50mm Pitch 180 Degree Misalignment Wafer Header
1. Mechanical Specifications
1.1 Product type: 2.50 millimeter pitch 180 degree misalignment tolerant wafer header without backplate, two pin style options Type 1 Type 2
1.2 Measurement unit: millimeter
1.3 Key dimension: Refer to engineering drawing and dimension table for full outline size and PCB layout data. Available pin counts range from 2 pins to 20 pins. Insulator color is grey. Observe general drawing tolerances for PCB footprint development. Recommended PCB tolerance is plus 0.05 millimeter.
1.4 Assembly method: Complete through hole soldering on printed circuit board and mate with matching housing to achieve stable wire to board power and signal transmission.
1.5 Ordering feature: Selectable pin quantity and pin style to satisfy varied wire to board interconnection requirements of electronic projects.
1.6 CTA: Contact our engineering team to obtain complete dimension drawings and ordering specifications for your hardware design validation.
2. Material Construction
2.1 Contact Pin: Brass
2.2 Insulator Housing: PBT plus thirty percent glass fiber, flame retardant grade UL94V‑0
3. Electrical & Environmental Performance Parameters
3.1 Rated current: 5 Ampere
3.2 Maximum contact resistance: 10 milliohm
3.3 Minimum insulation resistance: 1000 Megaohm
3.4 Dielectric withstanding voltage: 1500 Volt AC DC
3.5 Operating temperature range: -45℃ to +105℃
4. Usage Method
4.1 Assembly mode: Perform through hole soldering following official PCB layout drawing and pair with compatible mating housing to realize reliable wire to board connection.
4.2 Operation tip: Use dimension table and drawing dimension values for circuit board layout design.
5. Application Scenarios
5.1 Wire to board power and signal connection for industrial control equipment
5.2 Internal circuit interconnection for digital household appliances
5.3 Connection components for display related modules
5.4 Circuit connection for consumer electronic and precision instrument products
6. Operation & Storage Precautions
6.1 Strictly implement drawing dimensional tolerances during PCB footprint design
6.2 Avoid excessive insertion force to prevent permanent deformation of brass contact pins
6.3 Prevent scratches dirt and mechanical impact on insulator housing and pins prior to assembly
6.4 Store products in dry clean environment to protect brass contact surfaces from oxidation
6.5 Confirm pin quantity and pin style before submitting purchase orders
6.6 CTA: Submit your hardware requirement pin quantity pin style and project information, we provide free sample evaluation and professional technical consultation services.
3.FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

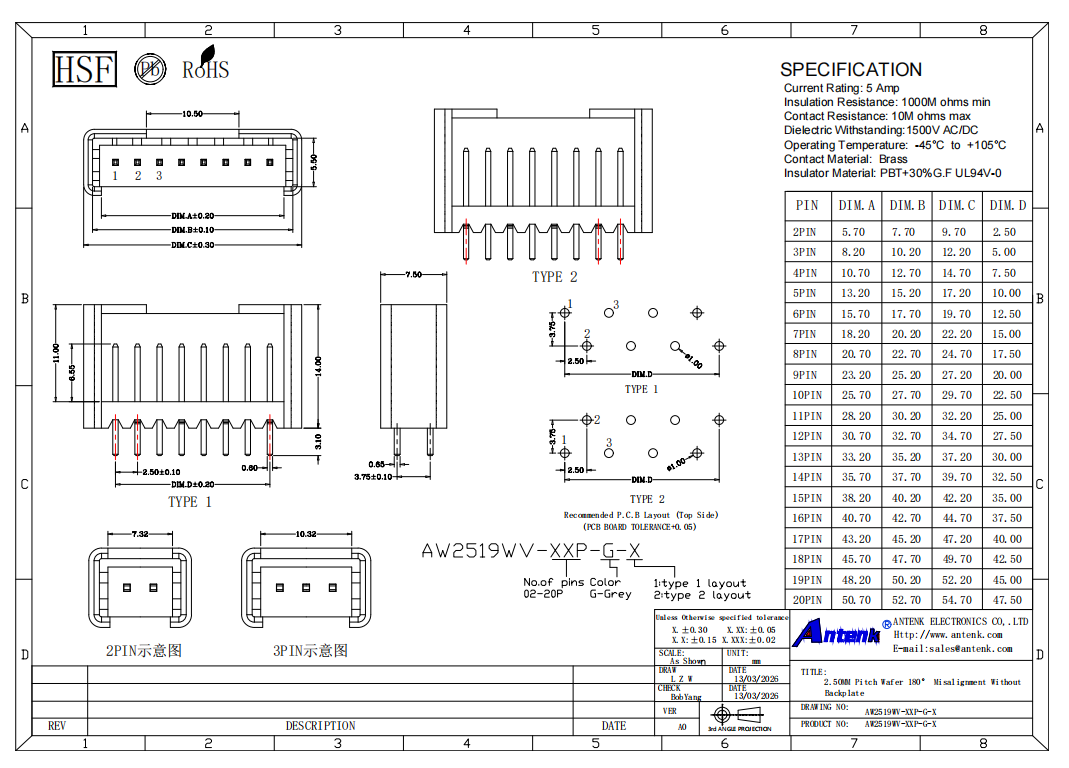

4.Product Drawing
