Soft Router with 6 RJ45 2.5G LAN

Mini PC Router - Product Introduction

This software router is equipped with an Intel Core i5 1235U processor and adopts metal fin passive cooling, supporting non-stop operation 24 hours a day, 365 days a year. It comes with 2*SFP+ 10G optical ports, 6*2.5G Ethernet ports and an RJ45 CONSOLE debug port. It supports physical isolation of multiple network segments, multi WAN link redundancy and high speed fiber uplink. It supports dual display output via HD-MI and Type-C. With abundant interfaces, it can be deployed flexibly.

Mini PC Router - Product Specifications

Processor	Intel Core i5 1235U
RAM	2*DDR5 SODIMM slots, support up to 96GB memory
SSD	1*M.2 NVMe 2280 slot, Custom DIY packages optional, please consult store customer service for details
LAN	2SFP+ Intel 82599ES, 6RJ45 Intel i226V
OS	Win10, Win11, Linux, Ubuntu ect.
Function	Supports Watchdog and Wake-on-LAN (via electrical port)
Heat Dissipation	Full aluminum alloy chassis heat dissipation + fin structure + front and rear ventilation grilles
Expansion	1M.2 2232 WiFi, 1M.2 3042 slot for 3G/4G module with onboard SIM card slot (3052 form factor 5G module optional)
Power Supply	AC, 100-240V, 50/60Hz
Material	Aluminum
Dimensions	29917551mm (L×W×H)
Weight	Around 2.1kg

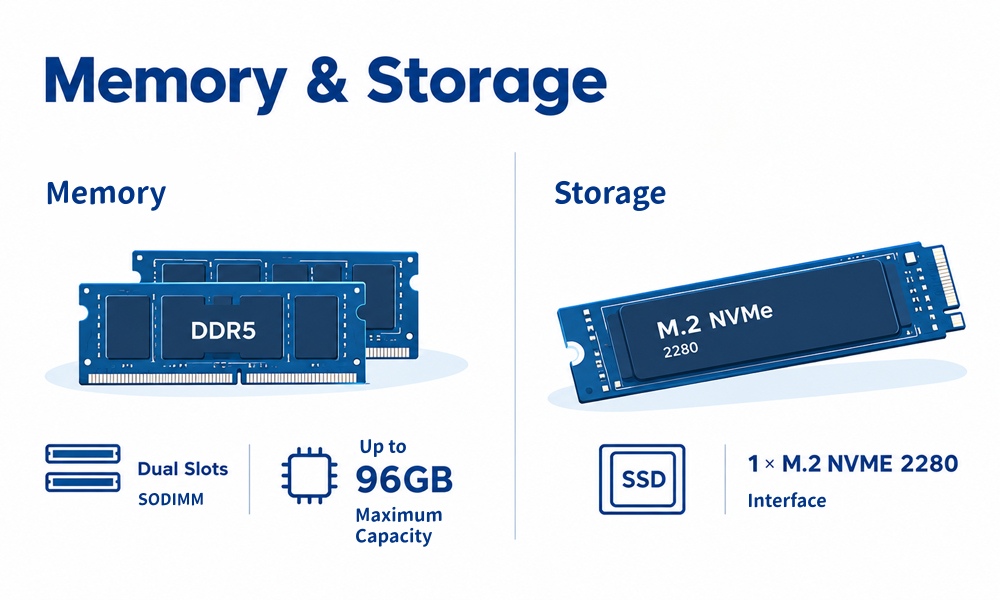

Mini PC Router - Memory and Storage

This network router features dual DDR5 SODIMM slots, expandable up to 96GB of large memory. It is equipped with one M.2 NVMe 2280 slot for storage, delivering fast large-file transmission, system bootup and software loading.

Mini PC Router - CPU Performance

This Soft Router runs on the Intel Core i5 1235U CPU. It has 10 cores and 12 threads, with a maximum turbo frequency of 4.40 GHz and 12 MB high speed Intel Smart Cache, balancing powerful computing capacity and low heat generation.

Mini PC Router - Application Scenarios

This mini computer is widely used as a software router, enterprise firewall gateway, and for industrial automation, security monitoring, power systems, finance, smart transportation and other scenarios.

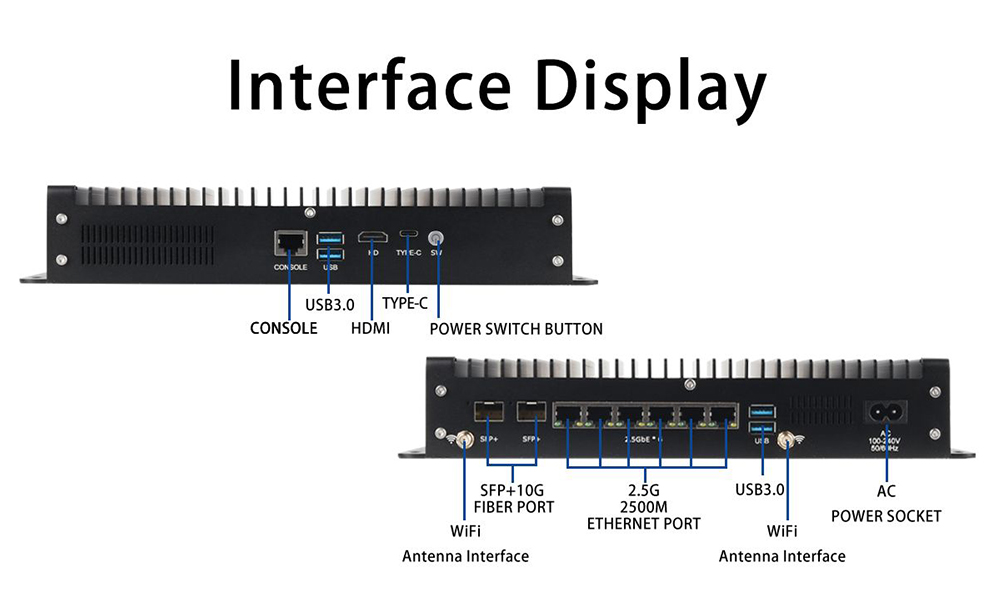

Mini PC Router - Interface Description

This mini PC is fitted with a rich set of interfaces for easy device connection. Front panel interfaces: 1*CONSOLE port, 2*USB3.0 ports, 1*HD-MI port, 1*Type‑C port, 1*power switch button；

Rear panel interfaces: 2*WIFI antenna connectors, 2*SFP+ 10G optical ports, 6*2.5G Ethernet ports, 2*USB3.0 ports, 1*AC power socket.

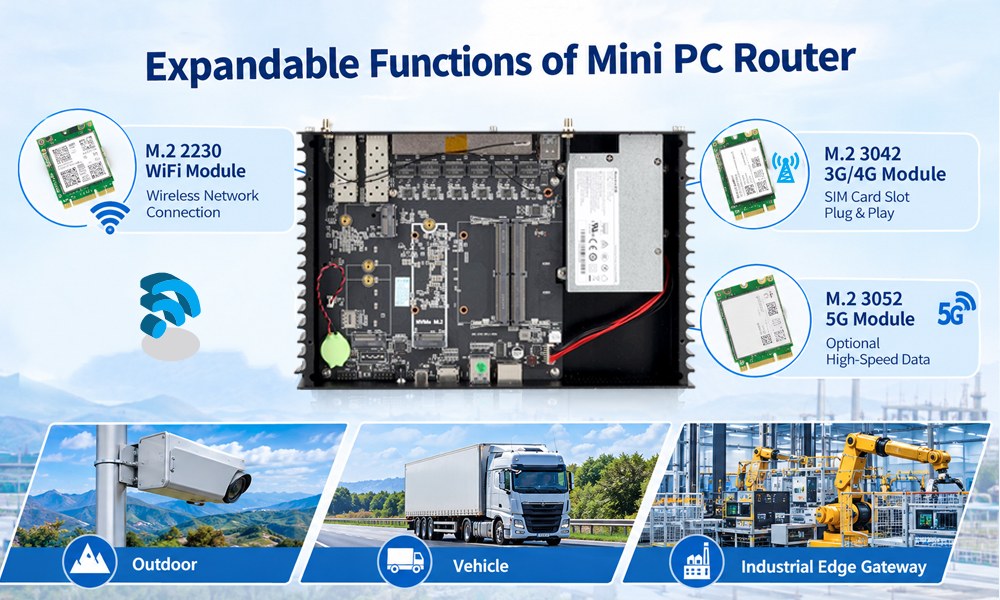

Mini PC Router - Expansion Features

This mini router has dual M.2 expansion slots. The M.2 2232 slot supports WIFI modules for wireless networking and BT peripheral connection. The reserved M.2 3042 slot can be fitted with a 3G/4G cellular module. An onboard SIM card slot enables mobile network access once a SIM card is inserted. This slot also supports optional M.2 3052 5G modules to upgrade to high speed 5G cellular connectivity.
