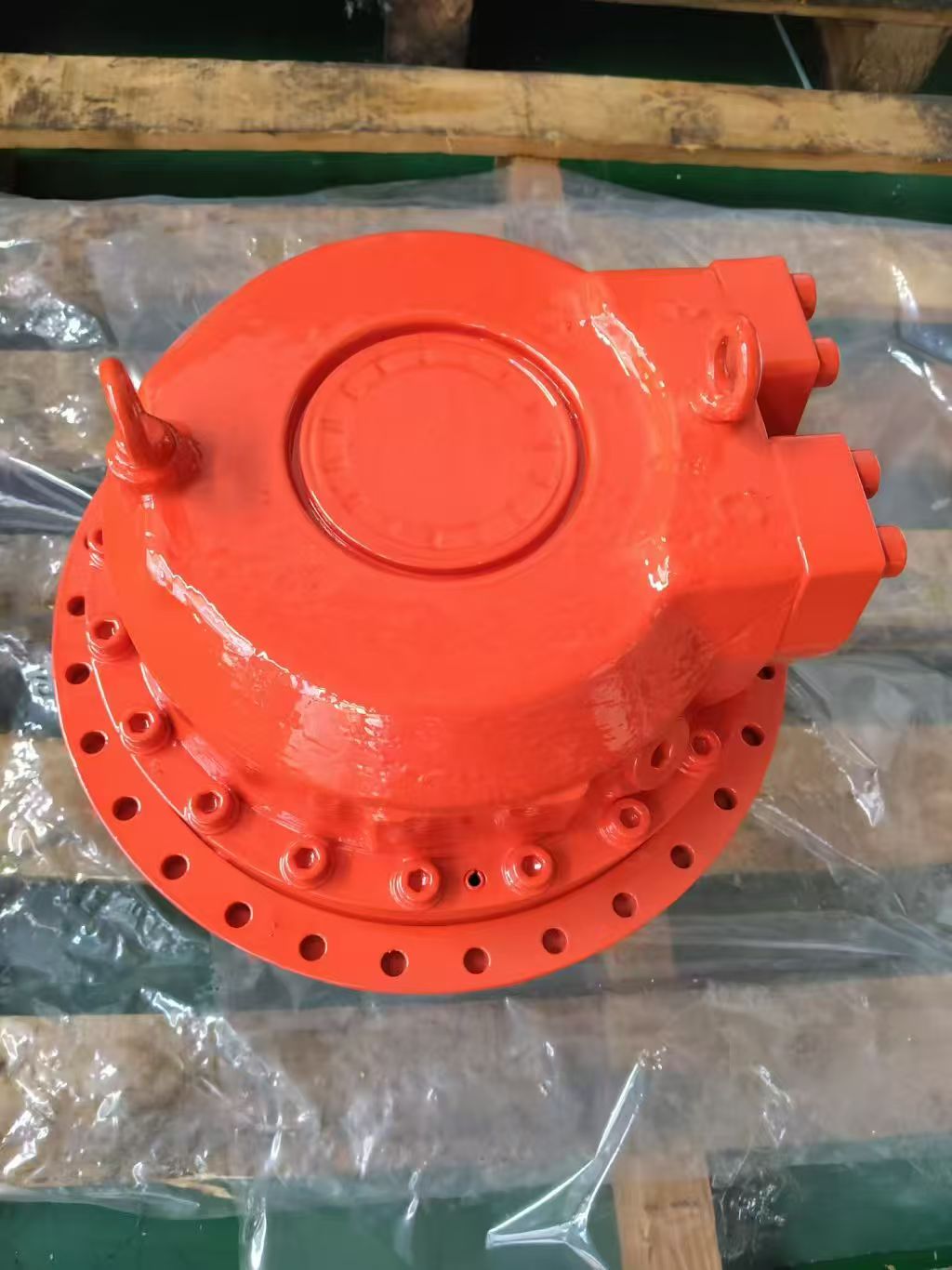

Hägglunds CAB3037 Hydraulic Motor

The Hägglunds CAB3037 (also marked as CAb0030 0037, rebranded as Atom 30 series) is a low-speed high-torque radial piston hydraulic motor under Bosch Rexroth. It serves as a core actuator for heavy-duty Machine and matches the complete hydraulic system.

Key Specifications

- Series: Atom 30 (CAb30)

- Displacement: 3700 cm³/rev

- Max continuous working pressure: 350 bar

- Peak pressure: 420 bar

- Max output torque: approx. 13.6 kNm

- Max speed: 400 rpm

- Max power: up to 394 kW

- Hollow shaft bore diameter: 60 mm

- Structure: Radial piston, rotating cylinder block, port plate distribution

- Working medium: Mineral hydraulic oil, also compatible with biodegradable environmental hydraulic oil; no internal paint coating, resistant to oil corrosion

Features

1. High power density: Compact size and light weight with huge output torque, saving installation space.

2. Excellent resistance to heavy and shock loads, stable under frequent impact working conditions with long service life.

3. Outstanding dynamic response with low moment of inertia, supporting fast start-stop and positive/negative rotation with reliable control accuracy.

4. Flexible installation with hollow shaft design. It can be mounted directly on the main shaft without an extra reducer to simplify the transmission chain.

5. Easy maintenance with high spare part compatibility. Separate replacement of piston assemblies, port plates, bearings and seals is available.

Applications

Suitable for shredders, belt conveyors, winches, winding machines, mining machinery, paper machines, marine winches and other heavy-duty industrial equipment.
