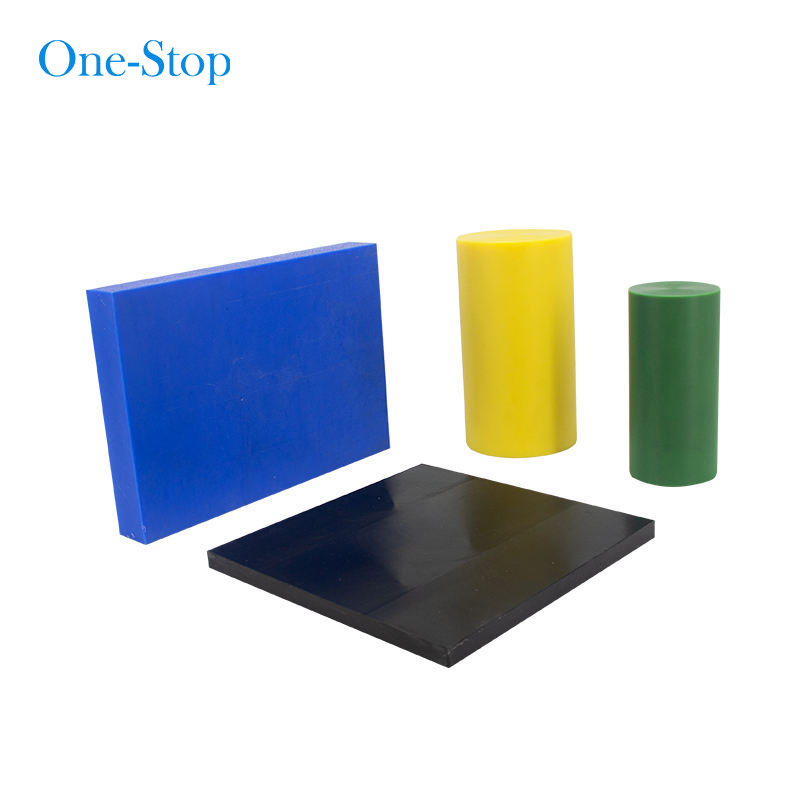

OEM MC nylon board PA6 sheet plate rod
Nylon Products
MC Nylon，means Monomer Casting Nylon, is a kind of engineering plastics used in comprehensive industries, has
been applied almost every industrial field.The caprolactam monomer is first melted, and added catalyst, then poured
it inside moulds at atmosphere pressure so as to shape in different castings, such as: rod, plate, tube. The molecule
weight of MC Nylon can reach 70,000-100,000/mol, three times than PA6/PA66. Its mechanical properties are much
higher than other nylon materials, such as: PA6/PA66. MC Nylon plays a more and more important role in the
material list recommended by our country.
Color：Natural、White、Black、Green、Blue、Yellow、Rice Yellow、Gray and so on.
Sheet Size：1000X2000X(Thickness:1-300mm）、1220X2440X(Thickness:1-300mm) 、1000X1000X(Thickness:
1-300mm）、1220X1220X(Thickness:1-300mm)
Rod Size: Φ10-Φ800X1000mm
Tube Size: (OD)50-1800 X (ID)30-1600 X Length(500-1000mm)
Nylon Plastic Sheet
|
Property |
Item No. |
Unit |
MC Nylon (Natural) |
Oil Nylon+Carbon (Black) |
Oil Nylon (Green) |
MC901 (Blue) |
MC Nylon+MSO2 (Light black) |
|
1 |
Density |
g/cm3 |
1.15 |
1.15 |
1.135 |
1.15 |
1.16 |
|
2 |
Water absorption (23℃ in air) |
％ |
1.8-2.0 |
1.8-2.0 |
2 |
2.3 |
2.4 |
|
3 |
Tensile strength |
MPa |
89 |
75.3 |
70 |
81 |
78 |
|
4 |
Tensile strain at break |
％ |
29 |
22.7 |
25 |
35 |
25 |
|
5 |
Compressive stress(at 2%nominal strain) |
MPa |
51 |
51 |
43 |
47 |
49 |
|
6 |
Charpy impact strength (unnotched) |
KJ/m2 |
No break |
No break |
≥50 |
No break |
No break |
|
7 |
Charpy impact strength (notched) |
KJ/m2 |
≥5.7 |
≥6.4 |
4 |
3.5 |
3.5 |
|
8 |
Tensile modulus of elasticity |
MPa |
3190 |
3130 |
3000 |
3200 |
3300 |
|
9 |
Ball indentation hardness |
N2 |
164 |
150 |
145 |
160 |
160 |
|
10 |
Rockwell hardness |
|
M88 |
M87 |
M82 |
M85 |
M84 |
This improved MC Nylon, has striking blue color, which is better than general PA6/PA66 in the performance of
toughness, flexibility, fatigue-resistance and so on. It is the perfect material of gear, gear bar, transmission gear and
so on.
