XUNDA Butyl Rubber Pipe Coating——15-40 mils underground pipe wrapping inner tape
Jining Xunda Pipe Coating Material Co., Ltd.A Global company supplying Polyethylene Coating Systems to the corrosion industry within the oil, gas and water pipeline construction industry for both onshore and offshore applications.
We are special pipeline anticorrosion tapes manufacture, which has more than 10 years experience of exporting, we have taken a lead in China to get the DVGW certificate, we have SGS test report.
Our cold applied Butyl Rubber Pipe Coating including:
Pipeline Anticorrosion Tape；Pipeline Anticorrosion Tape;Pipe Joint&Repair Wrapping Tape;3-ply Adhesive Wrapping Tape;PE Bitumen Tape；Aluminum Foil Tape；Viscoelastic Pipe Coating；Petrolatum Pipe Coating；Polypropylene Fiber Woven Tape and etc…. which is popular be used for pipes, flanges, elbows and joints, both underground and overground.

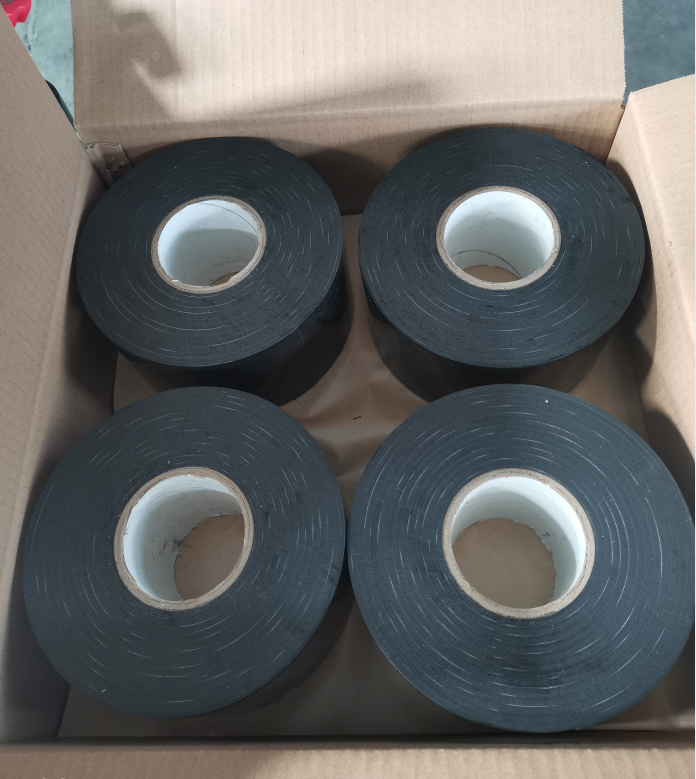

Pipeline Anticorrosion Tape——Polyethylene Anti-corrosion Tapes (T 100)
Description:
The T100 series is Cold applied tape coating system for corrosion protection of Oil, Gas, Petrochemical, and Waste Water underground or overhead pipelines.
The inner-layer tape shall be applied after the primer and before the outer-layer tape by hand or with a wrapping machine.
Structure：
The specification of the tape consists of two layers, adhesive layer and film backing
1)Adhesive: butyl rubber
2)Outer layer: Special blend of stabilized polyethylene
Technical datas:
INNER WRAP TAPE: XUNDA-T 100 Series
|
Type |
T-150 |
T-165 |
T-180 |
|
Total thickness |
0.51 mm |
0.65 mm |
0.80 mm |
|
Polyethylene Film |
0.31 mm |
0.34 mm |
0.39 mm |
|
Synthetic Adhesive |
0.20 mm |
0.31 mm |
0.41 mm |
|
Elongation at Break |
³ 400% |
||
|
Tensile Strength |
55 N/cm |
60 N/cm |
65 N/cm |
|
Yield Strength |
35.5 N/cm |
42.3 N/cm |
45.5 N/cm |
|
Peel Adhesion to Primed Pipe |
22 N/cm |
25 N/cm |
28 N/cm |
|
Dielectric Strength |
35 KV/mm |
45.8 KV/mm |
48 KV/mm |
|
Cathodic Disbandment |
0.24 in radius 6.4 mm |
||
|
Volume Resistivity |
1 x 1012 ohm.m |
||
|
Water Vapor Transmission Rate |
£ 0.1gm/M2/24h |
||
|
Water Absorption Rate |
< 0.06% |
||
|
Recommended Application Temperature |
-5 to +600 C |
||
|
Max Serve Temperature |
-40 to + 800 C |
||
|
Color |
Black |
||
|
Available Roll Size (width x length) |
2" to 9" X 50 to800 feet |
||
Hot Tags:Pipeline Anticorrosion Tape,Pipeline Anticorrosion Tape,3-ply Adhesive Wrapping Tape,PE Anti Corrosion Bitumen Tape,PP anti corrosion Bitumen Tape,Aluminum Foil Tape,PVC anticorrosion pipe wrapping tape,Aluminum Foil Waterproof Pipe Tape
，China, manufacturer, supplier, High quality and competitive price
