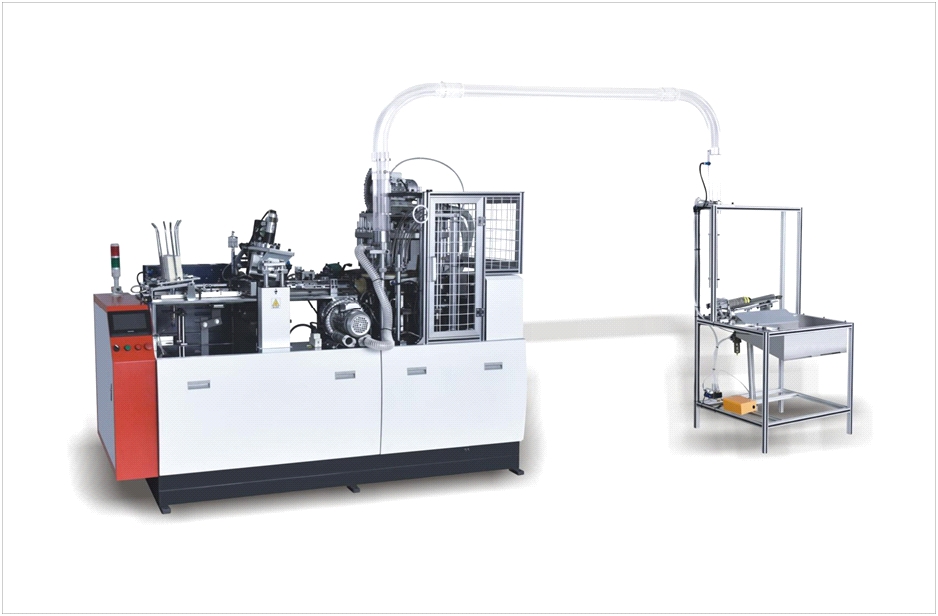

ZSJ-588 Paper Cup Making Machine
Model
ZSJ-588(Hot seal)
ZSJ-588（Ultrasonic seal）
Product name
Single-face PE coated (hot sealed) paper cup machine
Dual PE coated (ultrasonic seal) paper cup machine works better for hot drinks and is more suitable for cold drinks
Material
150-250gsm polyethylene coated paper
150-350gsm polyethylene coated paper
Speed
60-70pcs/min
60-70pcs/min
Applicable size
60ML-26 OZ
60ML-26 OZ
Weight
1800KG
1850KG
Total power
4KW
4.5KW
External size
2450X1350X2000mm
2000X1250X2000mm
Working air pressure
0.4-0.5m3/min
0.5-0.8m3/min
Power
380V 3phase 50HZ
380V 3phase 50HZ
Brief description:

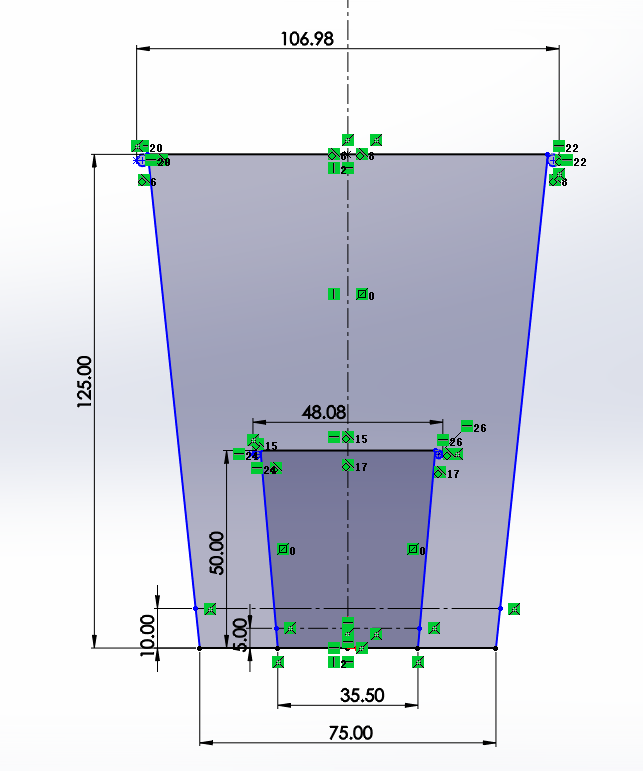

The maximum production size and the minimum production size of the machine.Customized height can be 195mm
Product introduction:
ZSJ-588 type open cam paper cup machine has advanced design and intelligent program, more reliable and durable, competitive price. Can make one side or two sides PE film paper bowl.Pre-printed fan-shaped cup piece feeding, cup bottom side welding, oil lubricating upper crimping, robot transfer cup barrel, bottom paper bottom punching, bottom preheating and pre-folding, main heating, bottom knurling (double PE cooling device), Hemming, cup collection, speed 70-80pcs/min (the machine can run 80-90pcs/min, but can't work for a long time, so we limit the machine's fastest speed to 70pcs/min).
Function introduction:
1. PLC program control is simple and intelligent.

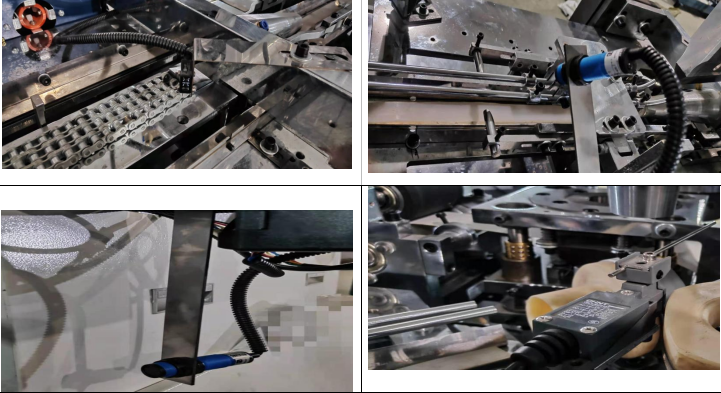

2. The sensor detects all steps. The fault guide guarantees the quality of the cup and the life of the machine.
3. The stepper motor controls the bottom feeding, and the precision is reliable. One cup fan cuts one chassis without waste.
4. Open cam (8 grades), easy maintenance, stable and reliable.

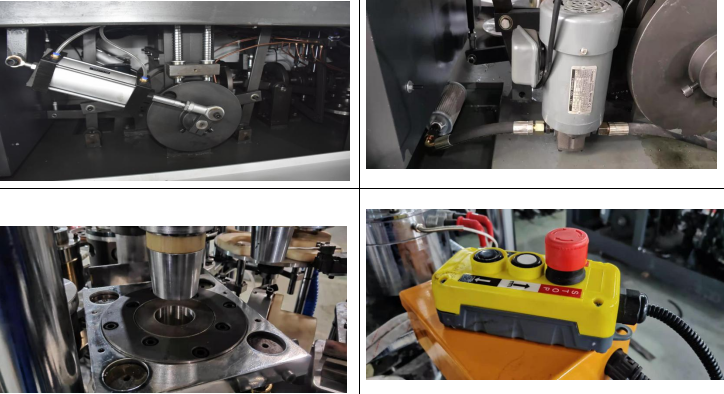

5. Remote control, easy to control and adjust.

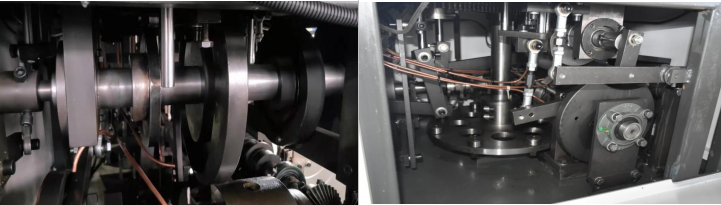

6. The high-quality shaft and gear drive the movement, which is more stable than the chain system.

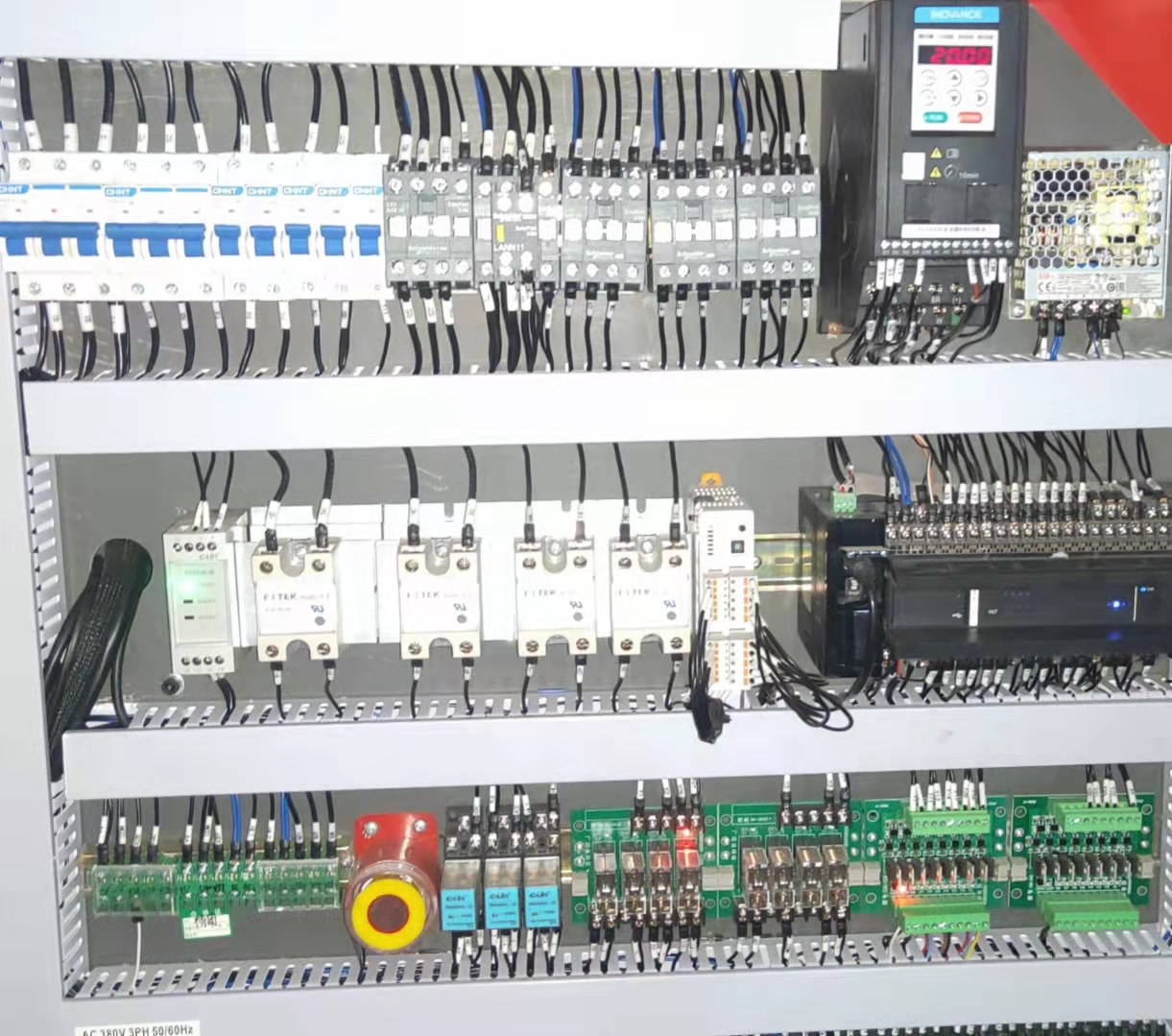

7. High-quality electrical components, long life
8. Separate cam and link drive knurled crimping and heated parts keep the machine stable and easy to maintain.
9. The working power is only 3.5KW, which saves the cost.
10. Only one main turntable, more efficient and reliable.
11. Automatic lubrication system (self-lubricating)
12. The manipulator pushes the cup directly onto the main mold
13. Advanced bottom knurling system, reliable and long service life.
14. The sides of the cup are sealed with ultrasonic or copper strips.
Product Parameter
