Product details

The only one in China!

Super Precision Tapered Roller Bearing Manufacturer!

Products Description

Grade	Radial Runout (Cone Bore)	Prefix to Part No.
Standard	0.0015mm	None
Q	0.0010mm	Q
QK	0.0005mm	QK

Higher specification grades offer improved radial run-outs and component roundness. UKL Bearings also offer a comprehensive service for the design and manufacture of other Tapered Roller Bearings to suit specific requirements.

We will be pleased to offer our experience and technical expertise in assisting you to achieve the best possible results and maximise cost effectiveness, for all non-standard applications.

Advantage

● Cone Bore Run-out tolerances ranging from 0.5 microns to 1.5 microns  ● Comprehensive range of sizes from 25mm bore upwards  ● Quality assured to BS EN ISO 9001:2000 standards   ● High quality bearing materials 

Product Catalog

Bearing Number
Cone	Cup	d	D	T	Speed /rpm (max)	Weight (kg)
113060X	113100U	60.325	100.000	25.40	6600	0.660
113060X	113101XU	60.325	101.600	25.40	6600	0.660
120063X	120110U	63.500	110.000	30.16	6200	1.000
120063X	120112XU	63.500	112.712	30.16	6200	1.100
130063X	130120U	63.500	120.000	29.79	5700	1.315
130063X	130127U	63.500	127.000	29.79	5700	1.315
130065	130120U	65.000	120.000	29.79	5700	1.315
130065	130127U	65.000	127.000	29.79	5700	1.315
124069X	124112XU	69.850	112.712	30.16	5800	0.960
130069X	130120U	69.850	120.000	29.79	5700	1.190
135069X	135120U	69.850	120.000	38.10	5700	1.670
130069X	130127U	69.850	127.000	29.79	5700	1.315
32014			70.000	110.000	25.00	5800	0.720
124070	124112XU	70.000	112.712	30.16	5800	0.960
130070	130120U	70.000	120.000	29.79	5700	1.185
130070	130127U	70.000	127.000	29.79	5700	1.315
123073X	123120U	73.025	120.000	24.60	5500	1.490
123073X	123120XU	73.025	120.650	24.60	5500	1.490
123073X	123121XU	73.025	121.444	24.60	5500	1.490
123073X	123123XU	73.025	123.825	24.60	5500	1.490

Here is only part of the super precision tapered roller bearing product catalog, please click here to contact us for more product information!

Product Details

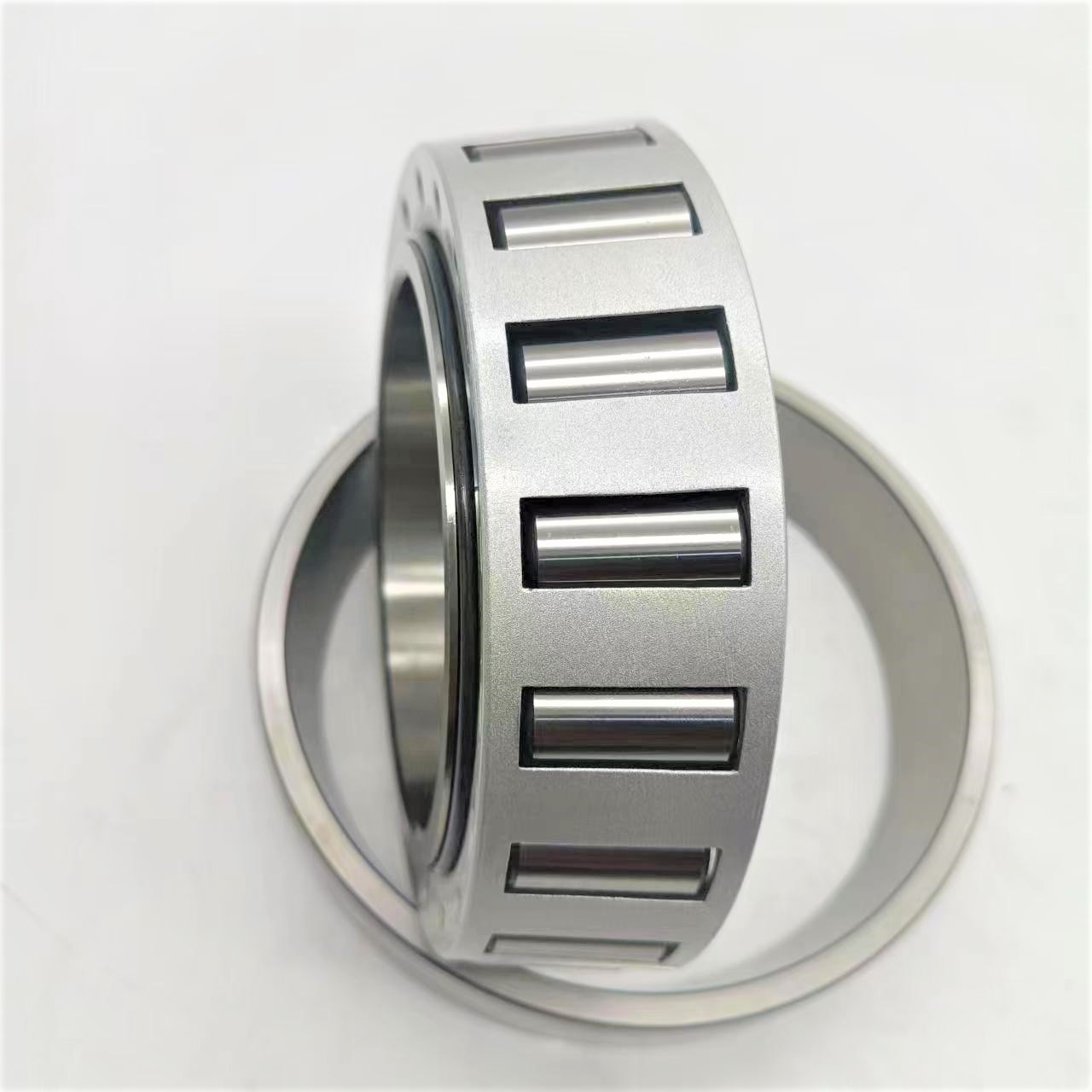

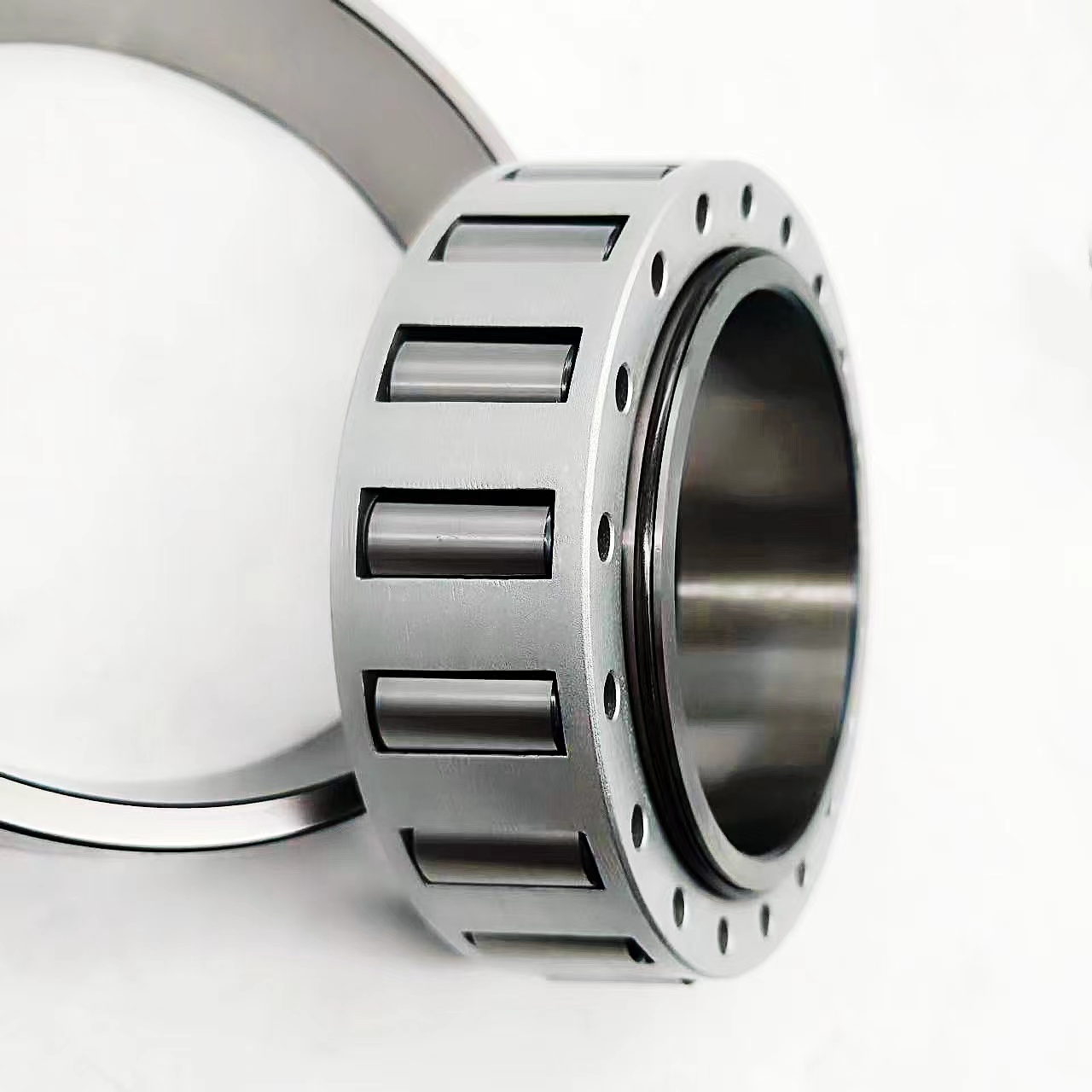

Single row tapered roller bearings

UKL single row tapered roller bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.

The projection lines of the raceways meet at a common point on the bearing axis to provide a true rolling action and therefore low frictional moments during operation.

The axial load carrying capacity of tapered roller bearings increases with increasing contact angle. The size of the contact angle, which is usually between 10° and 30°.

Matched tapered roller bearings

The UKL assortment of matched single row tapered roller bearings is based on popular sizes of single row tapered roller bearings. Depending on the application requirements, matched tapered roller bearings are available in different designs and variants: Matched bearings arranged face-to-face Matched bearings arranged back-to-back

Double row tapered roller bearings

UKL manufactures double row tapered roller bearings in the TDO and TDI designs, in many variants and with different features. Depending on the design, these bearings can accommodate heavy radial loads, axial loads in both directions and have a high degree of stiffness.

Double row tapered roller bearings are typically used in gearboxes, hoisting equipment, rolling mills and machines in the mining industry, e.g. tunnelling machines

Double row tapered roller bearings, TDO design Double row tapered roller bearings, TDI design

Four-row tapered roller bearings

Four-row tapered roller bearings can accommodate combined (radial and axial) loads at low to moderate speeds. They are used almost exclusively in work roll applications such as rolling mills.

TQI design Four-row tapered roller bearings, TQO design

Factory & Equipment

Inspection & Packaging

Application Scenario

Certifications

FAQ

1.Q:What the MOQ of your company?
A:MOQ is 1pc.
2.Q:Could you accept OEM and customize?
A:YES,we can customize for you according to sample or drawing.
3.Q:Could you supply sample for free?
A:Yes,we can supply sample for free,do you mind to buy her a ticket?
4.Q:IS you company factory or Trade Company?
A:We have our own factory ;our type is factory +trade.
5.Q:Could you tell me the material of your bearing?
A:We have chrome steel,carbon steel and staninless steel,ceramic and plastic material.
6.Q:Could you offer door to door service?
A:Yes,by express(DHL,FEDEX,TNT,EMS,4-10 days to your city.)
7.Q:Coould you tell me the payment term of your company can accept?
A:T/T.L/C,Western Union,PayPal
8.Q:Could you tell me the delivery time of your doods?
A:If stock,in 7days or base on your order quantity.
