Product details

Product Overview

XINLEI AUTO HIGH SPEED SQUARE BOTTOM PAPER BAG MAKING MACHINE

Rolling feed Square bottom paper bag making machine, it uses paper roll in blank or printed as raw material. consists of automatic centre forward glue, fixed length and cutting, bottom indentation, folding bottom, bottom glue.Bag bottom forming, finished bag collecting onetime,The machine is more convenient, more efficient, more stable, can produce a variety ofdifferent paper bags, leisure food bags, bread bags, dried fruit bags and other environmentalpaper bags.

Main Features

1.Using Willon touch screen man-machine interface, the operation function is clear at a glance, easy to control 2.Adopt the Japanese original Mitsubishi motion controller, through the integration with the optical fiber, operation stability 3.Japanese Mitsubishi servo motor with German Schick color standard eye correction, accurate tracking printing bag size 4.The raw material loading and unloading adopts hydraulic dynamic lifting structure, and the unwinding adopts automatic constant tension control. 5. The raw material correction adopts brushless servo motor to reduce the adjustment time of paper roll alignment.

Advantages of paper bags

1.Firmness

2.Advertising

3.Environmental protection

4.Economy

5.Degradable

Sample Pictures

Main Technical Parameter

No	Model	350	450
1	Cutting Length	270-530mm	270-530mm
2	Paper Bag Width	120-350mm	210-450mm
3	Bottom width	60-180mm	90-180mm
4	Paper bag thickness	60-150g/㎡	80-150g/㎡
5	Mechanical speed	30-220pcs/min	30-220pcs/min
6	Paper bag speed	30-180pcs/min	30-150pcs/min
7	Paper roll width	380-1050mm	660-1290mm
8	Paper diameter	1300mm	1300mm
9	Inner diameter of paper	76mm	76mm
10	Total power	380V 3phase 4line 15kw	380V 3phase 4line 15kw
11	Total Weight	8500kg	9000kg
12	Overall size	1000037002200mm	1000038002200mm

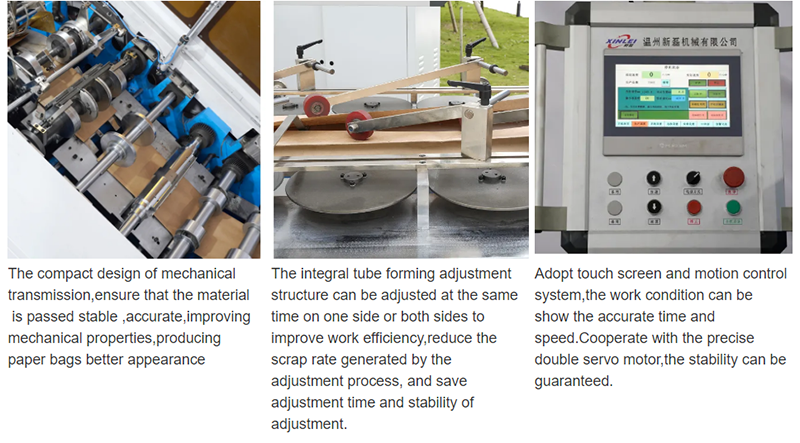

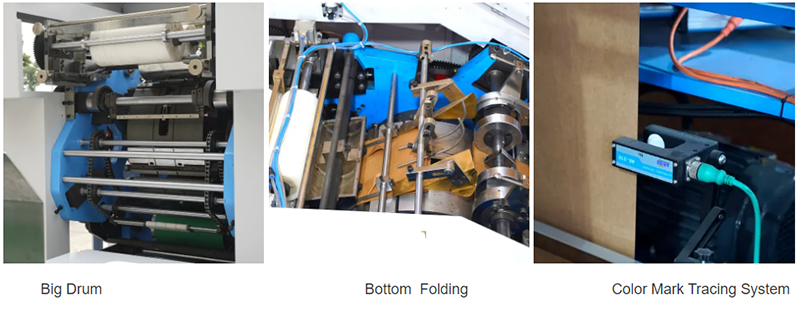

Structure Function

11-2

Our Service

Our engineer can be available to service machinery overseas

1. We have several senior engineers service in many countries,all the year round with our after-sales office in multiple countries.

2.Machines with good quality in one year,life-long maintenance.

3.We have many machines can be monitored via the Internet,solve customer requirements in a timely manner.

4. We have several senior,continuous innovation and reform,in order to ensure the quality of mechnical stability.

5.Undertake various non-standard machinery,solve the customer's requirements.

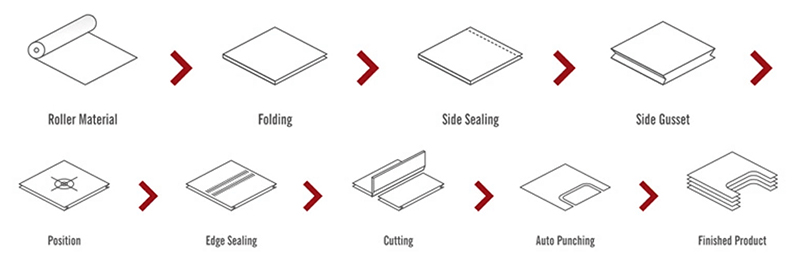

How To Make One Paper Bag?
