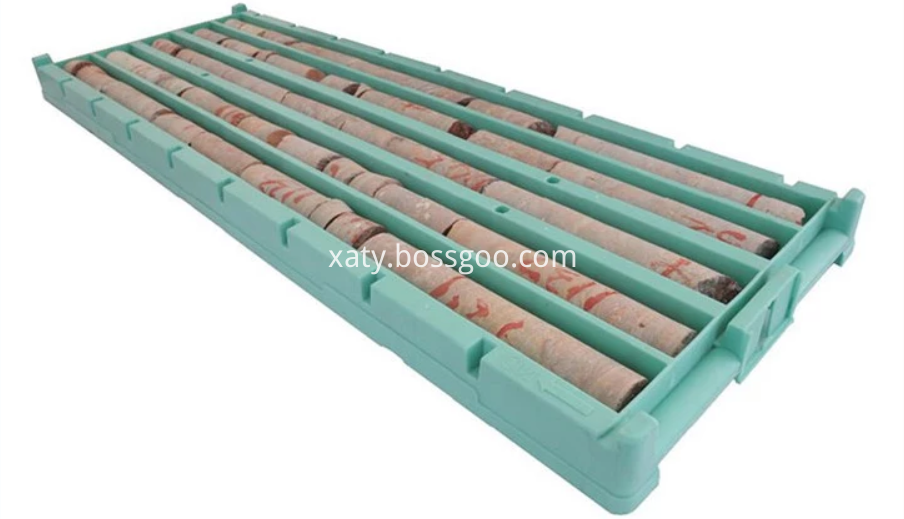

Core tray box is made by plastic. They are use to place the coring samples in geological drilling. We can supply core tray box with BQ, NQ, HQ, PQ sizes with high quality. Except for core tray box, we also supply diamond core bit, PDC core bit, elctroplated core bit, tsp core bit and carbide core bit, drill pipe etc related drilling accessories for water well drilling and geological exploration.
Size
Inseam
Length
Lattices Nos
Each slot width
Box size
Unit weight
BQ60
1m
6
48
1070×385×53MM
2.2kg
NQ75
1m
5
55
1070×385×60MM
2.3kg
HQ89
1m
4
69
1070×385×74MM
2.4kg
PQ110
1m
3
92
1070×385×97MM
3kg

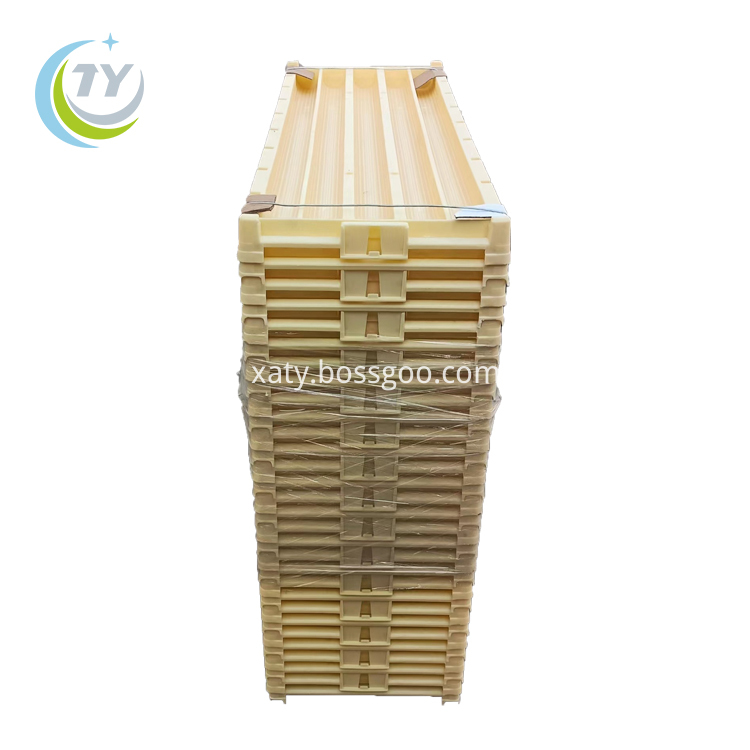

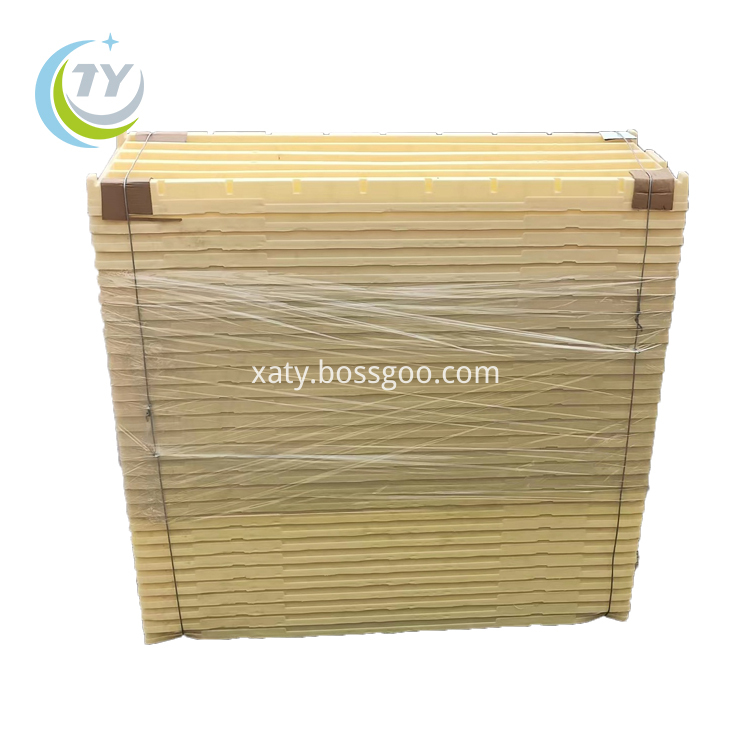

Packaging for plastic core tray box is by pallet if quantity is large, samples will be tied together by steel rope;
Core tray box is suitable for ship by sea;
Available products will be sent out within 5 working days, batch products will be up to the order quantity.
Xi'an Heaven Abundant Mining Equipment Co.,Ltd founded on 2010 at Xi'an Shaanxi province of China. We are mainly engaged in the spare parts fro mining and construction, such as PDC Drill Bit, Tricone Bit, PDC Cutter, Rock Drilling Tool, Diamond Core Bit, Drill Pipe, cutting tools etc. We also deputy famous oil exploration drilling bit in the domestic market, the purchasing team is very familiar with the domestic production of oil drill manufacturers and products performance, which can provide you with high quality products. We do export business since 2014, till now we have clients in more than 50 countries and feedback is good. Welcome international friends to come to negoate businessness and expand our products to more area, we belive quality products combined good service will bring both sides more brliant future.
Except for core tray box, we also supply core bits, drill pipes and core barrel component. Knowing more information about our products and our company, please feel free to contact us.
