What is the difference between air operated and electric diaphragm pump?
1. Power Source:
- Air Operated mini Diaphragm Pump: These pumps are powered by compressed air. They typically have an air inlet and outlet, which are connected to an air compressor. The compressed air creates the necessary pressure to move the diaphragm and pump the fluid.
- Electric Diaphragm Pump: Mini air pump is powered by electricity. They are connected to an electrical power source, such as an outlet or a battery. The electric motor drives the diaphragm and generates the pumping action.
2. Operation:
- Air Operated Diaphragm Pump: These pumps use compressed air to move the diaphragm back and forth, creating suction and discharge strokes. The air pressure alternately fills and empties the chambers on either side of the diaphragm, causing the fluid to be drawn in and pumped out.
- Electric Diaphragm Pump: These pumps use an electric motor to drive the diaphragm. The motor rotates an eccentric cam or other mechanism, which pushes and pulls the diaphragm to create the pumping action.
3. Control and Adjustability:
- Air Operated Diaphragm Pump: These pumps offer more precise control and adjustability. The air pressure can be adjusted to regulate the flow rate and pressure of the pumped fluid.
- Electric Diaphragm Pump: This electric air pump also provides control and adjustability, but it is typically done through the motor speed control. By adjusting the motor speed, the flow rate and pressure can be modified.
What is the impact of the performance parameters of the small diaphragm air pump on the working effect of the oxygen injection instrument?
1. Ultimate pressure: The ultimate pressure of a diaphragm pump is the minimum pressure that the pump can reach under normal operating conditions. In the oxygen injection instrument, this parameter determines the minimum pressure that the pump can provide, thus affecting the effect of nano spray produced by the oxygen injection instrument. The lower the limit pressure, the larger the range of spray pressure that the pump can produce under specific conditions theoretically.
2. Extraction volume and extraction rate: These two parameters are directly related to the gas flow rate that the pump can handle per unit time. In the application of oxygen injection instrument, they determine the speed at which the pump can supply oxygen to the oxygen injection instrument, thus affecting whether the oxygen injection instrument can generate enough spray in a short time to meet the use demand.
3. Starting pressure: This is the minimum pressure required for the pump to start working normally. For oxygen injection devices, the magnitude of the starting pressure affects the performance of the pump during the starting phase, especially when rapid response is required. A lower starting pressure means that the pump can enter the working state faster.
4. Front stage pressure and maximum front stage pressure: These two parameters are related to the pump's exhaust capacity and durability. In the oxygen injection instrument, they ensure that the pump will not be damaged due to high exhaust pressure during continuous operation, thereby ensuring the stability and reliability of the oxygen injection instrument.
5. Maximum working pressure: This parameter defines the maximum pressure that the pump can withstand under normal working conditions. For the oxygen injector, the maximum working pressure determines the maximum dew pressure that can be generated by the oxygen injector, and then affects the coverage and effect of spray.
Technical Specification
| Model | DQB421-C | Voltage | DC7.4V |
| Current |
<880mA |
Flow |
>5.5L/Min |
| Leakage |
<6mmHg/min |
Life span |
>95,000cycles |
| Net weight |
85g |
Application |
Mainly used for oxygen injection,beauty-care equipments,etc. |
How to reduce the failure rate of diaphragm air pumps and improve their reliability?
1、 Choose the appropriate model and material
1. According to actual needs, choose the appropriate model and material of the small dc air pump to avoid corrosion damage to the diaphragm and valve group caused by the conveying medium. For example, for pumps transporting acidic and alkaline media, diaphragm materials with good corrosion resistance should be selected.
2. The thickness of the diaphragm needs to be selected based on the viscosity and particle size of the medium to ensure stable operation and long service life of the pump.
2、 Optimize operating conditions
1. Reasonably adjust and use the pressure and flow parameters of the diaphragm air pump to avoid equipment operating under extreme conditions such as overpressure or high flow, in order to reduce equipment wear and failure rates.
During use, adverse factors such as impact and vibration of the conveying medium on the equipment should be avoided as much as possible to reduce the risk of equipment damage.
3、 Improve operation and usage methods
1. Operators should receive relevant training, master the usage skills and precautions of diaphragm air pumps, and ensure correct operation and use.
2. Follow the requirements of the operating manual to avoid improper operations such as overloading, prolonged operation, and frequent start stop, in order to reduce the operating load of the diaphragm air pump.
4、 Optimize design and manufacturing
1. Design phase: Reasonably design the structure and parameters of the small air compressor pump to ensure its good performance and stability. At the same time, consider using high-performance materials and manufacturing processes to improve the reliability and lifespan of the pump.
2. Manufacturing stage: Strictly follow relevant standards and specifications for manufacturing to ensure product quality and performance. Strictly control the manufacturing process to reduce manufacturing defects and potential failures.

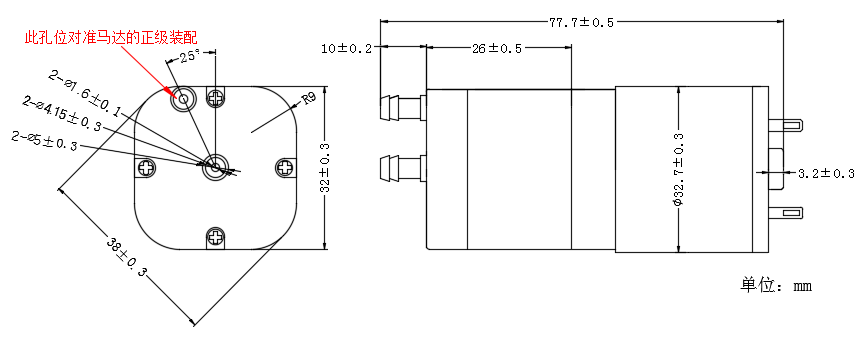

Dimension Drawing
How do you calculate micro diaphragm pump?
The calculation of a diaphragm air pump usually involves several key factors, including the pump's flow rate (Q), pressure (P), power (W), efficiency (η), and the physical characteristics of the working medium. The following is a basic calculation process:
1. Determine requirements: Firstly, you need to know the gas flow rate (in cubic meters per minute or liters per minute) and the required pressure (in pascals or bars) that you need the diaphragm air pump to process.
2. Choose pump type: Based on your needs, choose the appropriate diaphragm pump type, such as single acting, double acting, or multi acting diaphragm pumps. This will affect the flow and pressure capacity of the pump.
3. Check the performance curve of the pump: Each dc pump will have its own performance curve, displaying the relationship between flow rate and head (pressure * volume). Find your demand point on the curve, which corresponds to the position of flow rate and pressure.
4. Calculate theoretical head: Read the theoretical head from the performance curve, which is usually the maximum pressure that the pump can provide.
5. Consider practical applications: Considering the pressure loss during actual use (such as pipeline resistance, valve loss, etc.), it may be necessary to subtract this part of the loss from the theoretical head to obtain the actual required pump pressure.
6. Power calculation: The efficiency (η) of the pump and the actual required power (P=W/η) can be estimated through performance curves or data provided by the pump manufacturer.
7. Determine motor specifications: If necessary, you also need to consider the selection of the motor to ensure that the power of the motor is sufficient to drive the pump, and that the voltage and frequency meet the requirements.
DYX Mini Diaphragm Pumps And Solenoid Valves Application

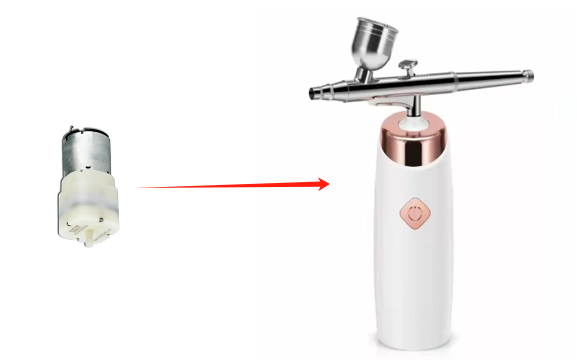

How to determine the size of the mini electric air pump in the oxygen injection instrument?
1. Understand the requirements of oxygen injection equipment:
Firstly, it is necessary to clarify the working requirements and objectives of the oxygen injection instrument. This includes the required oxygen flow, pressure range, spray effect, etc.
Determine the specific requirements for the performance of the air pump based on the purpose of the oxygen injection device (such as face, body, scalp, etc.).
2. Consider application environment and usage limitations:
Evaluate the application environment of the oxygen injection device, including space size, installation location, noise requirements, etc.
Consider usage restrictions, such as power supply and cooling conditions, to ensure that the selected air pump can adapt to these limitations.
3. Verification and testing:
Before actual installation, CAD software or other tools can be used for simulation verification to ensure that the size of the selected air pump matches the installation space of the oxygen injection instrument.
If possible, conduct actual testing to ensure that the performance and size of the air pump meet the requirements of the oxygen injection instrument.
