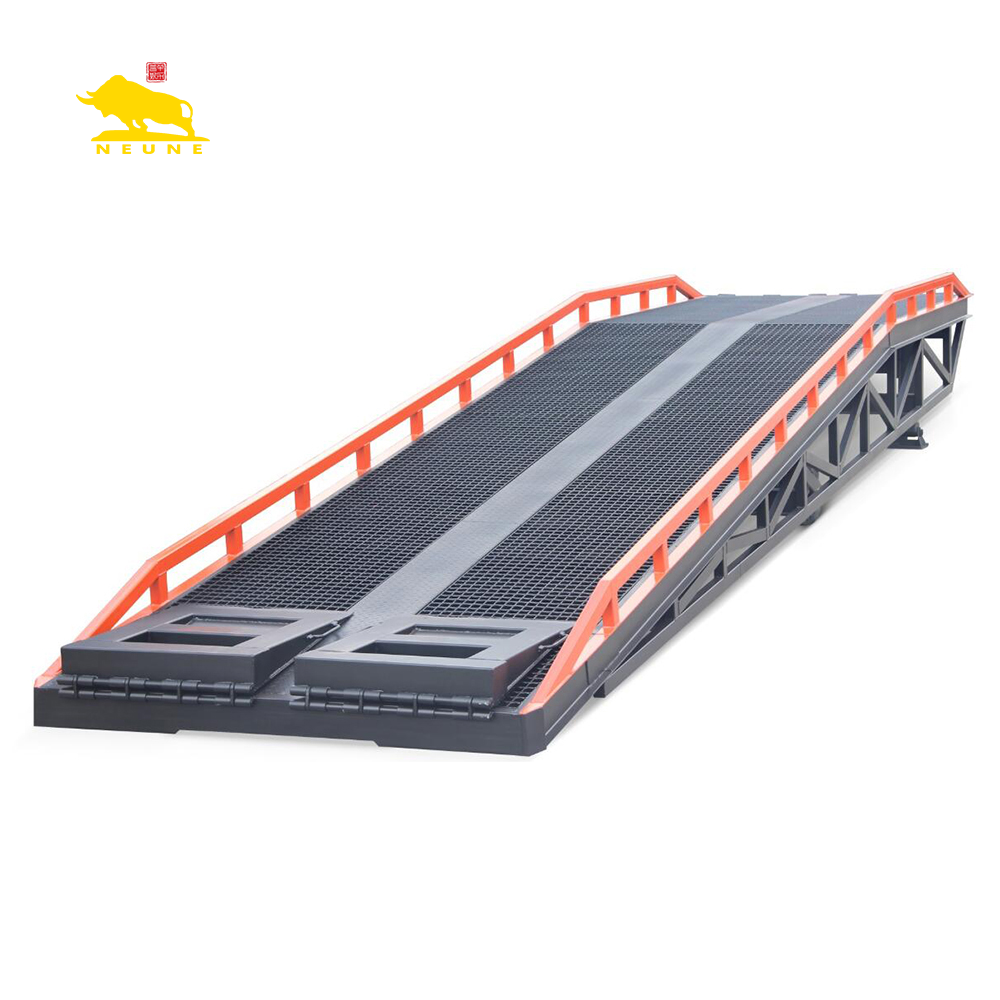

A mobile dock ramp is a portable loading and unloading platform that requires no fixed installation and uses a hydraulic system for height adjustment. It is primarily used for forklifts to move directly between the ground and truck trailers. Unlike traditional fixed loading docks or simple steel ramps, this product integrates a load-bearing structure, hydraulic adjustment mechanism, anti-slip platform, and stable support system, allowing for loading and unloading operations without an external power source. It has a maximum load capacity of 6000-10000 kg and supports various platform size configurations, making it suitable for work scenarios with non-fixed loading and unloading locations and varying vehicle specifications.
Advantages:
The countertop adopts a special wear-resistant anti-skid net to enhance the stability of the forklift when climbing;
Equipped with brake pads and adjustable support bases to prevent displacement of the boarding bridge during loading and unloading operations and ensure the safety of forklift operations;
Adopt high-quality front support leg design, wide range of height adjustment.
Specifications:
|
Model |
Capacity（kg） |
Platform size (mm) |
|||||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
J |
I |
||
|
DCQH6-0.4 |
6000 |
6000 |
3000 |
1000 |
300 |
10300 |
1800 |
2100 |
1100 |
1600 |
500 |
|
DCQH8-0.4 |
8000 |
6000 |
3000 |
1000 |
300 |
10300 |
1800 |
2100 |
1100 |
1600 |
500 |
|
DCQH10-0.4 |
10000 |
7000 |
3000 |
1000 |
300 |
11300 |
1800 |
2100 |
1100 |
1600 |
500 |
Features:
1. High Load Capacity
The Mobile Dock Ramp features a fully welded main beam structure with a rated load capacity of 6000kg. The platform's deflection under full load is controlled within safe structural limits. Thickened steel is used in core load-bearing areas, allowing it to continuously withstand concentrated loads from forklifts and goods, meeting the demands of frequent heavy-duty loading and unloading operations.
2. Stability
The platform is equipped with adjustable support legs at the front, which, combined with the hydraulic height adjustment system, can accommodate various truck bed heights. The support points form a multi-point load-bearing structure during operation, effectively reducing the risk of forward and backward displacement of the ramp under load, ensuring stability during forklift movement.
3. Anti-Slip Properties
The work surface is covered with a highly wear-resistant anti-slip mesh plate. Its surface friction coefficient has been verified under actual working conditions, maintaining good adhesion when the tires are under load. Even in wet or dusty environments, it effectively reduces the probability of forklift slippage, improving the safety factor of the loading and unloading process.
4. Adjustability
The Mobile Dock Ramp supports various platform length and width combinations. Platform dimensions can be matched to vehicle models and forklift specifications. The hydraulic system's adjustment range covers common truck heights, allowing a single device to adapt to multiple loading and unloading scenarios, reducing the need for multiple equipment investments.
5. Safety
The equipment is equipped with mechanical limit and braking structures, effectively preventing overall displacement after the platform enters the working state. Critical connection points have undergone strength verification to ensure that the structure remains stable during continuous loading and unloading, providing predictable operational feedback for forklift drivers.
Application:
1. Warehousing and Logistics
In medium to large-sized warehousing centers, the Mobile Dock Ramp can be quickly deployed at different loading and unloading docks, meeting the operational needs of mixed vehicle types. Its 6000kg load capacity supports fully loaded forklifts, improving single-vehicle loading and unloading efficiency and reducing manual handling.
2. Manufacturing Plants
Manufacturing plants often have scattered loading and unloading points. This product can be put into use without any civil engineering modifications. By adjusting the platform height, it can directly connect to different types of transport vehicles, enabling quick loading and unloading of raw materials or finished products.
3. Construction Sites
Construction sites have complex environments, making it difficult to set up fixed loading docks. The Mobile Dock Ramp offers excellent mobility and structural stability, allowing for forklift loading and unloading of heavy materials in temporary locations, reducing logistics costs at the construction site.
4. Retail Distribution
In regional distribution centers or large retail backyards, vehicles are frequently changed, and their cargo heights vary. This product adapts to different vehicles through hydraulic adjustment, improving the continuity of high-frequency loading and unloading operations and reducing waiting times.
5. Food Processing
The food processing industry has high demands for loading and unloading efficiency and safety. The anti-slip platform and stable support structure ensure smooth operation of forklifts under load, reducing the risk of accidents caused by slipping or shaking.
If you are interested in the product, contact 2bvideo.com for more information for more information
