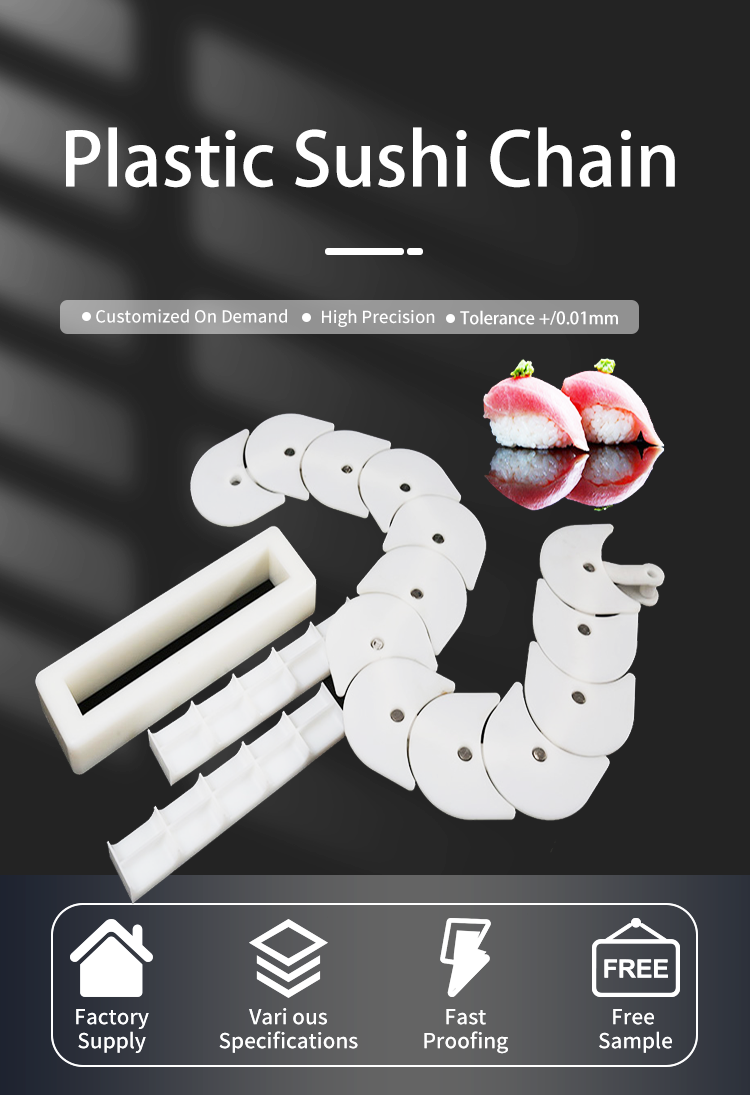

Plastic sushi chain

Plastic sushi chain

2 year ago

51 0

Guangzhou One-Stop Engineering Plastics Industries (group) Co., Ltd

 4 year year

Product details

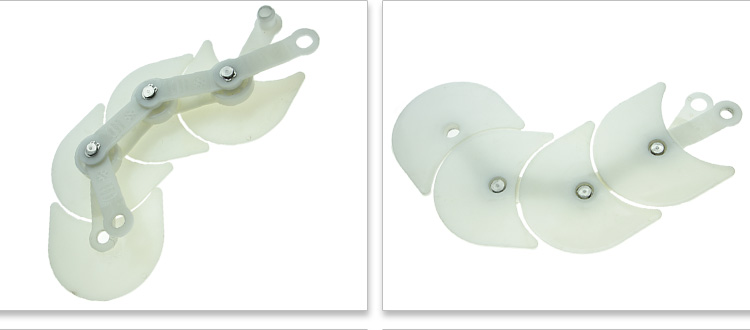

83 crescent sushi chain flat flexible chain plate plastic steel flexible side bending chain turning plastic conveyor chain

Product Paramenter
POM Plastic Sushi Rotary Chain Plate 140mm Width Sushi Rotary Chain Plate Small Hot Pot Chain Plate is mainly suitable for 360° rotary conveying in catering and hot pot buffet assembly lines.
CC610 small hot pot chain plate The small hot pot chain plate is mainly suitable for 360° rotating conveying in catering and hot pot buffet assembly lines.
It is white, the pin shaft is stainless steel Packing: 13 pieces/m Width: 178mm Small hot pot chain plate Speed: 50m/min Lubricant, 25m/min Desiccant Working load: 4800N, * Conveying length: 15m min
Hot pot chain plate material: POM, the color is white, the pin shaft is stainless steel Packaging: 13 pieces/m Width: 178mm. Small hot pot chain plate speed: 50m/min Lubricant, 25m/min Desiccant Working load: 4800N, conveying length: 15m Plastic chain plate material pom; pitch 38.1mm, suitable for chain plate conveying line, industrial automation assembly line and food and beverage conveying industry;
plastic chain model: RS60P RS50P RS40P RS35P And scraper plastic chain and double tooth plastic chain
Other styles contact customer service for customization

Sushi Chain Material			POM/UPE or other materials
Sushi chain Color			red,yellow,green,blue,gret or custom color with big quantity
Sushi chain process			Moulding injection
Sushi chain Features			Ready mold , for Food contact , easy assembly and disassembly
Sushi chain Function			convey sushi food dishes in Sush store
Sushi chain Density			1.5g/cm3
Sushi chain Size			13 pcs per meter
Sushi chain life			8 - 10 years
Sushi chain packing			see order quantity in different size of cartons
Payment			50% T/T in advance, 50% T/T before delivery
Place of origin			GuangZhou, China (Mainland)
Delivery			According to the orders, usually 5-15 days

Hot uhmwpe manual sushi maker

1.Description:
UHMW-PE(Ultra high Molecular Weight Polyethylene)is a thermoplastic engineering plastic with the average
molecular weight more than 9.2 million (100% Virgin UHMW-PE Raw Material). This kind of material with five top performance of high-wear-resistance, good-chemical resistance, low-temperature resistance, self-lubrication and high-impact resistance, which is regarded as a "surprised" engineering plastic of excellent comprehensive capacity and competitive price. Guangzhou Engineering Plastics Industries (Group) Company has studied and applied this material in many industries for many years. And we know that it has the following main characteristics:
2.Characteristics:
1. Very high-wear resistance, seven times wear resistance than steel, four times than PTFE
2. Very high anti-impact resistance, two times impact resistance than PC, five times than ABS.
3. Good self-lubrication, the same as PTFE, better than steel and brass appended lubricating oil.
4. Good anti-corrosion resistance, it has very stable chemicals property and can endure the corrosion of all kinds of corrosive medium and organic solvent in certain rang of temperature and humidity.
5. Very high-inadhesion resistance, the surface of product hardly affixes other material.
6. Very high-impact resistance, ten times impact resistance than PA66, eight times than PTFE.
7. Good low temperature resistance, in liquefied nitrogen (- 196ºC), it still has the prolongation.
few other materials can reach to this performance.
8. Non-toxic and clean property, UHMW-PE material that made by Guangzhou Engineering Plastics Industries (Group) Company, which meets the Food and Drug Administration (FDA) and United States Department of Agriculture (ASDA) permit to apply in food and medicine fields.
The parameter list of uhmwpe manual sushi maker

Model	uhmwpe manual sushi maker
Material	Uhmwpe,Polycarbonate,etc
Thickness	5-100mm or customized
Length	2M or customized
Color	Black,White or customized
OEM & ODM	Yes
Certification	ISO9001,SGS,FDA,RoHS,Test Report,ect.
Free Sample	Yes
Density	0.98g/ cm3
Shape	sheet, rod, tube, gear, pulley, guide rail......or according to your demand
Packing	Plastic bags,Cartons,Wodden case,Pallet,Container,ect.
Advantage	1.One stop procurement
	2. professional free design
	3. OEM&ODM suport
	4. low MOQ
	5. fast delivery
	6. free sample

The Main Properties of UHMW-PE

Property		Item No.	Unit	Value
Mechanical Properties	1	Density	g/cm3	0.94-0.96
	2	average molecular weight	g/mol	9.2X106
	3	Tensile strength (23ºC in air)	MPa	22
	4	Breaking strength	MPa	42
	5	Tensile strain at break	%	600
	6	Charpy impact strength (notched)	mJ/mm2	No break
	7	Ball indentation hardness	N/mm2	42
	8	Shore D hardness	--	D65
	9	Abrading(sand slurry experiment)	--	100
	10	Coefficient of Friction

General application
1. Suitable for transportation and filling of hot pot restaurants, beverages, food, cosmetics, etc.
We strictly check in terms of product quality, each part or machine has been well tested by our QC department to make sure it can work well before packing.

11 (16)

1.Our Sushi chain are made of highperformance plastic POM materials,it is durable,food grade and wear resistance,using in sushi store all over the world,we provide Sushi transmission whole set solution 2. We supply different plastic chain conveyor systems for pallet systems (single and twin track). All are easily assembled with regular hand tools to quickly get your chosen conveyor system up and running.
3. The conveyor systems are based on a close- fitting, multiflex plastic chain conveyor that gives a straight,horizontal and vertical running capability. Tight horizontal bends allow routing close to
machines,saving floor space. The conveying systems have tight vertical bends to save floor space by enabling multilevel transportation and make access easy for operators.
11 (18)

We can also customize toothed keel chains
Toothed chains have a complete range, mainly used in the transportation of various foods, beverages and various items. The material of the toothed chain: POM, the color is white, the pin of the toothed chain is stainless steel. Maximum speed of toothed chain: 80 m/min lubricant, 50 m/min desiccant
Operating ambient temperature of the toothed chain: -40-90°C
Toothed chain working load: 2100N
The maximum conveying length of the toothed chain: 12 meters
The minimum radius R of 63/83 toothed chain is 150mm, and the minimum turning radius R of 103/146 toothed chain is 250mm
The advantage of engineering plastic chain plate is that it has a high friction coefficient, high mechanical strength, strong impact resistance, and self-lubricating performance. In the long-term operation of the chain plate conveyor, even if there is no lubricating oil , It can also perform good operation, which brings great convenience to the maintenance of the chain conveyor. It is often made into special chain plates for Tetra Pak bags and sushi chains, etc. Engineering plastic chain plates are widely used in the subsequent packaging production lines of pharmaceutical processing, food processing, dairy production, beverage production, etc., and the specific width of engineering plastic chain plates is determined according to the volume and conveying width of the packaged products. design. According to the different space layout requirements of the production enterprise, the design of straight plate chain and turning pull chain is often used to adapt to the utilization efficiency of the production enterprise for the working space.
Can be customized according to your requirements of various conveyor chain plate

How To Customize
NO.1 Mailing samples
Our engineers can measure the specifications and test the materials to make an identical product based on the sample you provide.
NO.2 Provide drawings
We support CAD drawings, PDF files, STP, STEP,X-T and other 3D formats for customization and confidential processing of products according to your needs.
NO .3 Only photos
If you only have photos and no detailed drawing samples we can also process and make products for you if you
provide us with the detailed dimensions of your products.

Application

We have a professional engineer team to design custom parts for your needs , we also have ready-made standard moulds that can save your cost and time . We offer ODM/OEM service, Production Design and Mould Design base on your requirement . Providing the sample before mass production , ensure all is OK for you .

If you have any problems or want to get the quoted price of any plastics or machined components, please feel free to contact us. Our engineers will reply to you as soon as possible.

A wide range of injection mold options
Our products cover auto parts mold, electrical appliances injection mold, medical machinery and so on. We provide products and services to more than 60 countries and regions in the world, including Europe, the United States and Southeast Asia.

Our Factory

(Our factory has 100 sets of precision processing equipment, welcome to visit our factory!)

Reliable mold expert 15+ years' experience, Cooperated with many world famous brands for many years, Specialize in large and complex injection mold making, One-stop service from design to production.

The factory covers an area of 10,000 square meters Production equipment has the original American imported Haas CNC machining center, wire-electrode cutting, electrical discharge machine,Perforating machine, injection molding machine, CNC milling machine CNC hobbing machine, CNC lathe, CNC milling machine CNC lathe, CNC milling machine, grinding machine and other machinery and equipment.

Certificate
Companies strictly enforce the ISO9001(2008)international quality certification system, the product quality conforms to the eu RoHS standard.

Cooperation
