MAR-HHQ Series Split Type Hydraulic Nut Splitter

We,MARSHINE, was a Chinese cable installation tools manufacturing company who insists on creating a more sustainable future. For 20 years, we have been providing worldwide electricians and utility linemen with efficient yet last long cable mounting tools at the competitive price. This MARSHINE MAR-HHQ Series Split Type Hydraulic Nut Splitter is one of our hydraulic powered bolt splitting tools for M6 to M48 bolts. With various size can be choose, this series tools can fit most of construction requirements.

The MARSHINE Hydraulic Nut Splitter is a professional hydraulic tool designed for the controlled removal of seized, corroded, over-tightened, or damaged hexagonal nuts. Instead of relying on manual cutting or heating methods, the nut splitter uses concentrated hydraulic force to split the nut, allowing it to be removed from the bolt without damaging the surrounding components when used correctly. This series is available in seven models, with hydraulic outputs ranging from 5 to 90 tons. The series covers hex nut sizes from 10 mm to 75 mm and bolt sizes from M6 to M48, providing options for both relatively small fasteners and heavy-duty industrial applications. Featuring a split-type structure, our hydraulic nut splitter can be positioned around an existing nut without requiring the bolt assembly to be dismantled first. Its compact design and model-specific cutting ranges make it suitable for maintenance, machinery repair, construction, shipbuilding, power facilities, pipelines, and other applications where conventional nut removal methods may be impractical.

Product Feature

Powerful Hydraulic Nut Splitting

This series uses hydraulic force to drive the tool’s blade into the nut, providing controlled and concentrated force for breaking stubborn fasteners.

Wide Bolt Compatibility

Depending on the model, the MARSHINE MAR-HHQ Split Type Nut Splitter is suitable for bolts ranging from M6 to M48, making it applicable to a wide variety of mechanical fastening systems.

Split-Type Construction

The split design allows the tool to be installed directly around an existing nut. This is especially useful when the fastener is already installed and cannot conveniently be removed from the equipment.

High Output for Heavy-Duty Applications

The largest model of this series bolt splitting tools can provides up to 90 tons of hydraulic output, making it suitable for demanding industrial fastener removal work involving large nuts.

Compact and Model-Specific Design

Each model is designed around a particular nut-size range, helping maintain a practical balance between hydraulic capacity, tool dimensions, and operating convenience.

Portable Construction

Model weights range from 1.5 kg to 34.1 kg, allowing smaller versions to be easily carried by individual technicians while larger models provide the additional strength required for heavy-duty maintenance.

Reduced Need for Destructive Removal Methods

Hydraulic nut splitting provides an alternative to methods such as excessive hammering, uncontrolled mechanical cutting, or thermal cutting, helping maintenance personnel work more efficiently around valuable machinery and components.

Product Application

Our MARSHINE Nut Splitting Hydraulic Tool is particularly valuable when nuts have become rusted, seized, damaged, or excessively tightened and cannot be removed using conventional wrenches. Its split configuration also makes it useful for maintenance work on installed equipment where access is limited or dismantling the complete bolt assembly would require significant labor.

Technical Parameters

Model	Output (T)	Bolt Range	Hex Nut Range (mm)	Weight (kg)
MAR-HHQ-1319	5	M6-M12	10-19	1.5
MAR-HHQ-1924	10	M12-M16	19-24	2.1
MAR-HHQ-2432	15	M16-M22	24-32	3.9
MAR-HHQ-3241	20	M22-M27	32-41	5.4
MAR-HHQ-4150	35	M27-M33	41-50	8.9
MAR-HHQ-5060	50	M33-M39	50-60	11.8
MAR-HHQ-6075	90	M39-M48	60-75	34.1

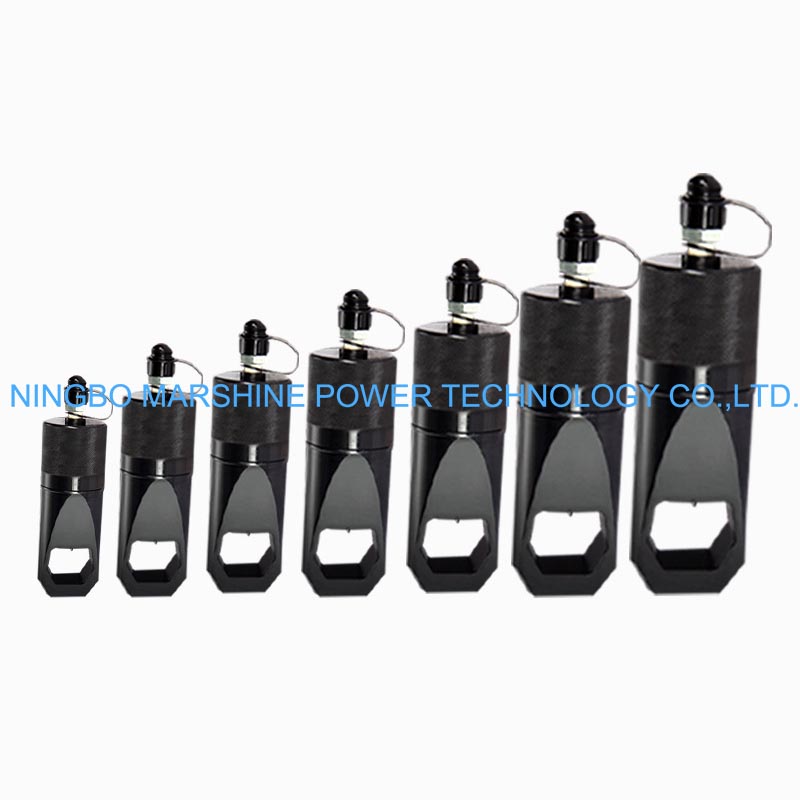

PRODUCT DISPLAY
