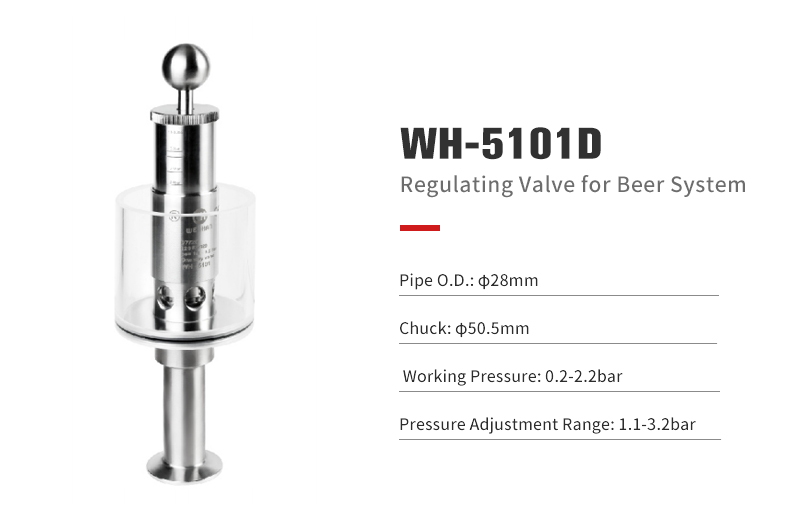

This is the description of 5101D nickel white straight pipe carbon dioxide pressure regulating valve for brewing equipment.
5101D regulating valve adopts DIN, SMS or ISO standards, and can provide 1-2 inch port size, high-quality durable SS304 material, clamp connection mode. And we can accepts customized and OEM services.

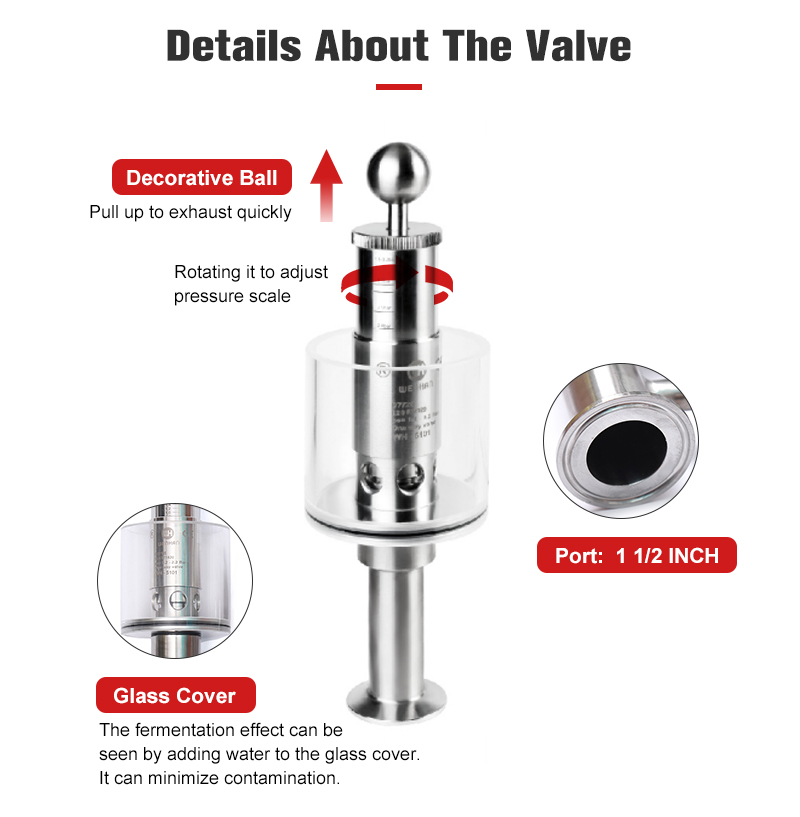

CO2 regulating valve has a decorative ball that can be pulled up for quick exhaust, and the regulating rod can rotate to
adjust the pressure.
And regulating valve is one of main products, and we also can provide breathing valve, adjusting relief valve, NPT 1/4 exhaust valve, ball regulator, sampling valve, foam eliminator, carbon dioxide guage, center valve, manway, pressure gauge, thermometer, fitting and pipes, cleaning ball, butterfly valve,check valve, ball valve, screen gasket, valve products.
|
Product Name
|
Straight pipe carbon dioxide pressure regulating valve for brewing equipment
|
|
Model Number
|
WH-5101D
|
|
Power
|
Manual
|
|
Media
|
Gas, Water, Oil
|
|
Standard
|
DIN, SMS or ISO Standard
|
|
Material
|
SS304 / SS316L
|
|
Seal
|
EPDM
|
|
Pressure
Adjustment Range |
0.2-2.2bar
1.1-3.2bar 0.2-3.2bar |
|
Work Pressure
|
0-4 Bar
|
|
Working Temperature
|
-30 to +130°C
|
|

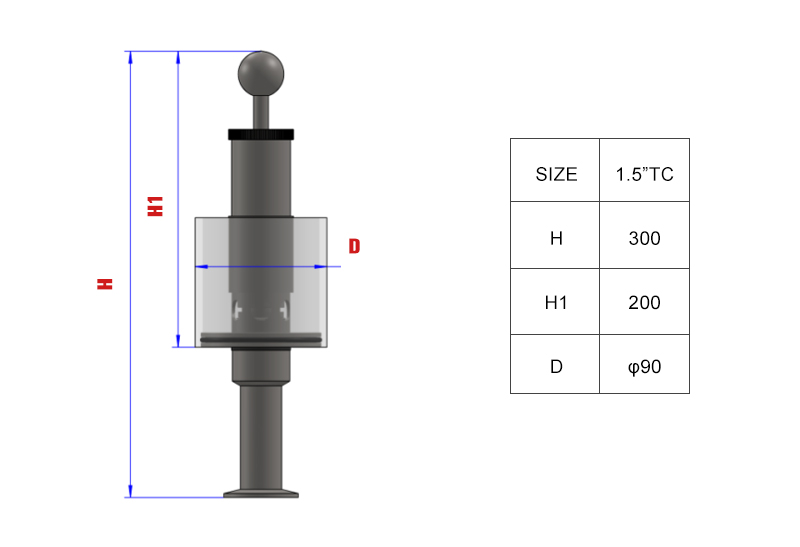

Port Size
|
1.5"(Available: 1"-2")
|
|
Pipe Size
|
Φ28*1.5mm(DIN20-DIN50)
|
|
Connection
|
Clamp (weld, thread, flange)
|
|
Service
|
OEM, ODM
|
|
Usage
|
Food & Beer &Beverage & Pharmaceutical
|
