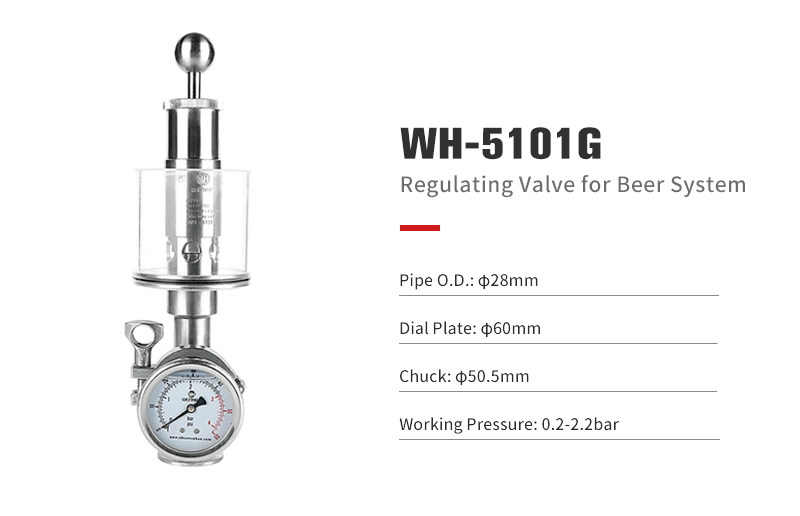

I recommend this popular beer brewing equipment pressure regulating valve - WH-5101G stainless steel regulating valve
Brief description:
1. Pipe diameter 28mm
2. Equipped with a large pressure gauge with a diameter of 60mm, allowing for clearer observation of pressure
3. 1 1/2 inch interface, which can be connected with clamps for easy installation and disassembly. Of course, we can also process interfaces for flange, welding, and other connection methods. Please refer to the details for more information
4. Vertical design reduces space

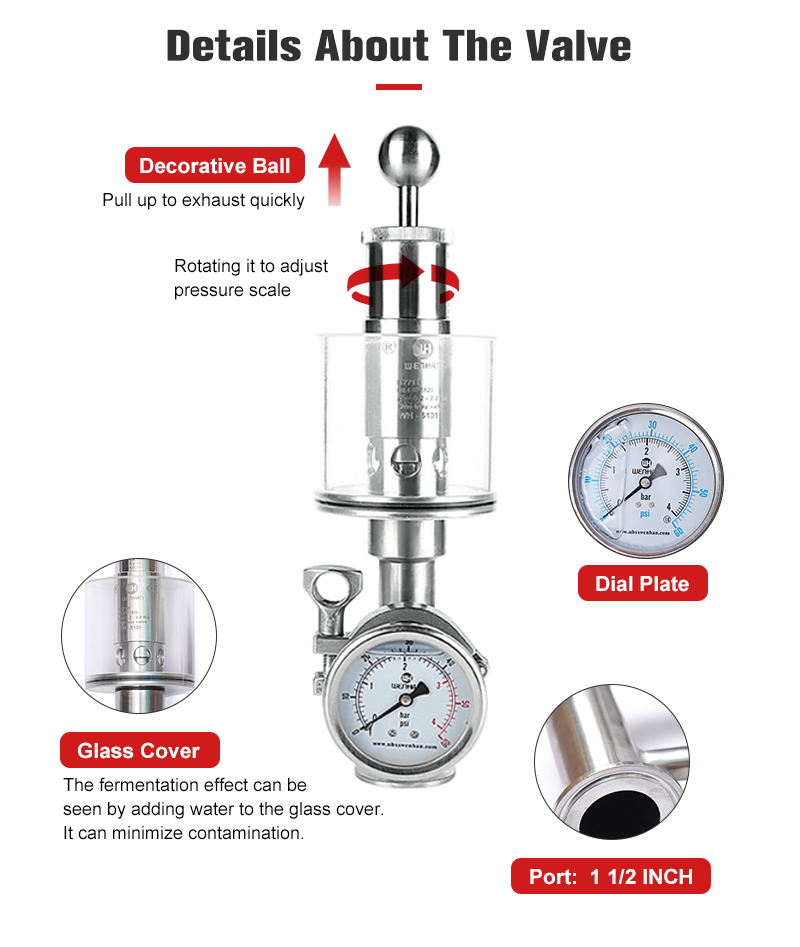

5. Like other regulating valves, it has a regulating rod and glass cover function, which can be rotated to control pressure. The upward pull rod can quickly exhaust gas, and the glass cover can be used to observe the fermentation process and make the brewing process cleaner.
Hello friend, welcome to visit our store. We are a professional supplier of various valve products such as regulating valve, breathing valve, sample valve, pressure gauge, thermometer, fitting and pipes, cleaning ball, butterfly valve，etc. We have always been committed to providing one-stop beer and food processing and brewing equipment accessories.
|
Product Name
|
Regulating Valve
|
|
Model No.
|
WH-5101G
|
|
Power
|
Manual
|
|
Media
|
Gas, Water, Oil
|
|
Standard
|
DIN/SMS/ISO
|
|
Material
|
SS304 / SS316L
|
|
Seal
|
EPDM
|
|
Pressure
Adjustment Range |
0.2-2.2bar
1.1-3.2bar 0.2-3.2bar |
|
Work Pressure
|
0-4 Bar
|
|
Working Temperature
|
-30 to +130°C
|
|
Port Size
|
1.5"TC
|
|
Pipe Size
|
Φ28*1.5mm
|
|
Connection Mode
|
Clamp (Available: weld, thread, flange)
|
|
Customized Support
|
OEM, ODM
|
|
Application
|
Food & Beer &Beverage & Pharmaceutical
|
