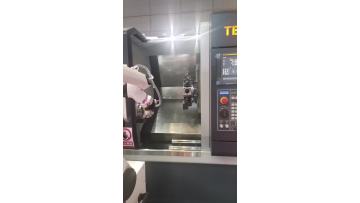

y-axis Turning Milling Composite Machine

2 year ago

55 0

Ningbo Yien Machinery Co., Ltd

 2 year year

Product details

Achieve complete machining of both the front and reverse sides of parts with a single clamping operation. The coaxiality and parallelism of the machined surfaces can be controlled within 0.01mm, ensuring precise alignment through its inherent precision.

By implementing one-time machining, the manual clamping errors are reduced, leading to an improved product qualification rate. It also eliminates problems such as scratches caused by process changes. This approach allows for the manufacturing of finished products with high efficiency and a quick turnaround time.

Machine Specifications

Technical Parameter		QT55LS Servo Turret+ Sub -Spindle
Machining Range	Maximum Rotating Diameter (mm)	Ø550
	Maximum Machining Diameter(mm)	Ø360
	Maximum Machining Length (mm)	430
Stroke	X-Axis Stroke (mm)	180+ 30
	Z1-Axis Stroke (mm)	560
	Z2-Axis Stroke (mm)	540
Precision	Postoning Acurcy(mm)	±0.003
Precision	Repeated Positioning Accuracy (mm)	±0.002
Displacement Speed	X-Axis Fast Displacement(m/min)	30
	Z1-Axis Fast Displacement(m/min)	30
	Z2-Axis Fast Displacement (m/min)	30
Spindle (Mechanical Spindle)	Spindle Bore (mm)	Ø62
	Maximum Diameter of Bar (mm)	Ø51
	Spindle Nose Specification	A2-6
	Maximum Revoving Speed of Spindle (r/min)	4000
	Check Specification	8"
Sub-Spindle (Electric Spindle)	Spindle Bore (mm)	Ø49
	Maximum Diameter of Bar (mm)	Ø35
	Spindle Nose Specification	A2-5
	Maximum Revolving Speed of Spindle (r/min)	4500
	Check Specification	6"
Motor	Spindle (Mechanical Spinde)(kw)	11
	Sub-Spindle (Eletric Spindle)(kw)	7.5
	X1 Axis (Nm)	11
	Z1 Axis (Nm)	11
	Z2 Axis (Nm)	11
Turret	Turret Type	Servo Turret
	Boring Tool Diameter (mm)	Ø40
	Square Tool Diameter (mm)	□25
Weight	Overall Weight (Kg)	4700
Complete Machine	Length(mm)	3000
	Width(mm)	1800
	Height(mm)	1955

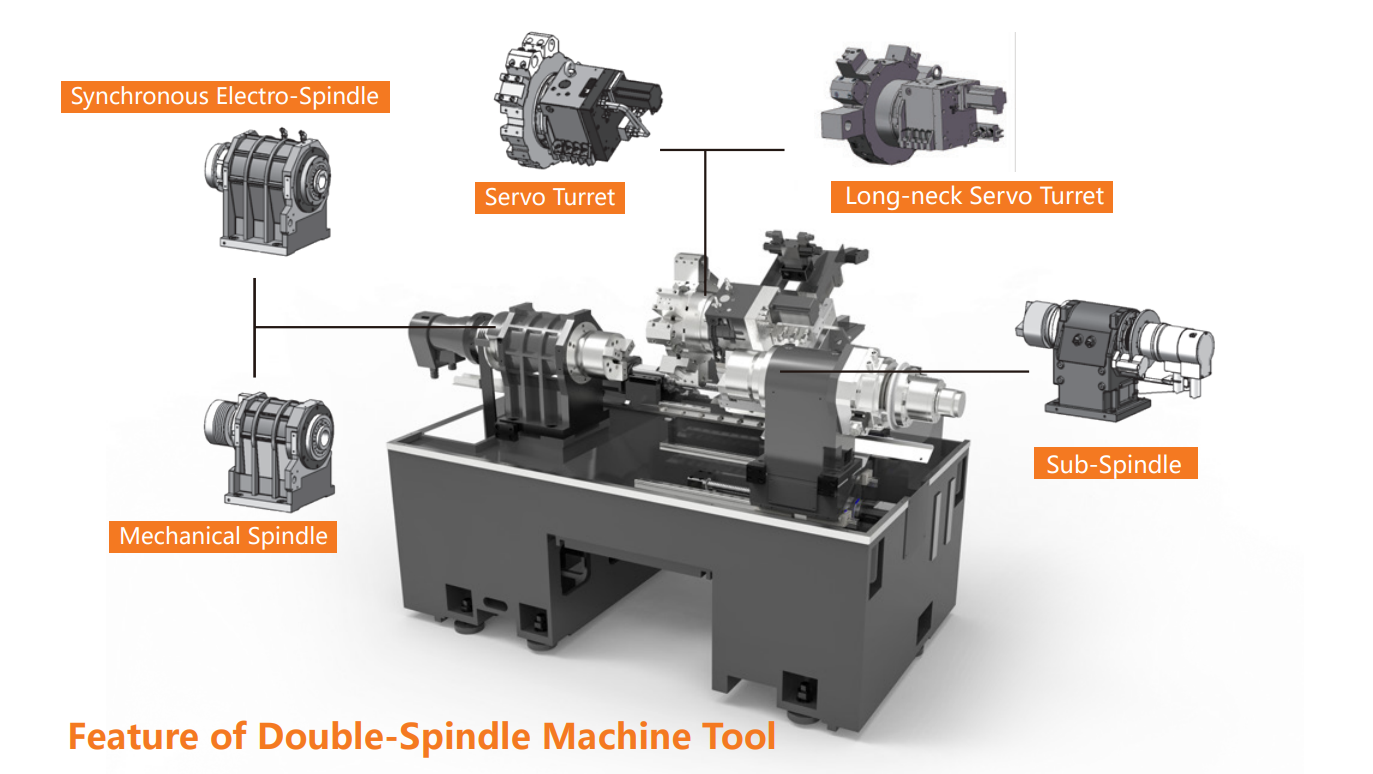

Mechanical Spindle
