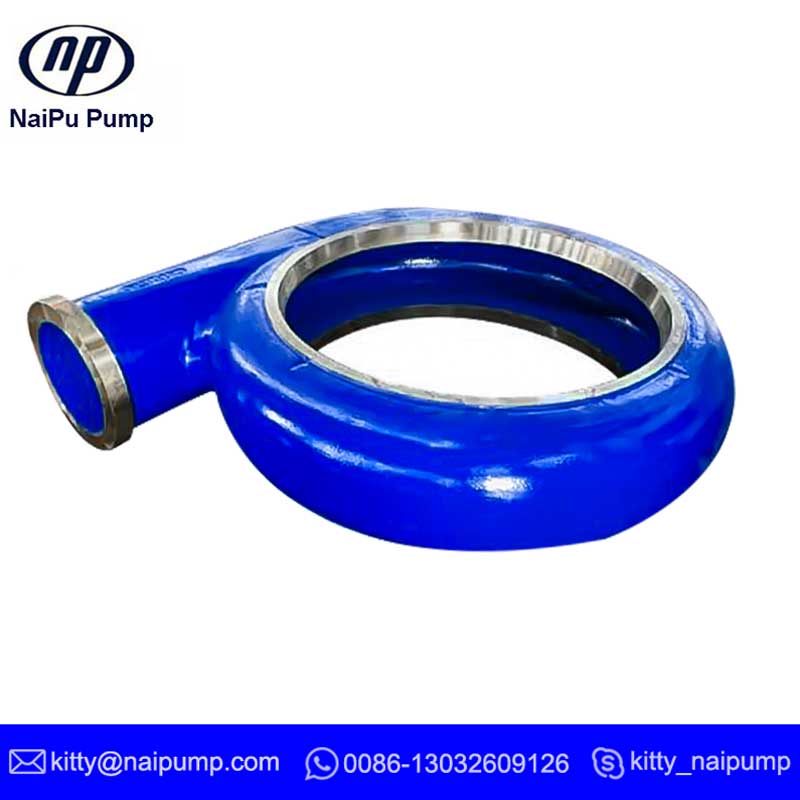

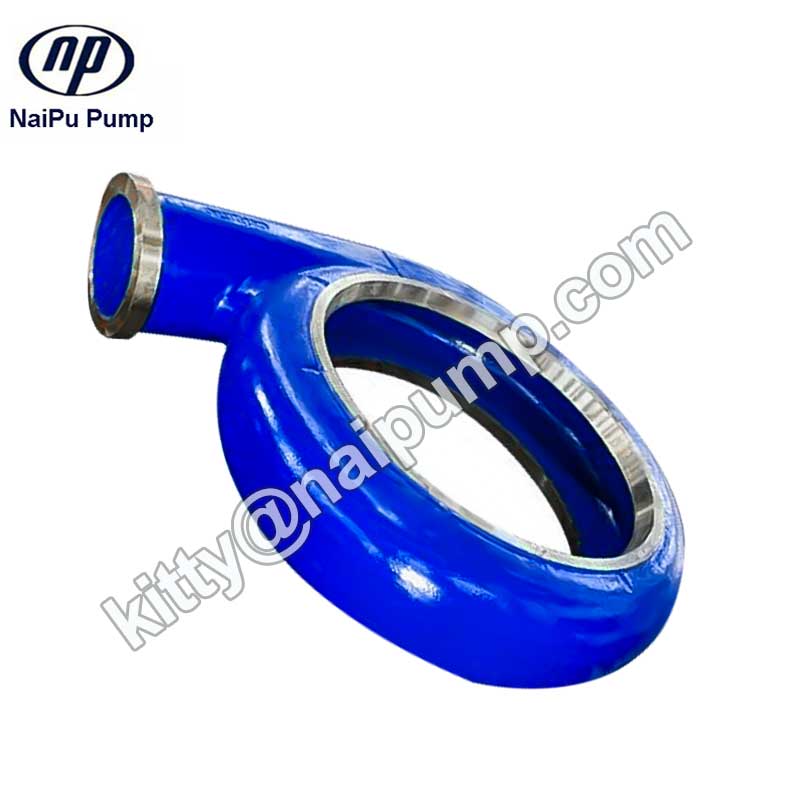

TU18110TL1A05 Slurry Pump Volute Liner for 20/18 TU-HA

The TU18110TL1A05 slurry pump volute liner is specifically designed for the 20/18 TU-HA slurry pump model. It is an essential component of the pump that helps to direct the flow of the slurry and protect the pump casing from wear and tear.

The volute liner is made from high-quality materials that are resistant to abrasion and corrosion, ensuring long-lasting performance in demanding slurry pumping applications. It features a specially designed shape that helps to maximize the efficiency of the pump by reducing turbulence and friction losses.

The TU18110TL1A05 volute liner is easy to install and maintain, allowing for quick and hassle-free replacement when necessary. It is designed to withstand the harsh conditions typically encountered in slurry pumping operations, making it an ideal choice for industries such as mining, dredging, and mineral processing.

Overall, the TU18110TL1A05 slurry pump volute liner is a reliable and durable component that plays a crucial role in the efficient and effective operation of the 20/18 TU-HA slurry pump.

Main Slurry Pump Parts for 20/18 Pump

Pump model	Part name	Part code	Materials
20/18 AH	Volute liner	U18110TL1A05	A05, A05, A49, A51, A61
	Impeller 5 VCG	H18147A05	A05, A05, A49, A51, A61
	Impeller 3 VCG (optional)	H18137DPT2A05	A05, A05, A49, A51, A61
	Impeller	H18145WRT1A05	A05, A05, A49, A51, A61
	Frame plate liner insert	U18041TL1MA05	A05, A05, A49, A51, A61
	Throat bush	U18083DPT2MA05	A05, A05, A49, A51, A61
	Cover plate	U18013D21	D21,G01
	Frame plate	U18032D21	D21,G01
	Shaft Sleeve	HG075	4Cr13,J04
	Shaft Spacer	HG117	4Cr13
	Neck Ring	HG067	Stainless steel
	Lantern Restrictor	HG118	Stainless steel
	Lantern Ring	HG063	Stainless steel
	Bearing assembly	TU005M	D21,G01
	Bearing assembly (optional)	HG005M	D21,G01
	Frame (optional)	TU003M	D21,G01
	Frame (optional)	H003M	D21,G01
