Wavelength (nm) |
513±1 |
||||
|
Operating mode |
CW |
||||
|
Free space output power (mW) |
100 |
500 |
1000 |
||
|
Fiber coupled output power (mW) |
50 |
250 |
500 |
||
|
Power stability (rms, over 4 hours) |
<1%, <2% |
||||
|
Transverse mode |
TEM00 |
||||
|
Spectral linewidth (KHz) |
<40 |
||||
|
M2 factor |
<1.2 |
||||
|
Polarization ratio(dB) |
>15 |
||||
|
Warm-up time (minutes) |
<30 |
||||
|
Operating temperature (℃) |
15~30 |
||||
|
Power supply (VAC) |
AC 220 |
||||
|
Expected lifetime (hours) |
10000 |
||||
|
Warranty |
1 year |
||||
|
Options |
RS 232/485 interface |
||||
|
FL-513-SF |
Second harmonic(Free space) |
|

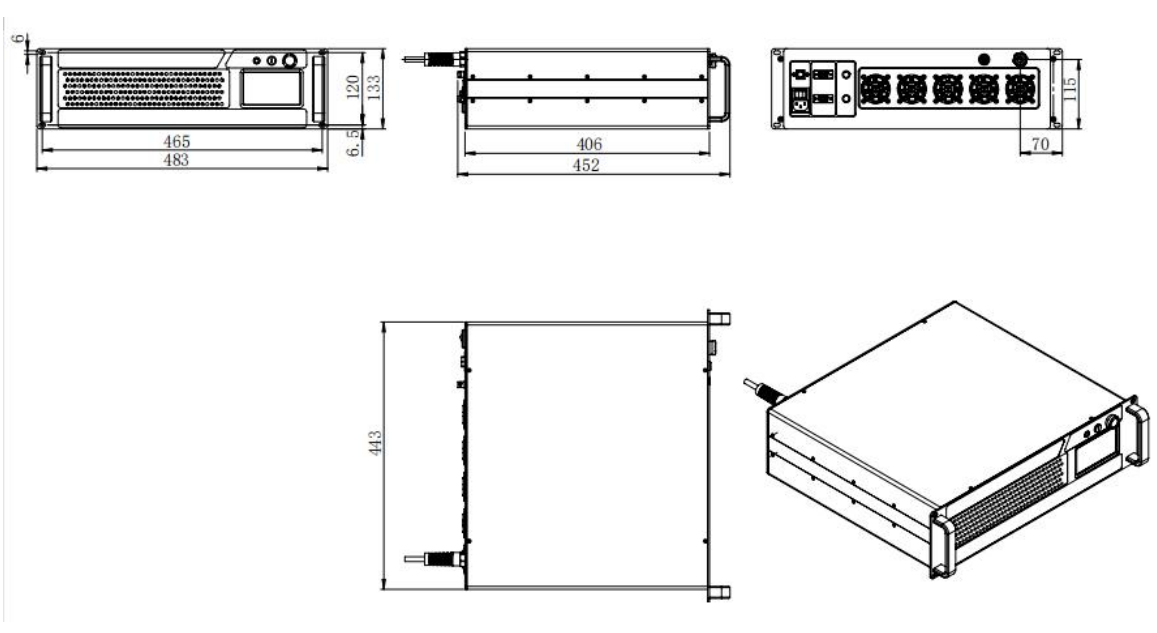

452(L)×483(W) ×133(H) mm3 10kg |

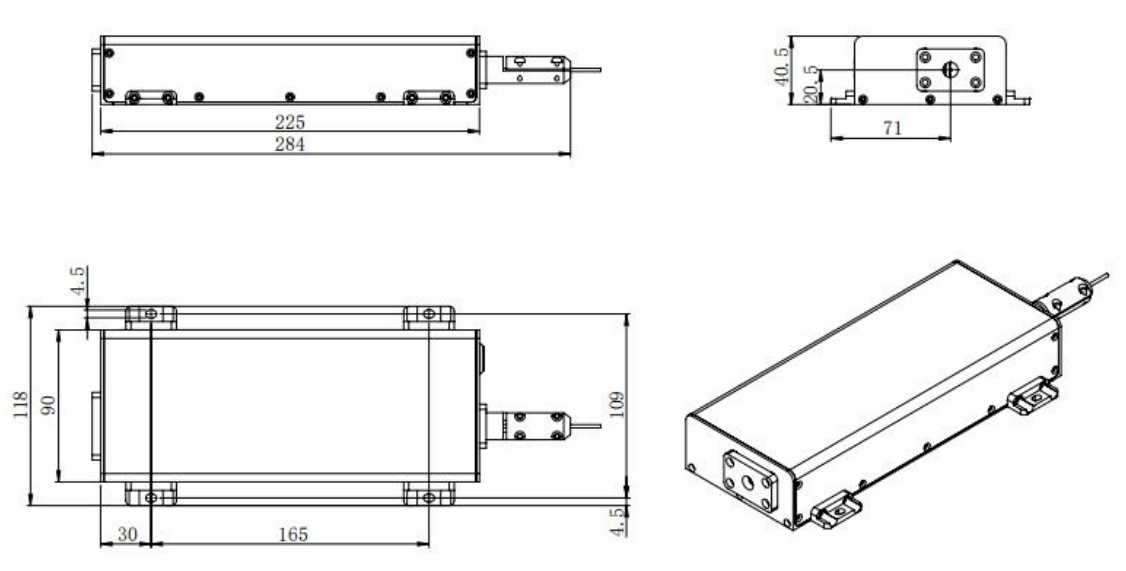

284(L)×118(W) ×40.5(H) mm3 1kg |
|
Second harmonic(Fiber coupled) |
Free space |

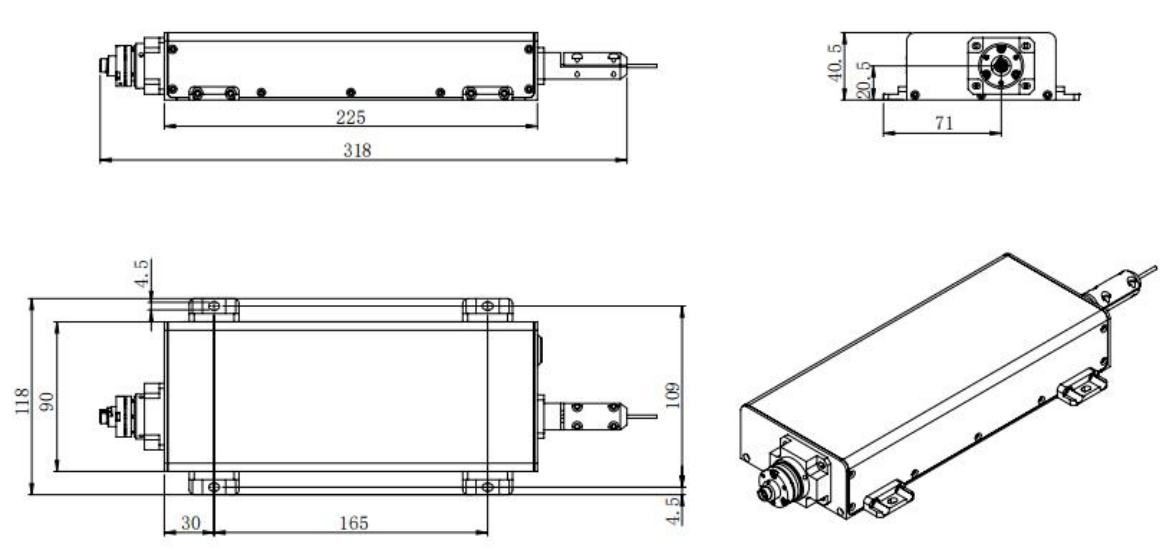

 318(L)×118(W) ×40.5(H) mm3 1.1kg |
|
