Product details

- 520nm LED -

232LGC52D6L12

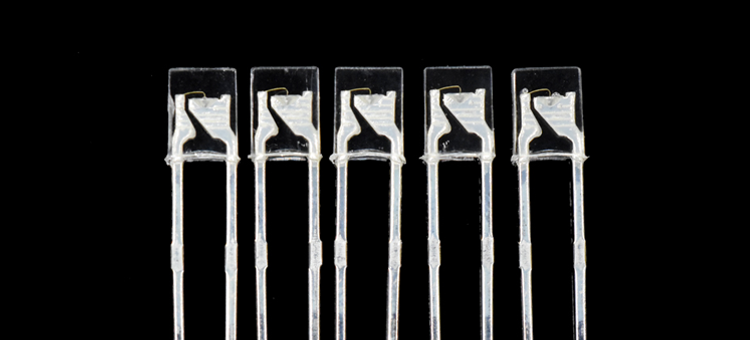

These green LED was packaged by 2*3*2mm clear lens through-hole LED. As we know, different shape of lens will make different lighting result, through this clear rectangle lens, we can get a rectangle green lighting spot from this 520nm green LED. Because of the small size, these small green LEDs are widely used in LED bill board, LED back light, LED toy or some other LED lighting project. Do you need some green LED with rectangle clear lens for your project or application? Contact us for more detail about it~

- Size: 2*3*4 mm

- Pin Length: 17mm/19mm

- Color: 520nm led

- Type: Dual In-line Package

- Chip brand: Epistar

- Short Pin mark cathode

- Different color are available

- Different wavelength are available

- Warranty: 5 Years

- RoHS, REACH, EN62471

- Uniform light output

- Long life-solid state reliability

- Low Power consumption

-Anti UV epoxy resin package

-High temperature resistance

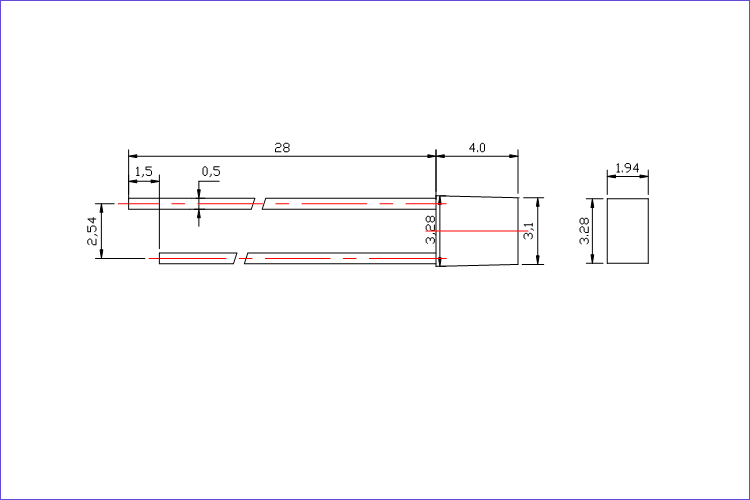

-Dimension Parameters -

These through-hole LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

- Emitting Color -

520nm LED

*Colors in the photo was took by camera, please take actual emitting color as standard.

- Electrical Parameters -

Parameter	Symbol	Rating
Power Dissipation	Pd	105mw
Pulse Forward Current	IFP	100mA
Forward Current	IF	30mA
Reverse Voltage	VR	5V
Junction Temperature	Tj	115°C
Operating Tempertature	Topr	-40 - +80°C
Storage Tempertature	Tstg	-40 - +100°C
Soldering Temperature	Tsol	260°C
Electro-Static-Discharge(HBM)	ESD	3000v
Warranty	Time	5Years
Antistatic bag	Piece	1000Bag
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us.
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C

Parameter	Symbol	Min	Typ	Max	Unit	Test Condition
Forward Voltage	VF	2.8	3.2	3.4	V	IF=20mA
Luminous Intensity	IV		5	7	lm	IF=20mA
Peak Wavelength	λP		520		nm	IF=20mA
Dominant Wavelength	λd	515	520	525	nm	IF=20mA
Half Width	Dl		18		nm	IF=20mA
Viewing Half Angle	2q1/2		±60		deg	IF=20mA
Reverse Current	IR			5	uA	VR=5V
*Luminous Intensity is measured by ZWL600.
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

- Golden Wire Connection -

* In order to keep every one of LED's long lifespan, BestLED factory use high pure gold wire for inside circuit connection

- Packing -

*We package it with vacuum packing after tape it as a reel

- Application -

- Related Green LED -

- Production -

- Through-hole LED Use of attention -
