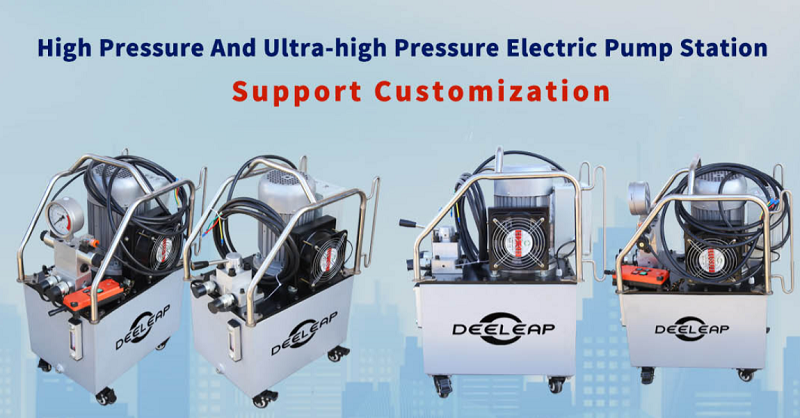

Name: Electric hydraulic pump station - Manual reversing
| NO.1 | Electric hydraulic pump station - Manual reversing Technical Parameter | ||||||||
| Model No. | Oil Tank material | Tank volume | Working pressure (Mpa) | Output flow (L/min) | Operation method | Oil outlet interface | |||
| L | Low pressure | High pressure | Low pressure | High pressure | |||||
| PED206M | Steel reservoir | 20 | 6 | 70 | 1.16 | 0.15 | Manual reversing | 3/8''-18NPTF | |
| PED211M | Steel reservoir | 30 | 6 | 70 | 1.16 | 0.15 | Manual reversing | 3/8''-18NPTF | |
| PES206M | Steel reservoir | 20 | 6 | 70 | 1.16 | 0.15 | Manual reversing | 3/8''-18NPTF | |
| PES211M | Steel reservoir | 30 | 6 | 70 | 1.16 | 0.15 | Manual reversing | 3/8''-18NPTF | |
Features:
High and low pressure settings, two kinds of pressure flow freely switch, low pressure high flow, no load when the hydraulic tool can move fast.
Application occasions:
High-pressure electric pump station is suitable for industrial production field (70Mpa) continuous output, can be directly matched with the corresponding high-pressure hydraulic tools for pushing, pulling, expanding, clamping, bending, jacking, squeezing and other operations.
Electric hydraulic pump feature:
Radial plunger, continuous operation
One year warranty, and free replacement parts
Two levels of pressure, two kinds of output flow automatically switch
Pump body made of aluminum and titanium alloy, light weight
No carbon brush high-power motor, easy maintenance, long use time
Built-in liquid-controlled check valve is suitable for long time pressure-holding working condition.
Equipped with heat sink, can work uninterruptedly for a long time.
Suitable for single-acting cylinder and double-acting cylinder.
Equipped with regulator, can be adjusted from 0-700bar.
Manual reversing valve is economical and practical
Remark: Voltage, pressure, flow rate, oil volume and size can be customized.
Metal body, multiple seals, no oil leakage design
Product parameter:
Structural advantages:
Radial plunger structure, modular plunger design, low failure rate, easy maintenance.

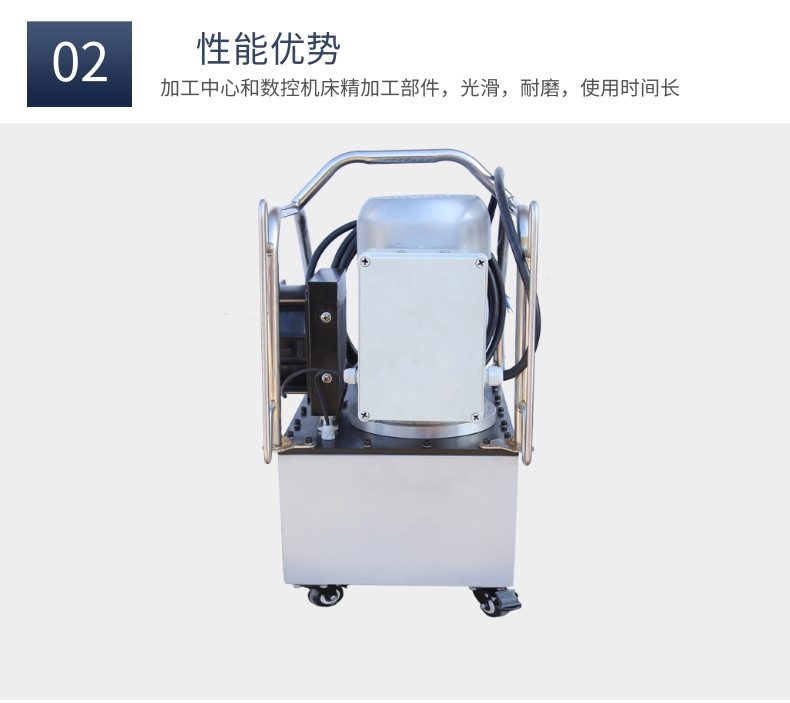

Performance advantages:
Machining center and CNC machine tools finishing parts, smooth, wear-resistant, long service time.
Supporting products:
Can be matched with high pressure, low pressure double acting hydraulic cylinder, hydraulic tools.
Application:
Automobile maintenance, mechanical maintenance, construction, shipbuilding, chemical, petroleum, electric power, maintenance, aerospace, railway, wind power and so on.
