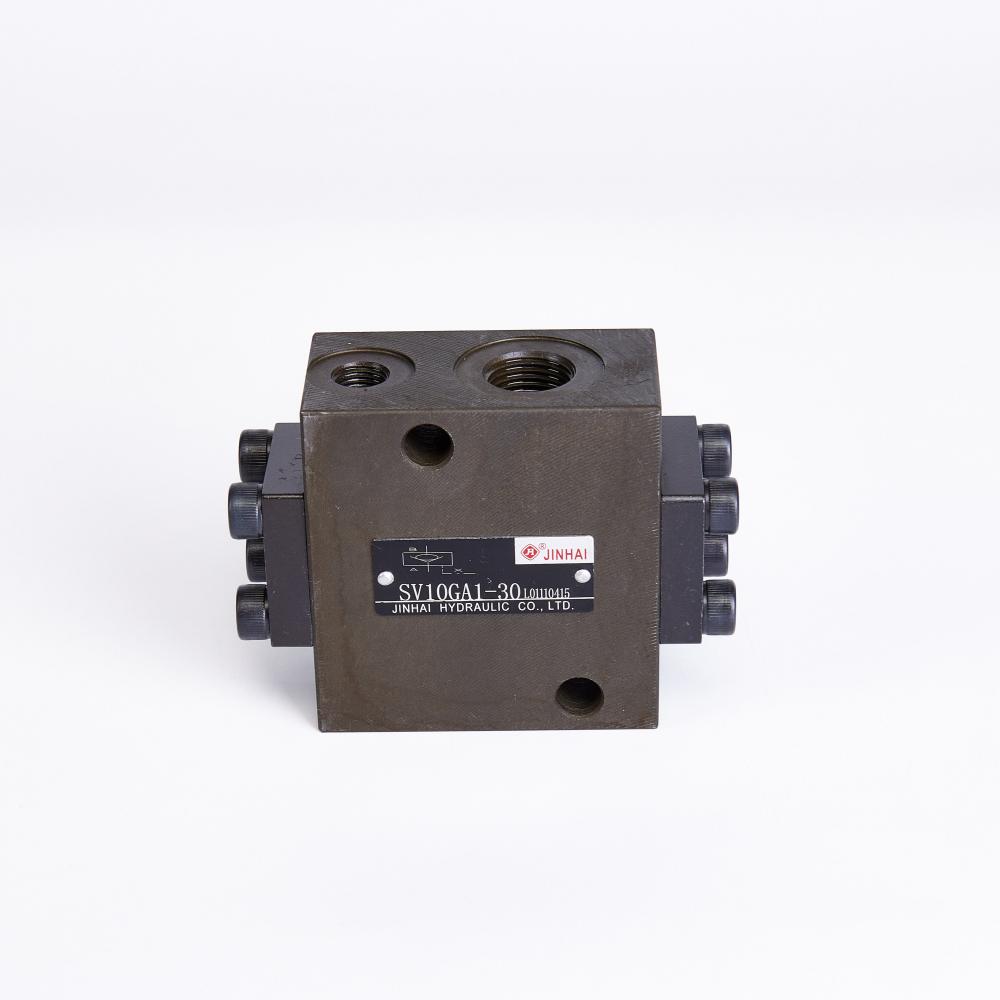

SV10GA1-30 hydraulic check valve is hydraulic tube check valve, it is belong to Direction Control valve, relevant information is as below:
- Applicable media:mineral oil;
- Drive mode：pressure、hydraulic force;
-Specification:imperia G1/2.

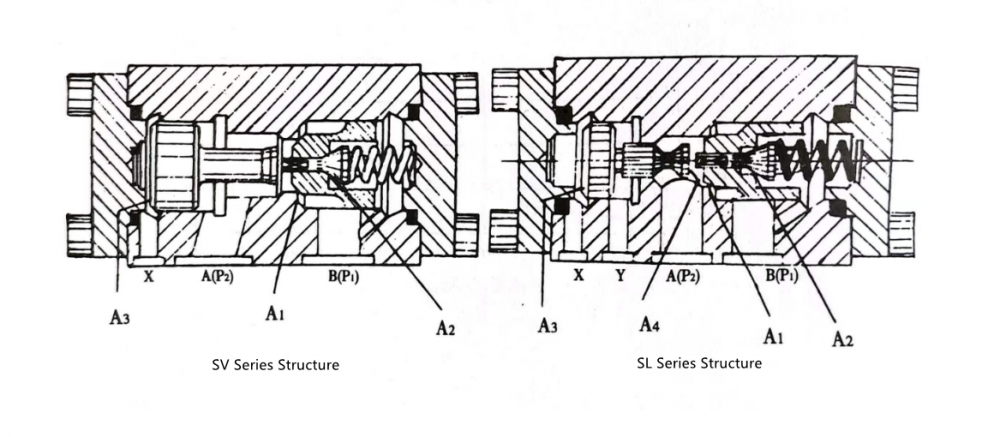

- working principle：when the control oil circuit is not connected to the pressure oil, like a common one-way valve, the pressure oil flows from the oil inlet to the oil outlet and cannot flow in the opposite direction;when the control oil circuit has control pressure input, the piston push rod pushes the one-way valve open under the action of the pressure oil, so that the oil inlet and outlet are connected,and the oil can flow in the opposite direction when the oil outlet is larger than the oil inlet.
Jinhai is professional manufacturer of Various types of Directional Valves, Flow Valves, Pressure Valves and Accessories, Should you have any questions please feel free to come back to us.
If you are interested in the product, contact 2bvideo.com for more information for more information
The information of 2bvideo.com limited shown above is provided by the user or collected on the network. Video 2B does not guarantee the authenticity,accuracy and legitimacy of 2bvideo.com limited information. Video 2B does not involve legal relationships and disputes between users arising from transactions other than secured transactions on this website. Disputes shall be settled by you through negotiation. If you are the person in charge or relevant employee of this enterprise, if you find that the enterprise information is incorrect or want to manage thiscompany, please contact us jacklee1558@gmail.com, after you claim the enterprise, you can obtain management permission, publish supplyand demand information, bring consulting orders, and remove page advertisements.
