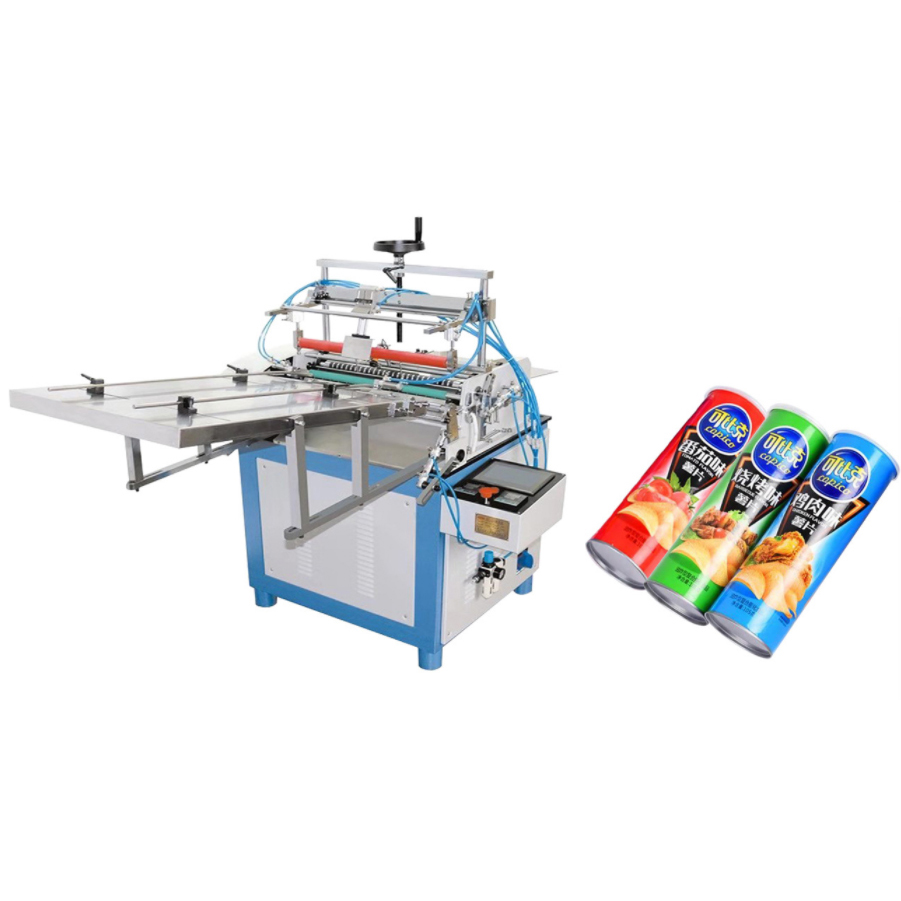

Automatic multifunctional paper tube labeling machine
Machine details:

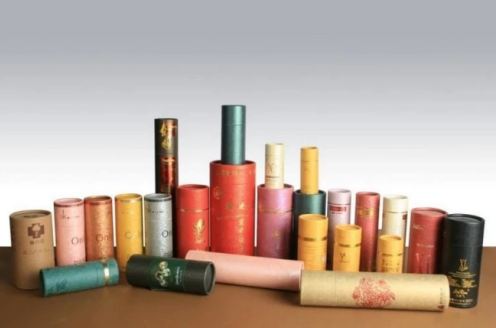

1. This machine adopt hot-melt glue to stick paper labels (laminated or without laminated) on circular containers such as wall calendar cans, tea cans, paper tubes, plastic bottles, glass bottles, etc
2.Hot-melt glue can be cool rapidly, and labels can be sticked seamlessly to match can body well, can process next steps immediate.
3.PLC control with feeding specification setting, imported clutch and rubber roller makes label feeding stable.
4.Automatic temperature control, the glue temperature can be accurately keep the preset value, the advance heating plate double layer heat insulation design save 50% electric.
5.Gluing thickness has been set before delivery of machine, its easy and accurate to adjust gluing thickness which save the hot-melt glue consumption.
6.Two gluing adding function (main glue tank and side glue tank) which insure more convenient using.
7.With the falling guideway, after labeling, the product can be slide down automatically.
Machine technical parameters:
|
Model |
ZXHD-500 |
ZXHD-650 |
|
Paper tube diameter |
28-130mm |
28-130mm |
|
Label width |
50-500mm |
50-650mm |
|
Heating power |
3kw |
3.7kw |
|
Machine weight |
370kg |
450kg |
|
Machine dimension |
1070*1800*1500mm |
1220*1800*1500mm |
|
Power supply |
220V, 50HZ, 1phase |
220V, 50HZ, 1phase |
|
Labeling speed |
40pcs/minute |
40pcs/minute |
|
Air pressure |
0.6-0.8mpa |
0.6-0.8mpa |
If you are interested in the product, contact 2bvideo.com for more information for more information
