DYX micro solenoid valve DQF2-6A is 3-way air valve, very simple to install.
This solenoid valve is widely used in electronic sphygmomanometer, massage equipments, blood pressure monitor, eye protection device and other medical products.
Product Features :
Low power consumption
Long lifetime
Low vibration
Mini size
Technical Specification
|
Product model |
DQF2-6A |
||
|
Voltage |
DC4.5V |
DC6.0V |
DC9.0V |
|
Current |
＜240mA |
＜230mA |
＜200mA |
|
Power |
1-1.8W |
||
|
Pressure |
0-350mmHg |
||
|
Leakage |
<3mmHg/min (with a 500cc tank, inflate air from 0 to 280mmHg±10mmHg, then stop for 30 secs) |
||
|
Media |
Air |
||
|
Life cycle |
>200,000 cycles (with a 500cc tank, work for 10secs and stop for 5secs as a cycle) |
||
|
Working temperature |
5℃~55℃ |
||
|
Product N.W |
17g |
||
|
Exhaust speed |
<3s (with a 500cc tank, exhaust air from 280mmHg to 15mmHg) |
||

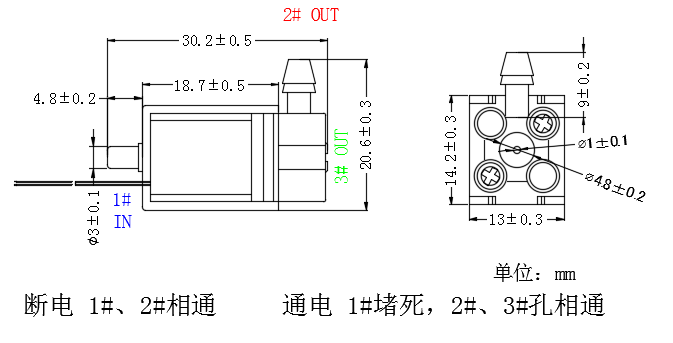

Dimension Drawing
|
Pump&Valve Application |
FAQ
1)Q: What's your MOQ?
A: Our MOQ is 1000 PCS.
2) Q: What's the lead time of mini pumps and solenoid valves?
A: 30-35 working days.
3) Q: What does normally close valve mean?
A: Normally close air valve means that the valve is close when power off.
4) Q:What can you buy from us?
A:Mini Air Pump,Mini Water Pump,Solenoid Pump,Mini Piston Pump,Mini Vacuum Pump,Peristaltic Pump, Solenoid Air/Water Valve.
