DYX mini air pump DQB100-A a versatile and reliable product with several key features,Here is a summary of the key points.
Key Features:
Applications: It is mainly used for blood pressure monitors, massagers, coffee machines, and potentially other devices requiring air pressure functionality.
Materials: Constructed using a combination of POM (Polyoxymethylene), plastic, rubber, and alloy.
Performance: Boasts low energy consumption, low noise, and a long lifetime.
Quality Assurance: 100% inspection is performed on current, flow rate, pressure, air leakage, noise, and appearance during production.
Testing: Products undergo salt spray, life, noise, and performance detection tests.
Certifications: Approved by CE/EMC, ROHS, REACH, and FDA certificates.
Customizability: Providing OEM/ODM service allows for customization to meet specific needs
Technical Specification
| Model | DQB100-A | Voltage | DC3V |
| Power | <2.2W | Pressure | 360-600mmHg |
| Noise Level | <60db@30cm | Flow | 1.0-1.5L/MIN |
| Product use | Mainly used for Blood pressure,eye massager,beer machine,juice machine,smart toilet,coffee machine, etc. | Lifespan | >30，000 cycles（30s on,20s off） |
What effect does the capacity of the dc air pump have on the eye massager?
The impact of the capacity of the electric air pump on the eye massager is mainly reflected in the following aspects:
1. Massage effect: The eye massager massages the area around the eyes through the airflow or pressure generated by the air pump. The air pump with moderate capacity can provide stable and continuous airflow or pressure, thereby ensuring the stability and uniformity of the massage effect. If the air pump capacity is too small, it may not provide sufficient massage strength; while too large a capacity may cause the massage strength to be too strong, causing discomfort to the eyes.
2. Noise level: The capacity of the air pump may also affect the noise generated during its operation. Generally, a larger capacity air pump may generate relatively high noise, which may affect the user experience of the eye massager, especially in occasions that require a quiet environment.
3. Energy consumption and battery life: The capacity of the air pump is related to energy consumption and battery life. A larger capacity air pump may require more energy to maintain its operation, which may affect the battery life of the eye massager. In a portable eye massager, battery life is an important consideration.
4. Volume and weight: The capacity of the micro-diaphragm air pump may also affect its volume and weight. To meet specific capacity requirements, the design of the air pump may be correspondingly larger or heavier, which may affect the overall size and portability of the eye massager.

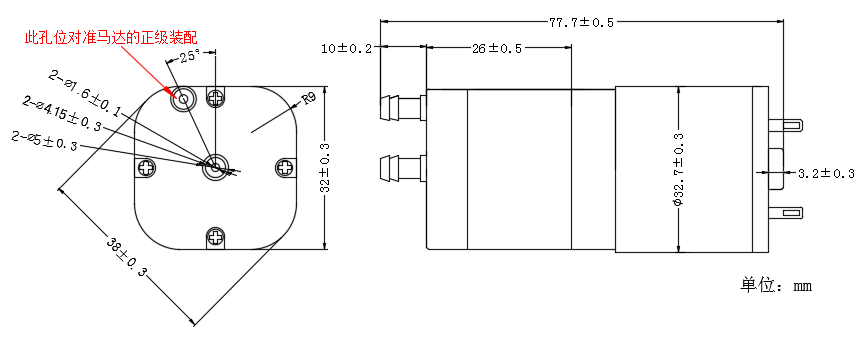

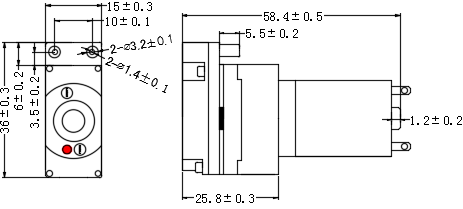

Dimension Drawing
Size:mm
How to optimize the power consumption of small dc air pump?
1. Choose a high-efficiency air pump: Choose a small diaphragm air pump with advanced technology and high efficiency on the market. These air pumps usually have lower power consumption and can significantly reduce energy consumption.
2. Control the running time: When long-term operation is not required, power consumption can be effectively reduced by accurately controlling the running time of the micro-diaphragm air pump. For example, the operating time of the air pump can be reduced during intermittent operation or low load conditions.
3. Adjust the output pressure and flow: According to actual needs, appropriately adjust the output pressure and flow of the micro diaphragm air pump to avoid increased power consumption caused by excessive pressure and flow. By properly setting pressure and flow parameters, power consumption can be reduced while meeting work requirements.
4. Reduce pipeline resistance: Optimize the pipeline system for air pumps to transport gas, select appropriate pipeline materials, and reduce pipeline friction to reduce the impact of pipeline resistance on the power consumption of the air pump. At the same time, rational layout of the pipe network, reducing pipe lengths and bends, avoiding gas accumulation, can also effectively reduce power consumption.
5. Adopt advanced control strategy: Use modern control technology, such as frequency conversion speed regulation, intelligent control, etc., to accurately control the micro-diaphragm air pump. By adjusting the operating parameters of the air pump in real time, power consumption can be dynamically adjusted according to actual needs to achieve energy saving effects.

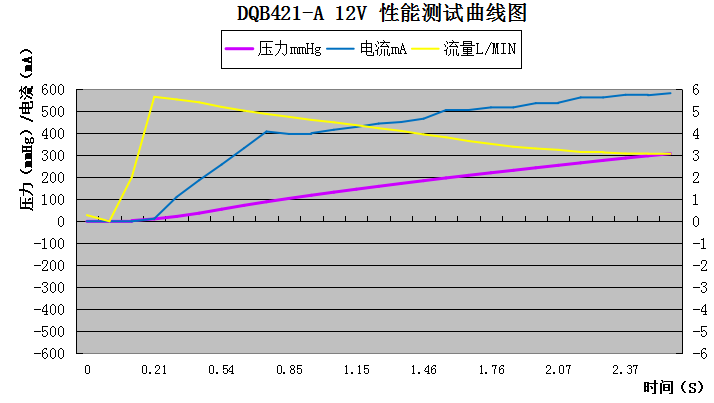

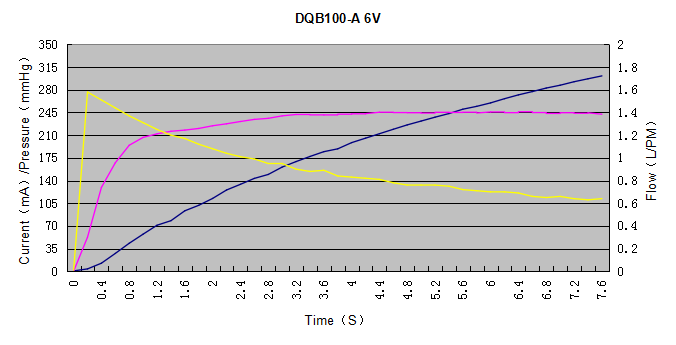

Performance Test
How to choose a suitable portable air pump based on the parameters of lift and flow?
1. Determine the head requirement: The head refers to the height to which the pump can lift the liquid or gas, or the resistance it overcomes. This depends on your application requirements, such as how high you want the pump to lift the liquid, or how much pipe resistance you need to overcome. Make sure the head of the selected pump is greater than or equal to your actual needs.
2. Determine the flow rate requirements: The flow rate refers to the volume of liquid or gas that the pump can deliver per unit time. This depends on how fast your system needs to deliver fluid. The flow rate requirement can be obtained by calculating the total amount of fluid required in your system and then dividing it by the required time. Make sure the flow rate of the selected pump is greater than or equal to your actual needs.
3. Check the performance curve of the pump: Most pump manufacturers provide performance curves that show the performance of the pump at different heads and flows. By looking at these curves, you can find a pump model that meets your head and flow requirements.
4. Consider other factors: In addition to head and flow, other factors need to be considered, such as pump power, efficiency, reliability, maintenance requirements, and cost. Make sure that the selected pump not only meets your performance requirements, but is also reasonable in terms of economy and practicality.
