Two Sides Copper Coated Polyimide Foil FCCL
We supply Double sides Copper Clad Polyimide Film and Single Side Copper Clad Polyimide Foil. And it come in RA copper and ED copper, which is according to your request. The thickness of Copper layer and substrate Polyimide film all can be customized. Our Cu clad polyimide laminates quality control is very strict, each batch of products can only be approved for shipment after passing inspection. Using the PET as subatrate is a common FCCL product too.
The Copper clad PI laminates is normally used for flexible PCB, and EMI shielding, RF shielding in military industry and areospace industry.
In the same time we supply Copper coated polyester film and copper coated polyimide film.
Product Part Number System
Thickness of the materials
PET
Polyester Film
25μm,50μm,75μm100μm125μm (1mil ,2mils,3mils ,4mils ,5mils)
PI
Polyimide Film
7.5μm, 12.5 μm, 25 μm, 50 μm, 75 μm, 100 μm, 125 μm, 250 μm, etc
ED CU
Electrolytic copper
1μm ,2μm , 3μm , 6μm, etc.
RA CU
Rolled copper
1μm ,2μm , 3μm , 6μm, 12 μm, 18 μm , 24 μm, 36 μm, etc
AD
Modified epoxy adhesive
Transparent or White 12.5μm -20.3μm
Structure
(D) Single Side FCCL ,(D) Double Side FCCL
Application :RF Sheilding, EMI Sheilding, PCB FCCL, Thermal Management, etc.
Packaging:one roll/carton
Thickness of PET base film:25μm,50μm,75μm100μm125μm (1mil ,2mils,3mils ,4mils ,5mils)
Thickness of Polyimide base film:7.5μm, 12.5 μm, 25 μm, 50 μm, 75 μm, 100 μm, 125 μm, 250 μm, etc
Maximum:1300mm
Paper core 3"76mm,6"152mm

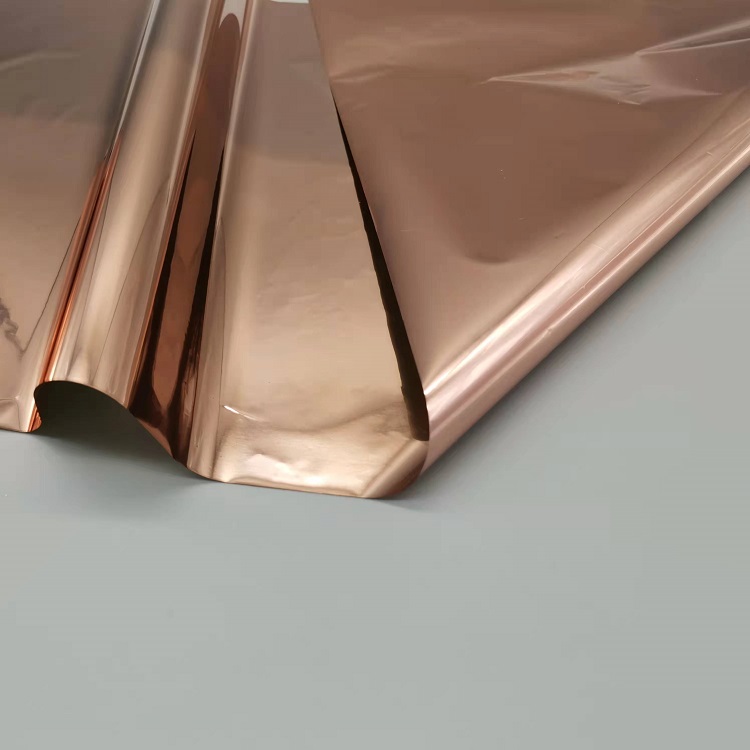

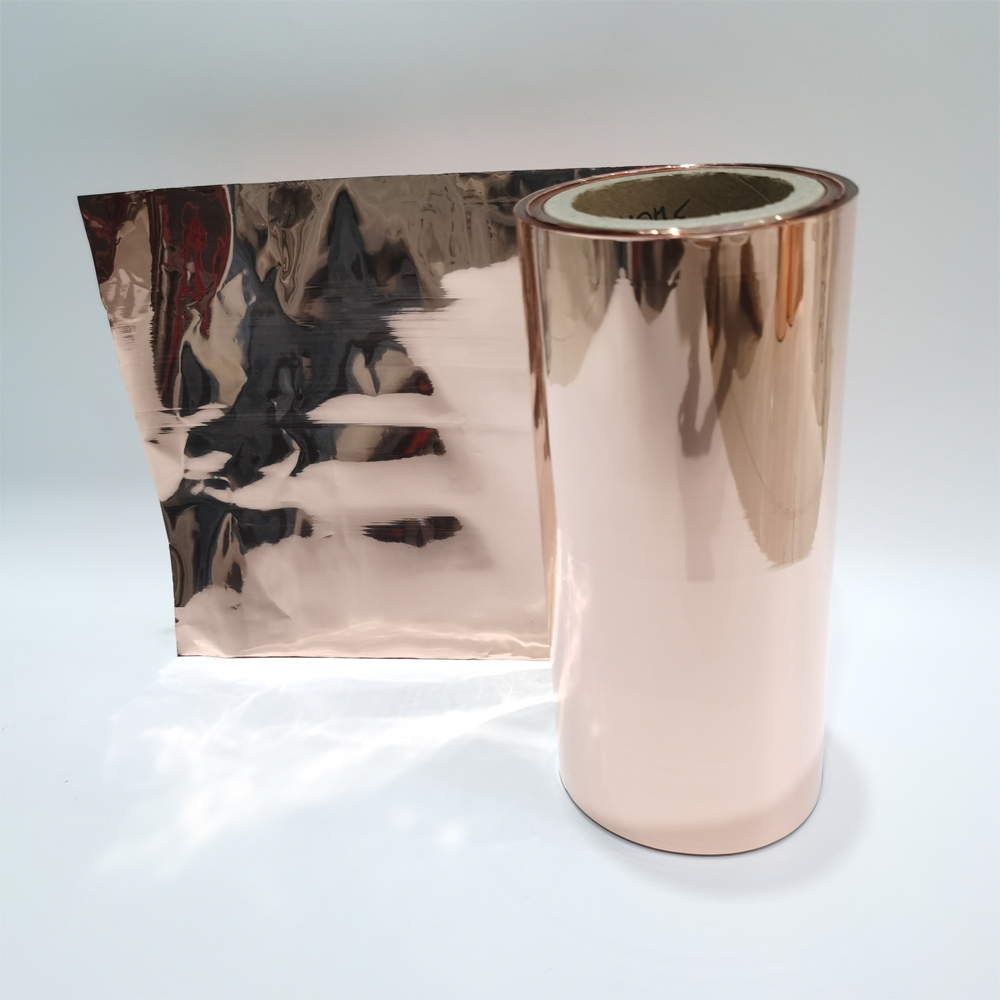

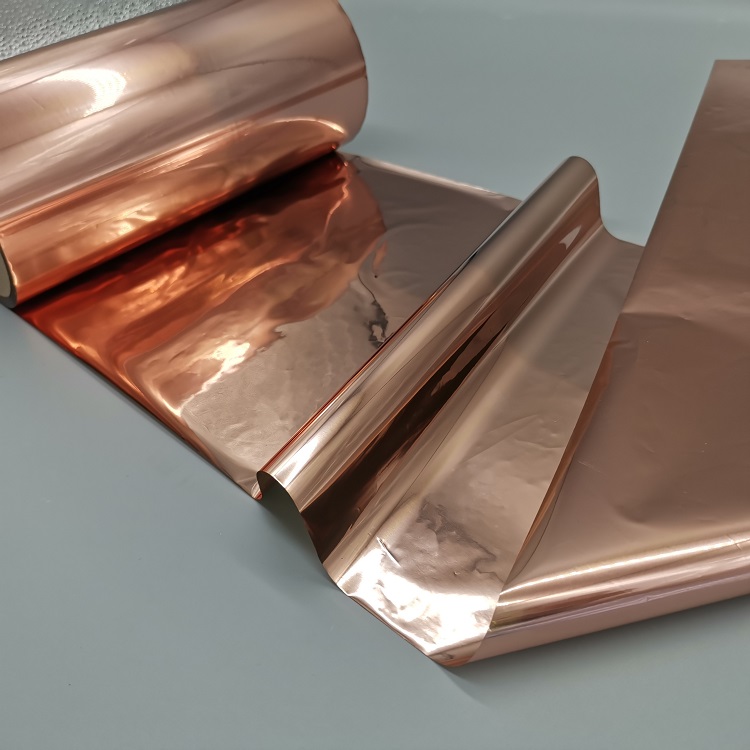

Photo of Product:
You can contact with us freely
whatsapp: 0086 15369385955
email: bella(at)dajiafilms.com
If you are interested in the product, contact 2bvideo.com for more information for more information
