LiFePO4 battery replacement marine solar energy system
Product Detail Reference
|
Item
|
Parameter
|
Note
|
|
|
|
Type
|
LiFePO4 Battery
|
|
|
Cell Model
|

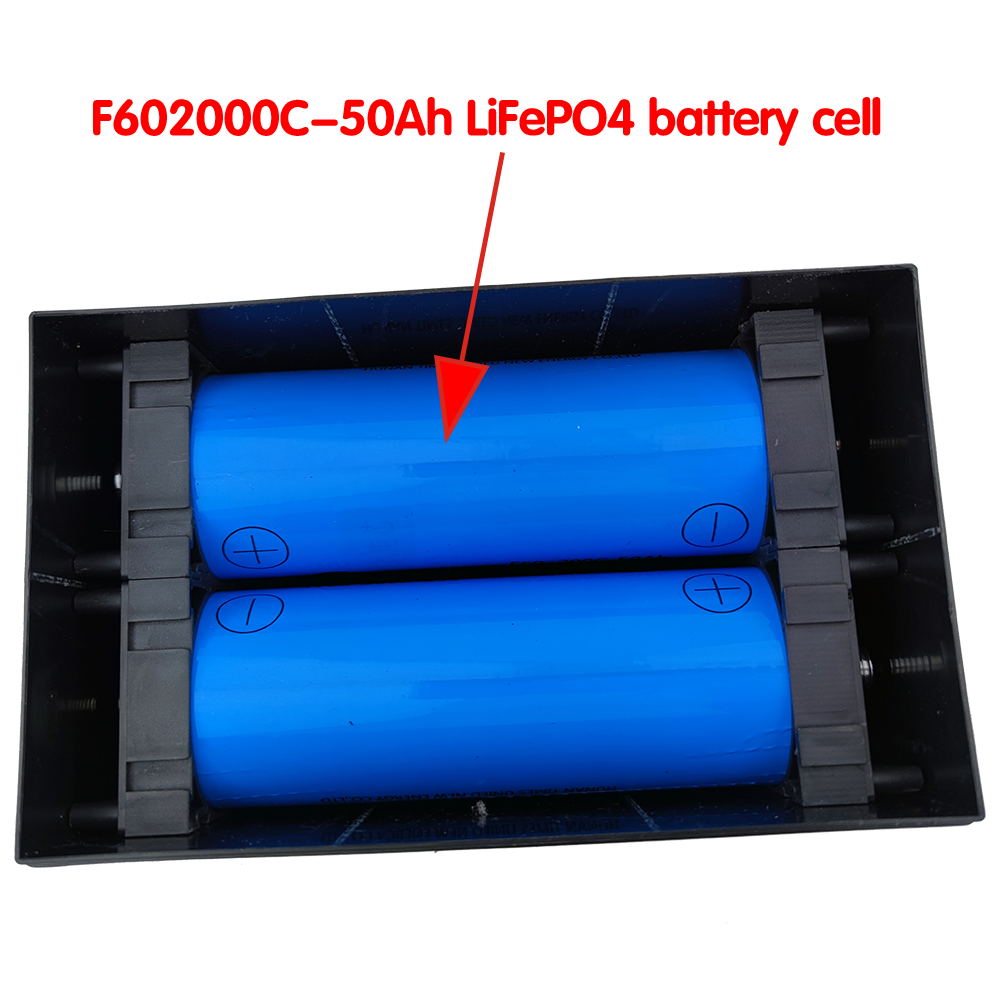

F602000C-50Ah
|
|
|
|
Nominal Capacity
|
50Ah
|
Discharge : 0.5C
Cut-off Voltage:2.5V |
|
|
Energy Density
|
145Wh/Kg
|
|
|
|
Nominal voltage
|
3.2V
|
|
|
|
Internal Impedance
|
≤0.6mΩ
|
|
|
|
Dimension
|
Max. 60x211mm
|
|
|
|
Weight
|
Approx.1.1kg
|
|
|
|
|
Pack Method
|
4S1P
|
|
|
Nominal Capacity
|
50Ah
|
Discharge : 0.2C
Cut-off Voltage:10V |
|
|
Minimum Capacity
|
48Ah
|
Discharge : 0.2C
Cut-off Voltage: 10V |
|
|
Nominal Voltage
|
12.8V
|
|
|
|
Energy
|
640Wh
|
|
|
|
Charge Voltage
|
14.6V
|
|
|
|
Discharge cut-off voltage
|
10V
|
|
|
|
Charge Method
|
CC/CV
|
|
|
|
Standard Charge Current
|
10A
|
|
|
|
Max. Charge Current
|
25A
|
|
|
|
Standard Discharge Current
|
10A
|
|
|
|
Max. Continuous Discharge current
|
25A
|
|
|
|
|
Cycle Life
|
2000 times
|
@ 0.5C/0.5C 90%DOD
|
|

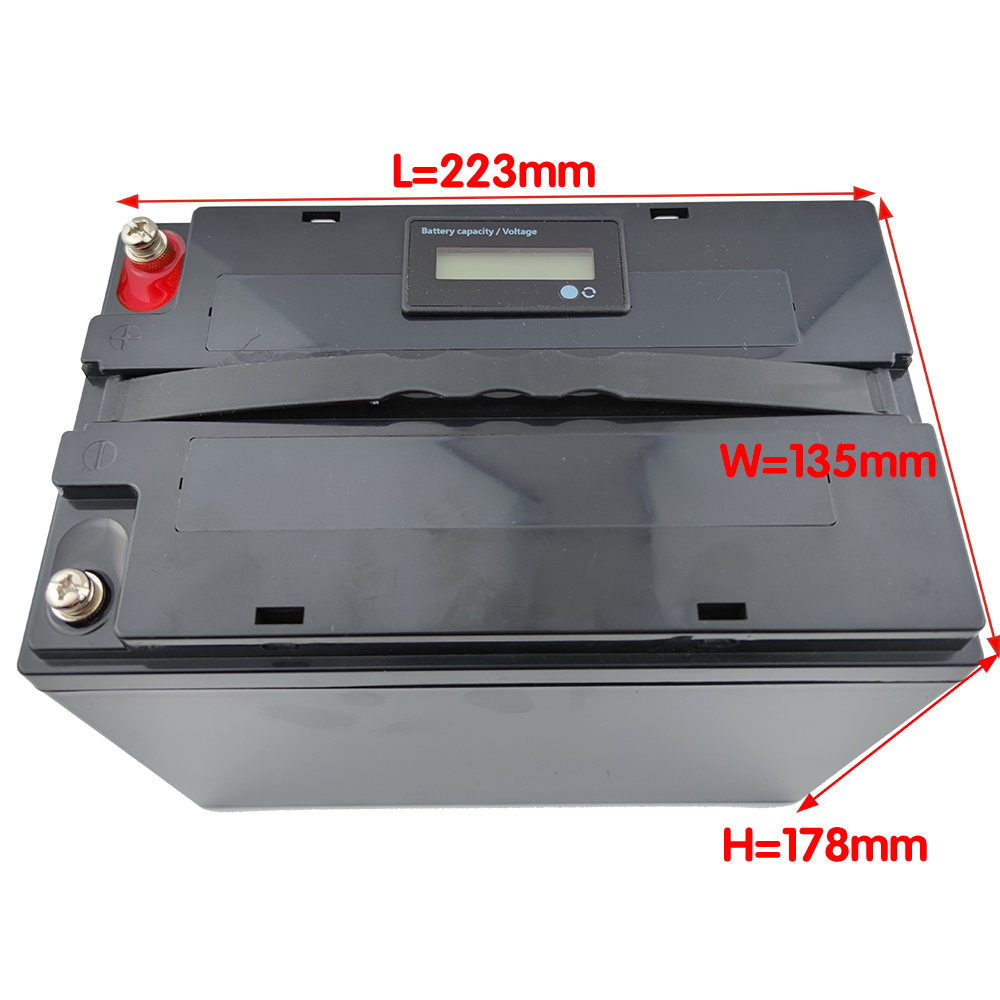

Dimension
|
223*135*178mm
|
|
|
|
Weight
|
Approx.5.5kg
|
|
|
|
Working Temperature Range
|
Charge: 0°C--45°C
Discharge: -20°C--60°C |
|
|
|
Storage Temperature
|
-10°C--50°C
|
|
|
If you are interested in the product, contact 2bvideo.com for more information for more information
