Product details

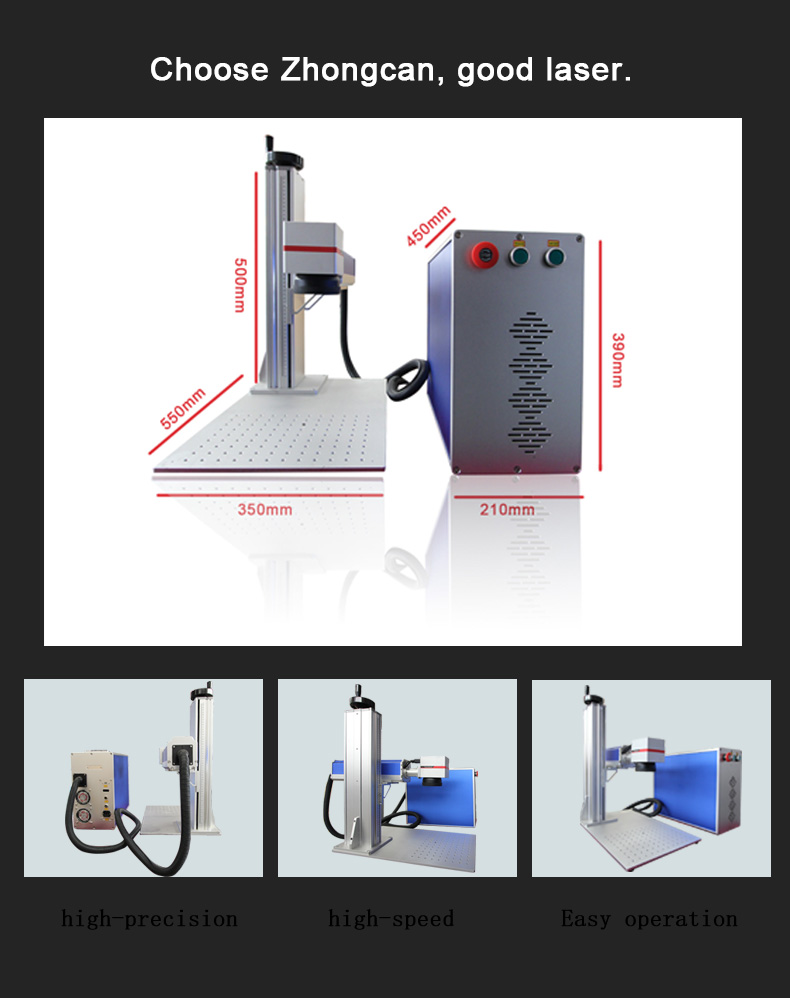

20W Split Fiber Laser Marking Machine For Metal

Zhongcan Technology Co., LTD.is a world leading manufacturer of industrial laser machinery.located in --- Jinan Shandong.Our company mainly production and sales of the products included Laser Cutting Machine Series, Laser Marking Machine Series, Laser Engraving Machine Series and Laser Cleaning Machine Series .Widely used in textiles, leather, clothing, industrial fabrics, advertising, technology products, printing, packaging, electronics, pharmaceuticals, furniture, hardware tools, molds, and other industries.

TECHNICAL PARAMETER

Model	ZC-DB-FB	RLaser Source	Raycus/MAX/JPT
Laser Type	Fiber	Positioning Way	Red Light
Laser Power	20W/30W/50W/100W	Laser Module Life	100000h
Marking Area	≤300*300mm	Cooling Style	Air/water cooling
Marking Speed	≤7000mm/s	Operating Voltage	Customerized
Marking Depth	≤1mm	Operating Voltage	Customerized
Repetition Precision	0.001mm	Certificate	CE,CCC,ISO...
Control Software	EZCAD	Supported Format	BMP/GIF/JPG/PCX/TGA/TIFF/PLT
Machine weight	55kg	Machine size	56L55W72H (cm)
packing weight	70kg	packing size	83L42W89H (cm)

galvanometer

Scanning galvanometer, full digital signal, super anti-interference ability.High precision, short delay, fast speed,
smalltemperature drift, especially suitable for all kinds of high precision, high speed marking requirements.The fiber wavelength
is 1064nm.

High Quality Field Lens

Famous brand field lens Wavelength Higher energy conversion rate，fast speed and long life.75MM*75MM ,100*100MM,150*150MM,200*200MM ,300*300MM ,Above working area optical Same power for example 20W if working area smaller,the marking depth by one time is bigger

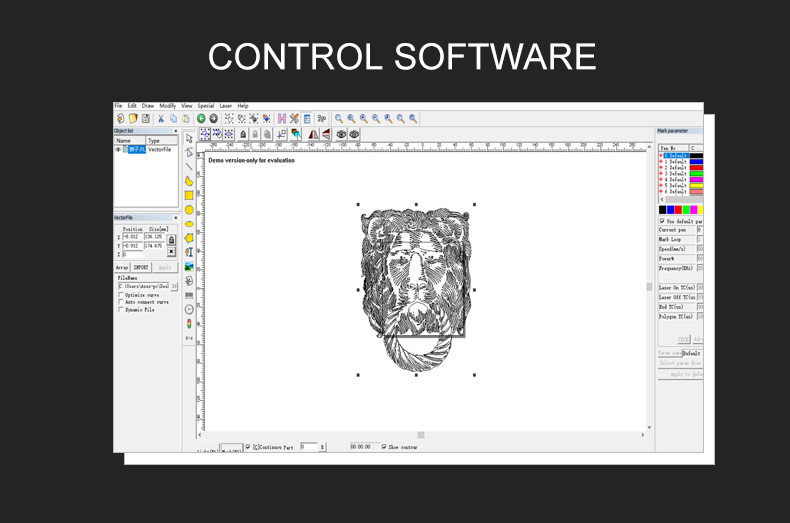

EZCAD

Control software, beautiful interface, powerful function, detailed parameters, simple operation, can describe any pattern, text,bar code, two dimensional code processing.

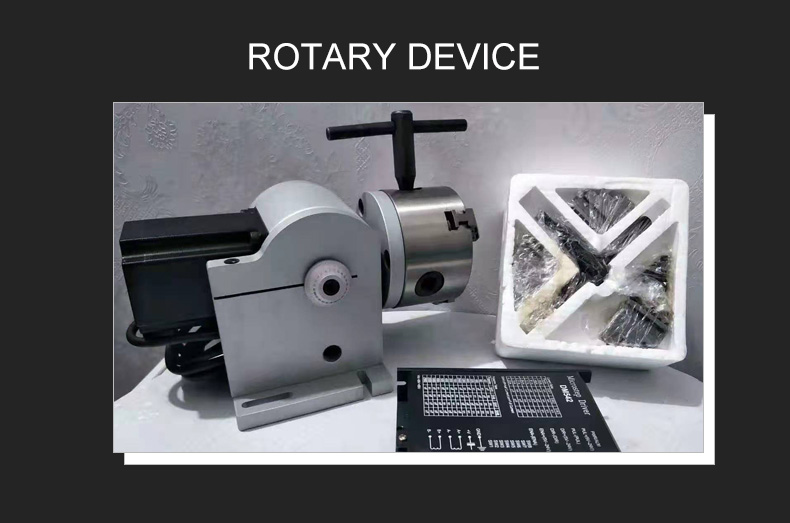

Rotary device

The rotating device is suitable for various round objects, such as rings, glass bottles, etc.The speed can be controlled by the computer liberalization.

Video + Text manual

We will provide you with video and text installation instructions, software instructions, solutions to common problems and other operating manuals.

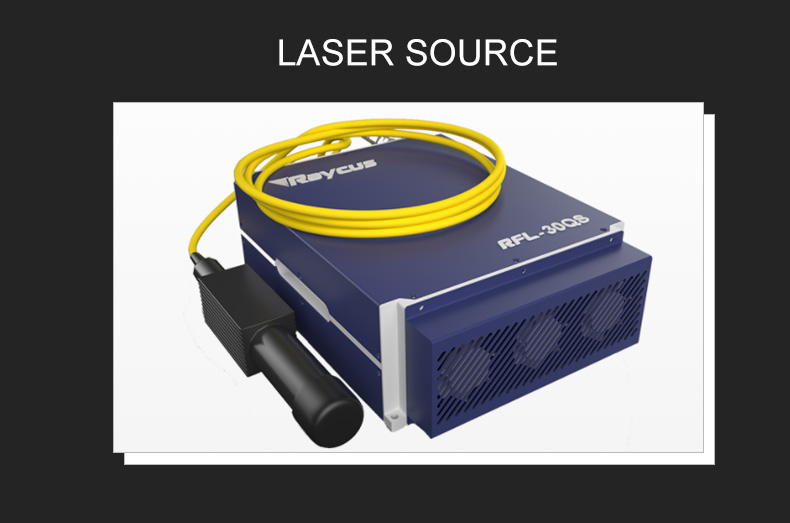

Laser source

We can use different laser sources for you according to your needs, JPT / RAYUCS / MAX.....

Product packaging
