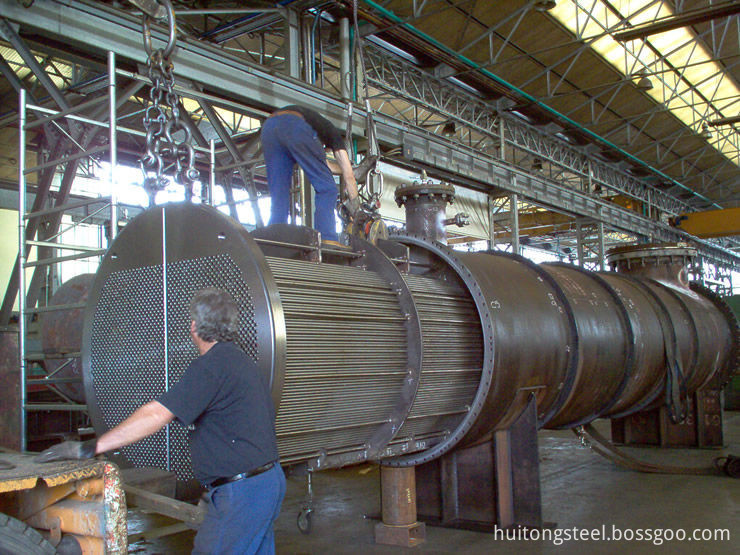

ASTM A179/ASME SA179 Standard covers minimum-wall thickness, seamless low-carbon cold drawn steel tube for tubular heat exchangers, condensers, and similar heat transfer apparatus.
ASTM A179/ASME SA179 Tubes shall be made by the seamless process and shall be cold drawn. ASTM A179/ASME SA179 Tubes shall be heat treated after the final cold drawn pass at a temperature of 1200°F [650°C] or higher.
ASTM A179/ASME SA179 Tubes should do Product Analysis test, Hardness test, Mechanical Test, Flattening Test, Flaring Test, Hydrostatic Test or NDT Test if agreed by Client.
ASTM A179/ASME SA179 Tube Chemical Compositions
|
Chemical Components (%) |
|||||||
|
C |
Si |
Mn |
P |
S |
Mo |
Cr |
V |
|
0.06-0.18 |
/ |
0.27-0.63 |
≤0.035 |
≤0.035 |
/ |
/ |
/ |
ASTM A179/ASME SA179 Tube Mechanical Properties
|
Mechanical Properties |
|||
|
Tensile Strength (Mpa) |
Yield Strength (Mpa) |
Elongation (%) |
Hardness (HRB) |
|
≥325 |
≥180 |
≥35 |
≤72 |
ASTM A179/ASME SA179 Tube Wall Thickness Tolerance
|
Seamless, Cold-Finished Tubes |
||
|
Outside Diameter ,In. (mm) |
Wall thickness Tolerance % |
|
|
Over (+) |
Under (-) |
|
|
1 ½ (38.1) and under |
20 |
0 |
|
Over 1½ (38.1) |
22 |
0 |
ASTM A179/ASME SA179 Tube Outside Diameter Tolerance
|
Cold-Finished Seamless Tubes |
||
|
Outside Diameter ,In. (mm) |
Permissible Variations ,In. (mm) |
|
|
Over (+) |
Under (-) |
|
|
Under 1 (25.4) |
0.004 (0.1) |
0.004 (0.1) |
|
1 to 1 ½ (25.4 to 38.1), Incl |
0.006 (0.15) |
0.006 (0.15) |
|
Over 11⁄2 to 2 [38.1 to 50.8], Excl |
0.008 (0.2) |
0.008 (0.2) |
|
2 to 21⁄2 [50.8 to 63.5], Excl |
0.010 (0.25) |
0.010 (0.25) |
|
21⁄2 to 3 [63.5 to 76.2], Excl |
0.012 (0.3) |
0.012 (0.3) |
ASTM A179/ASME SA179 Tube Cut Length Tolerance
|
Cold-Finished Seamless Steel Tube |
||
|
Outside Diameter ,In. (mm) |
Cut Length ,in. (mm) |
|
|
Over(+) |
Under(-) |
|
|
All Sizes |
3⁄16 [5] |
0 [0] |
|
Under 2 [50.8] |
1⁄8 [3] |
0 [0] |
|
2 [50.8] and over |
3⁄16 [5] |
0 [0] |
|
Under 2 [50.8] |
1⁄8 [3] |
0 [0] |
|
2 [50.8] and over |
3⁄16 [5] |
0 [0] |
|
These permissible variations in length apply to tubes before bending. They apply to cut lengths up to and including 24 ft [7.3 m]. For lengths greater than 24 ft [7.3 m], the above over-tolerances shall be increased by 1⁄8 in. [3 mm] for each 10 ft [3 m] or fraction thereof over 24 ft or 1⁄2 in. [13 mm], whichever is the lesser. |
||

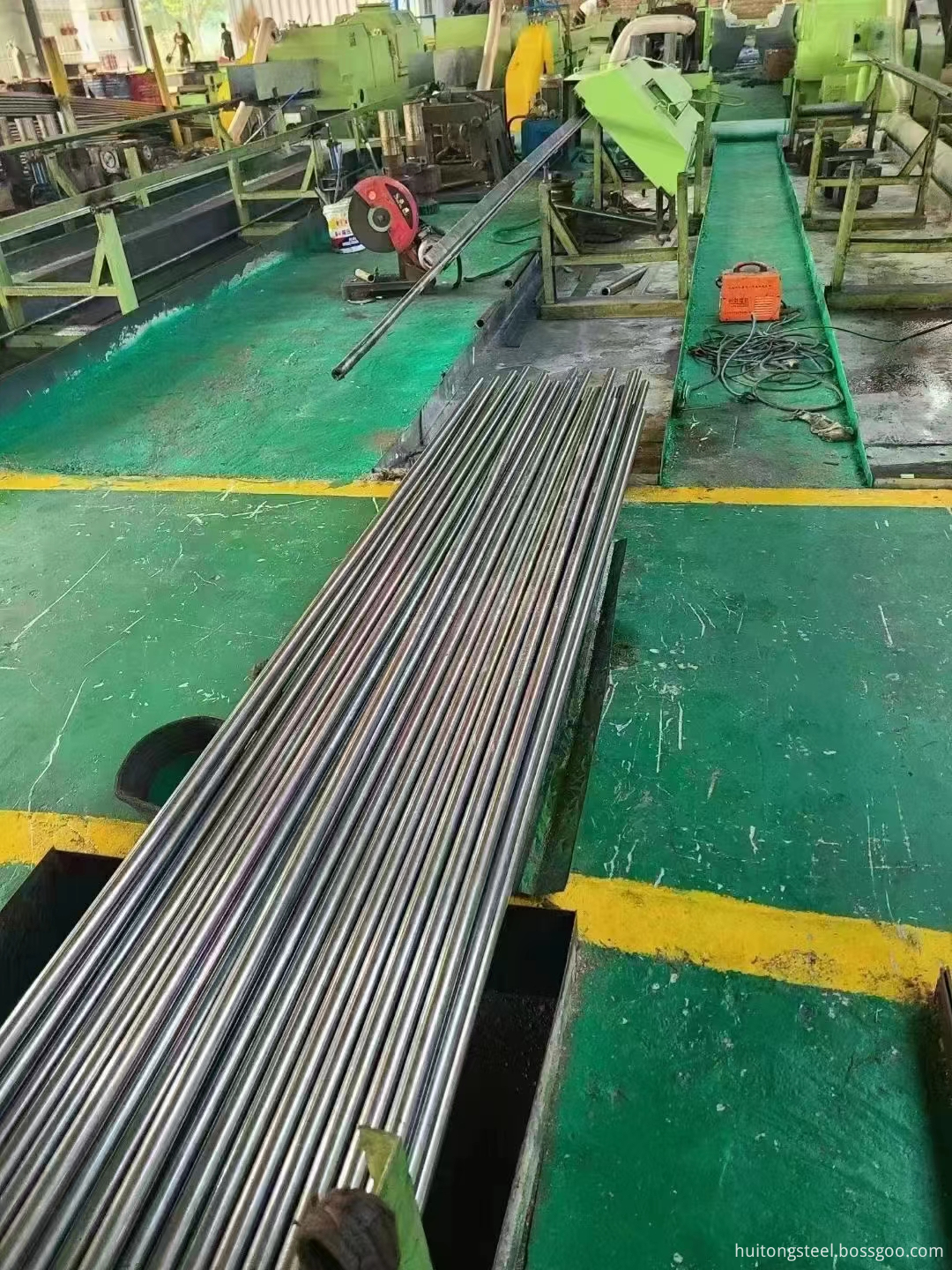

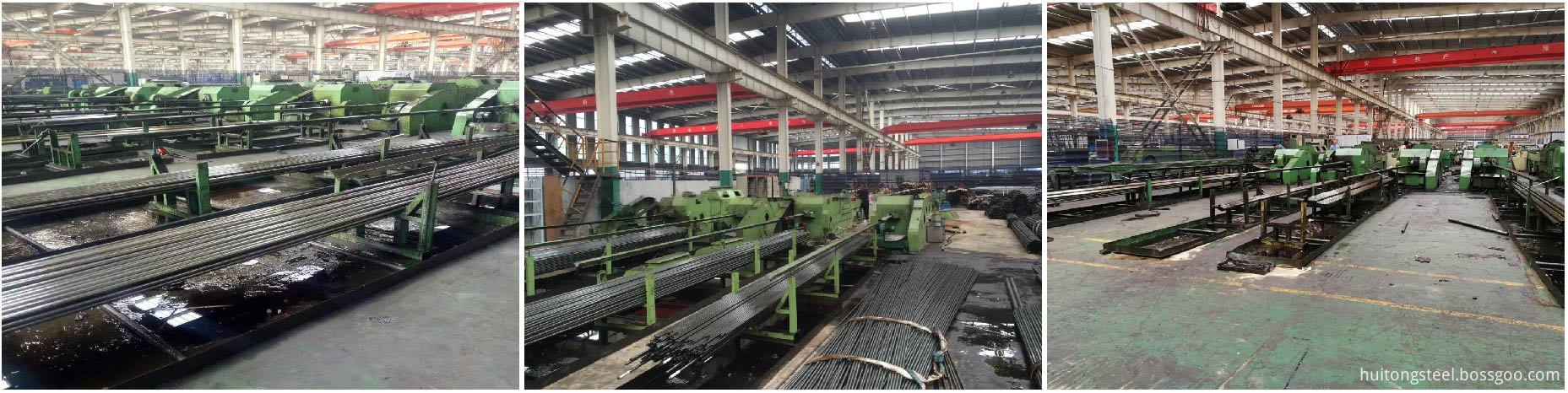

Our factory takes more than 5 suare kilometers, 15 production lines can make different sizes cold rolled or cold drawn seamless pipe.

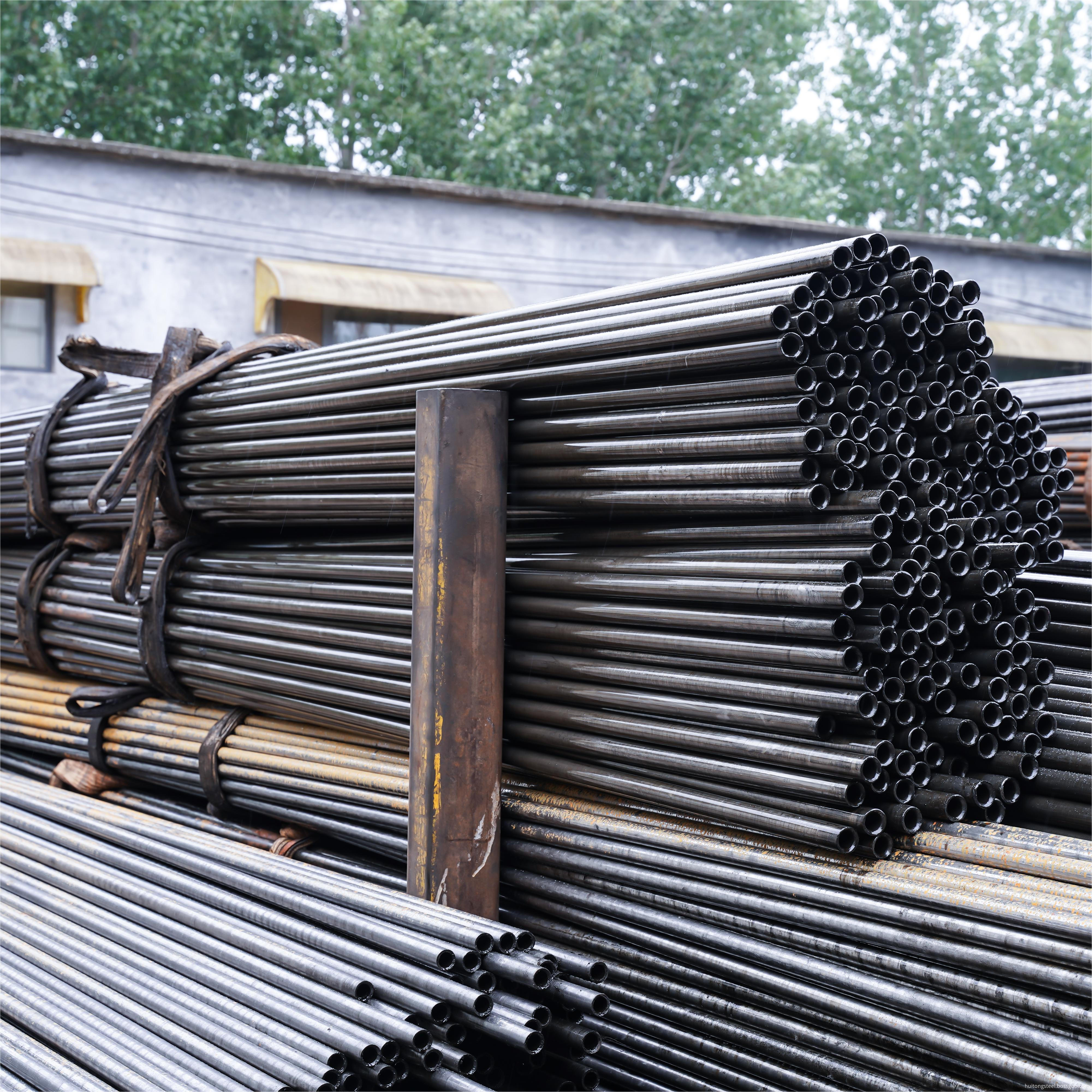

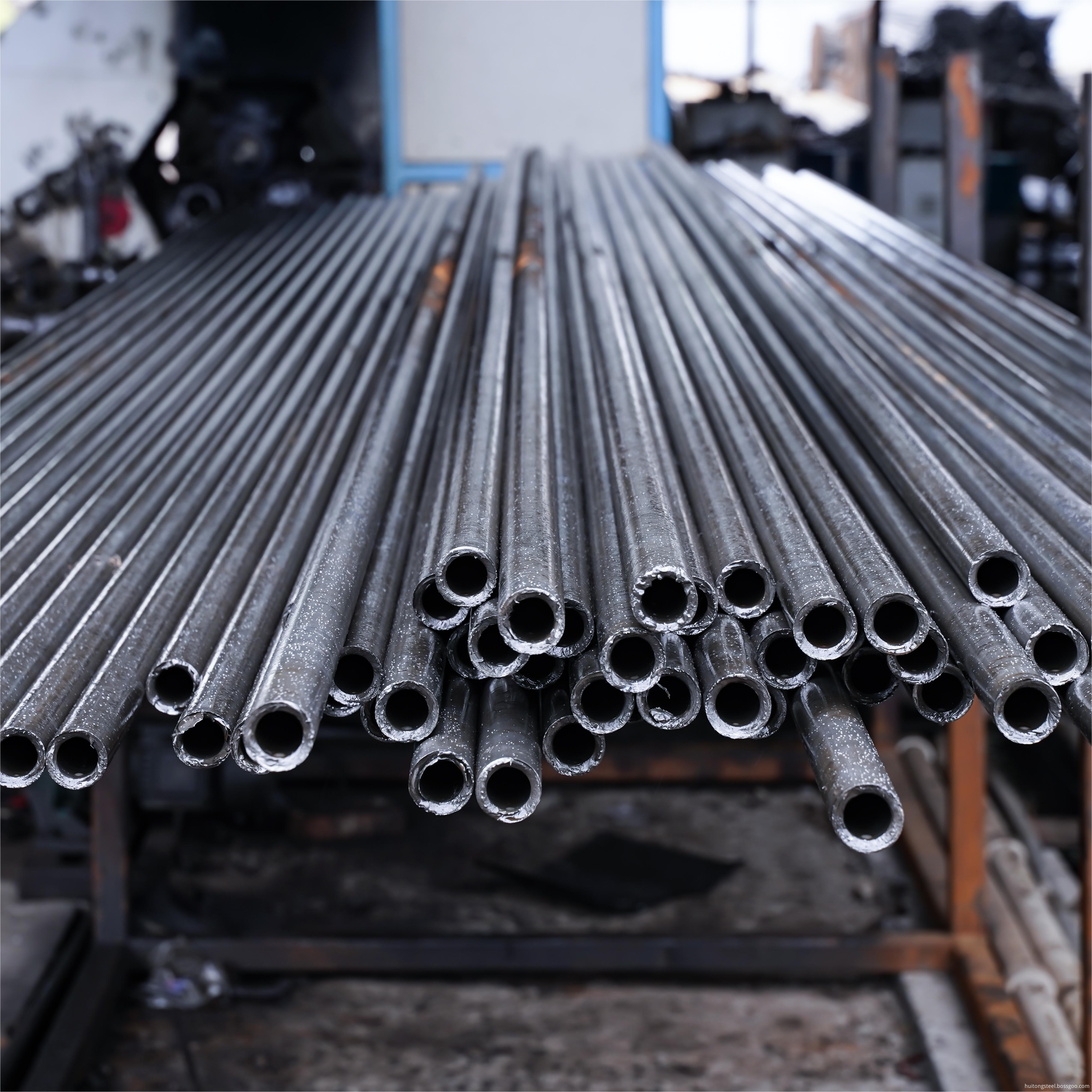

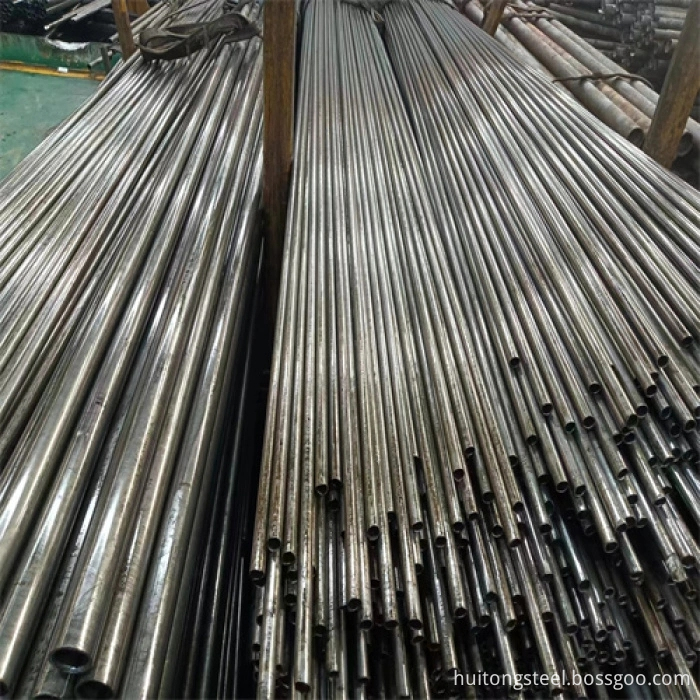

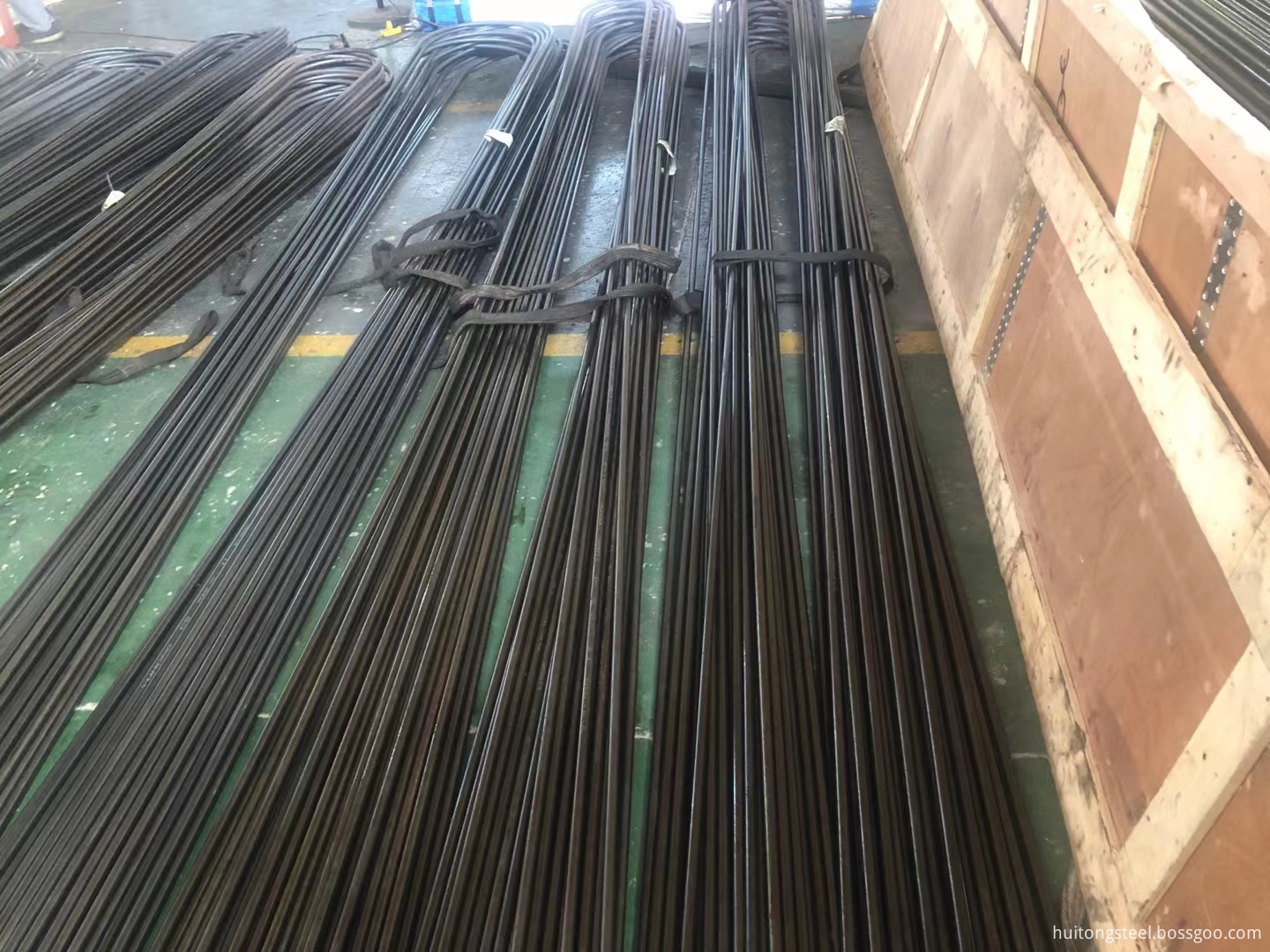

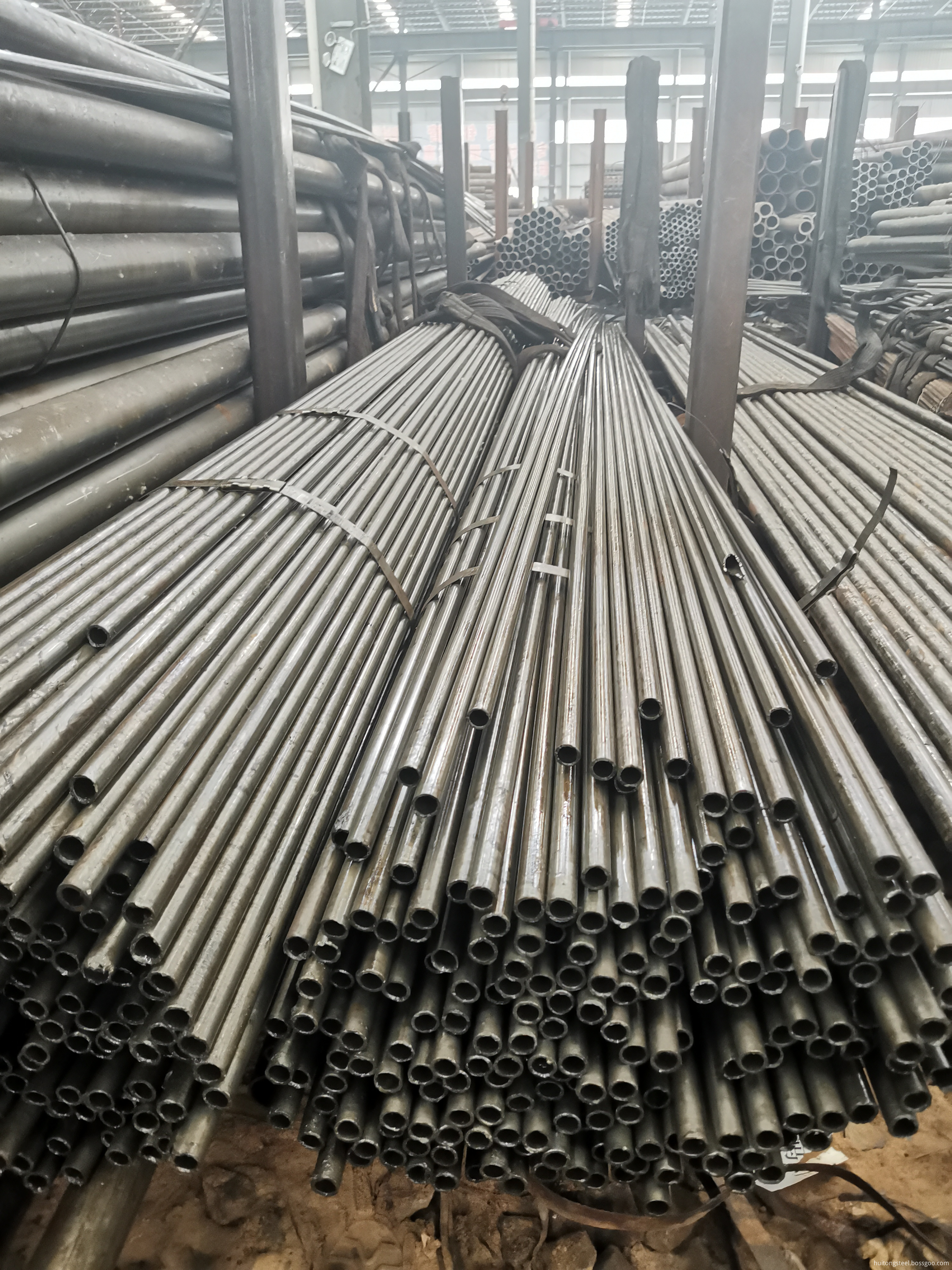

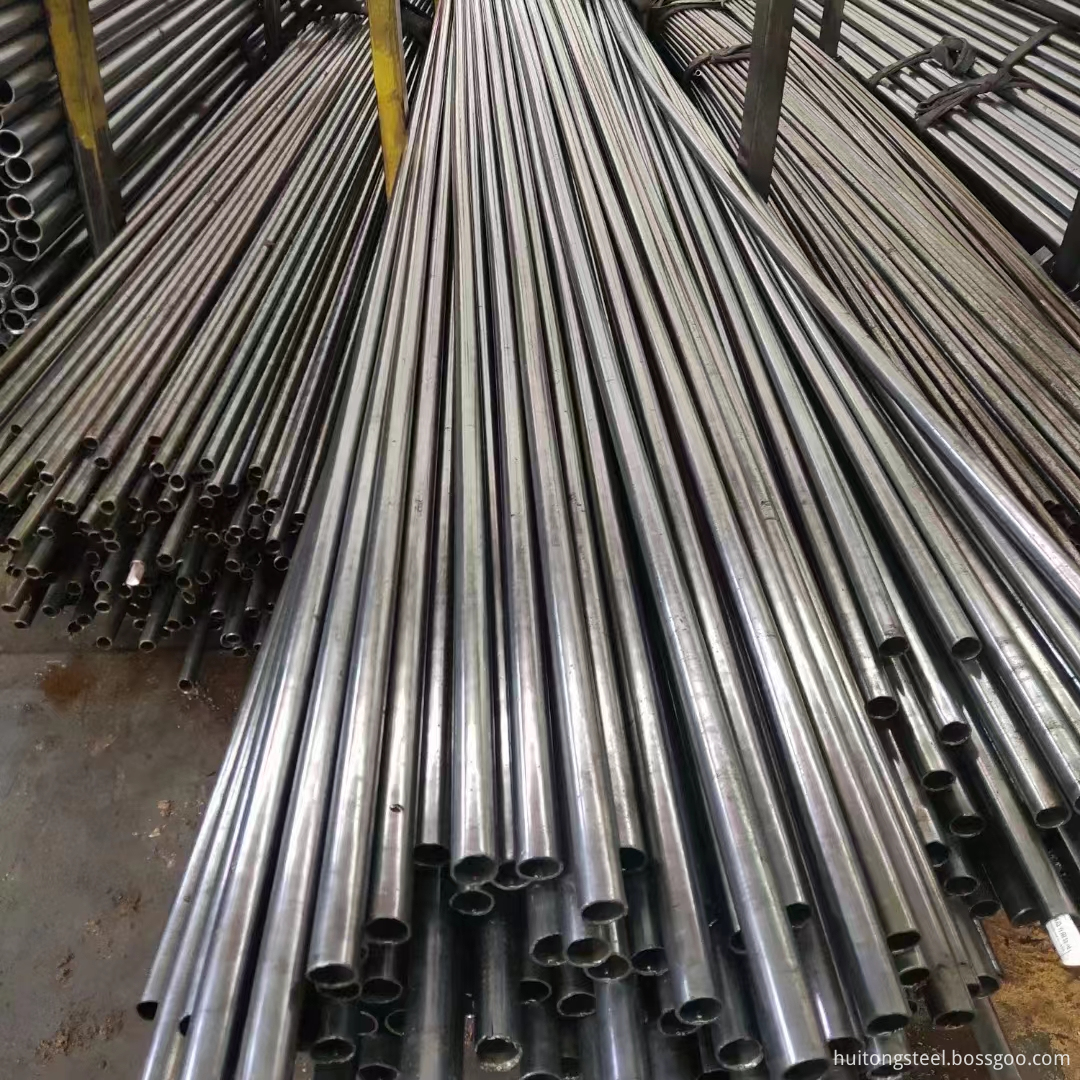

Product Display
We can produce different sizes, thicknesses, widths and materials according to your requirements
