A miniature DC diaphragm pump can pump water, but it is not the optimal choice.
Mini pumps are generally divided into two types, one is a mini air pump and the other is a mini water pump. The characteristic of the air pump is that it creates negative pressure when pumping air, but it cannot pump water continuously. If an air pump is used to pump water, when the water pump is running, it may not work properly because there is no negative pressure to absorb water.
In addition, some micro pumps can be used as both air pumps and water pumps. However, it should be noted that if the water pump has no water to pump, it may be in a "dry running" state, which may cause damage to the water pump.
Therefore, if you need to use a mini pump to pump water, it is best to choose a specialized water pump.This kind of mini pumps just suitable for small flow and intermittent work household appliances,for example,electry spray mop,floor washing machine,coffee machine etc.
Technical Specification
|
Product model |
DSB130-A |
|
Voltage |
DC 5V |
| Current |
≤1W |
|
Water flow rate |
0.5L-1.1/Min |
|
Media |
Water |
|
Pressure |
25KPar |
|
Life test |
>100000 cycles (work for 2 seconds and stop for 2 seconds as a cycle) |
|
Working temperature |
5℃~55℃ |
|
Product N.W |
60g |
|
Noise |
<60dB |
|
Product use |
Electric Spray Mop,Coffee Machine,Oral Cleaner |

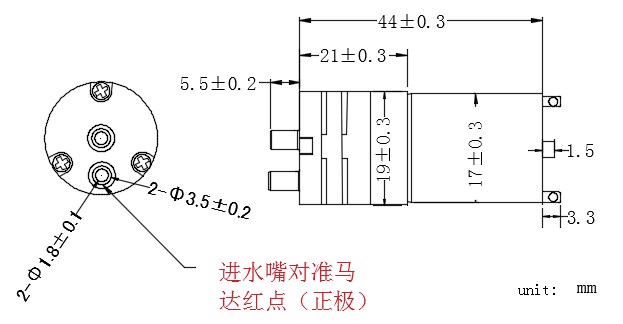

Dimension Drawing
Mini Pumps and Mini Valves Application

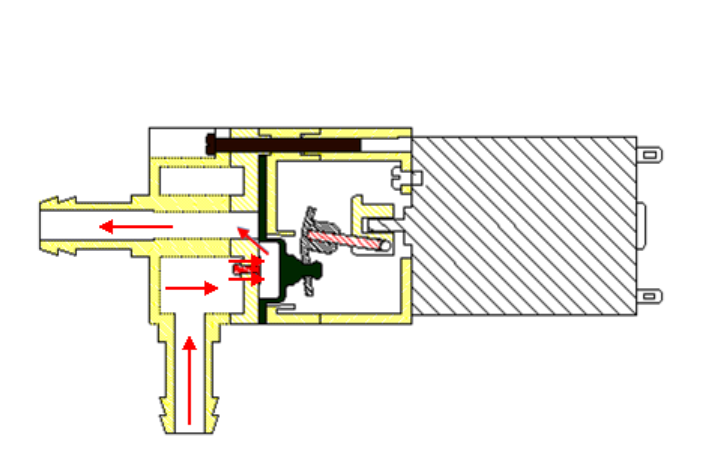

Micro DC diaphragm water pump mainly consists of the following three parts:
1. Pump casing: The pump casing is the shell of a DC Diaphragm Pump, usually made of cast iron or engineering plastics. There is a diaphragm chamber inside the pump casing, and the fluid medium flows in the diaphragm chamber.
2. Diaphragm: The diaphragm is the core component of the Mini DC Diaphragm Pump. It is generally made of corrosion-resistant and wear-resistant rubber or plastic. The diaphragm separates the main body of the water pump from the fluid medium, allowing the fluid medium to flow inside the diaphragm, thereby realizing the transportation and pressurization of the fluid medium.
3. Transmission mechanism: The transmission mechanism is the power source of the micro DC diaphragm water pump, generally using motor or manual transmission. The transmission mechanism transmits power to the main body of the water pump through the crank-link mechanism, causing the diaphragm to move back and forth to pressurize and transport the fluid medium.
