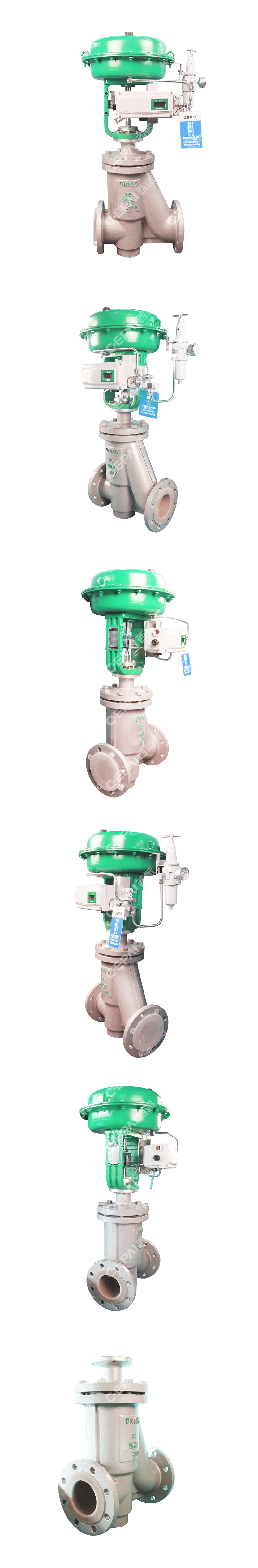

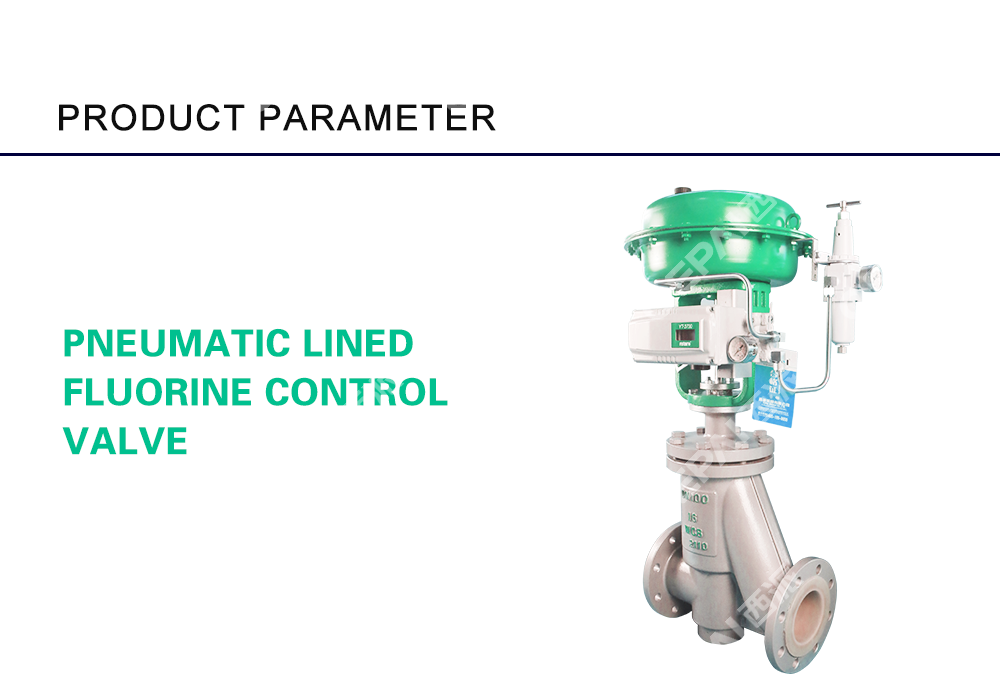

Pneumatic fluorine-lined regulating valves are widely used in chemical, petroleum, electric power, metallurgy, pharmaceutical and other industries to control the flow
and pressure of various media and realize automated control of the process.
Features：
1. Good stability: Due to the use of pneumatic actuator control, the adjustment process of the valve is stable and reliable, and the stability of the flow can be
maintained.
Our company’s main products include Pneumatic Control Valve、Pneumatic Ball Valve、Electric Control Valve、 Fluorine Lined Valve、 Precession Vortex Flowmeter、 Throttling Gear.
VALVE BODY
| Type | straight single seat ball valve |
| Nominal diameter | DN15-DN400mm |
| Nominal pressure | PN16, 40, 64, ANSI150, 300, 600; |
| Connection type: | Flange type |
| Body material: | WCB lined F46, 304 lined F46, WCB lined PFA, 304 lined PFA |
| Packing: | V-type PTFE packing |
| Spool form: | single seat plunger spool |
| Adjustment characteristics: | equal percentage, linear |
| Internal materials: | WCB lined F46, CF8 lined F46, WCB lined PFA, CF8 lined PFA, etc |
Executive mechanism
| Model: | Piston actuator |
| Gas supply pressure: | 400~700KPa |
| Air source connector: | G1/8, G1/4, G3/8, G1/2 |
| Ambient temperature: | -30 ~ +70℃ |
| Action form: | single action, double action |
| Leakage: | Meet ANSI B16.104 Class VI |
