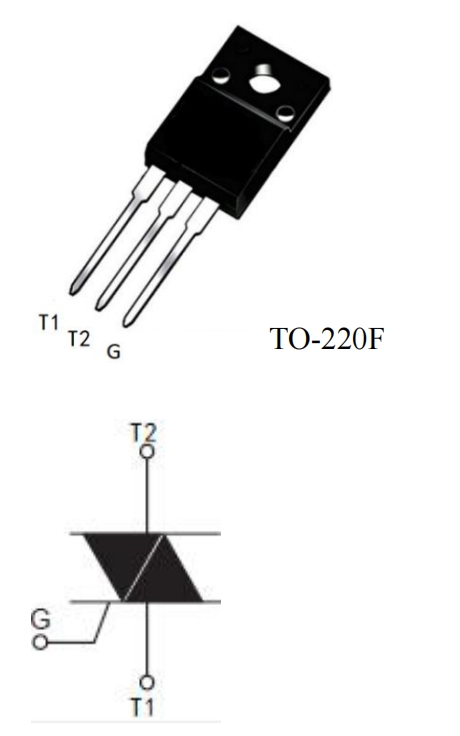

P/N:YZPST-BTA312X-600D TRIACS
DESRCRIPTION
Due to mesa technology and Glass passivation, these devices have good
performance at dv/dt and reliability. The Triac series is suitable for general
purpose AC switching. They can be used as high power motor control - e.g.
washing machines, vacuum cleaners,andrefrigeration and air conditioning
compressors,electronic thermostats.
MAIN FEATURES
| Symbol | Value | Unit |
| IT(RMS) | 12 | A |
| VDRM/VRRM | 600 | V |
| IGT | ≤5 | mA |
ABSOLUTE MAX I MUM RATINGS
| Symbol | PARAMETER | Value | Unit | |
| IT(RMS) | RMS on-state current(all full sine wave) | TO-220F ，Th≤61℃ | 12 | A |
| non-repetitive peak on-state current | F=50HZ ，t=20ms | 95 | ||
| ITSM | (full sine wave, Tj=25℃) | F=60HZ ，t= 16.7ms | 105 | A |
| I2t | I2t Value for fusing | tp= 10ms | 45 | A2S |
| di/dt | Repetitive rate of rise of on-state Current after triggering | IT = 20 A; IG = 0.2 A; dIG/dt = 0.2 A/µs | A/μs | |
| 100 | ||||
| VDRM VRRM | Repetitive Peak Off-state Voltage Repetitive Peak Reverse Voltage | Tj=25℃ | ||
| 600 | V | |||
| IGM | Peak gate current | tp=20us | 2 | A |
| PGM | peak gate power | 5 | W | |
| PG(AV) | Average gate power dissipation | over any 20 ms period | 0.5 | W |
| Tstg | Storage junction temperature range | - 40 to +150 | ℃ | |
| Tj | Operating junction temperature range | 125 | ℃ | |
STATICCHARACTERISTICS
| Symbol | Test Condition | Quadrant | Value | Unit | ||
| MIN | TYP | MAX | ||||
| T2+ G+ | 5 | |||||
| VD= 12V, IT=0. 1A, T=25°C See figure8 | T2+ G- | 5 | ||||
| IGT | T2- G- | 5 | ||||
| T2+ G+ | 10 | |||||
| VD= 12V, IT=0. 1A, T=25°C See figure10 | T2+ G- | 15 | ||||
| IL | T2- G- | 15 | ||||
| IH | VD = 12 V; Tj = 25 ℃ , See figure11 | 10 | mA | |||
| VT | IT=0. 1A, Tj=25°C ，See figure9 | 1.3 | 1.6 | |||
| VD= 12V, IT=0. 1A, T=25°C ，See figure7 | 0.7 | 1.5 | ||||
| VGT | VD=400V,IT=0. 1A, Tj=125°C ，See figure11 | 0.25 | 0.4 | V | ||
| ID | VD = 600 V; Tj = 125 °C | 0.1 | 0.5 | mA | ||
Dynamic characteristics
| Symbol | Test Condition | Value | Unit | ||
| MIN | TYP | MAX | |||
| dVD/dt | VDM = 402 V; Tj = 125 °C; exponential | 20 | V/us | ||
| waveform; gate open circuit | |||||
| VD = 400 V; Tj = 125 °C; IT(RMS) = 12 A; | 1 | A/ms | |||
| dVcom/dt = 20 V/µs; gate open circuit; | |||||
| "without snubber" condition | |||||
| dIcom/dt | VD = 400 V; Tj = 125 °C; IT(RMS) = 12 A; | 1.5 | A/ms | ||
| dVcom/dt = 10 V/µs; gate open circuit | |||||
| VD = 400 V; Tj = 125 °C; IT(RMS) = 12 A; | 4.5 | A/ms | |||
| dVcom/dt = 1 V/µs; gate open circuit | |||||
| tgt | ITM = 20 A; VD = 600 V; IG = 0. 1 A; | 2 | |||
| dIG/dt = 5 A/µs | us | ||||

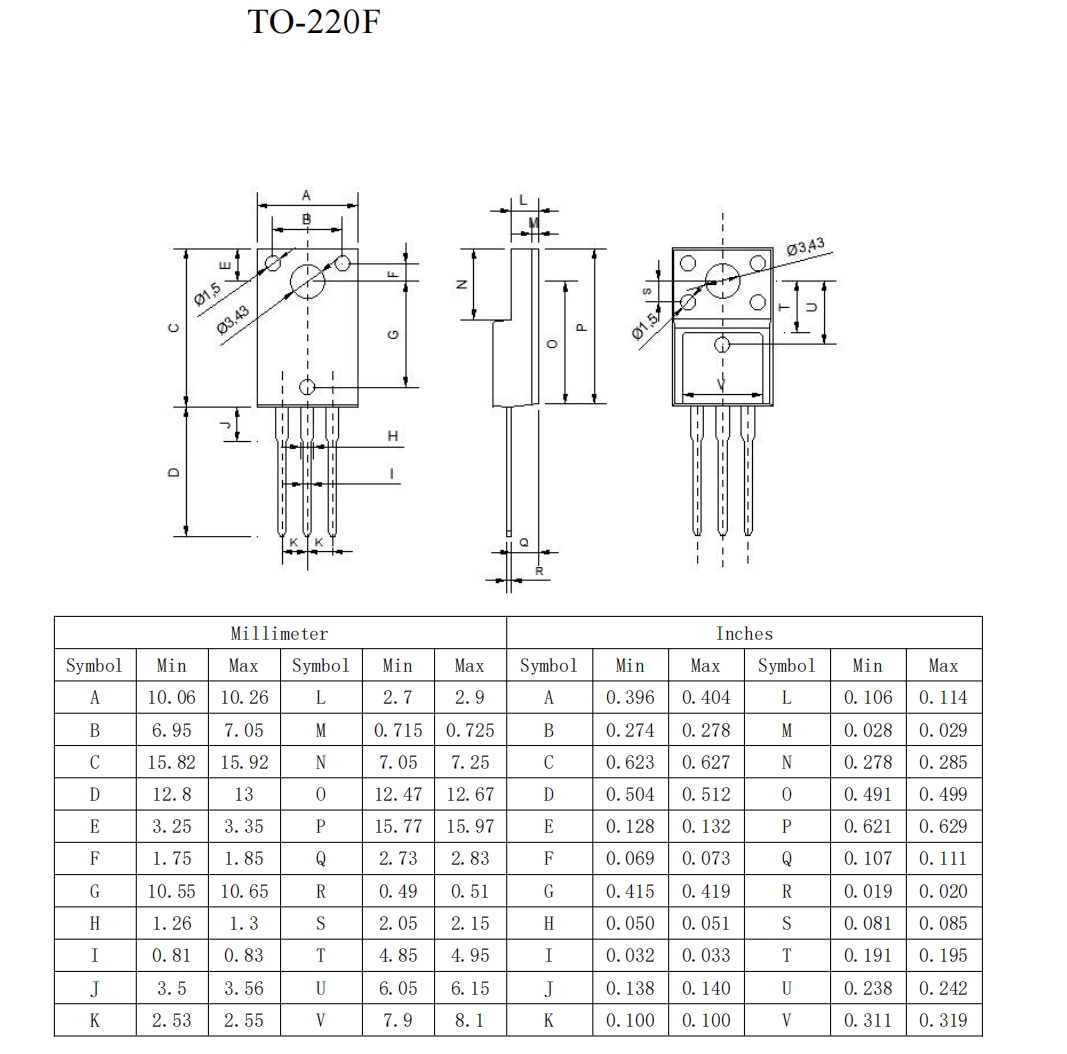

PACKAGE MECHANICAL DATA
TO-220F
