320 nm laser includes DPSS laser (diode-pumped solid-state) and pulse laser. Low noise all solid state laser is made features o fultra compact, easy operating, high power and staiblity, which is perfect for flow cytometry, spectrum analysis, microscopy, semiconductor inspection, cell sorting, optical instrument, physics experiment,etc
320nm high power UV lasers contains UV CW laser, UV passively Q-switched laser, UV actively Q-switched laser, UV low noise laser, UV single longitudinal mode laser, UV fiber coupled laser system.
As the leading manufacturer and supplier in China, CNI is dedicated to offer best quality lasers , laser systems, high power laser, optical measuring equipment, single longitudinal mode laser, laser processing equipment, high energy laser,machine vision and the photoelectric detection equipment.
Applications
Spectifications
|
Wavelength (nm) |
320±1 |
||||
|
Operating mode |
CW |
||||
|
Model |
UV-FN-320 |
UV-FN-320-L |
UV-DP-320-A |
UV-DP-320-B |
|
|
Output power (mW) |
1-30 |
1-50 |
50-500 |
50-1500 |
1500-2000 (Please seek details on customized parameters and dimensions) |
|
Power stability (rms, over 4 hours) |
<3%, <2% |
<3%, <2% |
<3%, <2%, <1% |
||
|
Transverse mode |
TEM00 |
Near TEM00 |
|||
|
M2 |
<2.0 |
<1.5 |
/ | ||
|
Beam diameter at the aperture (1/e2, mm) |
<1.0 |
<1.0 |
<3.0 |
||
|
Beam divergence, full angle (mrad) |
<2.5 |
<1.5 |
<5.0 |
||
|
Polarization Ratio |
>50:1, Horizontal (Vertical Optional) |
>50:1,Vertical (Horizontal Optional) |
|||
|
Warm-up time (minutes) |
<10 |
||||
|
Cooled method |
Air cooled (Add hest sink) |
FanCooled / WaterCooled |
Fan Cooled |
Water cooled (WCH-580 water chiller) |
|
|
Operating Temperature (°C) |
10-35 |
||||
|
Modulation optional |
TTL on/off, 1Hz-1KHz, 1KHz-10KHz and Analog modulation optional |
/ |
|||
|
Power supply (90-264VAC) |
PSU-H-LED / PSU-H-FDA / PSU-SR |
PSU-DP-A |
12V DC (Photoelectric integrated) |
||
|
Warranty |
1 year |
||||
|
LASER HEAD
(UV-FN-320 ≤30mW)
|

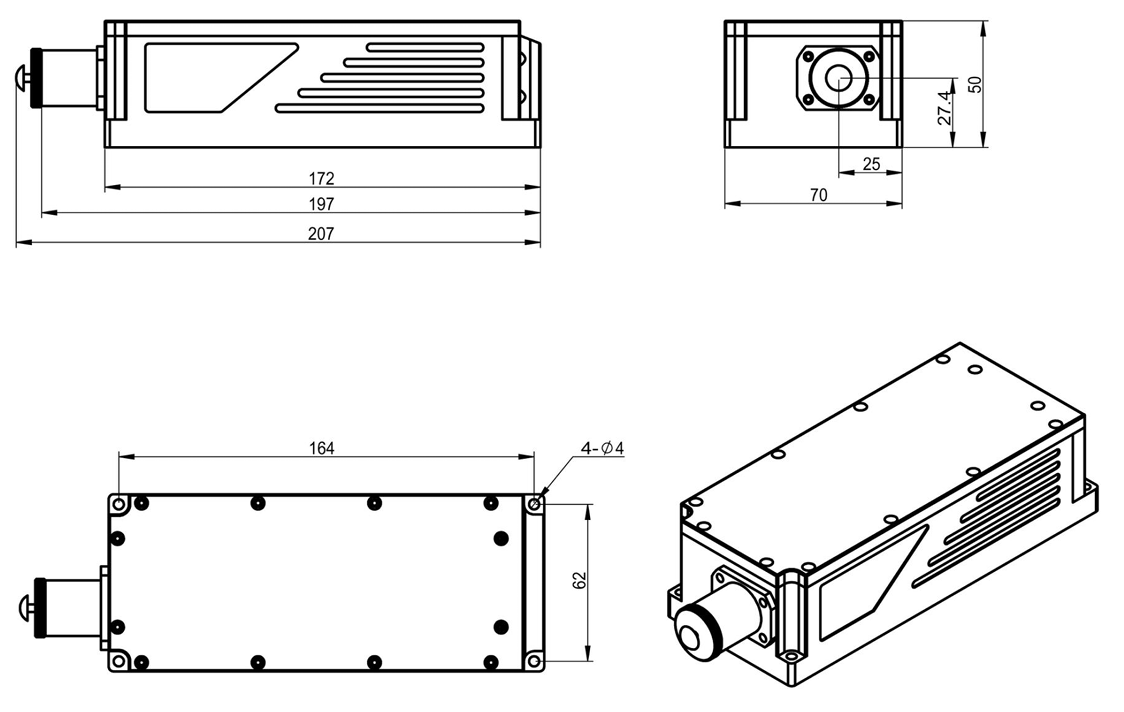

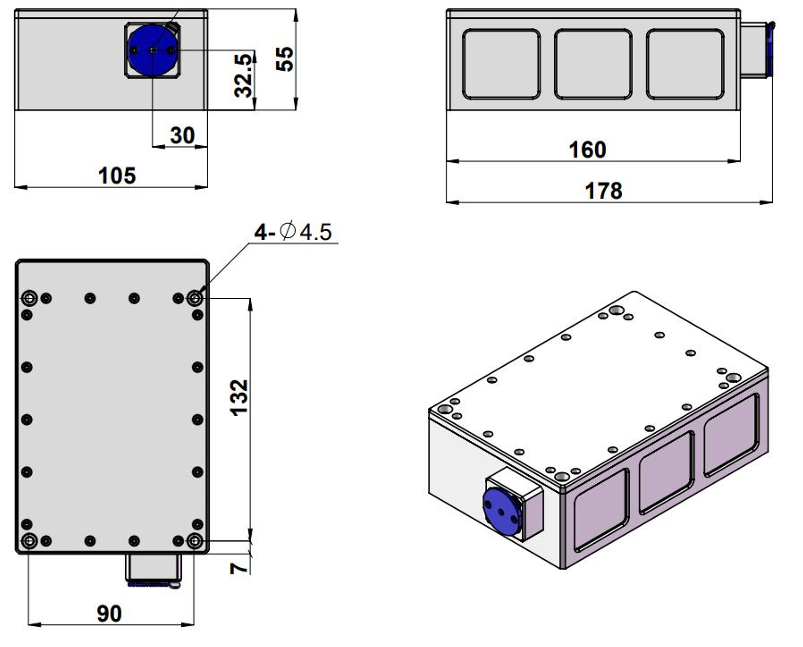

LASER HEAD
(UV-FN-320-L ≤50mW)
|
 |
 200(L)×105(W)×50(H)mm3, 3.0kg
|
|
LASER HEAD
(UV-DP-320-A 50mW-500mW)
|

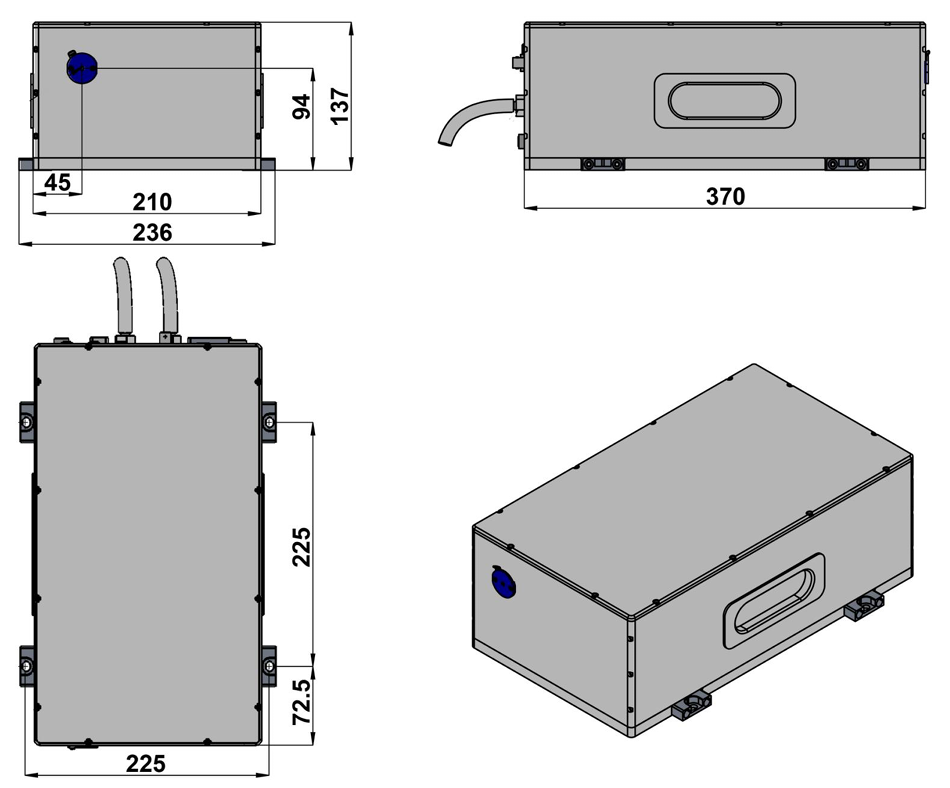

LASER HEAD Integrated electronics
(UV-DP-320-B 500mW-1500mW)
|
 377(L)×236(W)×200(H)mm3
|
 |
|

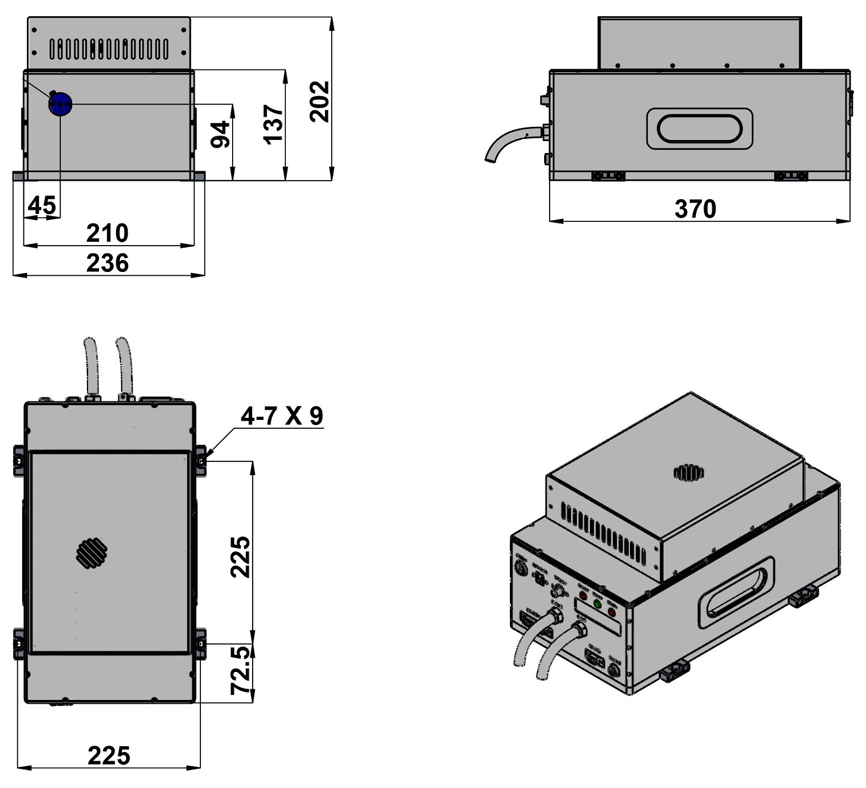

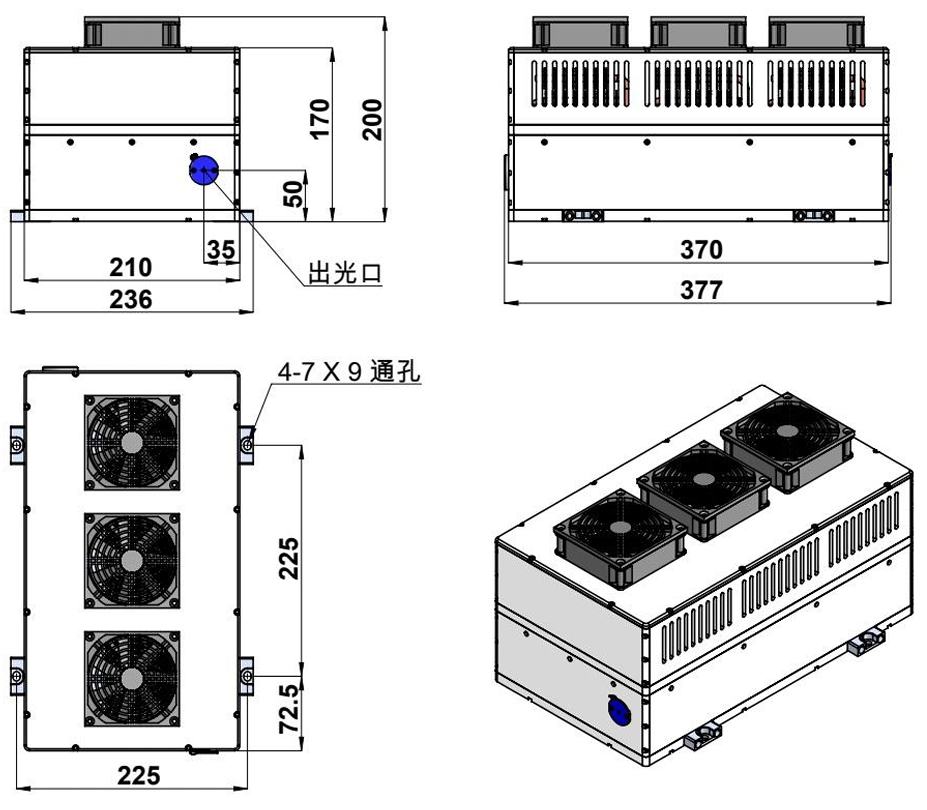

LASER HEAD Integrated electronics
(UV-DP-320-B >1500mW)
|
POWER SUPPLY
(PSU-H-LED)
|
 |
 |
|

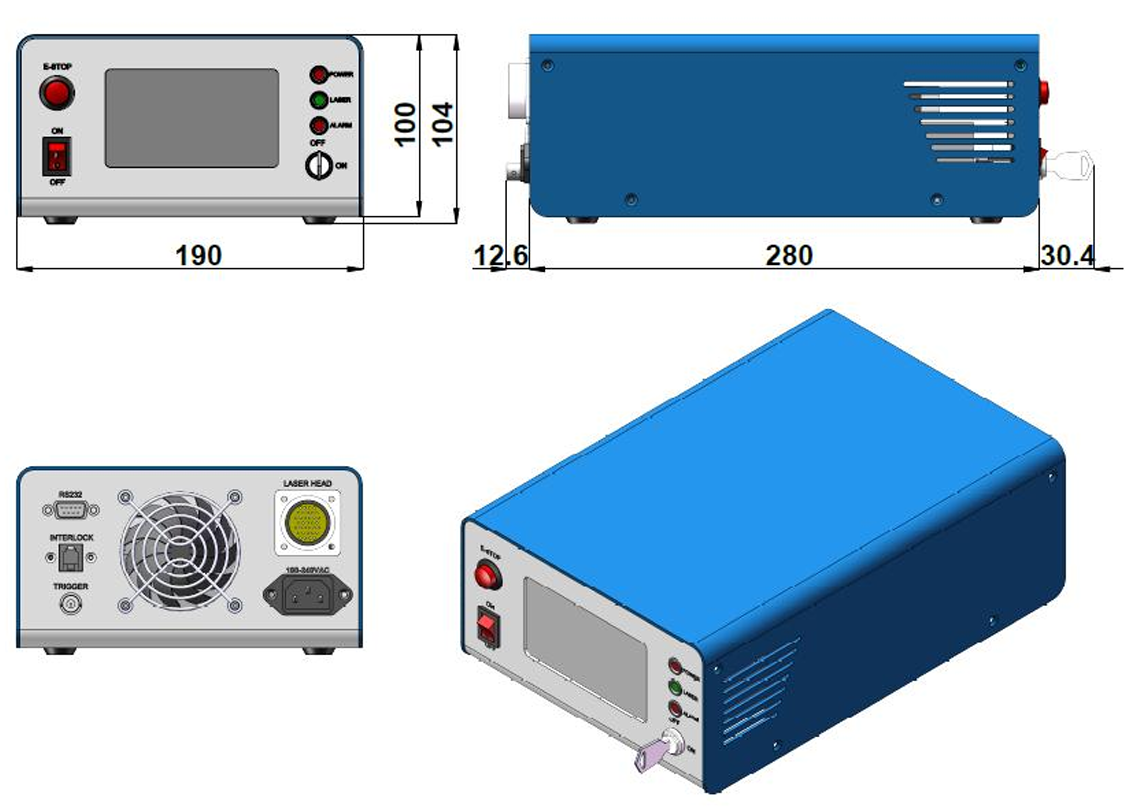

POWER SUPPLY
(PSU-H-FDA)
|

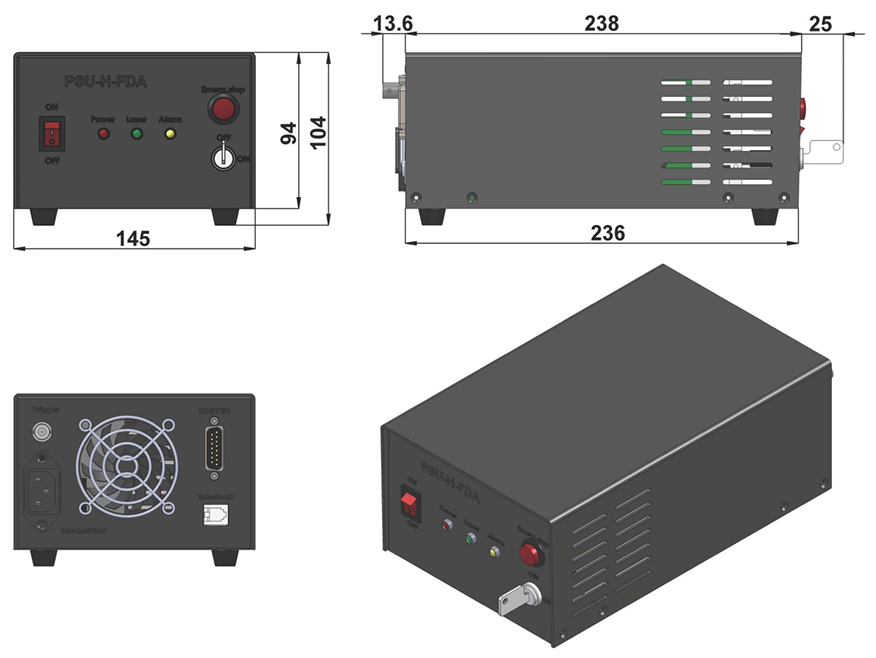

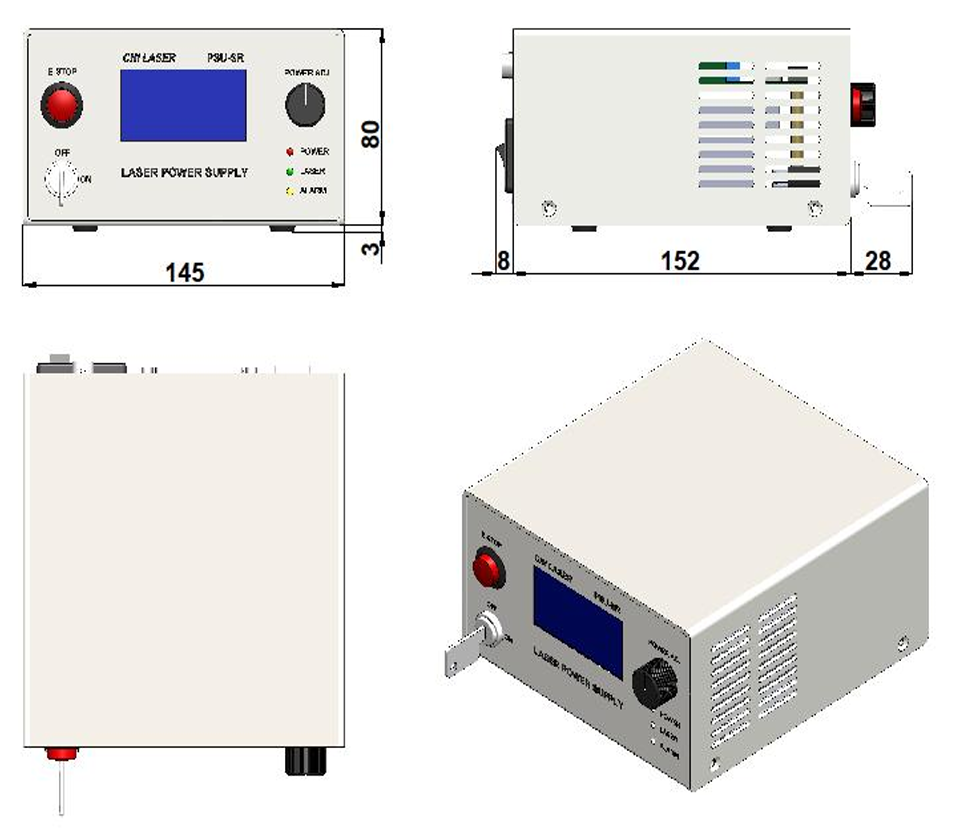

POWER SUPPLY
(PSU-SR)
|
 |
 |
|
POWER SUPPLY
(PSU-DP-A)
|
Water Chiller (WCH-580) |
 323(L)×190(W)×104(H)mm3
|
 |
