Property
|
Item No.
|
Unit
|
PEEK-1000
|
PEEK-CA30
|
PEEK-GF30
|
|
1
|
Density
|
g/cm3
|
1.31
|
1.41
|
1.51
|
|
2
|
Water absorption(23℃ in air)
|
%
|
0.20
|
0.14
|
0.14
|
|
3
|
Tensile strength
|
MPa
|
110
|
130
|
90
|
|
4
|
Tensile strain at break
|
％
|
20
|
5
|
5
|
|
5
|
Compressive stress(at 2%nominal strain)
|
MPa
|
57
|
97
|
81
|
|
6
|
Charpy impact strength (unnotched)
|
KJ/m2
|
No break
|
35
|
35
|
|
7
|
Charpy impact strength (notched)
|
KJ/m2
|
3.5
|
4
|
4
|
|
8
|
Tensile modulus of elasticity
|
MPA
|
4400
|
7700
|
6300
|
|
9
|
Ball indentation hardness
|
N2
|
230
|
325
|
270
|
|
10
|
Rockwell hardness
|
--
|
M105
|
M102
|
M99
|
Color：Natural、Black、Khaki and so on.

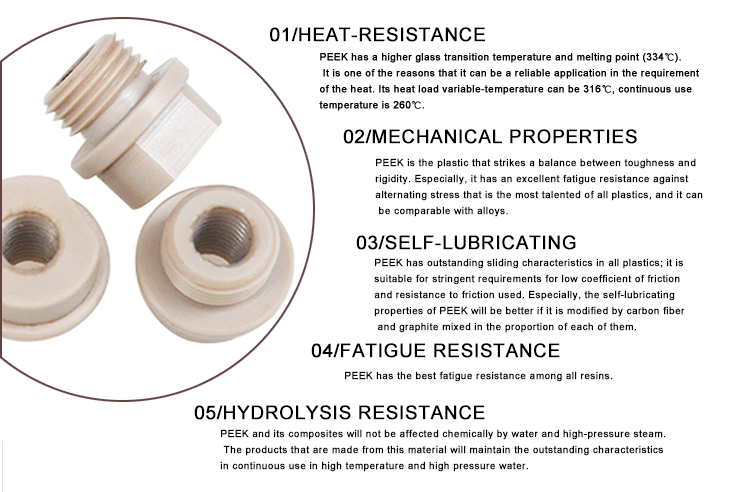

PEEK is a kind of heat-resistant, high performance thermoplastic special engineering plastics. It has good mechanical properties and chemical resistance, abrasion resistance, and hydrolysis resistance properties etc.; it has a light proportion and self-lubricating properties.
Our Exhibitions
If you are interested in the product, contact 2bvideo.com for more information for more information
The information of 2bvideo.com limited shown above is provided by the user or collected on the network. Video 2B does not guarantee the authenticity,accuracy and legitimacy of 2bvideo.com limited information. Video 2B does not involve legal relationships and disputes between users arising from transactions other than secured transactions on this website. Disputes shall be settled by you through negotiation. If you are the person in charge or relevant employee of this enterprise, if you find that the enterprise information is incorrect or want to manage thiscompany, please contact us jacklee1558@gmail.com, after you claim the enterprise, you can obtain management permission, publish supplyand demand information, bring consulting orders, and remove page advertisements.
Main Product:
CNC Machining Parts,
Injection Molding Parts,
Plastic Sheets,
Plastic Tubes,
Plastic Rods,
Peek Sheet
