horizontal slurry pump introduction:
horizontal slurry pump is used for delivering slurry with strong abrasion and high concentration for metallurgy,8/6E Slurry Pumps for Gold Mining,8/6F Slurry Pump for Ceramic Industry,4/3D Slurry Pump for Coal Mining, etc.
horizontal slurry pump has innovation in the design of structure. Wet parts are made of abrasion resistant high-chromium alloy or rubber material, with characteristics of high efficiency, energy saving, wear resistant, reliable running etc.
Features of horizontal slurry pump
)Cantilever, horizontal centrifugal slurry pump
b)Better wear-resistance and corrosive resistance
c)Frame plate for type pumps have replaceable wear-resistant metal ( high chrome alloy ) liners or rubber liners. Impeller material : high chrome alloy or Natural rubber.
d)In allowable pressure range, it can be used in series in stages and allowable maximum working pressure is 3.6Mpa.
e)Expeller seal, mechanical seal and packing seal are available.
f)The discharge branch can be positioned at interval of 45 degrees by request and oriented to any eight positions to suit installations and applications.
g)To adapt to convey heavy abrasion, high concentration dreg , slurry pump's body is used double-deck construction , in other words, being made of inside lining and outside shell.

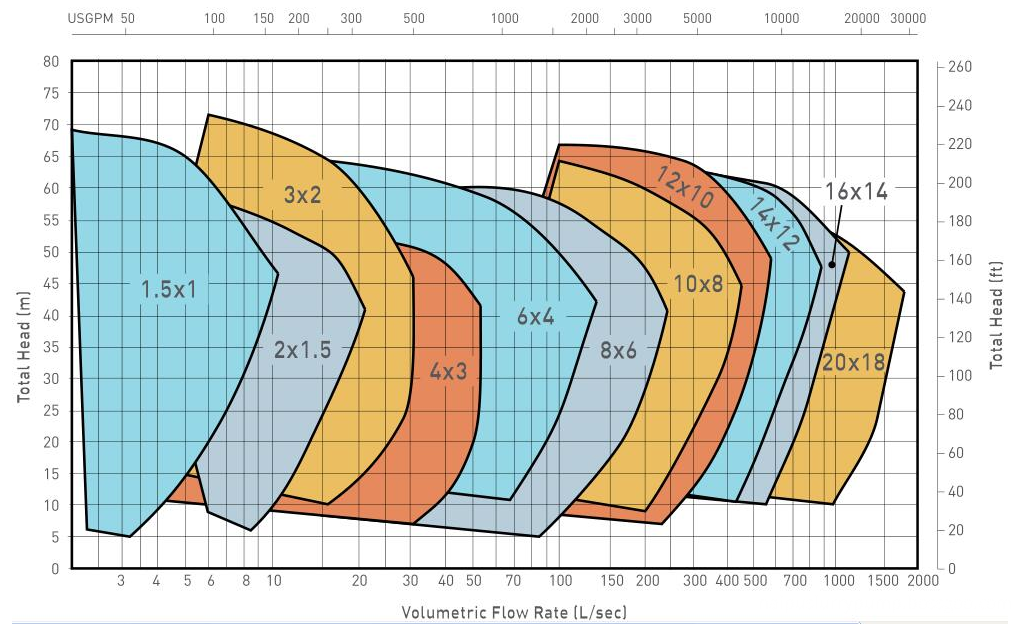

PERFORMANCE CURVES of horizontal slurry pump

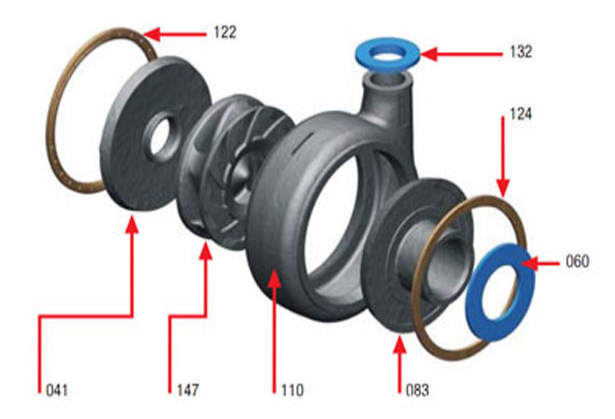

CONSTURCTION of horizontal slurry pump
