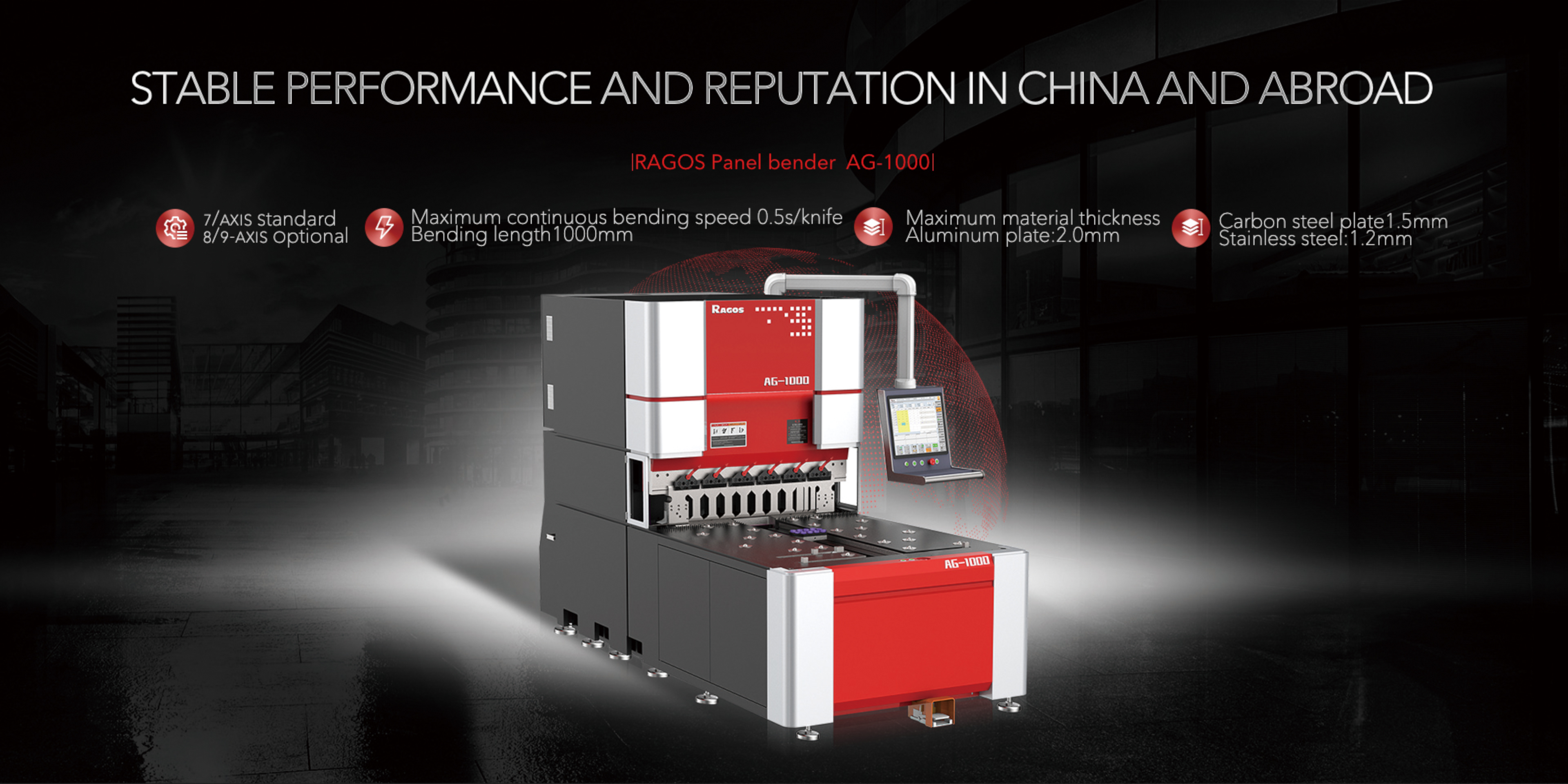

The AG1000 is a compact and versatile press brake center designed for small-scale manufacturing. With its suction cup type design, the AG1000 is capable of
clamping plates of different materials and thicknesses, making it a convenient and reliable option for various applications.
Technical Parameters & Specification：
Model
Unit
AG-1000
Bending Length
mm
1000
Plate Length
mm
1100
Plate Width
mm
1000
Bending Height
mm
175/200
Min Forming Size(Four sides)
mm
300*200
Min Forming Size(One side)
mm
200
Min Radius
mm
1.2
Bending Speed
s
0.5/bend
Opening Height
mm
180
Angle
°
0-180°
Material Thickness
mm
aluminum：2.0
carbon steel ：1.5
stainless steel：1.2

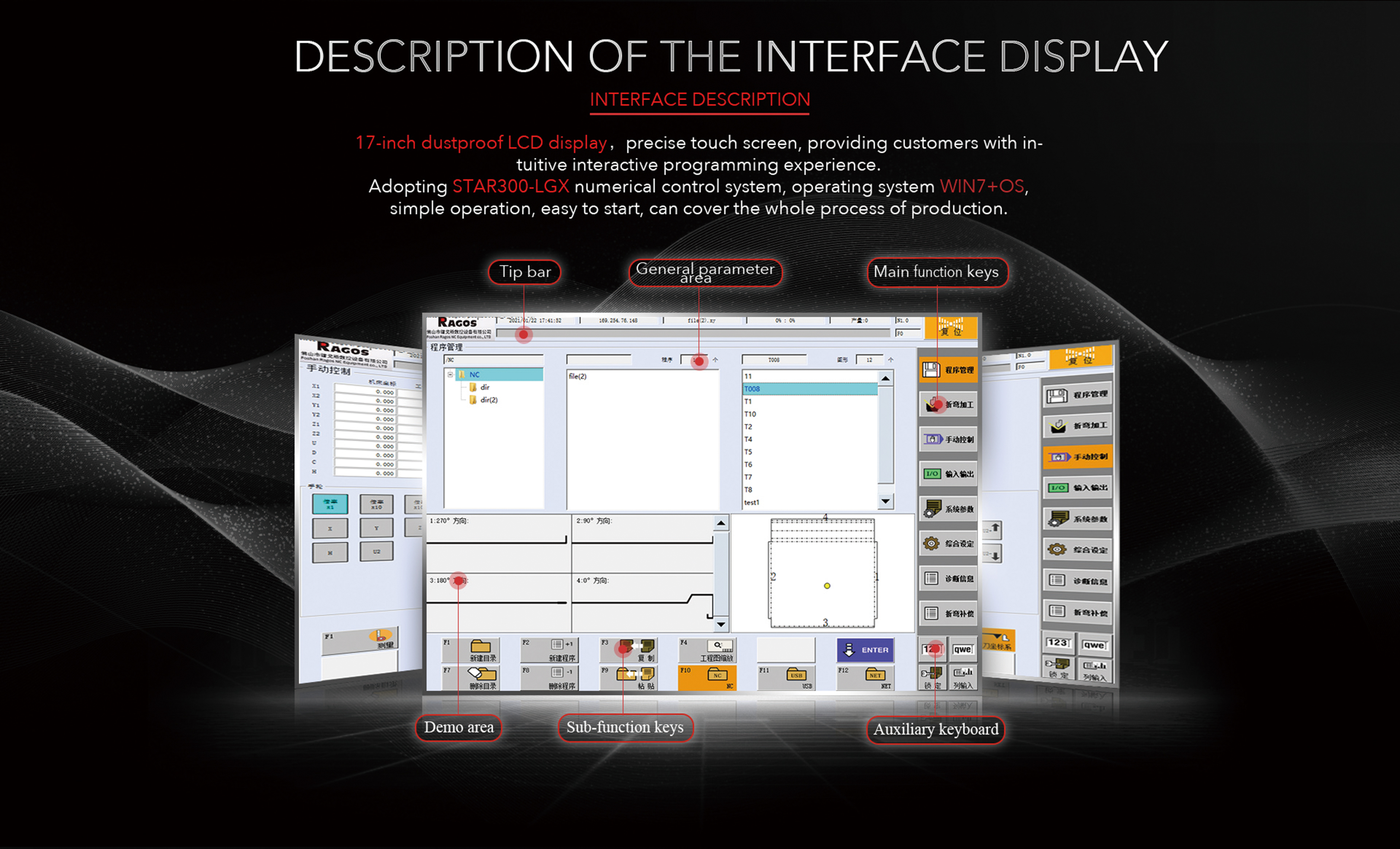

Numerical System
Star300-LGx
Operating System
OS
RT-Linux
Axis
axes
Normal: 8
Machine Dimension
Length
mm
2900
Width
mm
1390
Height
mm
2600
Machine Weight
kg
6000

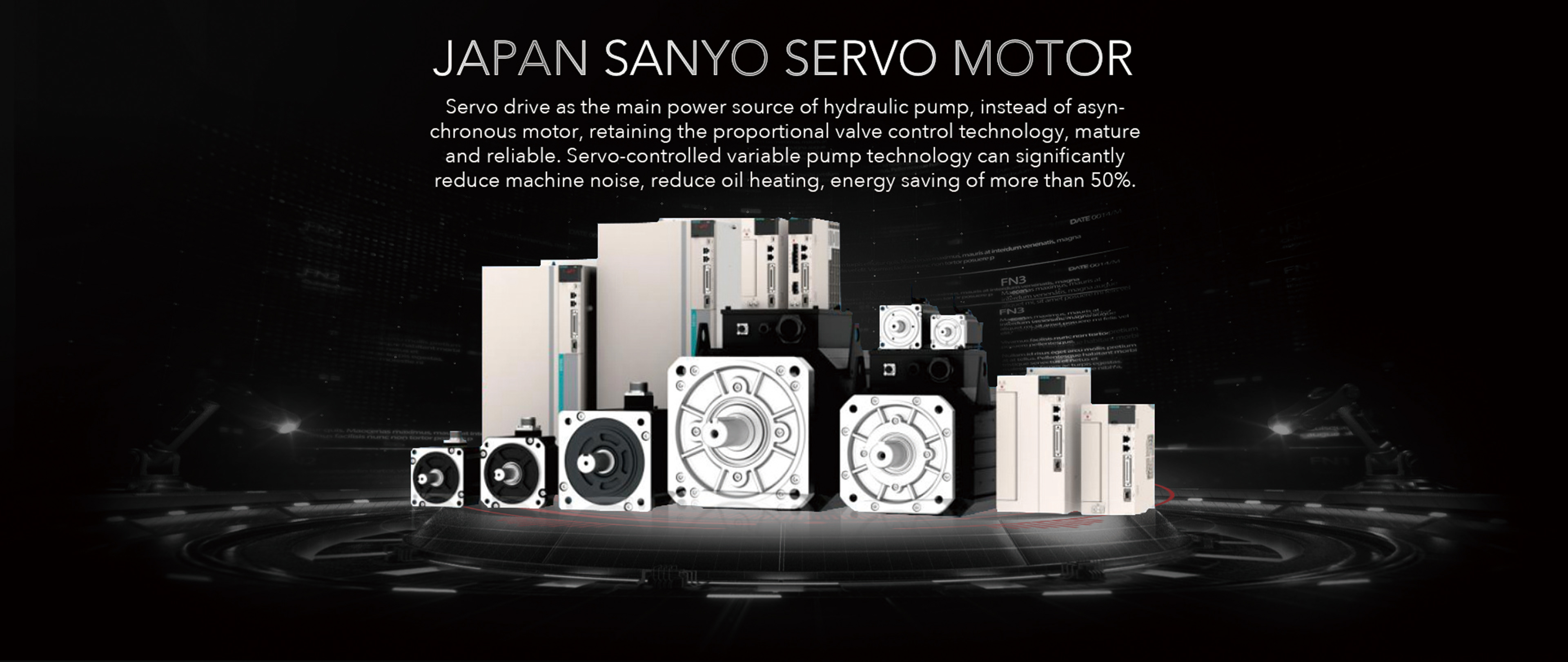

The AG1000 Panel Bender features a high-precision servo motor that drives a precision ball screw to achieve stable and reliable feeding accuracy.

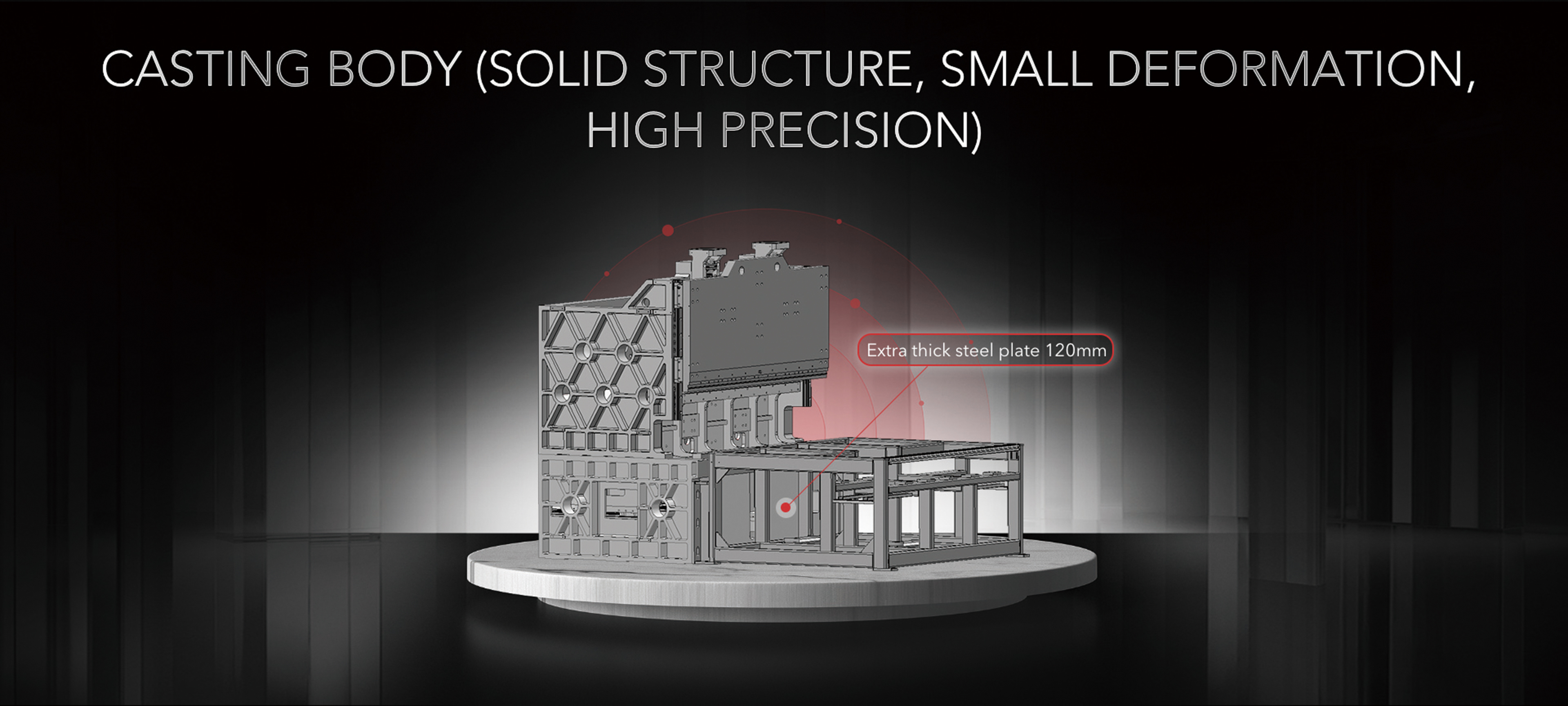

The machine's frame is designed using finite element analysis, resulting in a moderate lightweight that achieves the balance between rigidity and high efficiency.

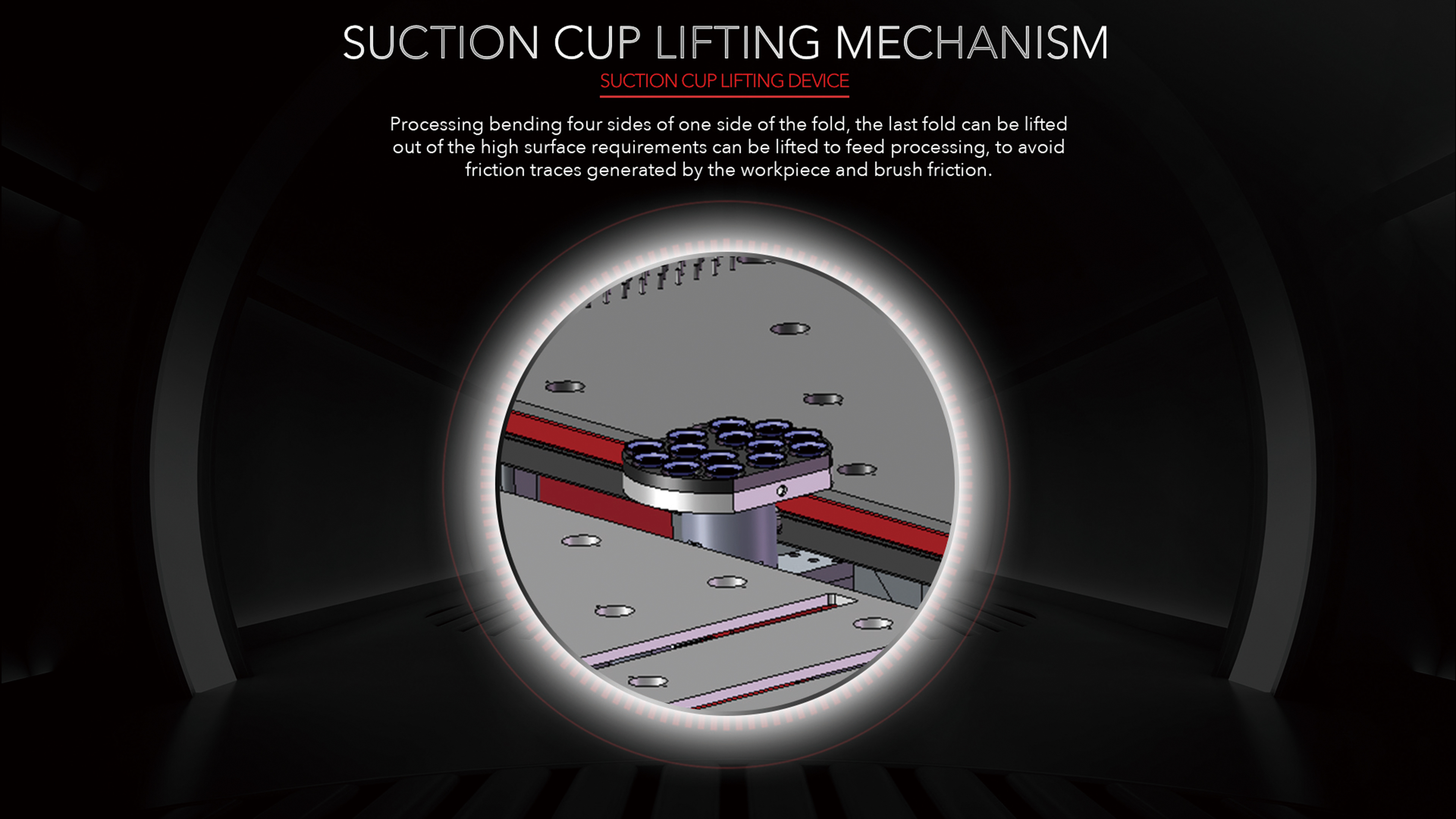

The suction cup type clamping system of the AG1000 provides a reliable and convenient way to clamp plates of different materials and thicknesses.
The suction cups are easy to adjust and can be replaced quickly, making the AG1000 Automatic Panel Bender a versatile option for various applications.

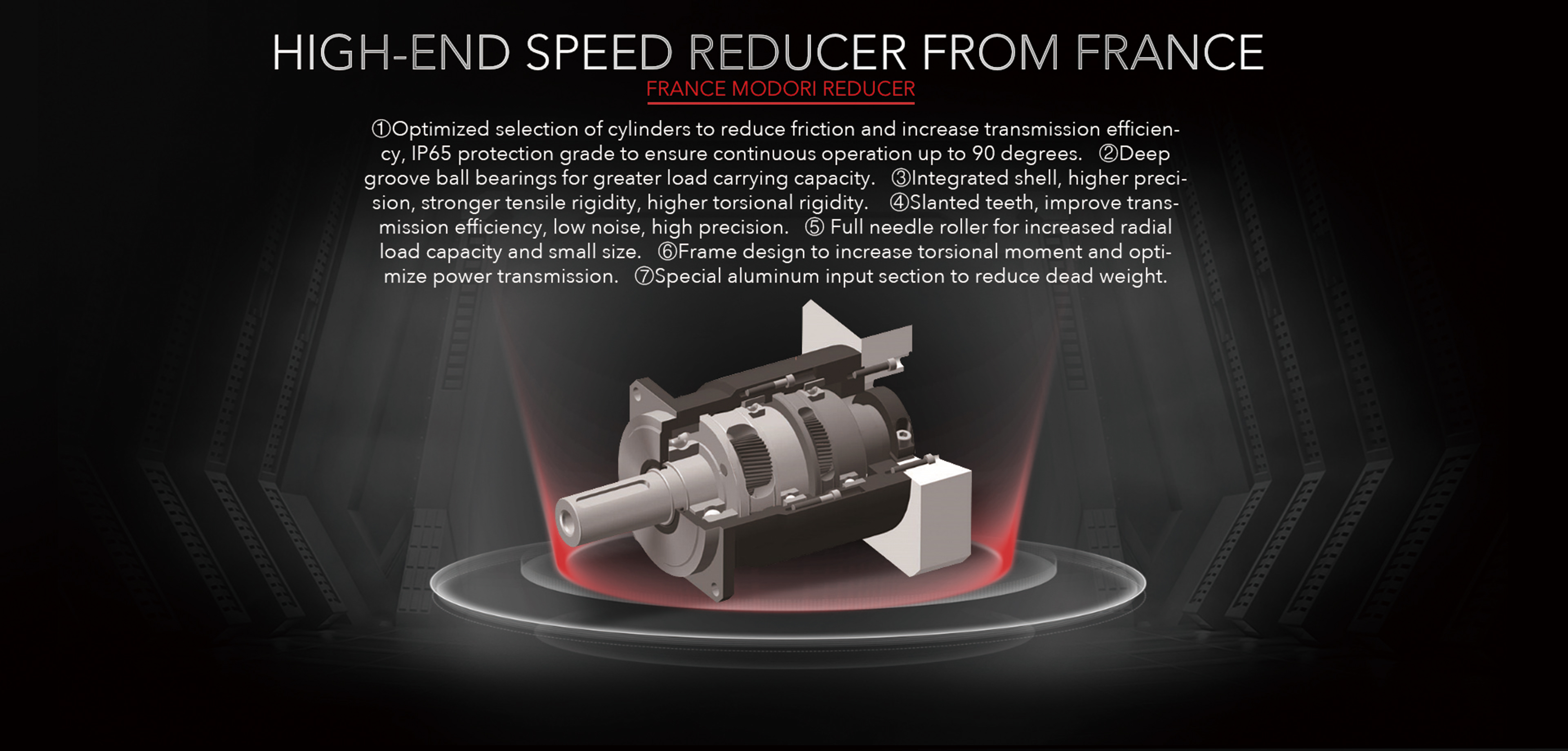

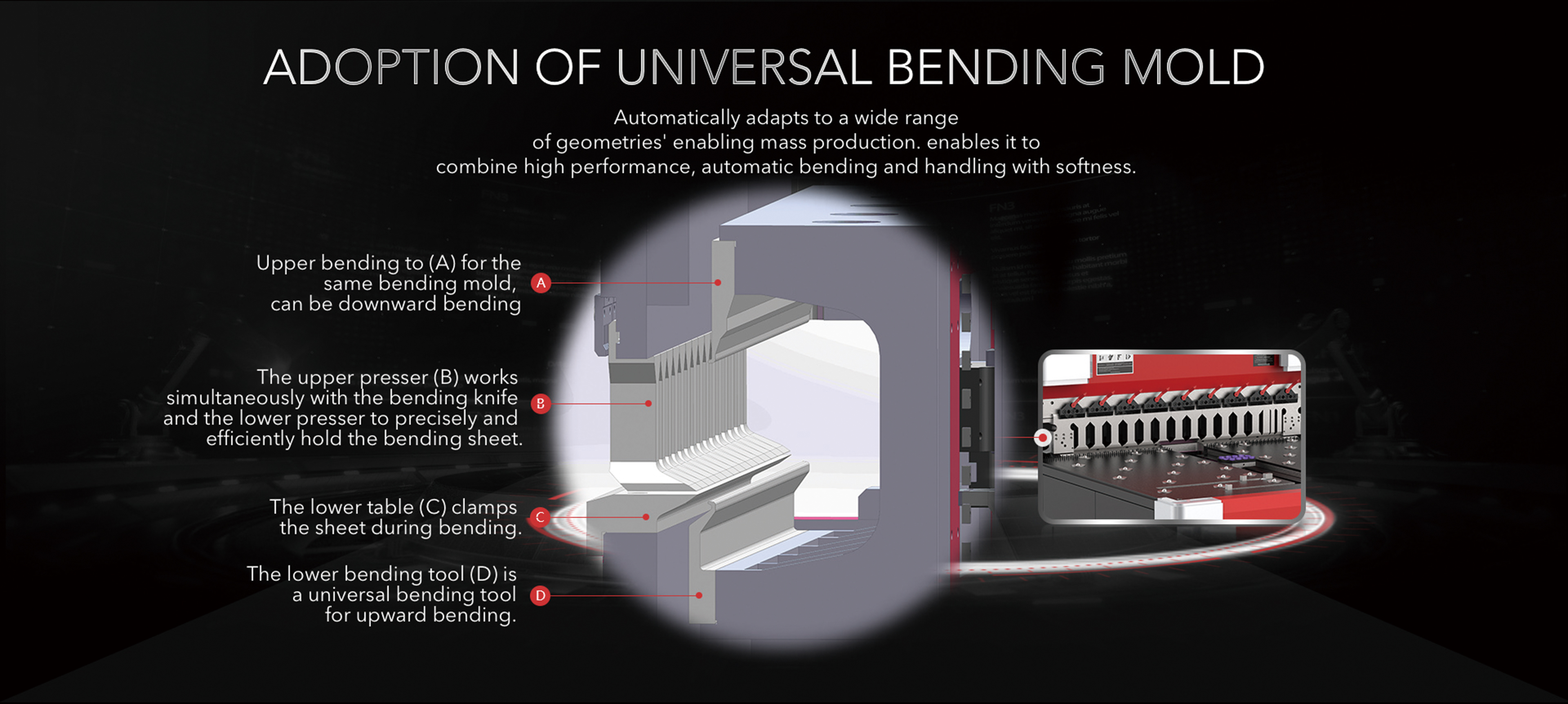

The AG1000 Bending Machines also features a mechanical servo bending system that provides high transmission rigidity and precision.
The stroke and speed of the servo folding beam can be adjusted according to processing requirements, allowing for higher efficiency and better folding quality.
The AG1000 comes equipped with a standard worktable that uses composite steel balls and brush surfaces to reduce resistance and surface damage.
The tilting table design also makes maintenance more convenient.
If you are interested in the product, contact 2bvideo.com for more information for more information
