YZPST-MFC90-1200
Standard voltage 1200V MFC90-1200 diode module
Features
Standard voltage
Electrically isolated base plate
High surge capability
Hard soldered joints for high reliability
Typical Applications
DC motor control(e.g. for machine tools)
AC motor soft starters
Temperature control(e.g. for ovens,chemical processes)
Professional light dimming(studios,theaters)
Maximum Ratings
|
Symbol |
Condition |
Ratings |
Unit |
|
IT（AV） |
Single phase ，half wave ，180° conduction ， Tc：85℃ |
90 |
A |
|
ITSM |
Tj=25℃/Tj=125℃ |
2000/1750 |
A |
|
I2t |
Tj=25℃/Tj=125℃ |
20000/15000 |
A2 S |
|
（Di/DT）cr |
Tj=125℃ |
100 |
A/us |
|
Viso |
A.C.1min |
2500 |
V |
|
Tj |
|
-40~+125 |
℃ |
|
Tstg |
|
-40~+125 |
℃ |
|
W |
|
100 |
g |
|
Symbol |
Condition |
Ratings |
Unit |
|
VDRM/VRRM |
|
1200/1200 |
V |
|
IDRM |
AtVDRM ，Single phase ，half wave ，Tj=125℃ |
20 |
mA |
|
IRRM |
AtVDRM ，Single phase ，half wave ，Tj=125℃ |
20 |
mA |
|
VTM |
On-State Current 300A ，Tj=25℃ |
1.75 |
V |
|
IGT/VGT |
Tj=25℃, IT=1A ，VD=6V |
150/2.5 |
mA/V |
|
VGD |
Tj=125℃, VD=1/2VDRM |
0.25 |
V |
|
DV/DT |
Tj=125℃, VD=2/3VDRM, |
500 |
V/us |
|
IH |
Tj=25℃ |
200（max） |
mA |
|
IL |
Tj=25℃ |
400（max） |
mA |
|
Rth(j-c) |
Per module ，sin180 |
0.15 |
℃/W |

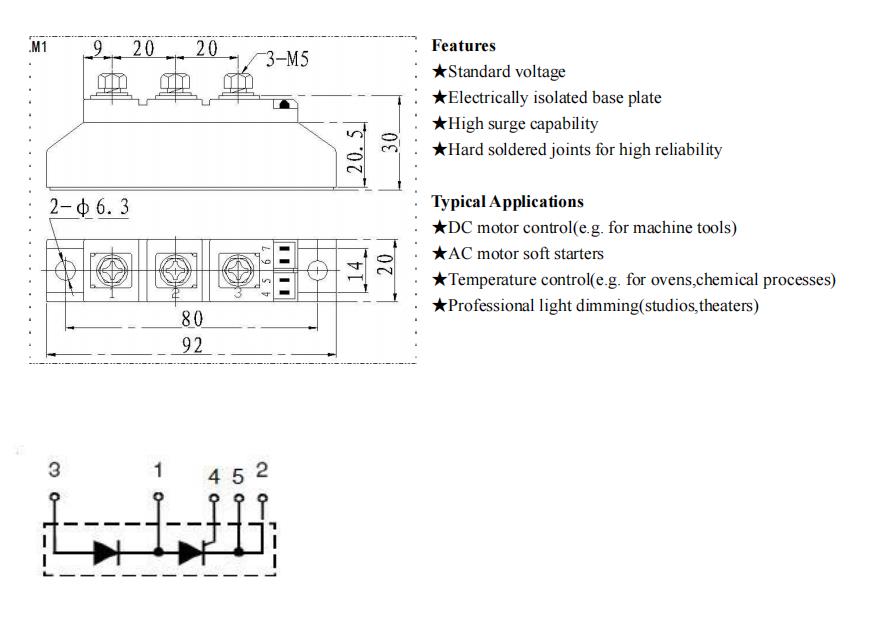

Case Outline And Dimensions
