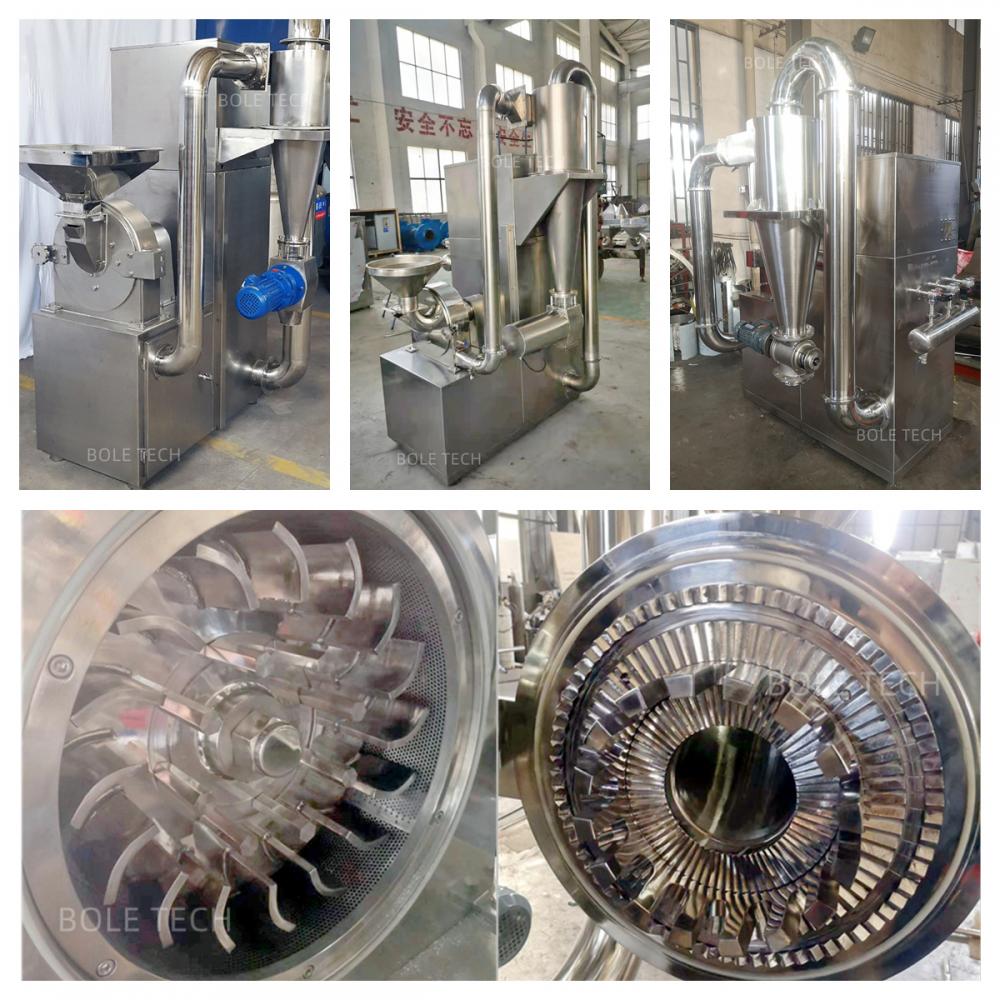

1. General description of universal grinder
The universal grinding machine uses the high-speed relative motion between movable gears to crush materials through the impact between gears, friction and impact between materials. The utility model has the advantages of simple structure, firmness, stable operation and good crushing effect. The crushed material can be directly removed from the grinding chamber of the main engine, and the particle size can be obtained by changing the screen with different apertures.
The mill grinder machine is suitable for industries such as chemical industry, food, agriculture and food, especially suitable for crushing dry and brittle materials, and has a wide range of uses.
The mill grinder machine is suitable for all kinds of spices, grains, general chemical raw materials, etc.
2. Features of universal grinder
1. It mainly applies to chemicals,dyes,additives,animal feed,food,wood,chemical fiber and low in non-metallic minerals such as the hardness of the crushed material processing.
2. The fineness is 20-200mesh (74-840um) with high-yield, grain small degree, low noise, low power consumption, easy maintenance,
easy to install, and other advantages, especially suitable for oily, viscous, heat-sensitive, such as fiber and low in hardness of the crushed material processing.
3. Technical parameters
|
Model
|
20B
|
30B
|
40B
|
50B
|
|
Production capacity (kg/h)
|
60-100
|
80-300
|
100-400
|
120~500
|
|
Spindle speed(r/min)
|
4500
|
3500
|
3400
|
2900
|
|
Feed size (mm)
|
<6
|
<10
|
<12
|
<12
|
|
Crushing size(mesh)
|
20-120
|
20-120
|
20-120
|
20-120
|
|
Crushing motor (Kw)
|
4
|
7.5
|
11
|
22
|
|
Draught fan (Kw)
|
2.2
|
2.2
|
2.2
|
2.2
|
|
discharging motor (Kw)
|
0.75
|
0.75
|
0.75
|
0.75
|
