Bulk feed tank semi-trailer

2 year ago

45 0

Shandong Tenda Vehicle Co. LTD

 2 year year

Product details

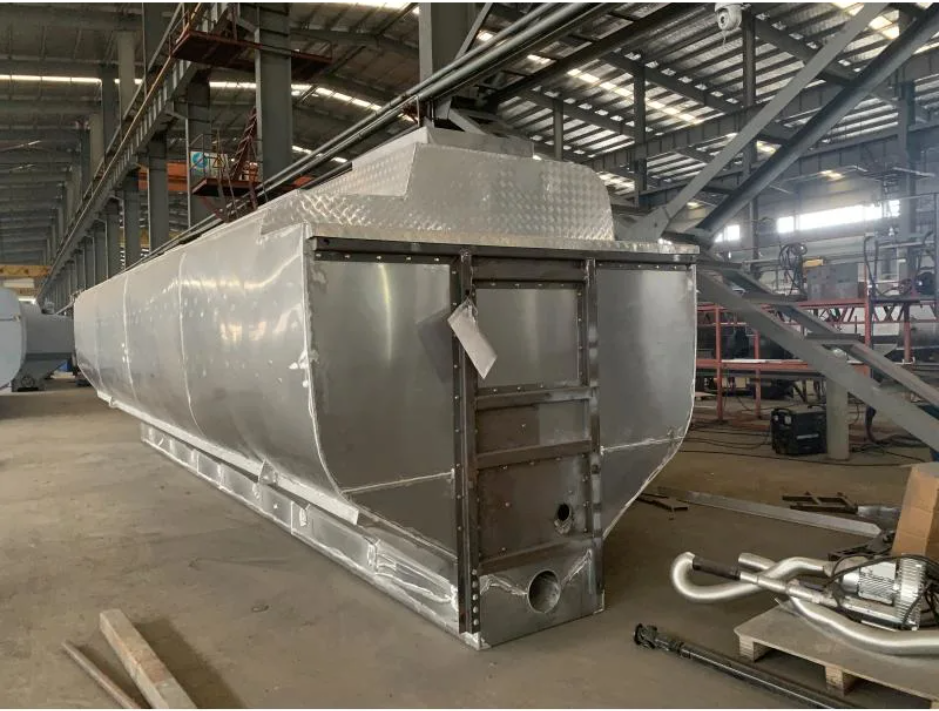

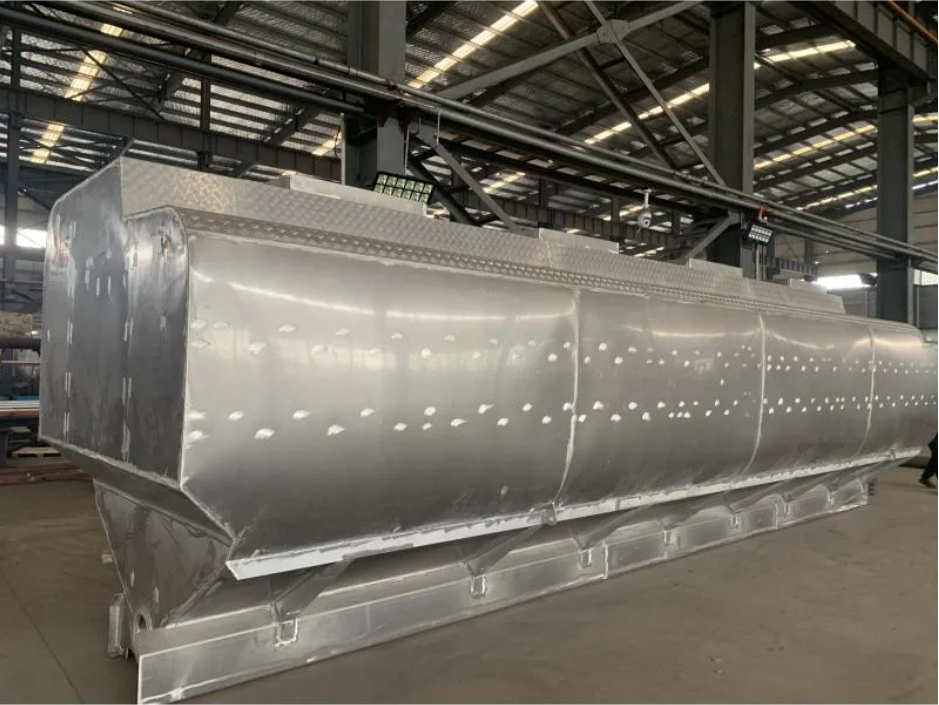

1. The overall tank body adopts a secondary beam design, which is high in strength, reliable and durable, has good integrity, is not easily deformed, and has a large bearing capacity;

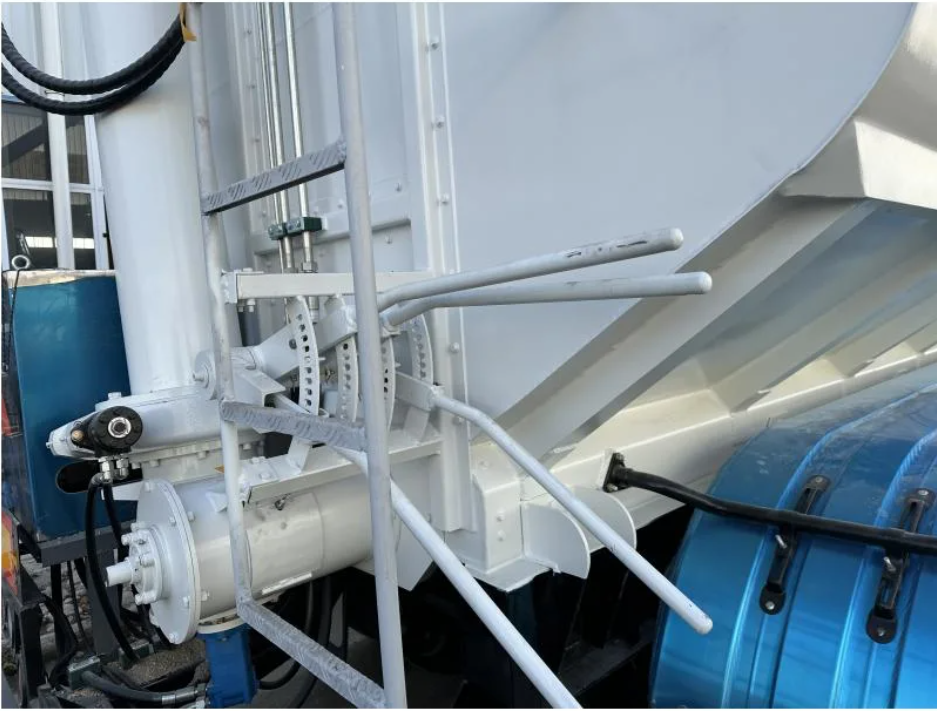

2. The vertical twisting dragon increases the pipe diameter and is set at an angle, resulting in fast unloading speed, high efficiency, and greatly reduced crushing rate. It is also equipped with a large diameter turning interface, making unloading smoother and less clogged. The lower crushing rate is particularly suitable for the use of chicken feed;

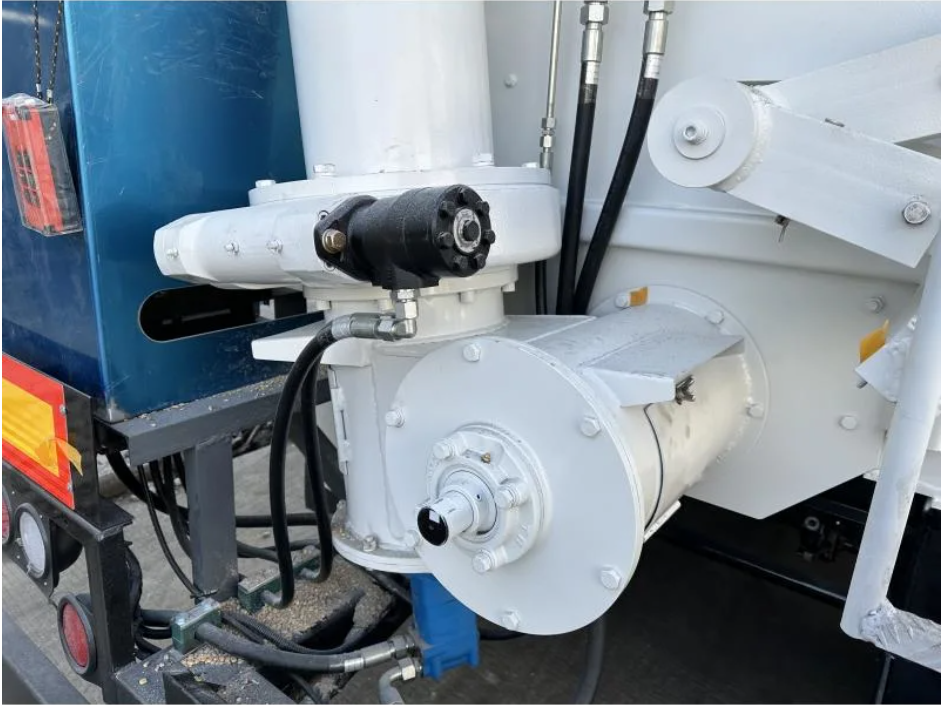

3. The twisting dragon steering system adopts an integrated steering structure of plane rotation support and turbine worm, which is reliable, durable, maintenance free, and suitable for complex working conditions;
4. The spiral blades of the twisting dragon are made of wear-resistant materials and are integrally extruded into shape. The dynamic balance of each blade shaft is tested.
5. The entire tank body is shot blasted and sandblasted to completely remove rust on the surface of the tank and the oxide layer on the surface of the board, increasing the adhesion of the paint and making it durable. The topcoat adopts PPG water-based paint imported from the United States, with a professional drying room that is acid resistant, alkali resistant, and high-temperature washable;

6. Each tank body undergoes a strict 360 ° no dead angle water spraying test before leaving the factory, completely eliminating defects such as false soldering, false soldering, and missed soldering that may cause rain and water leakage during use and contaminate feed;

Type	Bulk feed tank semi-trailer
Axles	Fuwa, 3 Axle
Overall Dimension(mm)	12000×2490×3798
Wheelbase(mm)	5370+1310+1310
Curb weight(kg)	11900
Loading weight(kg)	30000
Approach/departure angle(°)	-/15
Front /rear overhang(mm)	-/2310
Wheel track(front/rear)(mm)	1840/1840/1840
Axle loading(front/rear) (kg)	-/23000
ABS	Available
Rim & Tire	Quantity:12+1
Rim & Tire	Specification:12R22.5
body:
Shape	Square
Bulk Capacity	58cbm
Material	Tank: Aluminium Alloy
Material	Thickness: 3~4mm
Compartments	Quantity: 6
Hydraulic pump	DENISON USA
Hydraulic motor	EATON USA
Conveying height	8~10 M
Discharge rate	>400~600 kg/min
Residual Rate	<0.05%
Discharge rotation angle	+ 180 degree
Medium density	400-500 kg/cbm
