Custom Molded Ampseal Connector Cable Assemblies

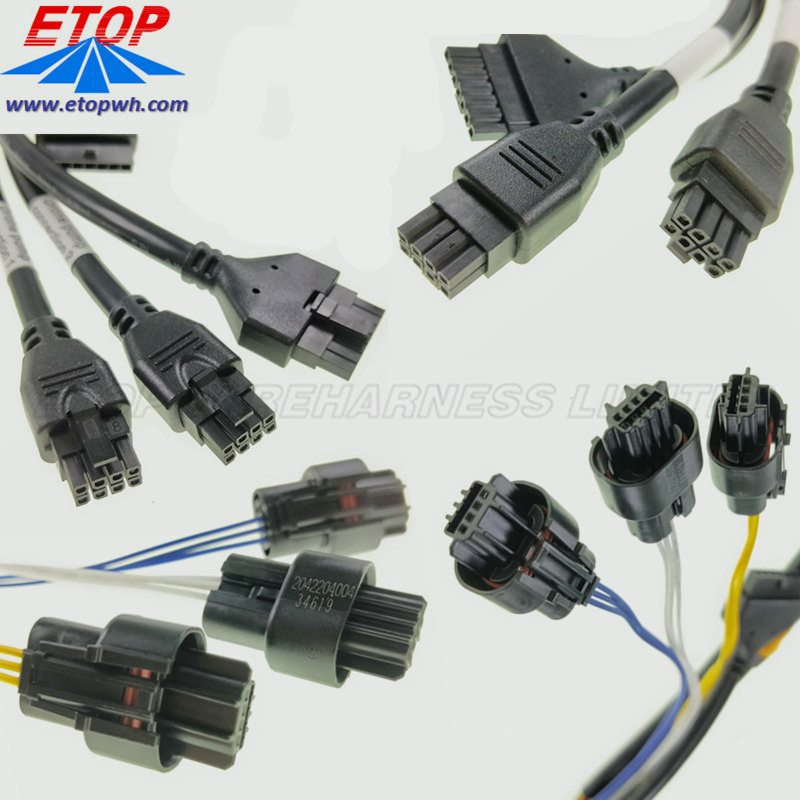

1, Molded Micro-fit connector cable assemblies, auto ampseal connector cable harness.
Our research and Development Dep. along with our technical sales experts pride themselves in their experience and ability to support you handling to solve your R&D projects, offer troubleshooting assistance.

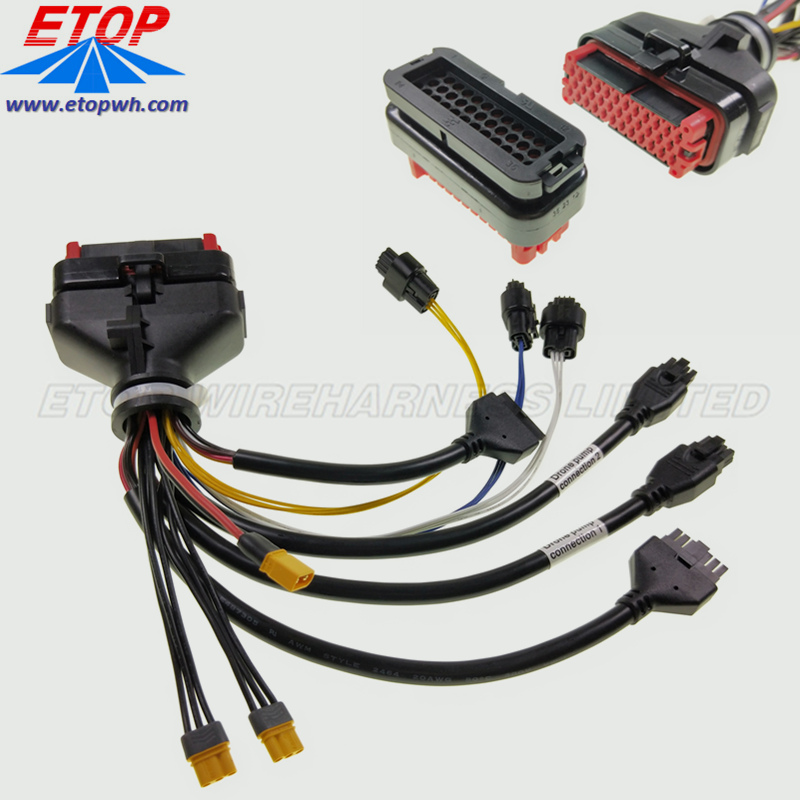

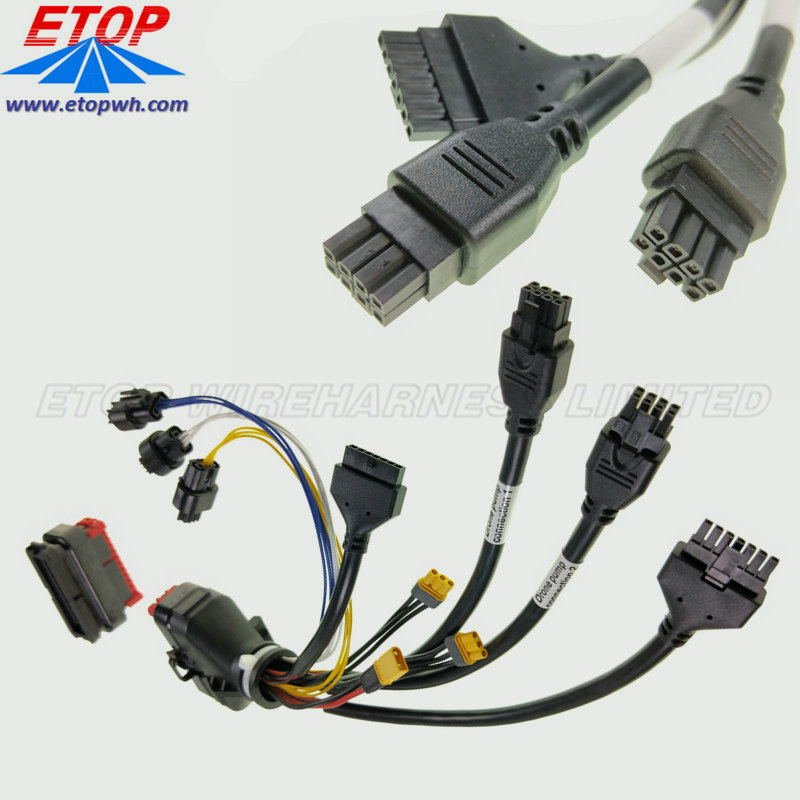

The type connector is original one by waterproof type with seal. The ampseal connector can be designed overmolding type with strain relief, or assembling type with sealing cap. The whole cable assembly covered by corrugated tube for protection. Also fixed by 3M tape around the branching part. Related auto wires can be choosed as customer requirement, like AVSS, AVS, FLRY, TXL, GXL, etc.
The cables processed following by IPC620 standard strictly, and the dedicated team can support customers with much more suggestions and techniques for developing new products efficiently. ETOP has the Flexibility and Capacity to accommodate a product's life cycle, design through production.
2. The cap and plug connector housings incorporate preassembled secondary locks to help insure correct and complete contact insertion into the housing and helps prevent the contacts from backing out during mating. The secondary lock cannot be closed if the contacts are not correctly inserted into the connector housing.
The advantages for the ECU connectors are compact system minimizes packaging requirements, sealing reliability proven under harsh conditions, designed for ease of manual harness assembly, engine mounting installed flexiably under hood environments for your vehicles.
3, This type of Ampseal automotive plug ASSEMBLIES came original from TYCO, which used for auto Powertrain systems, Safety and Security systems, or Body and Chassis systems. AMPSEAL receptacle housings are environmentally sealed and available in 8, 14, 23, and 35 cavity arrangements. They accept size 1.3 mm contacts (up to 17 amps gold, up to 8 amps tin) and feature an integrated latch for mating. The connectory by 4.00 mm Centerline available for 8pins, 14pin, 23pin and 35pin. TE Ampseal Ref P/N 770680-1 connector overmolding mating details below:
Mating Terminal
770520-1/770520-3/770854-1/770854-3
8PIN RECEPTACLE HOUSING
776286-1/776286-2
8PIN wafer
776276-1/776280-1/776275-1/776276-1
14PIN RECEPTACLE HOUSING
776273-1/776273-2/776273-4/776273-5
14PIN WAFER
776266-1/776267-1/776261-1/776262-1
23PIN RECEPTACLE HOUSING
770680-1/770680-2/770680-4/770680-5
23PIN WAFER
770669-1/776087-1/776200-1/776228-1
35PIN RECEPTACLE HOUSING
776164-1/776164-2/776164-4/776164-5
35PIN WAFER
1-776180-1/1-776163-1/776230-1/776231-1
· Single point of purchase
· Design assistance and engineering support
· Dedicated work cell production control
· Detailed process control documentation
· Logistic planning
· Inventory management
We have wide range of materials source as below, also we can support customers to make a customized one to replace the original ones, with competitive price and short delivery time. This is our source and advantages.
With more than ten years of experience and capabilities assisting our customers in various industry, ETOP would be confident to be your qualified AVL and reliable manufacturing partner. Just be free to contact us if you need any wire-harness solutions or partner for your products. Our professional and experienced team would support you by satisfied skill and service.
Application:

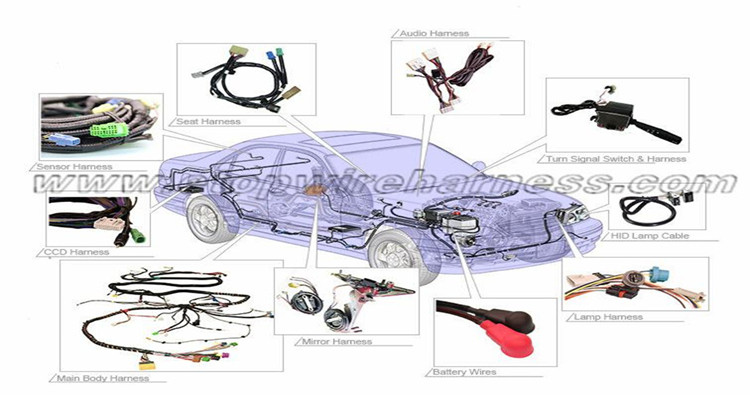

The wiring harness playing a critical role in " connecting" a variety of components on the automobile dashboard industry, with with ECU 35 Position Rectangular Housing Connector Plug Natural 0.157" (4.00mm). An automotive wiring harness is an assembly of electrical wires, terminals and connectors or an electrical wiring system, that run throughout the entire vehicle and relay information and electric power, used to convey information and energy in automobiles.
Main products: Wire Harness， Custom Cable Assemblies，Customized Molded Cables，Connectors，Automotive Wire Assembly，Connectors Overmolding
ETOP can provide complete engineering and design services for all our engineered wire harness
and cable assembly products, like automotive wire harness, molded cables, molded waterproofing cable assemblies,
custom molded wire assembly, automotive diagnostic connector, vehicle diagnostic cables, OBD connectors,
connectors overmolding, connectors, custom cable assembly, electrical wiring harness, data cable,
ethernet cable wiring, game machine wire assembly, medical wire assemblies, strain reliefs and grommets,
molded plastic products, etc.
