High Quality Ground Screw Driver For Solar System
The spiral pile drilling machine is specially installed screw piles and are very welcomed by customers with following features:
1.HD crawler hydraulic drilling machine, using a new hydraulic technology, low consumption, large rotary torque,move the hole and shift the position is convenient.
2.The drilling rig structure is compact, it has a telescopic compensation function when promoting the slide carriage, the slide carriage supported on the ground when drilling, the drilling stability is very good.
3.The drilling rig is mainly used for piling anchoring, well ,photovoltaic solar rotating pile and water conservancy, power plants, open-air mining, road construction and other stonework blast hole drilling and so on.
●This type spiral pile drill rig is a new type of simple drilling equipment with independent innovation, ideal for pile construction in solar panels, billboards, street lanp,fences, flagpoles, triffic signs, isolation net and simple houses, giving strong stratum adaptability and high efficiency.
●The rig is equipped with a large torque rotary head for strong power, which provides strong adaptability in stratum.
●The hydraulic system adjusts rotation and feed to the stratum conditions accurately, which ensures high drilling efficiency.
●The rig is equipped with a pile guide device to guarantee pile verticality and quality.
●The rig can be equipped with various pile connecting devices according to the pile structure and size,which makes pile insertion flexible and efficient.
●In different stratum condition, the rig can be equipped with down-the-hole percussion, cutting, short spiral and other tools to achieve full stratum driling.

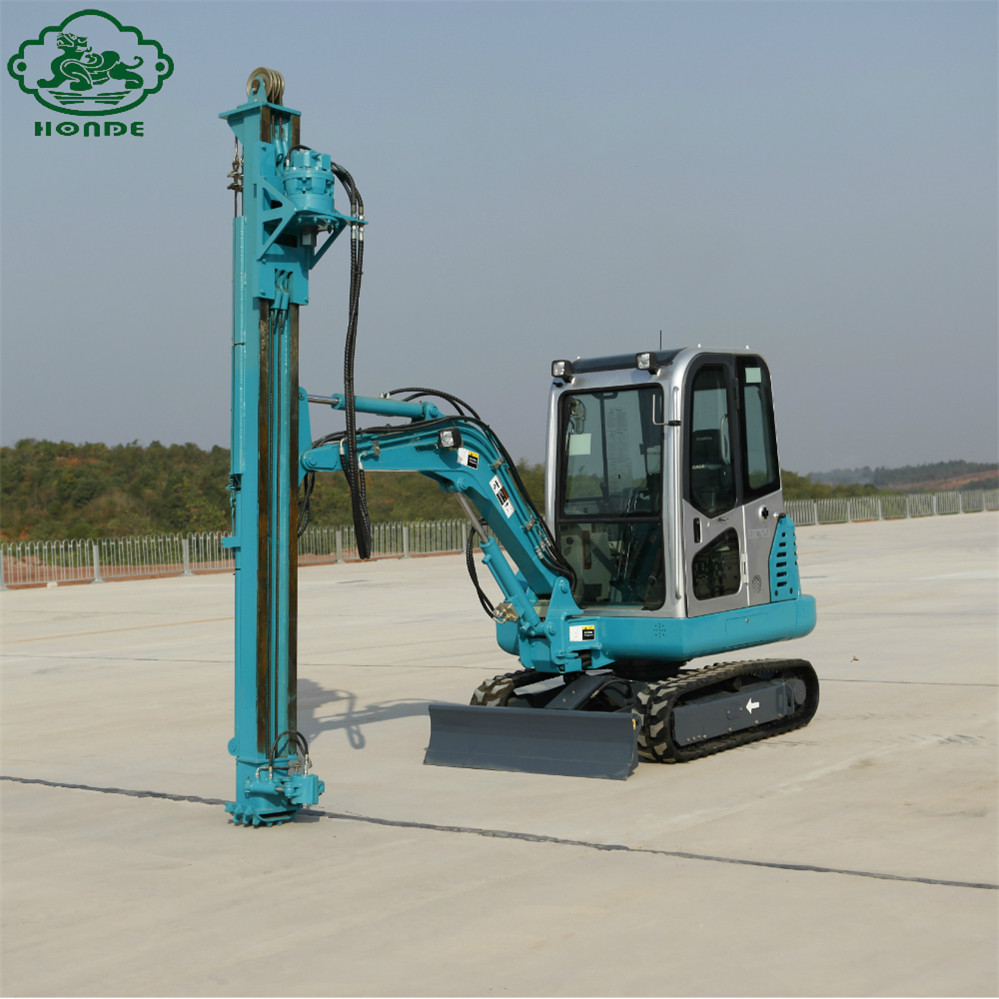

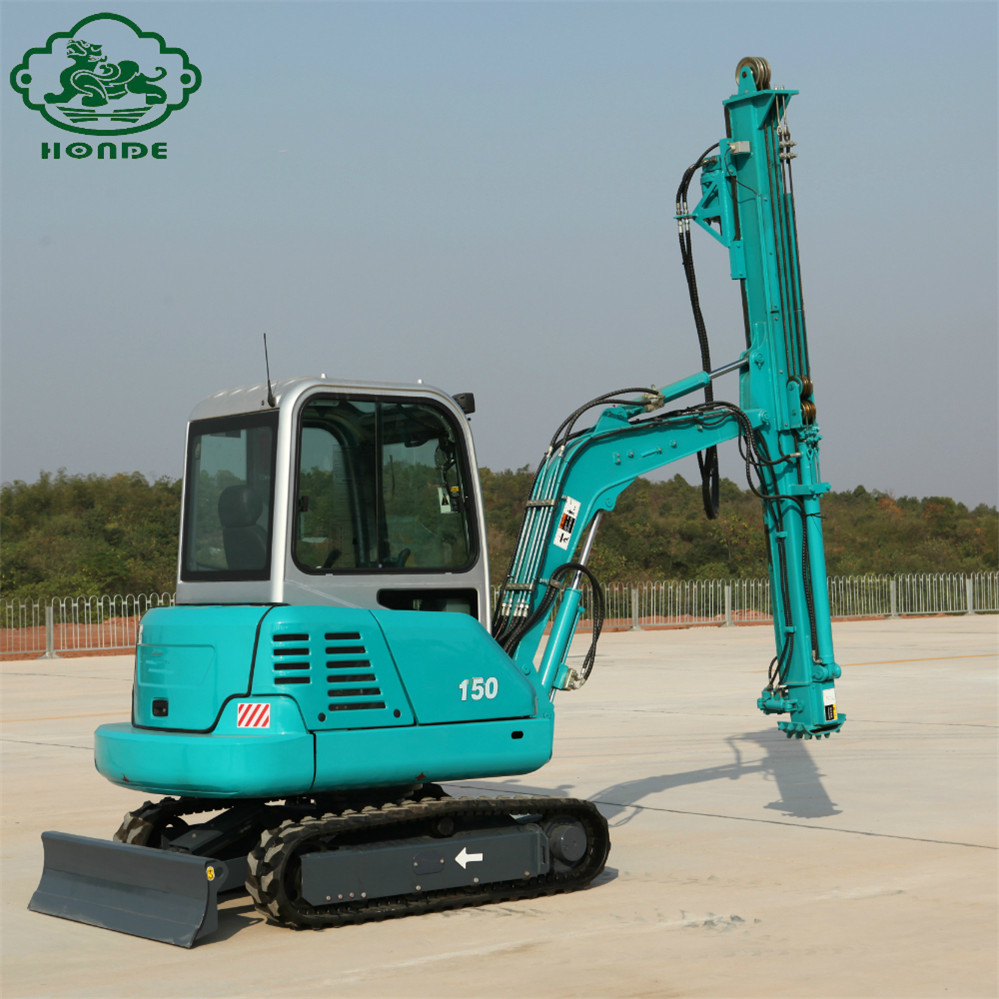

| Helical Piles Machine Display |
|
Helical Piles Machine Technical Data |
| Main Data | Unit | HD-H150 | HD-H600 | HD-H800 |
| OPERATION PARAMETER | ||||
| Pile diameter | mm |
76 |
76~90 |
76~200 |
| Pile depth | m |
1.8 |
3 | 4 |
| CHASSIS | ||||
| Track base | mm | 1430 | 2240 | 2745 |
| Gauge | mm | 1150 | 1680 | 2312 |
| Crawler width | mm | 250 | 400 | 350 |
| Ground clearance | mm | 280 | 340 | 460 |
| Blade length | mm | 1400 | 2080 | --- |
| ENGINE | ||||
| Model |
|
YANMAR-3TNV82A | V3300-DI | 4BT3.9 |
| Displacement | L | 1.331 | 3.3 | 3.9 |
| Power/Speed | kw/rpm | 16/2200 | 54.9/2600 | 75/2200 |
| Full tank capacity | L | 42.5 | 140 | 300 |
| FEED | ||||
| Length of drillrig | mm | 3400 | 4800 | 6920 |
| Feed length | mm | 2000 | 3500 | 4500 |
| Feed speed | m/s | 2 | 3 | 4 |
| Feed force | kN | 15 | 30 | 7.5 |
| TRAVELLING | ||||
| Travel speed | km/h | 4.7/2.6 | 4.5/3.1 | 3.2/2.0 |
| Traction force, max | kN | 19 | 55 | 100 |
| Hill climbing ability | ° | 20 | 25 | 25 |
| ROTARY | ||||
| Rotary speed, max | rpm | 40 | 40 | 40 |
| Rotary torque, max | N.m | 1500/3000 | 6000 | 6000 |
| DIAMENSION | ||||
| Gross weight | t | 3 | 7.8 | 16 |
|
Diamension |
m | 5.65X1.4X2.6 | 8.5X2.2X3.15 |
9.04X2.95X3.4 |

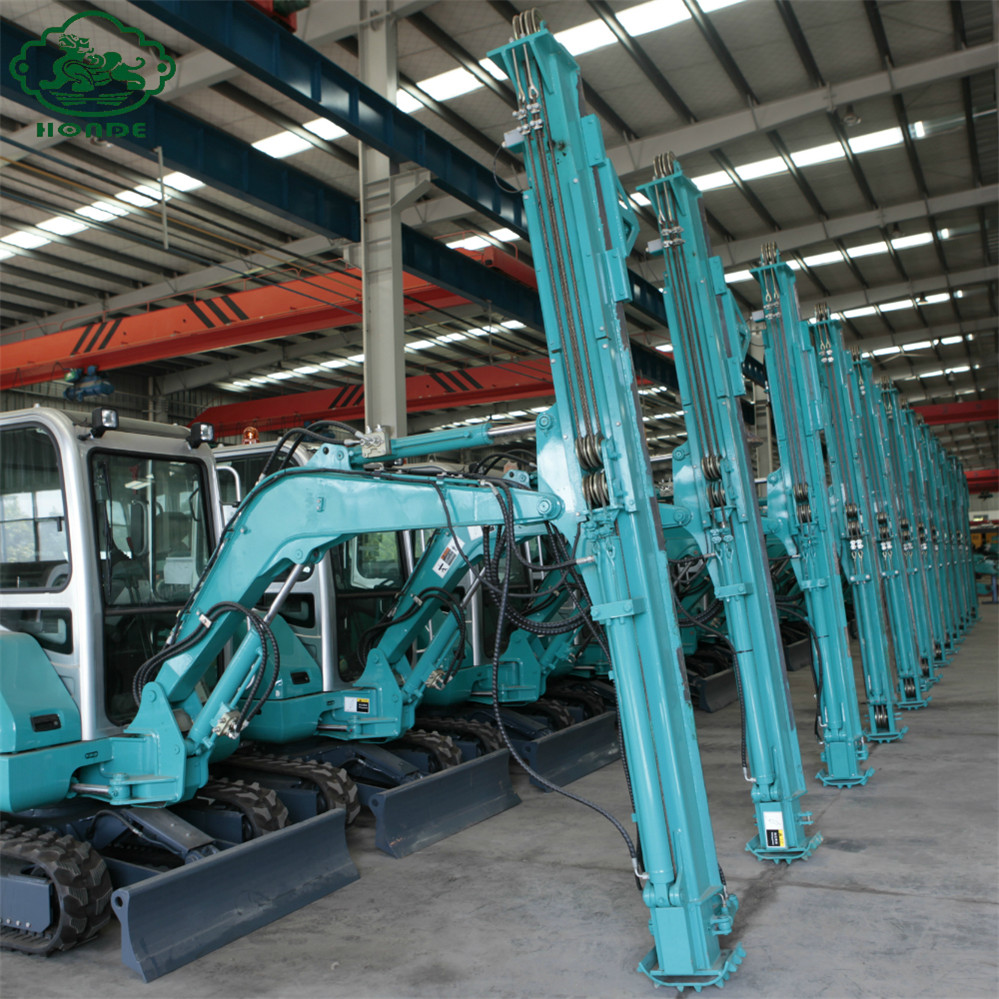

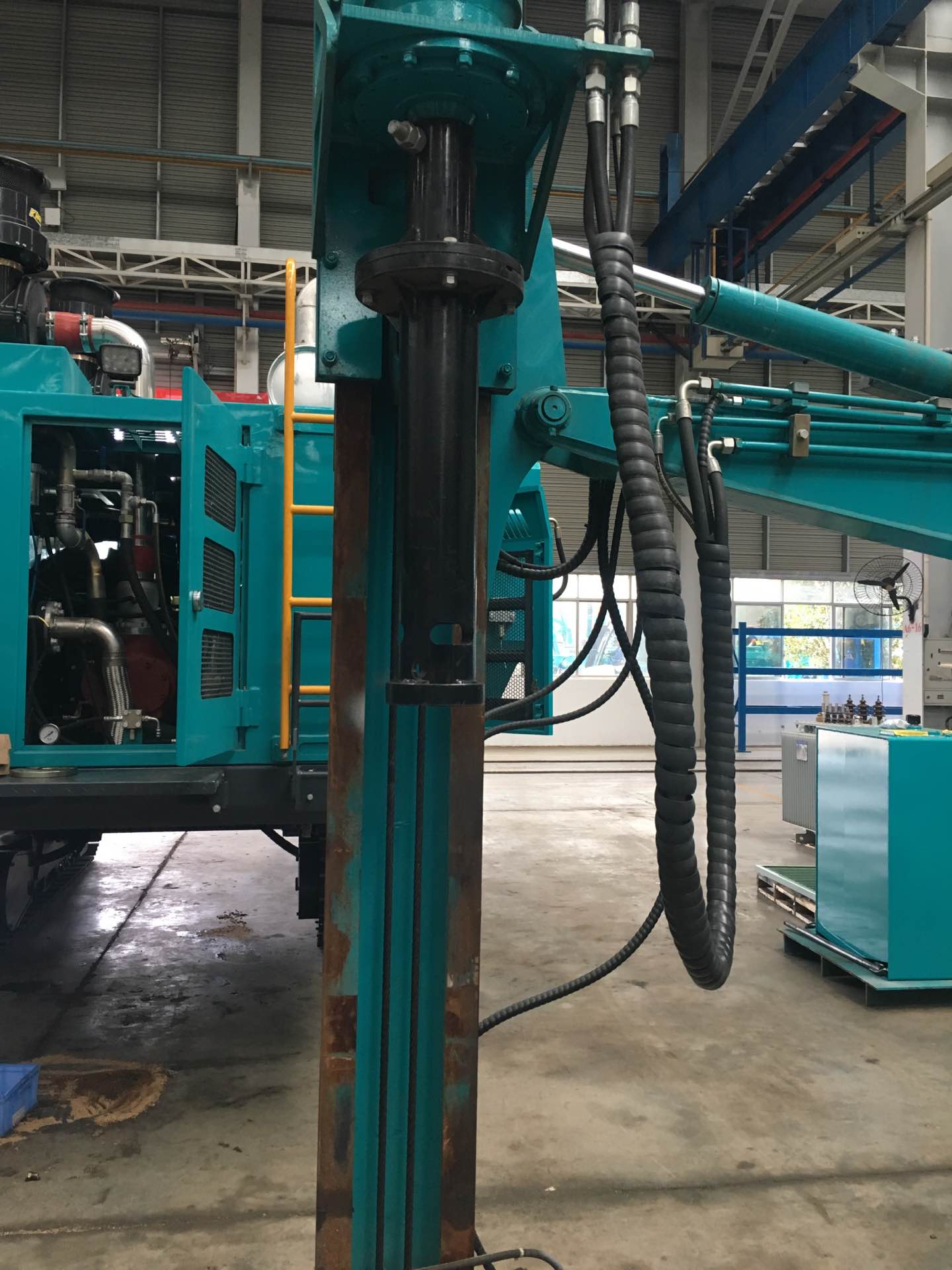

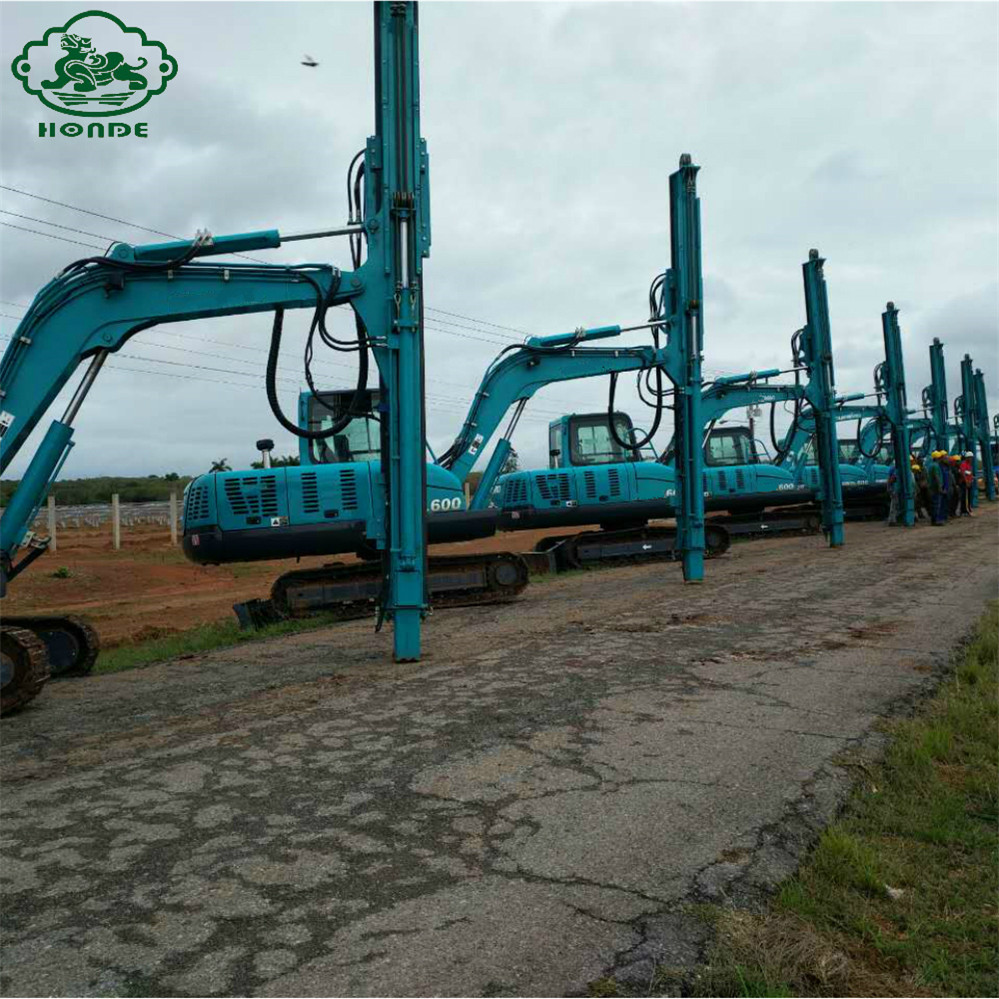

| Helical Piles Machine Show |
