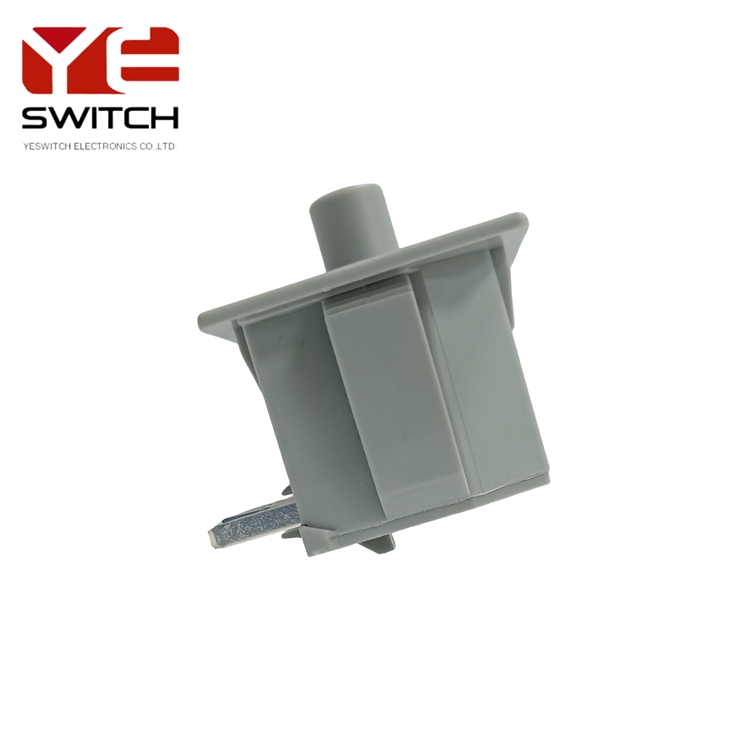

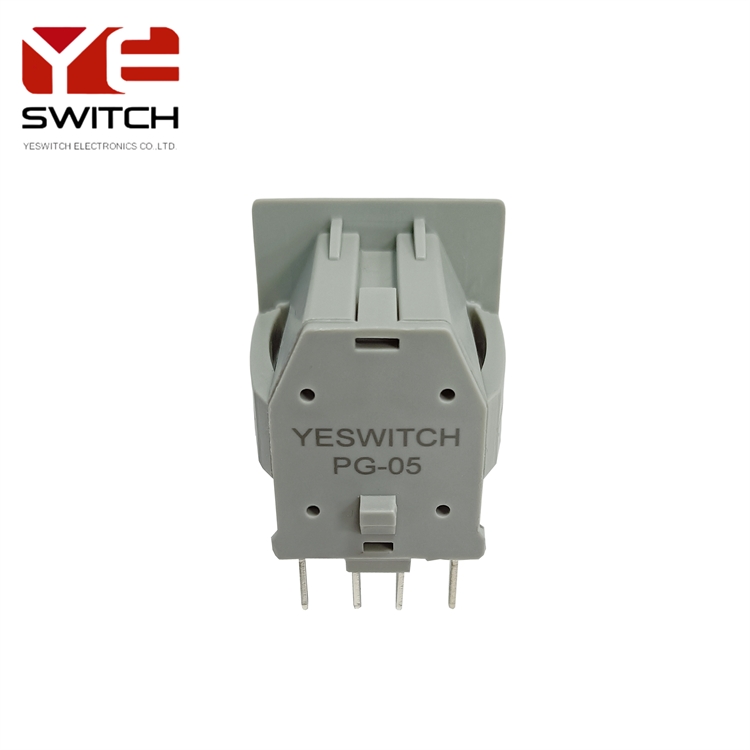

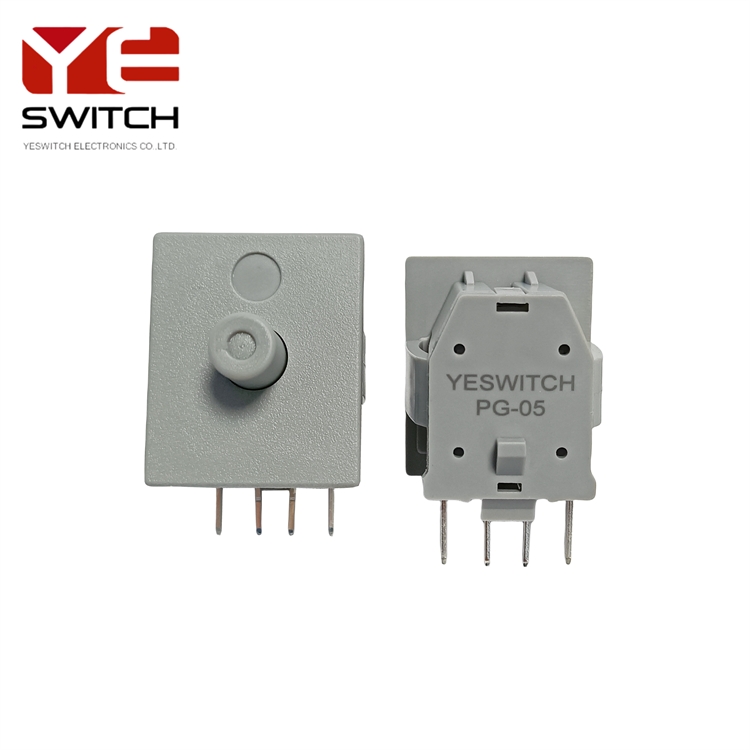

The YESWITCH PG-05 Seat Safety Switch is perfect for use in lawn mower seats, golf cart seats, forklift seats, and more.With normally closed normally closed ON-(OFF) momentary function,The push button seat switch is very flexibility in operation.

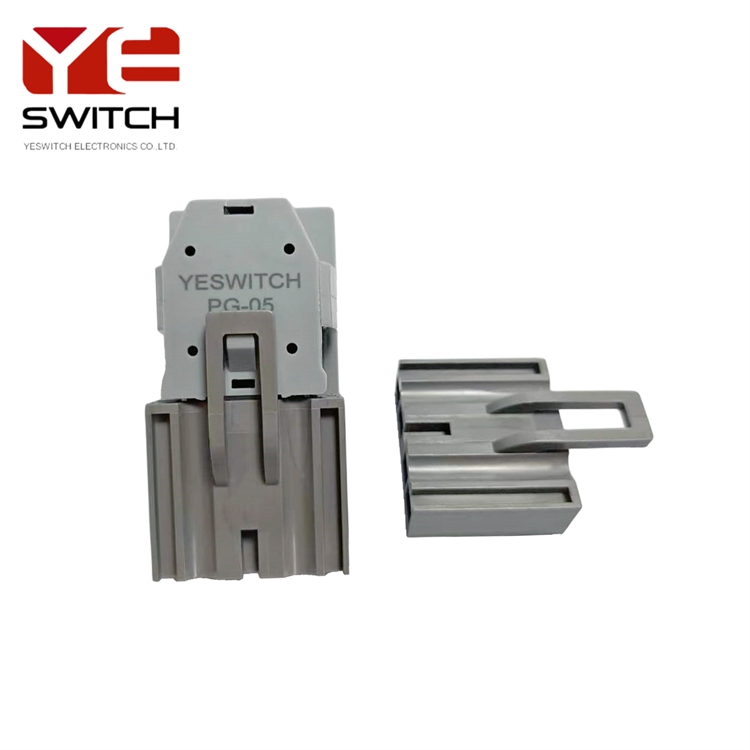

The YESWITCH PG-05 push button switch,which is a snap-in seat switch and easily to install. Simply insert the lawn mower switch into the specified slot to securely lock. This momentary plunger seat switches feature ensures a reliable and secure connection, preventing accidental disconnection during operation.

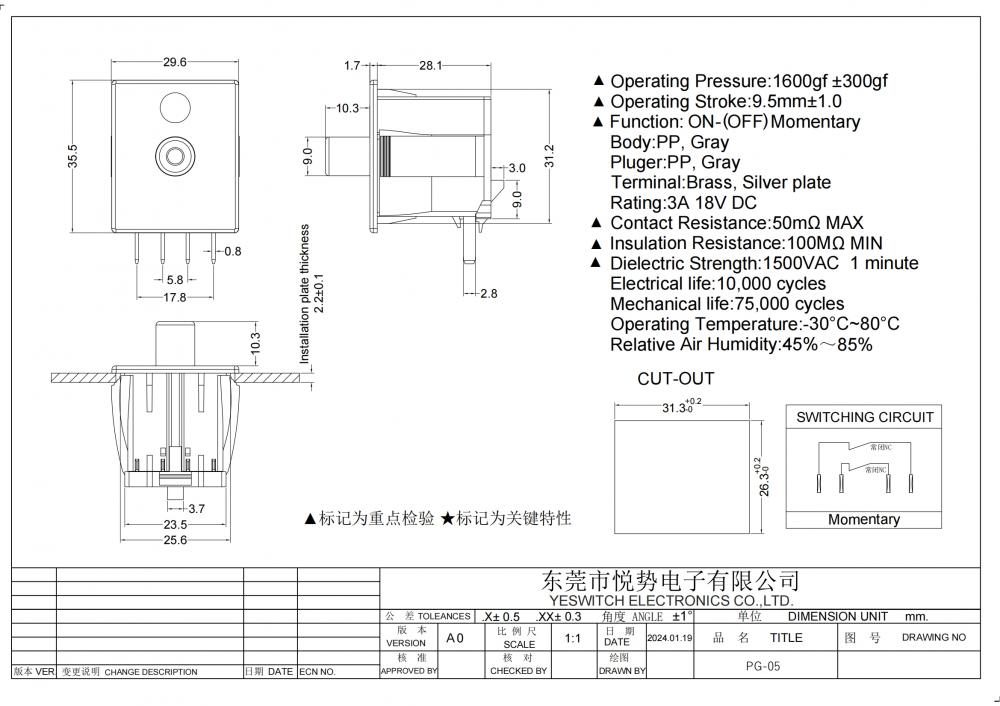

PG-05(NCNC)
Operating Pressure:1600±300gf
Operating Stroke:9.5±1.0mm
Function:ON-(OFF) Momentary
Body:PP, Gray
Plunger:PP,Gray
Terminal:Brass,Silver plate
Rating(Resistive load):3A 18V DC
Contact Resistance:50mΩMAX
Insulation Resistance:100mΩMIN
Dielectric Strength:1500VAC 1 minute
Electrical life:10,000 cycles
Mechanical life:75,000 cycles
Operating Temperature:-30~80 Degree
Relative Air Humidity:20%~85%
If you are interested in the product, contact 2bvideo.com for more information for more information
