What does CFM mean in a miniature diaphragm water pump?
In micro diaphragm pumps, CFM refers to "cubic feet per minute", which is a unit used to measure gas flow rate. It represents the volume of gas passing through the pump per unit time and is commonly used to describe the gas delivery capacity of micro diaphragm water pumps during operation.
Specifically, CFM can help users understand the gas volume that micro diaphragm water pumps can process per minute in pumping or exhaust mode. For example, a pump with a high CFM value typically means it can evacuate or fill gas faster

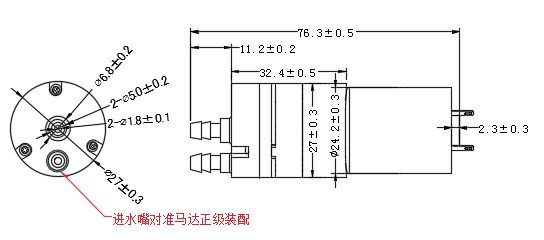

Technical Specification
| Model | DSB412-H | Voltage | dc6v 12v |
| Current | <800mA | Water flow rate | >300mL/Min |
| Life cycle | >100,000 cycles (work for 2secs and stop for 2secs as a cycle ) | Media | Air, Water |
| Product N.W | 65g | Noise | <60dB ( on a 5cm sponge, 30cm away from noise meter) |
Does CFM value have an impact on the lifespan of water pumps?
The CFM value (gas flow rate) itself does not directly affect the lifespan of micro diaphragm pumps, but factors related to their service life include workload, medium properties, and usage conditions. The following is a specific analysis:
The relationship between workload and lifespan
The lifespan of mini water pump is closely related to their working load. If the pump operates for a long time under high load, it may accelerate component wear and shorten its lifespan. A working state with a higher CFM value may mean that the pump needs to operate at a larger flow rate, which increases the load on the pump and may indirectly affect its lifespan.
The influence of medium properties
If the gas or liquid transported by the pump contains impurities or corrosive substances, it will accelerate the wear or damage of the diaphragm and other components, thereby shortening their lifespan. In this case, even if the CFM value is not high, the lifespan of the pump may still be affected
Under what conditions can a mini dc water pump deliver gas flow?
Micro diaphragm water pumps can be used to transport gas flow in the following situations:
Gas Sampling and Analysis
Micro diaphragm pumps can be used in gas sampling equipment, such as breath analyzers, environmental monitoring devices, etc., to provide stable gas flow and ensure the accuracy of sampling and analysis.
medical equipment
In the medical field, micro diaphragm pumps can be used to deliver gases, such as in respiratory equipment, anesthesia machines, etc., providing stable airflow support
If you are interested in the product, contact 2bvideo.com for more information for more information
