Product details

Introducing the latest innovation in EPS technology - the EPS Machine! This state-of-the-art pre expander machine is designed to revolutionize the way styrofoam is produced. With advanced features and cutting-edge technology, this EPS machine is the perfect solution for manufacturers looking to increase efficiency and productivity.

With a compact design and user-friendly interface, the EPS Machine is easy to operate and maintain. Its high-speed processing capabilities allow for quick and precise production of styrofoam products, making it the ideal choice for businesses of all sizes.

Equipped with the latest in foam expansion technology, the EPS Machine ensures consistent and uniform foam density, resulting in high-quality products every time. Whether you are producing packaging materials, insulation panels, or decorative items, this machine delivers superior results that will exceed your expectations.

In addition to its exceptional performance, the EPS Machine is also energy-efficient and environmentally friendly. With reduced energy consumption and minimal waste production, this machine is a sustainable choice for eco-conscious manufacturers.

Upgrade your production process with the EPS Machine and experience the benefits of increased efficiency, improved product quality, and reduced operating costs. Invest in the future of foam production with this innovative and reliable styrofoam machine.

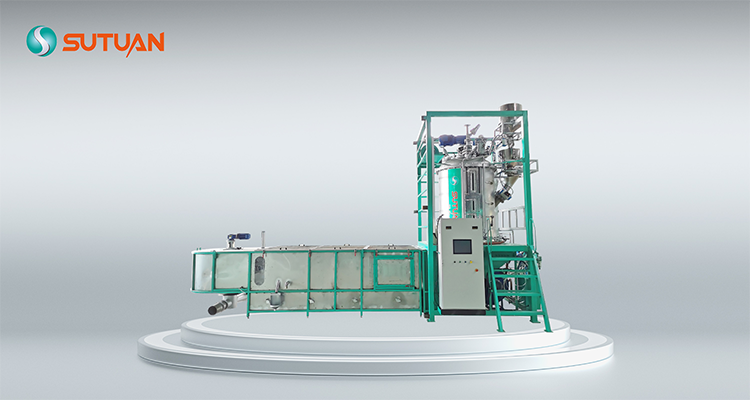

Machine Type		HIGH-END EPS PRE-EXPANDER
Mode		unit	EPS-500HA
Data
Overall Size		πt	608021003800
Weight		kg	1800
Steam Consumption		kg/cycle	5~8
Ajr Pressure		Mpa	0.6~0.8
Installed Power		k	13.2
Density Range			12-70g/1
Capacity(approx)			15g/1	360kg/h
			18g/1	430kg/h
			25g/1	600kg/h
			32g/1	680kg/h
Barrel Body	Diameter	hm	500
	Height	ππL	1094
	Volume	m³	1.0
stean	Hachine Inlet	DN	DN25
	Pressure	npa	0.6~0.8
Compressed air	Inlet Size	DN	DN40
	PresSure	npa	0.6~0.8
Sewage	Fan Port	ππt	DN100
	Sewage Qutlet	π	DN100
Agitator Motor Power		kW	4
Tolerance			<+1%
