Product details

Product Description

Surface is hot-dip plated or galvanized layer welded steel pipe. Hot-dip galvanizing can increase the corrosion resistance of steel pipes and prolong the service life. Galvanized square tube is widely used, in addition to water, gas, oil and other general low-pressure fluid pipeline, but also for the oil industry, especially offshore oil wells, pipeline, pipe with the tube, as well as the bridge bridge pile, mine tunnel support frame with the tube.

The galvanized square tube is an alloy layer produced by the reaction of the molten metal with the iron matrix, so that both the substrate and the plating layer are combined. Hot-dip galvanizing is the first pickling of the steel pipe, in order to remove the iron oxide surface of the steel pipe, pickled, through ammonium chloride or zinc chloride water solution or ammonium chloride and zinc chloride mixed aqueous solution And then into the hot-dip plating tank. Often used galvanized pipe, galvanized pipe is used in the gas, heating with the kind of iron pipe is galvanized pipe, galvanized pipe as a water pipe in the use of a few years later, the tube will produce a lot of rust, The sanitary ware, and mixed with non-smooth inner wall of the bacteria, rust caused by high levels of heavy metals in the water and thus seriously endanger human health. But the hot galvanized pipe is a very uniform coating, strong adhesion, the use of long life and other advantages.

Galvanized Square Steel Pipe 8 Galvanized Square Steel Pipe 22

Product Name	ASTM A36/ A53 MS ERW hollow steel pipe GI hot dip galvanized steel pipe EMT welded steel square pipes
Material	Q195 similar to a283 GR.B, 040a10, ss330 Q235 similar to a283 GR.D, 080a15,CS type B Q345 similar to a737 GR.B, SS400, S235JR
Grade	ASTM A500 Grade B/C,EN 10219 S235JRH/S355J2H,JIS G 3466 STKR400/STKR490,BS 1387,DIN 2395-2 ,GB/T 6728 Q195/Q235/Q345
Outer diameter	1515mm-10001000mm / 1020mm-700300mm or customized as required
Wall Thickness	0.5-30mm or customized as required
Length	5.8m-12m or customized as required
Surface Treatment	1)Black,Pre-galvanized 2)oiled,powder coating 3)Galvanized as your requirement PS:Pre galvanized steel pipe: 60-150g/m2;Hot dipped galvanized steel pipe: 200-400g/m2
End Finish	Plain/ beveled ends or threaded with sockets/coupling and plastic caps.,etc.
Technology	Hot rolled, Welded(ERW)
Zinc Coating	30-600g/m2
Shape	Square/Rectangular
Inspection	With Chemical Composition and Mechanical Properties Testing; Hydrostatic Test, Dimensional and Visual Inspection, With Nondestructive Inspection
Packaging	Packing in bundle with steel strips; with seaworthy package at the end; could be done with your requirement.
Processing service	Bending, Welding, Decoiling, Punching, Cutting
Transport package	Standard sea export packing or as required
Payment terms	T/T,L/C
Loading port	Tianjin/Qingdao/Shanghai Port
Application	construction pipe, machine structure pipe, agriculture equipment pipe, water and gas pipe, Greenhouse pipe, Building material, Furniture tube, Low pressure fluid tube, etc
Export market	Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc
Others	1:Special design available according to requirement 2:Pipe can be necked dowm, punching hole on pipe wall. 3:Pipe fittings, elbows are available. 4.All production process are under the ISO9001:2000 strictly

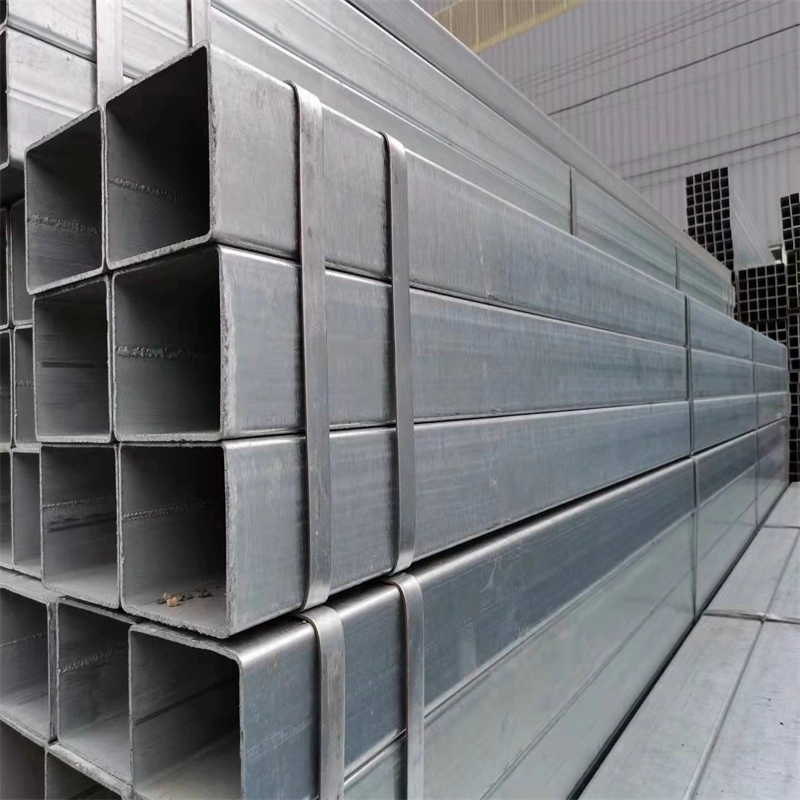

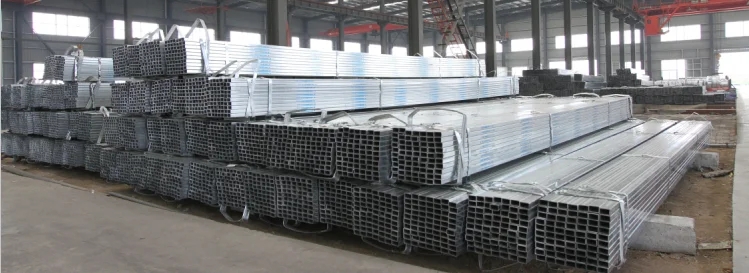

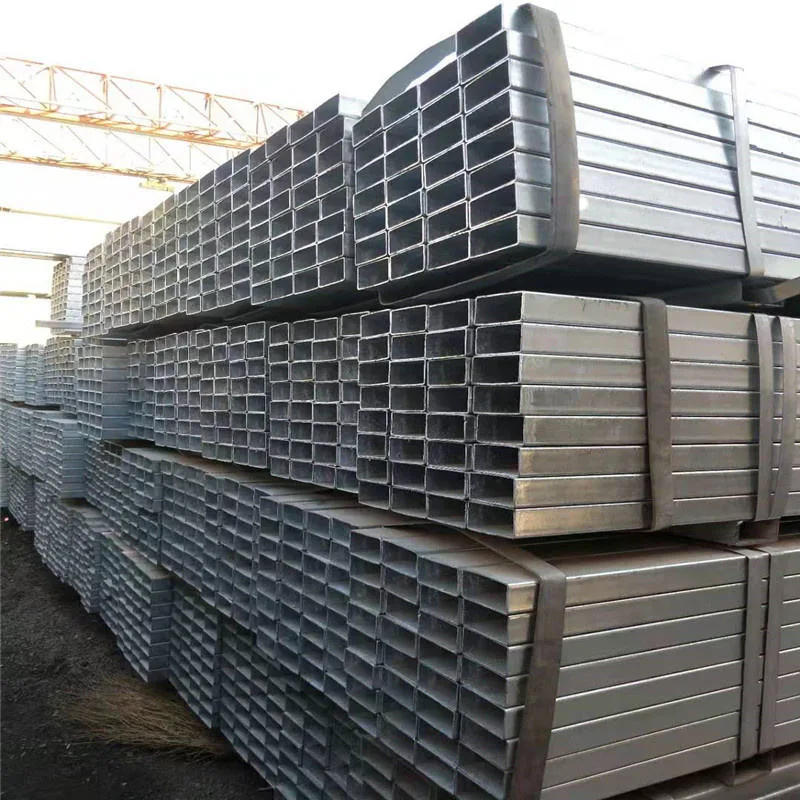

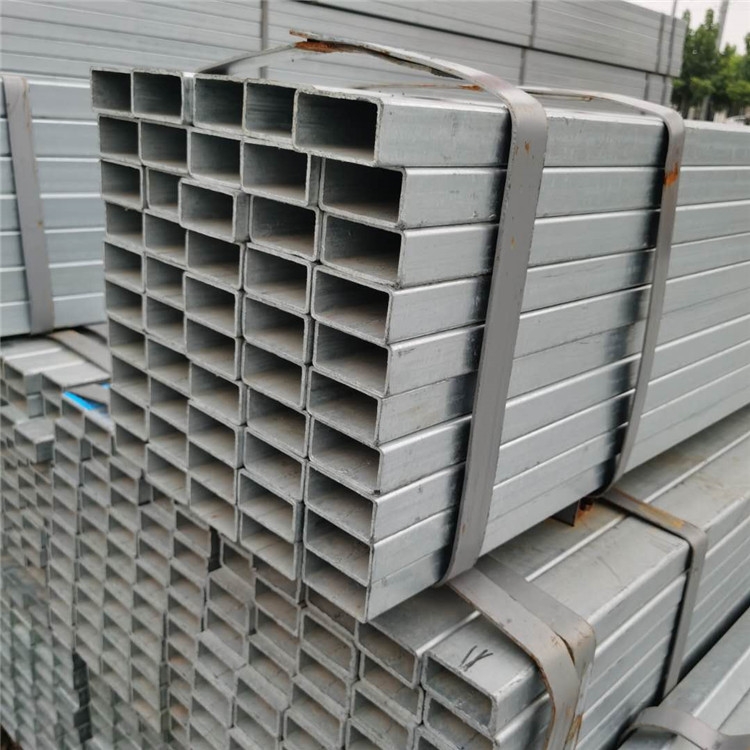

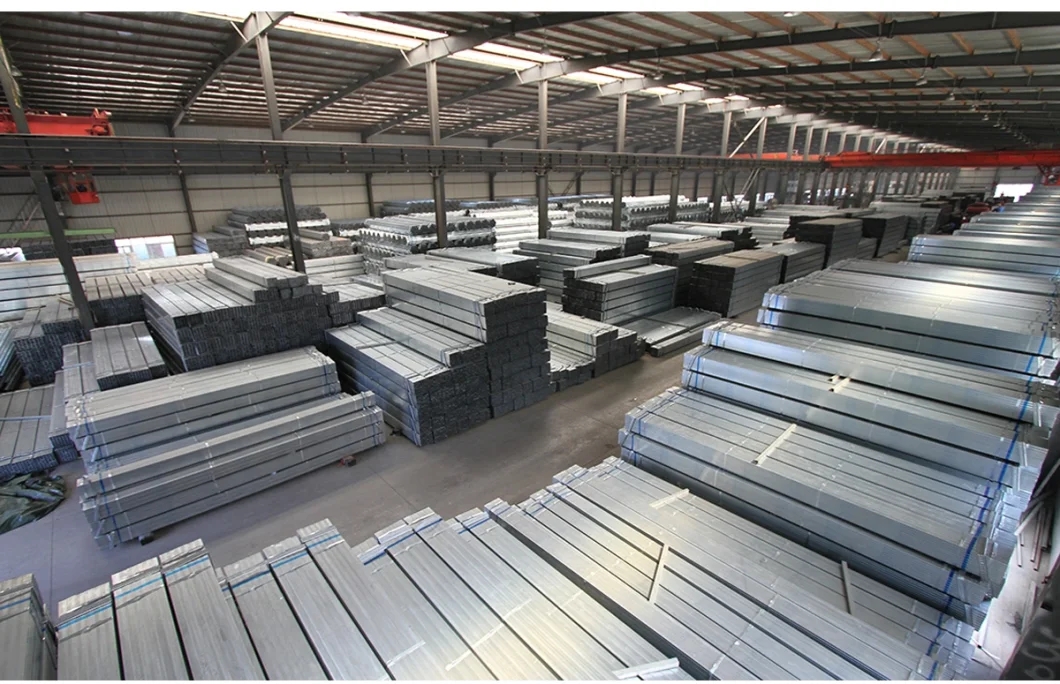

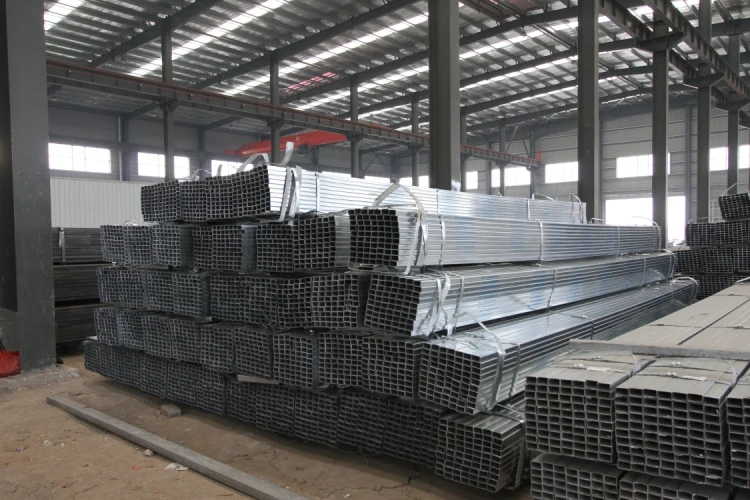

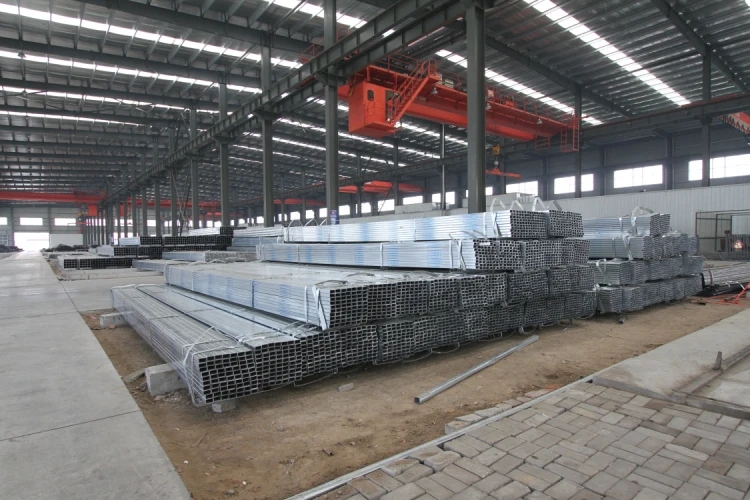

Product Show

Packing & Transportation

Packing
1.Inner Packing:Packing in bundle with steel strips; with seaworthy package at the end; could be done with your requirement.
2.Outer Packing:Wrapped with waterproof colth.
3.We also can do as customers' requirements.
Shipping
1.Shipping by containers(20' or 40' container)
2.Shipping by bulk ship.
Delivery: products in stock can be prepare within 3 days after receiving deposit.
products as your order can be finished within 15 days under 500 tons.

Trading terms

Payment Terms	T/T, L/C, Western Union, Trade Assurance, Cash or as required
Price Terms	FOB, CRF, CIF, EXW
Delivery Time	Generally it is 5-10 days if the goods are in stock. or it is 30 days if the goods are not in stock, it is according to quantity.
Packing	1.Inner Packing:Packing in bundle with steel strips; with seaworthy package at the end; could be done with your requirement. 2.Outer Packing:Wrapped with waterproof colth. 3.We also can do as customers' requirements.
Shipping Details	LCL/FCL/By bulk
Container Info	20ft GP: L5.8m * W2.13m * H2.18m , about 27 CBM, Loading Max.26 Tons 40ft GP: L11.8m * W2.13m * H2.18m, about 54 CBM, Loading Max.26 Tons 40ft HG: L11.8m * W2.13m * H2.72m, about 68 CBM, Loading Max.26 Tons
