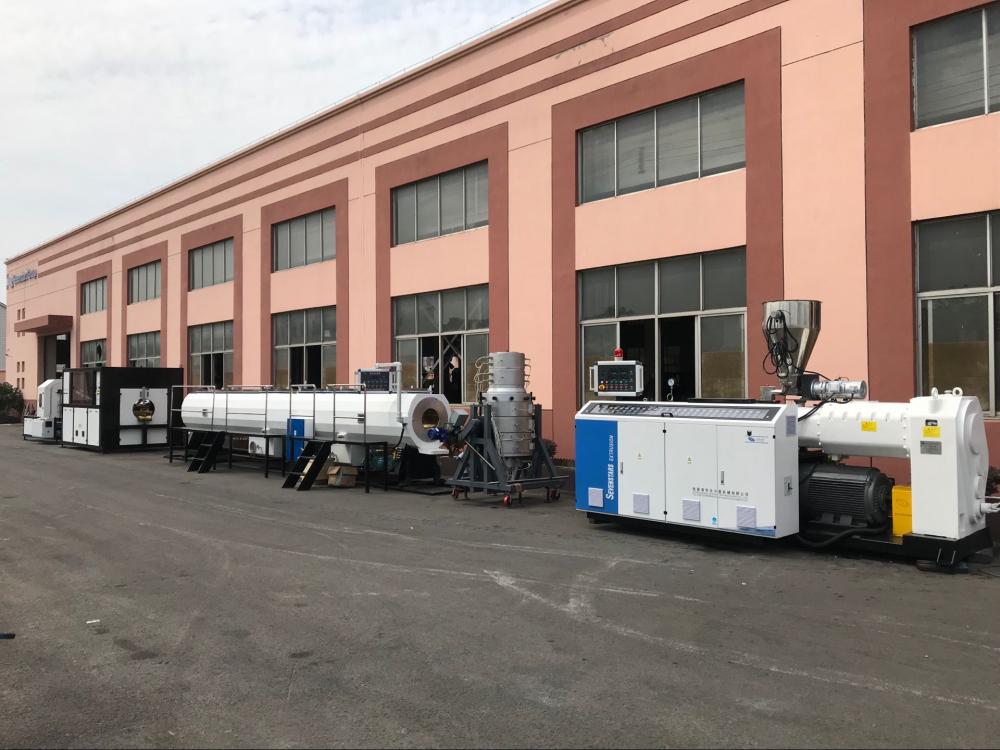

Big PVC pipe extrusion line with good price
1. Process flow:
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould → vacuum calibration machine → haul off machine → cutting machine → stacker or automatic belling machine
PVC pipe plastic extruder includes:

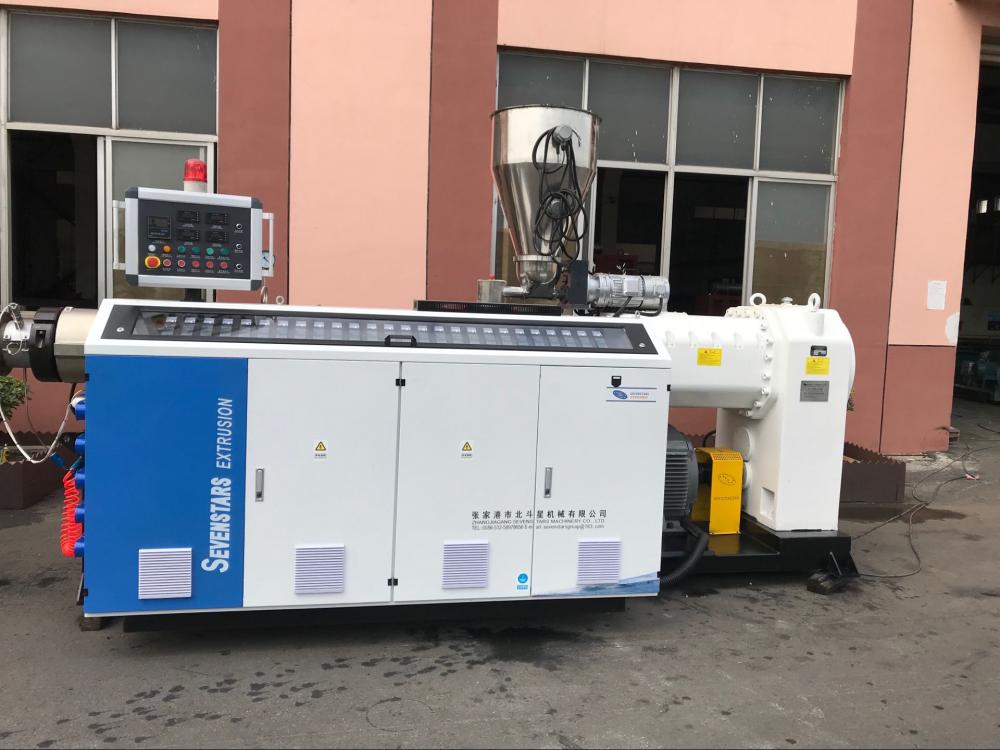

1.Conical twin screw extruder
2.Die head. Due to the diameter, it can be single, double and four die head

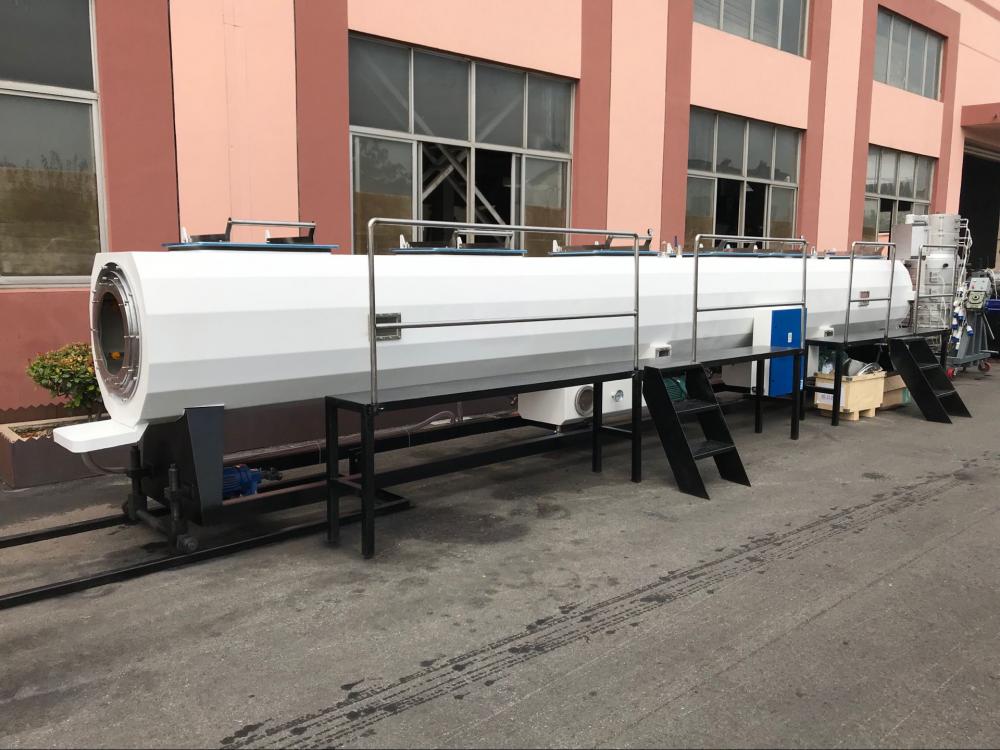

3.Vacuum tank: due to diameter, it can be designing of single, double vacuum chambers
4.Haul-offs: due to diameter, it can be designing of double, three, four, six, eight caterpillars

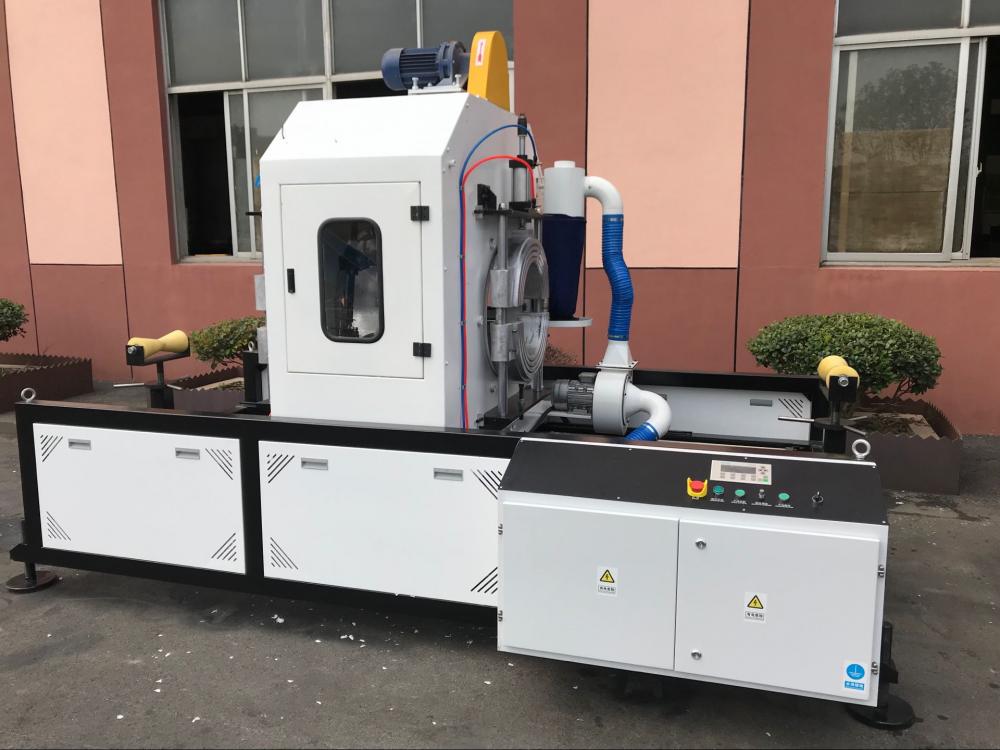

5.Cutter: due to diameter, it can be designing of saw cutter or planetary cutter
6.stacker or automatic belling machine
When you start this business, you also need some auxilairy machines, such as: plastic pulverizer.
PVC mixer is also needed. pipe plastic crusher.
2. Main parameter of pvc pipe plastic machine
|
Mode |
Pipe range (mm) |
extruders |
Max. output (kg/h) |
Max. speed (m/min) |
Total power (kw) |
Line length (m) |
|
PVC-50x2 |
16-50 |
SJSZ51/105 |
150 |
6m |
60w |
20m |
|
PVC-63 |
16-63 |
SJSZ45/90 |
120 |
10m |
45w |
20m |
|
PVC-110 |
50-110 |
SJSZ51/105 |
150 |
6m |
60w |
24m |
|
PVC-160 |
63-160 |
SJSZ65/132 |
300 |
5m |
100w |
24m |
|
PVC-250 |
110-250 |
SJSZ80/156 |
400 |
3.5m |
120w |
28m |
|
PVC-315 |
160-315 |
SJSZ 80/156 |
400 |
3m |
160w |
28m |
|
PVC-450 |
250-450 |
SJSZ 92/188 |
700 |
1.5m |
200w |
36m |
|
PVC-630 |
315-630 |
SJSZ92/188 |
700 |
0.9 |
230kw |
36m |
