Old Version DMF-Z-62S DMF-Y-62S Pneumatic Valve Diaphragm For Dust Collector Air Valve Pneumatic Actuator 2 1/2 Inch FKM
DMF pulse valve diaphragm is the compressed air "switch" of the dust cleaning and injection system of the pulse bag filter. Under the control of the output signal of the pulse injection controller, the filter bags are injected one by one (chamber) to clean the dust, so as to keep the resistance of the dust remover within the set range, so as to ensure the processing capacity and dust collection efficiency of the dust remover. DMF electromagnetic pulse valve is a right angle valve, with an angle of 90 ° between the inlet and outlet, which is suitable for the installation and connection of the air bag and the dust remover spray pipe. The air flow is smooth, which can provide the ash cleaning air pulse with the required durability and ejection effect. The electromagnetic pulse valve controls the opening and closing of the unloading hole of the valve body according to the electrical signal. When the valve body is unloaded, the pressure gas in the back cavity of the valve is discharged. The pressure gas in the front cavity of the valve is throttled by the negative pressure hole on the diaphragm, the diaphragm is lifted, and the pulse valve carries out the injection. When the valve body stops unloading, the pressure gas quickly fills the rear chamber of the valve through the damping hole. Because of the difference of the stress area on both sides of the diaphragm on the valve body, the gas force in the rear chamber of the valve is large, the diaphragm can reliably close the valve's nozzle, and the pulse valve stops blowing. The electric signal is timed in millisecond. When the pulse valve is opened, strong impact air flow will be generated, so as to realize instantaneous blowing

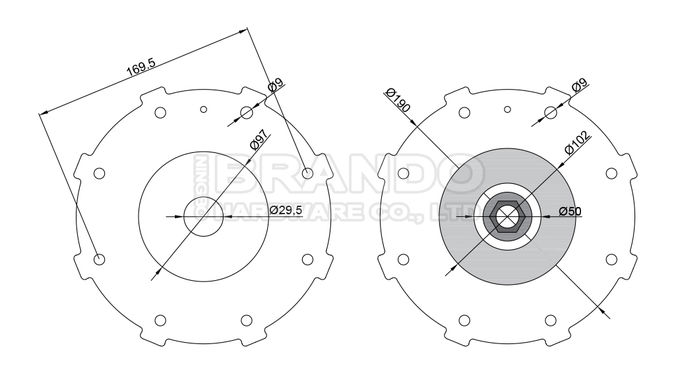

Main dimension of BFEC Replacement Diaphragm Repair Kits:
Available Models of SBFEC Type DMF/MF Diaphragm Valve Repair Kits:
|
Ordering Code
|
Fitted Valve Code
|
Port Size
|
|
DTY
|
MF/DMF-T-25S, MF/DMF-T-40S, MF/DMF-T-50S, MF/DMF-T-62S,
MF/DMF-ZM-40S, MF/DMF-Y-40S, MF/DMF-Y-50S, MF/DMF-Y-62S,
MF/DMF-Y-76S, MF/DMF-YA-76S, MF/DMF-YB-76S, MF/DMF-Y-102S,
MF/DMF-Y-102SA, MF/DMF-Y-102SE, MF/DMF-ZF-40S, MF/DMF-Z-40S,
MF/DMF-Z-50S, MF/DMF-Z-62S, MF/DMF-Z-76S, MF/DMF-Z-102S
|
Tip: Secondary Diaphragm
|
|
D20A
|
DMF-Z-20, MF-Z-20, DMF-ZM-20, MF-ZM-20
|
3/4''
|
|
D25
|
DMF-Z-25, MF-Z-25, DMF-ZM-25, MF-ZM-25,
DMF-ZF-25, MF-ZF-25, DMF-Y-25, MF-Y-25,
DMF-T-20, MF-T-20
|
3/4'' & 1''
|
|
D40
|
DMF-Z-40S, MF-Z-40S, DMF-Y-40S, MF-Y-40S,
DMF-ZF-40S, MF-ZF-40S, DMF-ZM-40S, MF-ZM-40S,
DMF-T-25S, MF-T-25S
|
1'' & 1-1/2''
|
|
D50
|
DMF-Z-50S, MF-Z-50S, DMF-Y-50S, MF-Y-50S,
DMF-T-50S, MF-T-50S
|
2''
|
|
D62
|
DMF-Z-62S, MF-Z-62S, DMF-Y-62S, MF-Y-62S
|
2-1/2''
|
|
D76
|
DMF-Z-76S, MF-Z-76S, DMF-Y-76S, MF-Y-76S
|
3''
|
|
D102
|
DMF-Z-102S, MF-Z-102S, DMF-Y-102S, MF-Y-102S
|
4''
|
|
D102A
|
DMF-Y-102SA, MF-Y-102SA
|
4''
|
|
DZL-20B
|
DMF-ZL-B, MF-ZL-B
|
3/4''
|
Tips: The valves mentioned, related solenoid coils and armature assembly are all supplied.

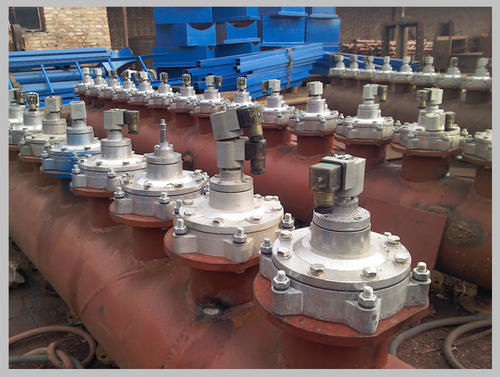

Application Examples:
YouTube video of SBFEC Type NBR Diaphragm Valve Repair Kit:

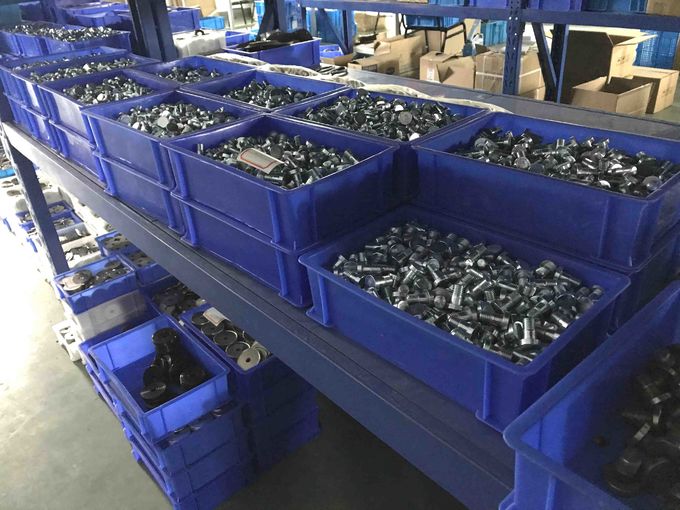

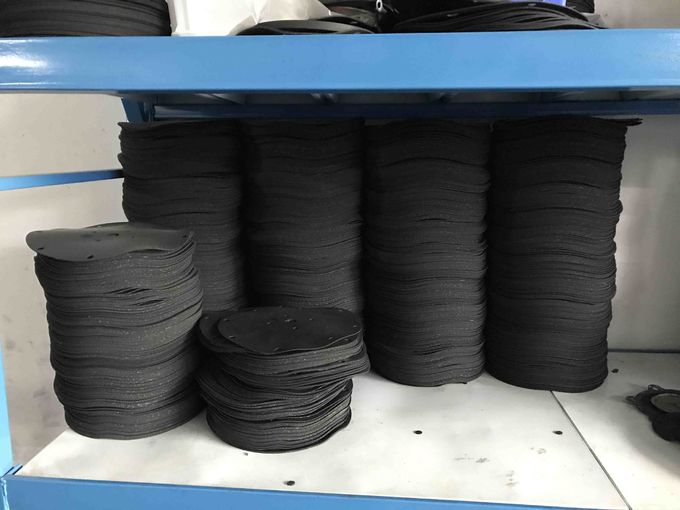

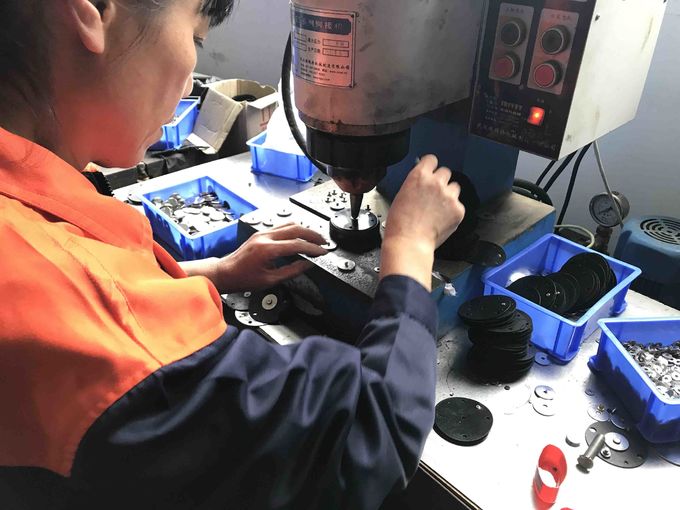

Factory Production Pictures of Solenoid Valve Diaphragm Kits:
